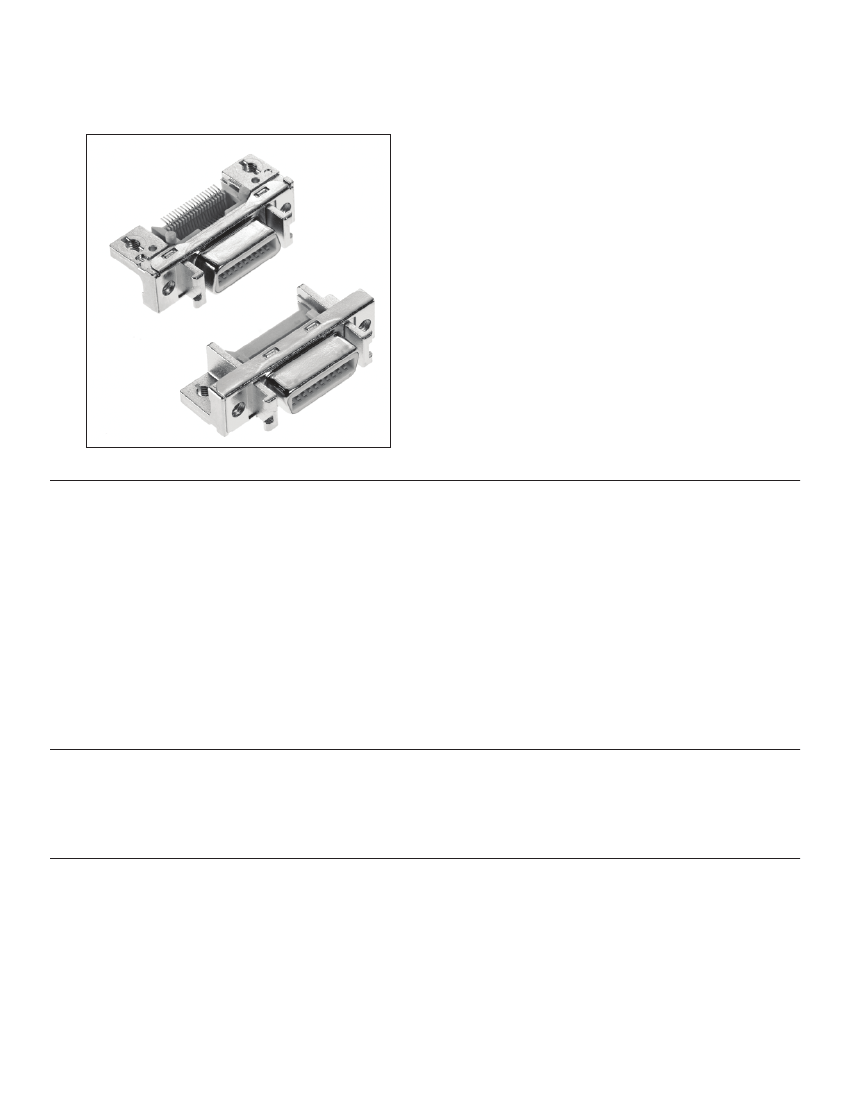

.050” Surface Mount Right Angle Die-Cast Receptacle – Shielded
102 Series
• Rugged die-cast body resists tipping during automated
soldering operations
• Wiper-on-wiper contact for reliable repetitive plugging
• Ultra-low signal skew for high data rate transmission
• Interface latch design for connection stability
• Suitable for thumbscrew attach (see TS-0142 for
available hardware)
• MDR digital LCD interface as a 20 or 26 contact
connector
• Camera Link
®
interface as a 26 contact connector
• Contacts: 14, 20, 26, 40 and 50
•
See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3mconnector.com
for compliance information
Date Modified: October 27, 2010
TS‑2242‑B
Sheet 1 of 3
Physical
Body Material:
Flammability:
Alignment Plate Material:
Flammability:
Contact Material:
Underplating:
Wiping Area Plating:
Solder Tail Plating:
Shroud Material:
Plating:
Lock Stand Material:
Plating:
Glass Reinforced Polyester (PCT), Natural Color
UL 94V-0
LCP, Natural Color
UL 94V-0
Copper Alloy
80 µ” [2 µm] Nickel
See Ordering Information
Flash Gold over Nickel (RIA E1 & C1 apply)
Steel
Nickel
Zinc Alloy
Nickel
Electrical
Current Rating:
1 A
Insulation Resistance:
>5 x 10
8
Ω
at 500 V
DC
Withstanding Voltage:
500 V
rms
for 1 minute
Environmental
Temperature Rating:
-55 °C to +85 °C
Process Rating:
240°C- 250°C peak temperature for less than 10 secs., 220°C soldering for 30 – 60 secs. after
150°C - 180°C preheat for 90 –120 secs. (reflow two times)
UL File No.: E68080
3
Interconnect Solutions
http://www.3Mconnector.com
Camera Link
®
is a trademark of Automated Imaging Assocition
3M is a trademark of the 3M Company
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Connectors
.050” Surface Mount Right Angle Die-Cast Receptacle — Shielded
DIM. A
DIM. B
DIM. C
0.635
[.025]
M2.5
0.25
[.010]
T
TAIL COPLANARITY
0.00 TO 0.10
9.35
[.368]
9.1
[.36]
MARK PIN
MARK PIN
102 Series
1.20
[.047]
11.5
[.45]
2.9
[.11]
16.7
[.66]
4.8
[.19]
3.5
[.14]
DIM. D
DIM. E
T
7.2
[.28]
T-T
15°
9.1
[.36]
0.3
[.01]
N
1.9
[.07]
FLAT FIXTURE
SURFACE
MARK PIN
1.27±0.10
[.050±0.004]
DETAIL-N
DIM. G
DIM. H
Contact
Quantity
14
20
26
40
50
DIM A
29.5
(1.16)
33.3
(1.31)
37.2
(1.46)
46.1
(1.81)
52.4
(2.06)
DIM B
23.64
(.931)
27.45
(1.081)
31.26
(1.231)
40.15
(1.581)
46.50
(1.831)
DIM C
8.255
(.325)
12.065
(.475)
15.875
(.625)
24.765
(.975)
31.115
(1.225)
DIM D
17.1
(.67)
21.0
(.83)
24.8
(.98)
33.7
(1.33)
40.0
(1.57)
DIM E
19.5
(.77)
23.4
(.92)
27.2
(1.07)
36.1
(1.42)
42.4
(1.67)
DIM F
12.6
(.50)
16.4
(.65)
20.2
(.80)
29.1
(1.15)
35.5
(1.40)
DIM G
7.62
(.300)
11.43
(.450)
15.24
(.600)
24.13
(.950)
30.48
(1.200)
DIM H
12.70
(.500)
16.51
(.650)
20.32
(.800)
29.21
(1.150)
35.56
(1.400)
0.00 TO 0.10
[.000 TO .004]
M2.5
4.8
[.19]
DIM. F
MARK PIN
2.8
[.11]
6.3
[.25]
4.75
[.187]
10.0
[.39]
mm
(inch)
Tolerance Unless Noted
.0
mm
±.3
.00
±.15
.000
±.150
( ) Dimensions used for
Reference Only
TS‑2242‑B
Sheet 2 of 3
Ordering Information
Contact Quantity
See Table
102XX-1S10 PX
Wiping Area Plating:
L = 8 µ” min. Gold with Lubricant Treatment
E = 20 µ” min. Gold
3
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of the 3M Company
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Connectors
.050” Surface Mount Right Angle Die-Cast Receptacle — Shielded
7.24
[.285]
Ø2.80+0.10
-0.00
Ø.110+.004
-.000
2.2225 REF
[.0875]
102 Series
6.74
[.265]
3.84±0.10
[.151±.004]
3.00
[.118]
4.75
[.187]
2.00
[.079]
[
]
MARK PIN
MARK PIN
1.00
[.039]
0.400±0.02
[.016±.001]
0.635±0.02
[.025±.001]
4.20
[.165]
DIM. K
DIM. M
DIM. L
DIM. J
[
Ø2.00+0.10
-0.00
Ø.079+.004
-.000
]
EDGE OF PWB
PATTERN
PROHIBITION AREA
"LOCK STAND"
MOUNTING AREA
ONLY SOLDER PAD
0.50 TYP
[.020]
7.20±0.15
[.283±.006]
2.90 REF
[.114]
12.00
[.47]
4.94 REF
[.195]
7.84±0.15
[.309±.006]
R1.50
[R.059]
DIM. P
DIM. N
8.10±0.1
[.319±.004]
Recommended Board Layout
Viewed from Connector Side
Recommended Panel Cutout
Panel Thickness: 2.0 mm (.08 inch) Max.
Contact
Quantity
14
20
26
40
50
DIM J
29.5
(1.16)
33.3
(1.31)
37.2
(1.46)
46.1
(1.81)
52.4
(2.06)
DIM K
23.64
(.931)
27.45
(1.081)
31.26
(1.231)
40.15
(1.581)
46.50
(1.831)
DIM L
12.70
(.500)
16.51
(.650)
20.32
(.800)
29.21
(1.150)
35.56
(1.400)
DIM M
8.255
(.325)
12.065
(.475)
15.875
(.625)
24.765
(.975)
31.115
(1.225)
DIM N
19.9
(.78)
23.8
(.94)
27.6
(1.09)
36.5
(1.44)
42.8
(1.69)
DIM P
23.64 .13
(.931)
27.45 .13
(1.081)
31.26 .13
(1.231)
40.15 .13
(1.581)
46.50 .13
(1.831)
mm
(inch)
Tolerance Unless Noted
.0
mm
±.3
.00
±.05
.000
±.050
( ) Dimensions used for
Reference Only
Note: The connector should be mounted to the panel and printed circuit board with screws. See TS-0142 for mounting hardware.
TS‑2242‑B
Sheet 3 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information call
800-225-5373
