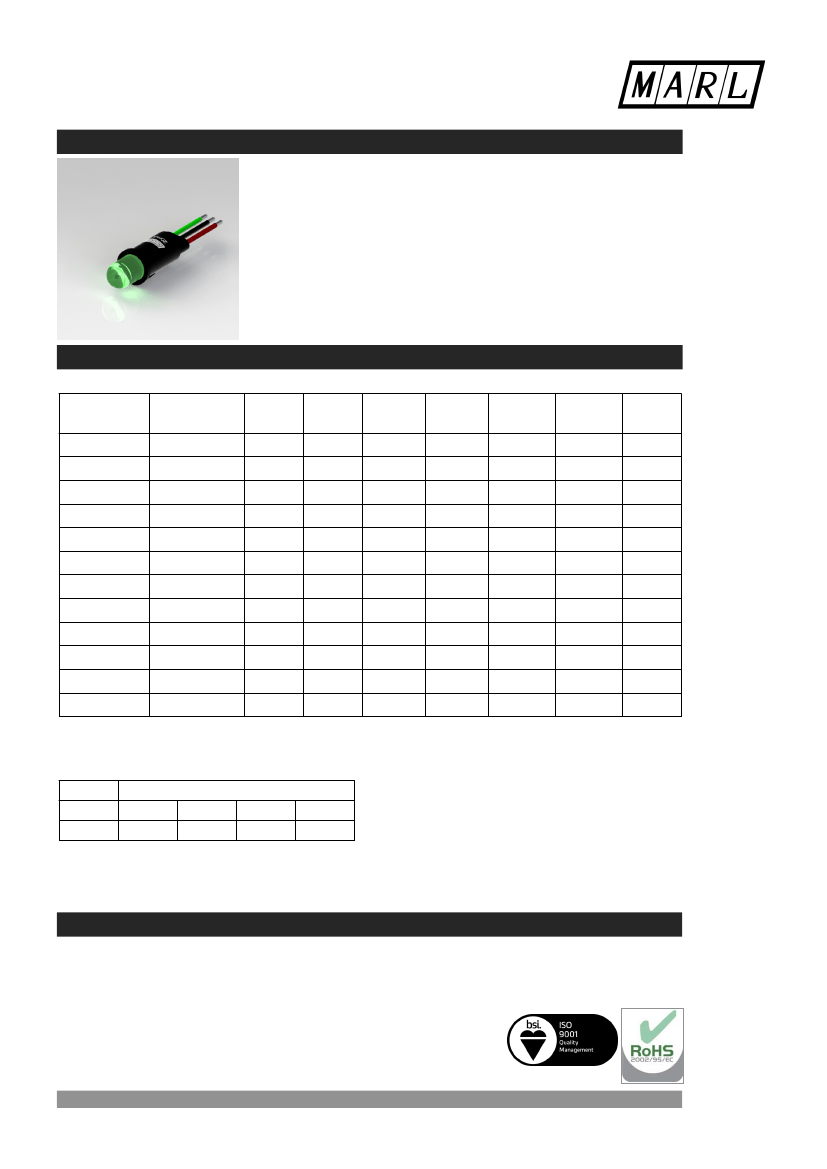

352 series
features
• Ø6.35mm mounting
• Snap In
• Colour diffused or water clear lens options
• Supplied with 150mm flying lead terminations as standard
• Sealed to IP40
• 352-535-04 can be used as a tri-colour device
• Wire colour: Red - anode, Black - cathode
• Pack Quantity = 20 Pieces
specifications
Ordering information and typical characteristics (Ta = 25°C)
Part
Number
352-505-04
352-511-04
352-514-04
352-535-04
352-581-20
352-582-20
352-583-20
352-501-04
352-521-04
352-532-04
352-930-04
352-997-04
Colour
Red
Yellow
Green
Red/Green
Red
Yellow
Green
Red
Yellow
Green
Blue
White
Voltage
Vac/dc
2.0 Vdc
2.1 Vdc
2.2 Vdc
2.0/2.2 Vdc
5/6 Vdc
5/6 Vdc
5/6 Vdc
1.85 Vdc
2.2 Vdc
3.5 Vdc
3.6 Vdc
3.6 Vdc
Current
DC
(mA)
20
20
20
20
13
13
11.5
20
20
20
20
20
Luminous
Intensity
(mcd)
30
63
35
60/50
45
25
40
2800
6100
34700
9870
27000
Wave
Length
(nm)
625
590
565
627/565
627
590
565
660
580-590
525
468
* See below
Operating
Temp.
(°C)
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +70
-40 - +70
-40 - +70
-40 - +85
-40 - +80
-30 - +85
-30 - +85
-30 - +85
Storage
Temp.
(°C)
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +85
-40 - +120
-40 - +100
-40 - +100
-40 - +100
De-rating
Graphs
B
B
C
E
-
-
-
A
D
D
U
I
997
x
y
*Typical emission colour White
0.4255
0.4000
0.4390
0.4310
0.4680
0.4385
0.4519
0.4086
- Intensities (lv) and colour shades of white (x, y co-ordinates) may vary between LEDs within a batch
- Please note this product is available in different voltages.
- Products must be de-rated according to the de-rating information. Each de-rating graph refers to
specific LEDs. Please refer to graphs on page 3.
- Luminous intensity is measured at 20mA on a discrete LED unless otherwise stated.
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the
intention of providing information, which must not be copied or released to a third party without prior
written consent from marl international limited. the information provided does not constitute part of any
order or contract and should not be regarded as a representation relating to either products or service. no
responsibility can be assumed for inaccuracies or printing errors. marl international limited reserve the right
to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 352 - version 2012-12-06-113702
page 1 of 6
plastic panel lamps
352 series

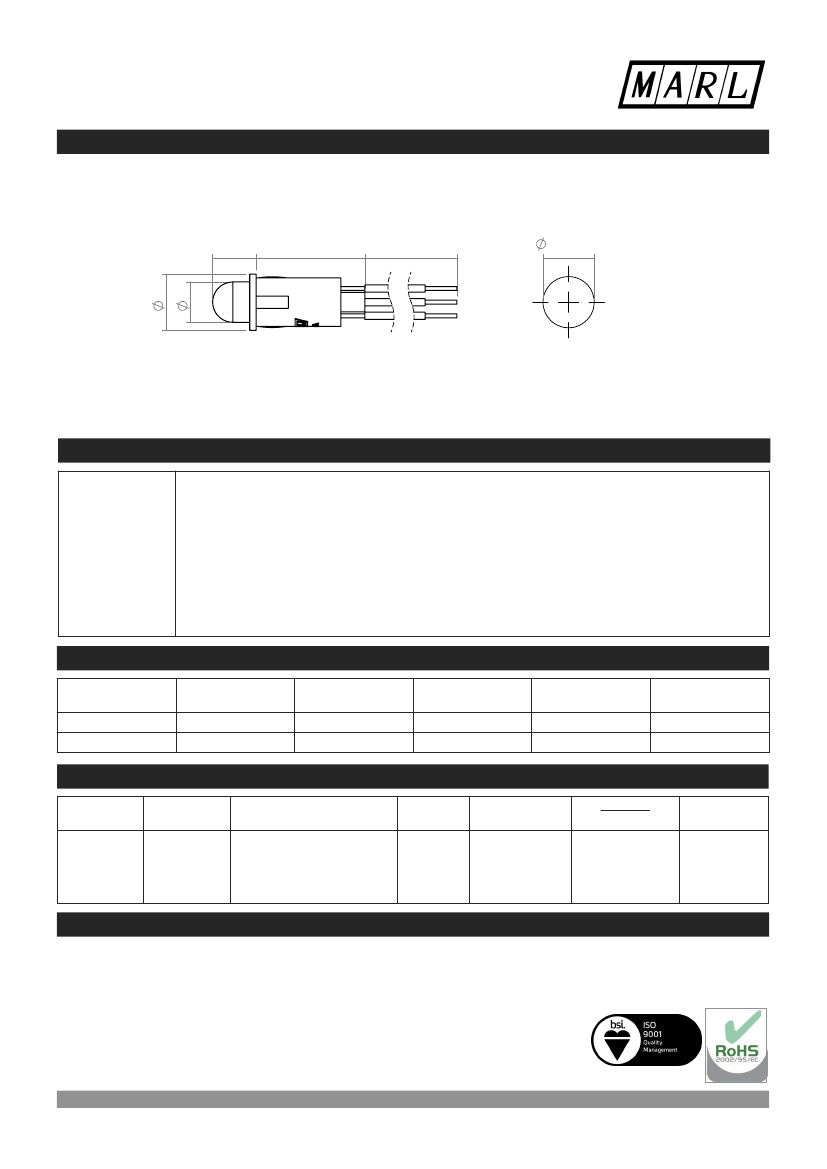

technical data
5.40
7
5
13.50
150
+0.1
6.35 0
Mounting Hole
Anode termination indicated by long tag.
Mountin hole to be clean and burr free.
Dimensions in mm (typical)
Not to scale
housing material
Body
Panel washer
Termination pins
Retaining clip
Fresnel lens
Header
Nylon 6
N/A
Tin on Nickel Plated Phosphor Bronze
N/A
Epoxy
PTFE
technical characteristics
Series
352
Max. Power
Dissipation
500
Max. Reverse
Voltage
3
Panel Cutout
6.35
Min. Mounting
Centres
9.0
Max. Panel
Thickness
3.0
units
mW
Vdc
mm
mm
mm
optional flying lead terminators
Order Code
Suffix
13
13
17
17
Supply
Voltage
DC products
AC products
DC products
AC products
Wire
Colour
Red-anode/ Black-cathode
Brown-live/ Blue-neutral
Red-anode/ Black-cathode
Brown-live/ Blue-neutral
Wire
Length
150mm
150mm
1000mm
1000mm
No/Diameter
of Conductor
Diameter
Insulation
Comments
Customised
lengths
available
7/0.2mm
1.2mm
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 352 - version 2012-12-06-113702
page 2 of 6
352 series
optional reverse protection diode
Order Code
Suffix
Circuit
Comments
01
Available on all indicators except bi-colour
devices

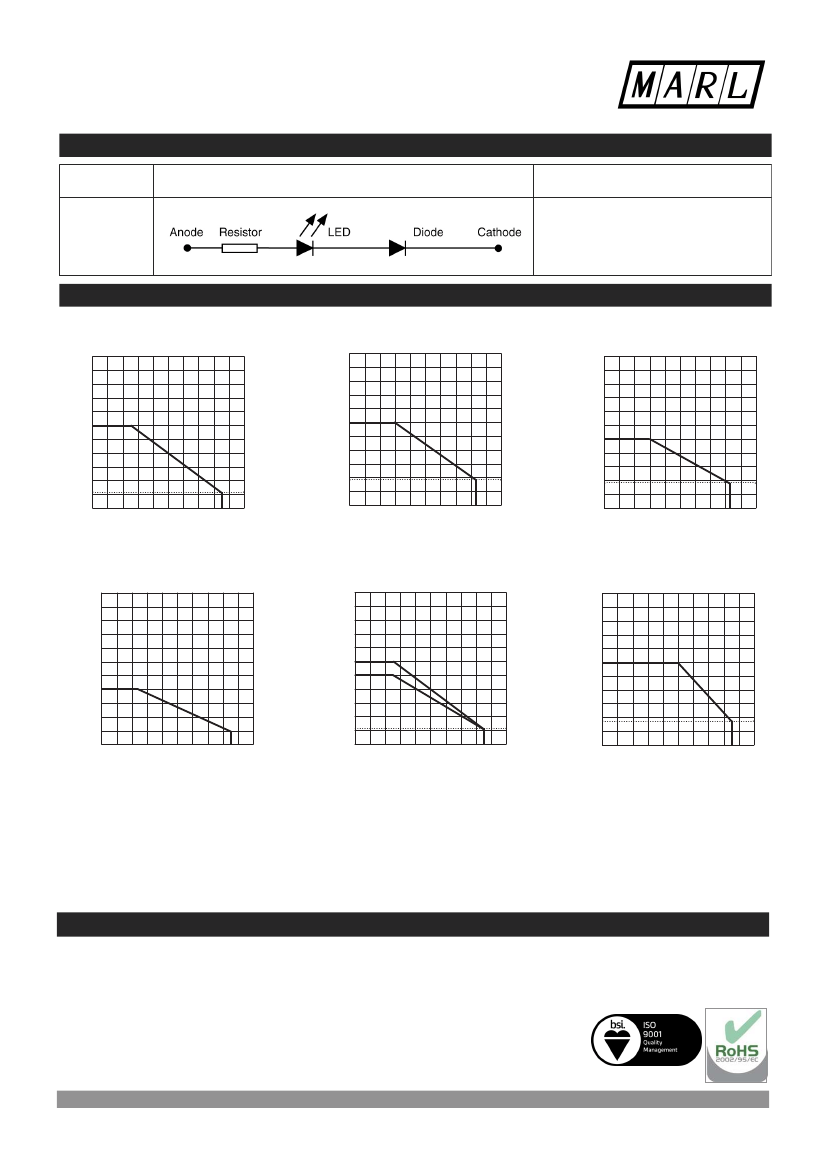

de-rating information
Derating Graph B
55
50
45
40
35
55
50
45
40
35
Derating Graph A
55
50
Derating Graph C
Forward Current IF (mA)
Forward Current IF (mA)
40
35
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
6
100.0
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
8
Forward Current IF (mA)
45
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Derating Graph D
55
50
45
40
35
55
50
45
40
35
Derating Graph E
55
50
45
40
35
Derating Graph I
Forward Current IF (mA)
Forward Current IF (mA)
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
30
25
20
15
10
5
0
0.0
20.0
Forward Current IF (mA)
R
G
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
8.5
6
40.0
60.0
80.0
100.0
100.0
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 352 - version 2012-12-06-113702
page 3 of 6
352 series
de-rating information continued
Derating Graph U
55
50
45
40
35
Forward Current IF (mA)
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
8.5
Ambient Temperature Ta (°C)
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 352 - version 2012-12-06-113702
page 4 of 6
352 series
also available
Part numbers also available in the 352 series:
Part
Colour
Number
352-501-21-17
352-503-04-15
352-503-04-50
352-509-04
352-512-04-15
352-512-04-50
352-521-21-38
352-521-21-50
352-530-04
352-581-20-15
352-581-20-52
352-583-20-15
Red
Red
Red
Yellow
Green
Green
Yellow
Yellow
Red/Green
Red
Red
Green
Vopr
12 Vdc
20 mA dc
20 mA dc
20 mA dc
20 mA dc
20 mA dc
12 Vdc
12 Vdc
20 mA dc
5/6 Vdc
5/6 Vdc
5/6 Vdc
Voltage
The products listed above illustrate all of the options available to order. These products may have custom modifications that
alter their operation beyond the generic information contained within this datasheet. Please contact sales for further
information.
RP = Reverse Polarity
to order
to order please contact us on: t:
+44 (0)1229 582 430
f:
+44 (0)1229 585 155
e:
sales@marl.co.uk
w:
www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 352 - version 2012-12-06-113702
page 5 of 6
