MT58L512Y36PT-5 datasheet, PDF

Datasheet> All Categories > storage> storage> MT58L512Y36PT-5

MT58L512Y36PT-5: DescriptionCache SRAM, 512KX36, 3.1ns, CMOS, PQFP100, PLASTIC, TQFP-100; Categorystorage storage; File Size535KB，34 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric View All

MT58L512Y36PT-5 Overview

Cache SRAM, 512KX36, 3.1ns, CMOS, PQFP100, PLASTIC, TQFP-100

MT58L512Y36PT-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	QFP
package instruction	PLASTIC, TQFP-100
Contacts	100
Reach Compliance Code	_compli
ECCN code	3A991.B.2.A
Factory Lead Time	1 week
Maximum access time	3.1 ns
Other features	PIPELINED ARCHITECTURE
Maximum clock frequency (fCLK)	200 MHz
I/O type	COMMON
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
memory density	18874368 bi
Memory IC Type	CACHE SRAM
memory width	36
Number of functions	1
Number of terminals	100
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP100,.63X.87
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
power supply	2.5/3.3,3.3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum standby current	0.01 A
Minimum standby current	3.14 V
Maximum slew rate	0.525 mA
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm

Preview

Download Datasheet

View All

18Mb: 1 MEG x 18, 512K x 32/36

PIPELINED, SCD SYNCBURST SRAM

18Mb

SRAM

Features

SYNCBURST

™

MT58L1MY18P, MT58V1MV18P,

MT58L512Y32P, MT58V512V32P,

MT58L512Y36P, MT58V512V36P

3.3V V

, 3.3V or 2.5V I/O; 2.5V V

, 2.5V I/O

• Fast clock and OE# access times

• Single 3.3V ±5 percent or 2.5V ±5 percent power

supply

• Separate 3.3V ±5 percent or 2.5V ±5 percent isolated

output buffer supply (V

• SNOOZE MODE for reduced-power standby

• Single-cycle deselect (Pentium

BSRAM-

compatible)

• Common data inputs and data outputs

• Individual byte write control and global write

• Three chip enables for simple depth expansion and

address pipelining

• Clock-controlled and registered addresses, data

I/Os, and control signals

• Internally self-timed WRITE cycle

• Burst control (interleaved or linear burst)

• Low capacitive bus loading

Figure 1: 100-Pin TQFP

JEDEC-Standard MS-026 BHA (LQFP)

Figure 2: 165-Ball FBGA

JEDEC-Standard MS-216 (Var. CAB-1)

Options

• Timing (Access/Cycle/MHz)

3.1ns/5ns/200 MHz

3.5ns/6ns/166 MHz

4.2ns/7.5ns/133 MHz

5ns/10ns/100 MHz

• Configurations

3.3V V

, 3.3V or 2.5V I/O

1 Meg x 18

512K x 32

512K x 36

2.5V V

, 2.5V I/O

1 Meg x 18

512K x 32

512K x 36

• Packages

100-pin TQFP

165-ball, 13mm x 15mm FBGA

• Operating Temperature Range

Commercial (0ºC

+70ºC)

Industrial (-40ºC

+85ºC)

NOTE:

TQFP

Marking

-5

-6

-7.5

-10

MT58L1MY18P

MT58L512Y32P

MT58L512Y36P

MT58V1MV18P

MT58V512V32P

MT58V512V36P

None

Part Number Example:

MT58L512Y36PT-10

General Description

The Micron

SyncBurst™ SRAM family employs

high-speed, low-power CMOS designs that are fabri-

cated using an advanced CMOS process.

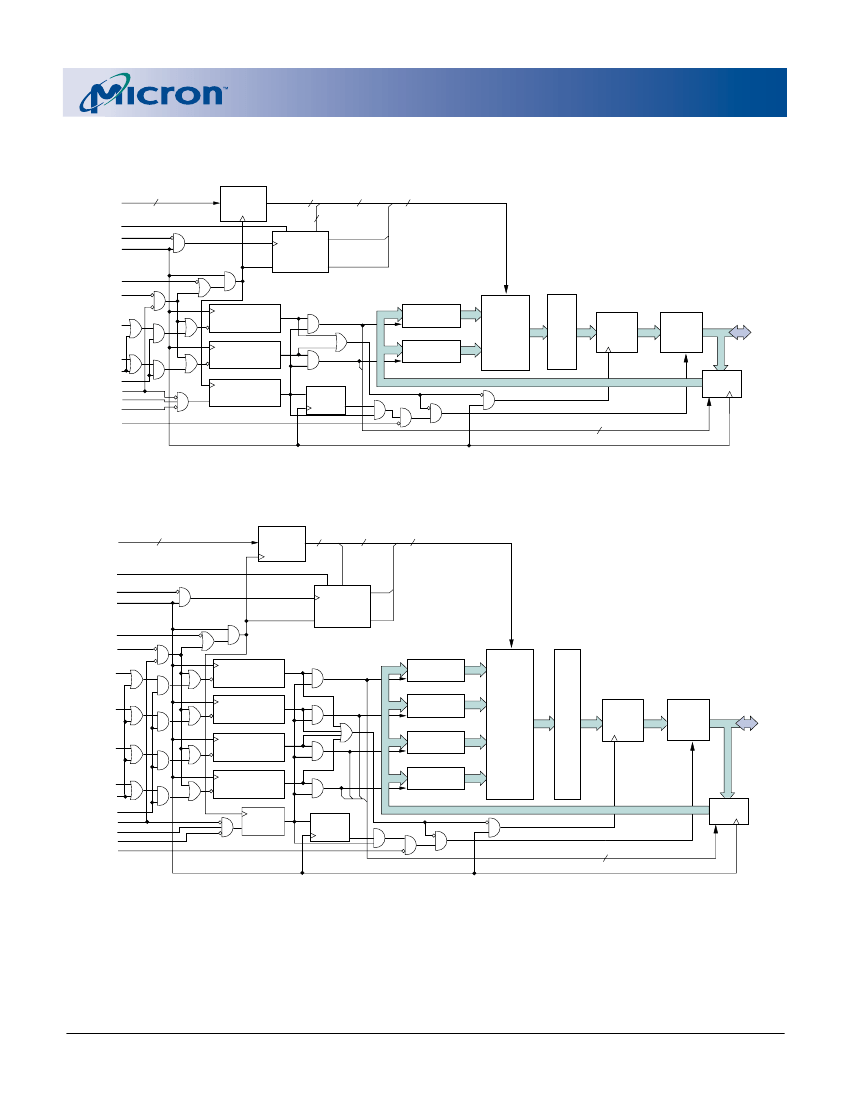

Micron’s 18Mb SyncBurst SRAMs integrate a 1 Meg x

18, 512K x 32, or 512K x 36 SRAM core with advanced

synchronous peripheral circuitry and a 2-bit burst

counter. All synchronous inputs pass through registers

controlled by a positive-edge-triggered single-clock

input (CLK). The synchronous inputs include all

addresses, all data inputs, active LOW chip enable

(CE#), two additional chip enables for easy depth

expansion (CE2, CE2#), burst control inputs (ADSC#,

1. A Part Marking Guide for the FBGA devices can be found on

Micron’s Web site—http://www.micron.com/numberguide.

2. Contact factory for availability of Industrial Temperature

devices.

18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, SCD SyncBurst SRAM

MT58L1MY18P1_16_D.fm – Rev. D, Pub 2/03

PRODUCTS AND SPECIFICATIONS DISCUSSED HEREIN ARE SUBJECT TO CHANGE BY MICRON WITHOUT NOTICE.

18Mb: 1 MEG x 18, 512K x 32/36

PIPELINED, SCD SYNCBURST SRAM

Table 1:

SYMBOL

ADSC#

TQFP Pin Descriptions

TYPE

Input

DESCRIPTION

Synchronous Address Status Controller: This active LOW input interrupts any ongoing burst,

causing a new external address to be registered. A READ or WRITE is performed using the new

address if CE# is LOW. ADSC# is also used to place the chip into power-down state when CE# is

HIGH.

Synchronous Address Status Processor: This active LOW input interrupts any ongoing burst,

causing a new external address to be registered. A READ is performed using the new address,

independent of the byte write enables and ADSC#, but dependent upon CE#, CE2, and CE2#.

ADSP# is ignored if CE# is HIGH. Power-down state is entered if CE2 is LOW or CE2# is HIGH.

Synchronous Address Advance: This active LOW input is used to advance the internal burst

counter, controlling burst access after the external address is loaded. A HIGH on this pin

effectively causes wait states to be generated (no address advance). To ensure use of correct

address during a WRITE cycle, ADV# must be HIGH at the rising edge of the first clock after an

ADSP# cycle is initiated.

Synchronous Byte Write: These active LOW inputs allow individual bytes to be written when a

WRITE cycle is active and must meet the setup and hold times around the rising edge of CLK.

BWs need to be asserted on the same cycle as the address. To enable the BW’s functionality, the

byte write enable (BWE#) input must be asserted LOW. BWa# controls DQa pins; BWb# controls

DQb pins; BWc# controls DQc pins; and BWd# controls DQa pins.

Byte Write Enable: This active LOW input permits BYTE WRITE operations and must meet the

setup and hold times around the rising edge of CLK.

Synchronous Chip Enable: This active LOW input is used to enable the device and conditions the

internal use of ADSP#. CE# is sampled only when a new external address is loaded.

Synchronous Chip Enable: This active LOW input is used to enable the device and is sampled only

when a new external address is loaded.

Synchronous Chip Enable: This active HIGH input is used to enable the device and is sampled only

when a new external address is loaded.

Clock: This signal registers the address, data, chip enable, byte write enables, and burst control

inputs on its rising edge. All synchronous inputs must meet setup and hold times around the

clock’s rising edge.

Global Write: This active LOW input allows a full 18-, 32-, or 36-bit WRITE to occur independent

of the BWE# and BWx# lines and must meet the setup and hold times around the rising edge of

CLK.

Mode: This input selects the burst sequence. A LOW on this pin selects “linear burst.” NC or HIGH

on this pin selects “interleaved burst.” Do not alter input state while device is operating. LBO# is

the JEDEC-standard term for MODE.

Output Enable: This active LOW, asynchronous input enables the data I/O output drivers. G# is

the JEDEC-standard term for OE#.

Synchronous Address Inputs: These inputs are registered and must meet the setup and hold

times around the rising edge of CLK.

ADSP#

Input

ADV#

Input

BWa#

BWb#

BWc#

BWd#

BWE#

CE#

CE2#

CE2

CLK

Input

GW#

Input

MODE (LBO#)

Input

OE# (G#)

SA0

SA1

Input

DQa

DQb

DQc

DQd

NF/DQPa

NF/DQPb

NF/DQPc

NF/DQPd

Snooze Enable: This active HIGH, asynchronous input causes the device to enter a low-power

standby mode in which all data in the memory array is retained. When ZZ is active, all other

inputs are ignored. This pin has an internal pull-down and can be left unconnected.

Input/ SRAM Data I/Os: For the x18 version, byte “a” is associated with DQa pins; byte “b” is associated

Output with DQb pins. For the x32 and x36 versions, byte “a” is associated with DQa pins; byte “b” is

associated with DQb pins; byte “c” is associated with DQc pins; byte “d” is associated with DQd

pins. Input data must meet setup and hold times around the rising edge of CLK.

No Function/Parity Data I/Os: On the x32 version, these pins are No Function (NF). On the x18

I/O

version, byte “a” parity is DQPa; byte “b” parity is DQPb. On the x36 version, byte “a” parity is

DQPa; byte “b” parity is DQPb; byte “c” parity is DQPc; byte “d” parity is DQPd.

Input

18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, SCD SyncBurst SRAM

MT58L1MY18P1_16_D.fm – Rev. D, Pub 2/03

Micron Technology, Inc., reserves the right to change products or specifications without notice.
