550-40-124-14-071012: DescriptionIC Socket, PGA124, 124 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size188KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

550-40-124-14-071012 Overview

IC Socket, PGA124, 124 Contact(s), ROHS COMPLIANT

550-40-124-14-071012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PGA124
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e3
Number of contacts	124
Base Number Matches	1

Preview

Download Datasheet

View All

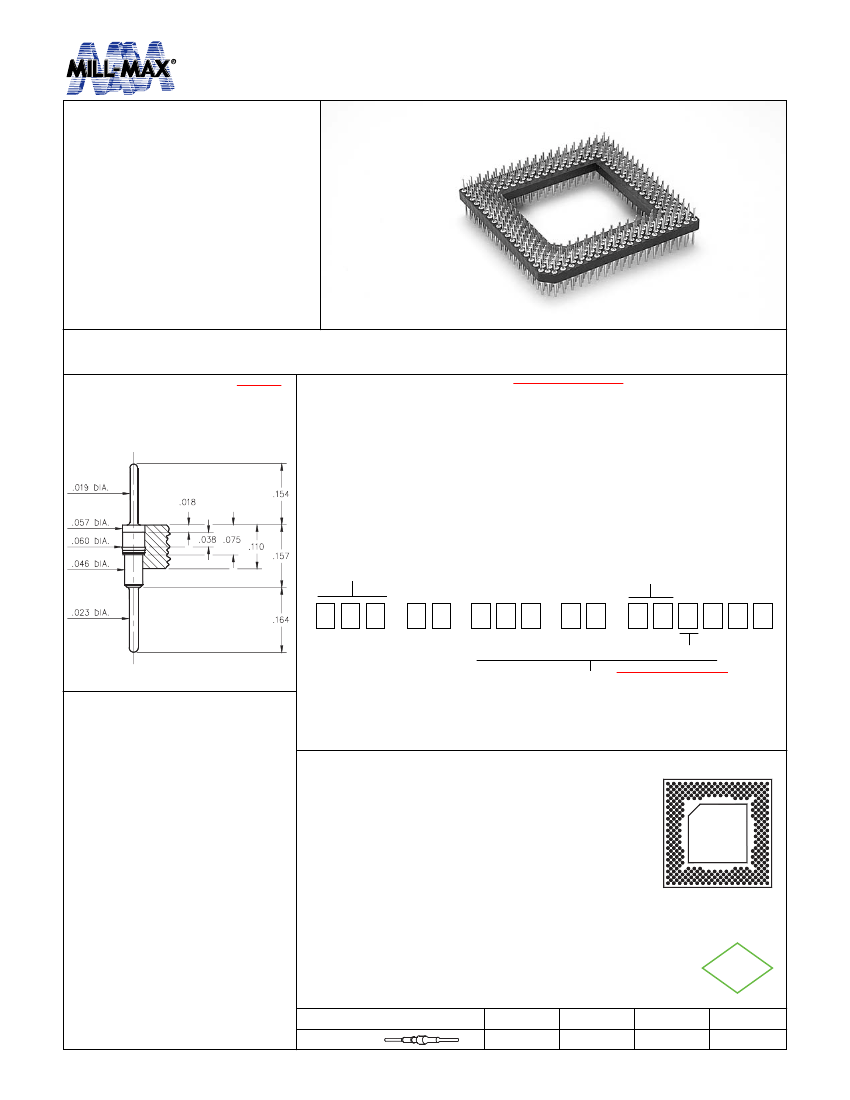

PIN GRID ARRAY HEADERS

For Interstitial Patterns

Solder Tail

Series 550

•

Series 550 Interstitial PGA

headers offer tail diameters that

can be mated with our 518 & 513

series.

•

Hi-Temp PCT polyester insulator

material suitable for all forms of

soldering.

Ordering Information

HEADER PIN TYPE 5012

1. Locate footprint pattern from pages 107 to 111, the middle 8 digits of

the part number will be located under the pattern.

2. Specify 2-digit plating code from chart at bottom of page.

Series

Plating

Code

Window

5 5 0

-

0

-

No. of pins

-

Grid size

-

Pattern #

0 1 2

Determined from footprint pattern pages 107 to 111

EXAMPLE OF COMPLETE PART NUMBER:

550-10-325-18-105012

This is a 325 pin (18x18 grid) insulator with a

1.0” square window and fitted with gold plated 5012

header pins.

SPECIFY PLATING CODE XX=

10

10μ” Au

90

200μ” Sn/Pb

40

200μ” Sn

Pin Plating

w w w. m i l l - m a x . c o m

104

516-922-6000
