NRLM682M35V22X35F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRLM682M35V22X35F

NRLM682M35V22X35F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 6800uF, Through Hole Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size98KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NRLM682M35V22X35F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 6800uF, Through Hole Mount, CAN, ROHS COMPLIANT

NRLM682M35V22X35F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	15 weeks
capacitance	6800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	66 mΩ
JESD-609 code	e3
leakage current	1.46356 mA
length	35 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-i
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	3680 mA
surface mount	NO
Delta tangent	0.35
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

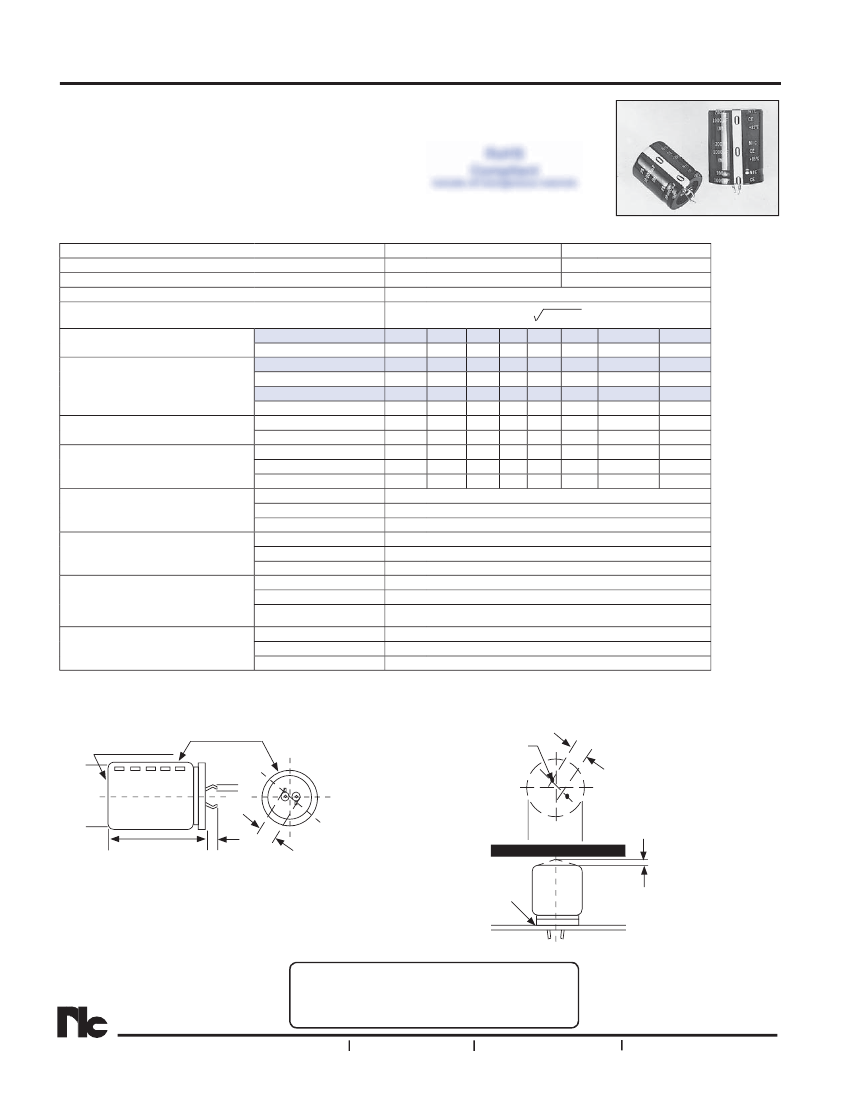

Large Can Aluminum Electrolytic Capacitors

FEATURES

• NEW SIZES FOR LOW PROFILE AND HIGH DENSITY DESIGN OPTIONS

• EXPANDED CV VALUE RANGE

• HIGH RIPPLE CURRENT

RoHS

• LONG LIFE

Compliant

includes all homogeneous materials

• CAN-TOP SAFETY VENT

• DESIGNED AS INPUT FILTER OF SMPS

*See Part Number System for Details

P N b S

f D il

• STANDARD 10mm (.400") SNAP-IN SPACING

SPECIFICATIONS

Operating Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Max. Leakage Current (μA)

After 5 minutes (20°C)

W.V. (Vdc)

Max. Tan

at 120Hz/20°C

Tan

max.

W.V. (Vdc)

S.V. (Vdc)

Surge Voltage

W.V. (Vdc)

S.V. (Vdc)

Frequency (Hz)

Ripple Current

Correction Factors

Multiplier at 85°C

Temperature (°C)

Low Temperature

Capacitance Change

Stability (10 to 250Vdc)

Impedance Ratio

Capacitance Change

Load Life Test

Tan

2,000 hours at +85°C

Leakage Current

Capacitance Change

Shelf Life Test

1,000 hours at +85°C

Tan

(no load)

Leakage Current

Surge Voltage Test

Capacitance Change

Per JIS-C-5141 (table #6, #4)

Tan

Surge voltage applied: 30 seconds

Leakage Current

"On" and 5.5 minutes no voltage "Off"

Capacitance Change

Soldering Effect

Refer to

Tan

MIL-STD-202F Method 210A

Leakage Current

(* 47,000μF add 0.14, 68,000μF add 0.35.)

NRLM Series

-40 ~ +85°C

16 ~ 250Vdc

180 ~ 68,000μF

±20% (M)

0.50*

180

220

0.75

-5%

1.5

C(μF)V

-25 ~ +85°C

350 ~ 450Vdc

56 ~ 680μF

100

160~450

0.40* 0.35 0.30 0.25 0.20

0.20

0.15

100

160

100

125

200

250 350 400

450

250

300 400 450

500

100 120 500

1K 10K ~ 50K

0.80 0.95 1.00 1.05 1.08

1.15

-25

-40

-15% -30% -

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±10% of initial measured value

Less than speciﬁed maximum value

Sleeve Color: Dark

Blue

Can Top Safety Vent

D+1

Max.

Insulation Sleeve and

Minus Polarity Marking

0.8

(-)

Recommended PC Board Mounting Holes:

∅=

0.1

(+)

D∅

0.5

6.3

Notice for Mounting

The space from the top of the can shall be more than (3mm)

from chassis or other construction materials so that safety

vent has room to expand in case of emergency.

(4.0mm Leads Available As Option)

Chassis

MAXIMUM EXPANSION

FOR SAFETY VENT

Approx.

3.0mm

PC Board

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process

details with NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
