H130A-8.000-32-EXT-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> H130A-8.000-32-EXT-TR

Preview

H130A-8.000-32-EXT-TR: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size232KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

H130A-8.000-32-EXT-TR Overview

Parallel - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN

H130A-8.000-32-EXT-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN
Reach Compliance Code	compli
Other features	TR, 7 INCH
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	8 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	85 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

SURFACE MOUNT MICROPROCESSOR CRYSTAL

Page 1 of 3

SERIES H130A



FEATURES



SMALL PACKAGE OF 5.0 x 3.2 x 1.0 mm

EXCELLENT TOLERANCE AND STABILITY

CUSTOM SPECIFICATIONS AVAILABLE



SPECIFICATIONS

PARAMETER

VALUE

12.000 MHz TO 150.000 MHz

8.000 MHz TO 50.000 MHz

40.000 MHz TO 150.000 MHz

±50 PPM MAXIMUM

(±10, ±20, AND ±30 PPM AVAILABLE)

±50 PPM MAXIMUM

(±10, ±20, AND ±30 PPM AVAILABLE)

1

-20°C TO +70°C STANDARD

1

-40°C TO +85°C EXTENDED

-40°C TO +85°C

±5 PPM PER YEAR MAXIMUM

8 pF to 32 pF OR SERIES

SEE TABLE 1

7.0 pF MAXIMUM

100 µW TYP, 300 µW MAX

±5 PPM MAXIMUM 75 cm DROP TEST IN

3 AXES ONTO A HARD SURFACE

260°C ±5°C FOR 10s MAXIMUM

FREQUENCY RANGE

MODE OF OSCILLATION

FUNDAMENTAL

THIRD OVERTONE

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE

SHUNT CAPACITANCE

DRIVE LEVEL

SHOCK RESISTANCE

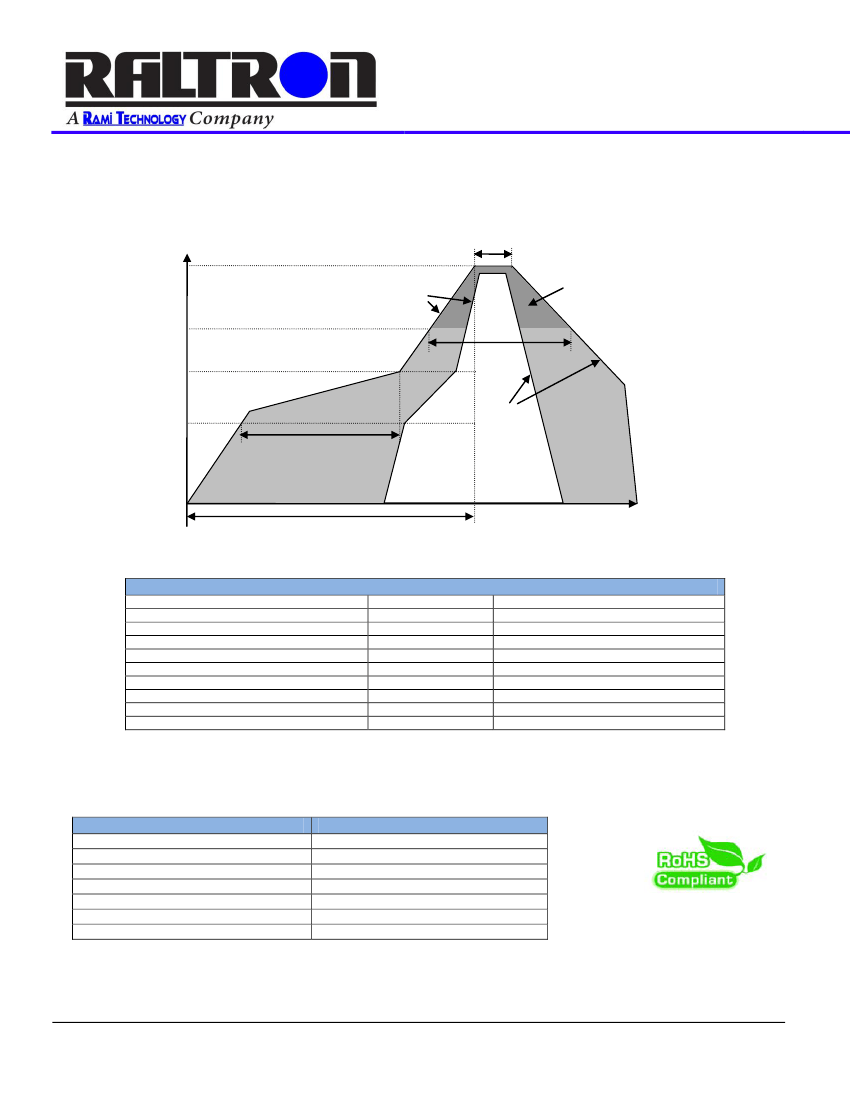

REFLOW CONDITIONS

1

NOTE: NOT ALL STABILITIES ARE AVAILABLE FOR ALL OPERATING TEMPERATURE RANGES.

CONTACT FACTORY FOR AVAILABILITY.

TABLE 1

FREQUENCY

(MHz)

8.000 TO 9.999

10.000 TO 11.999

12.000 TO 15.999

16.000 TO 19.999

20.000 TO 23.999

24.000 TO 50.000

40.000 TO 150.000

MODE

FUND

3OT

MAX ESR

(OHMS)

100

80

60

50

40

30

80

R A L T R O N E L E C T R O N I C S



1 0 4 0 0 N .W . 3 3

rd

STREET



Miami, Florida 33172



U.S.A.

Telephone: 305-593-6033



Fax: 305-594-3973



e-mail: sales@raltron.com



web site: http://www.raltron.com

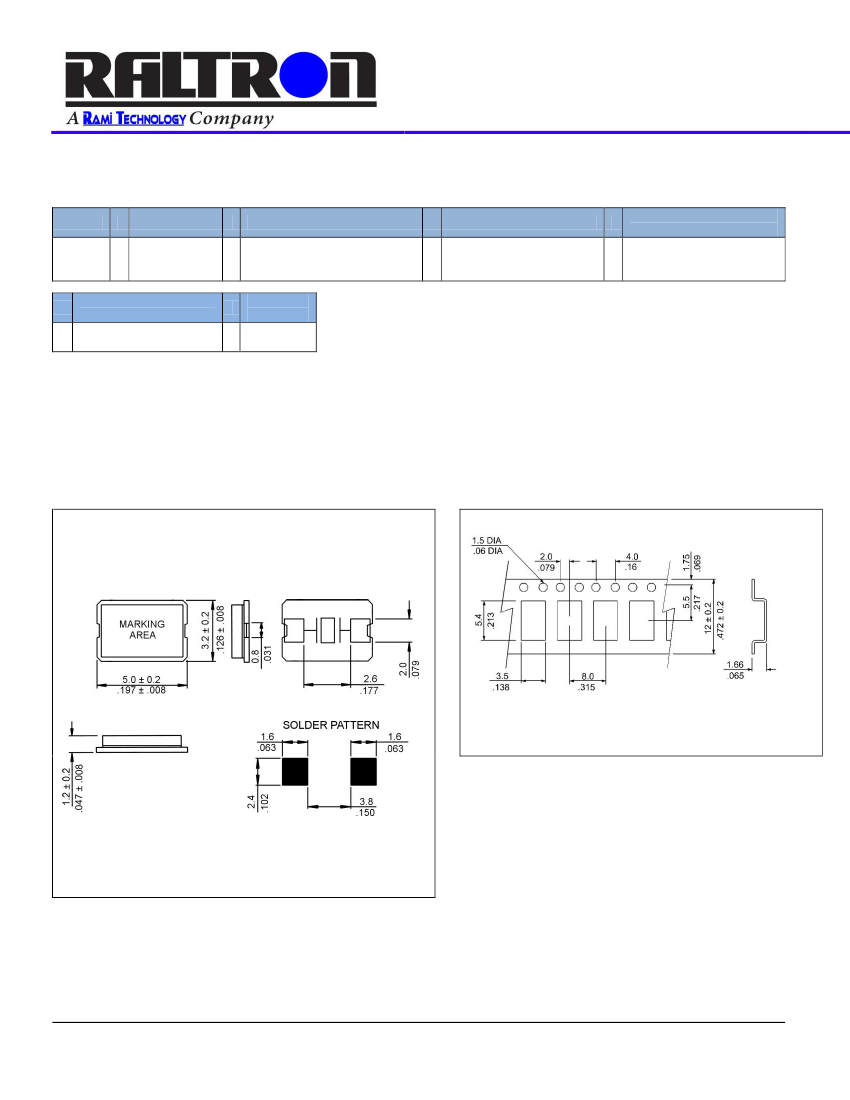

H130A-8.000-32-EXT-TR Related Products

	H130A-8.000-32-EXT-TR	H130A-8.000-S-TR	H130A-8.000-S-EXT-TR	H130A-16.000-18-EXT-TR	H130A-16.000-18-TR	H130A-8.000-18-TR	H130A-8.000-18-EXT-TR	H130A-150.000-18-3OT-TR	H130A-24.000-32-EXT-TR
Description	Parallel - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Series - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Series - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 16MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 16MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 8MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - 3Rd Overtone Quartz Crystal, 150MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 24MHz Nom, HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN	HALOGEN FREE, ROHS AND REACH COMPLIANT, SMALL, SMD, 4 PIN
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Other features	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH
Ageing	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	8 MHz	8 MHz	8 MHz	16 MHz	16 MHz	8 MHz	8 MHz	150 MHz	24 MHz
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-20 °C	-40 °C	-40 °C	-20 °C	-20 °C	-40 °C	-20 °C	-40 °C
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	85 Ω	85 Ω	85 Ω	25 Ω	25 Ω	85 Ω	85 Ω	60 Ω	20 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Maker	Raltron	-	-	Raltron	Raltron	Raltron	Raltron	Raltron	Raltron
load capacitance	32 pF	-	-	18 pF	18 pF	18 pF	18 pF	18 pF	32 pF
