HD74HC368T datasheet, PDF - EEWORLD Datasheet

HD74HC368T: DescriptionHC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, TSOP-16; Categorylogic logic; File Size52KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

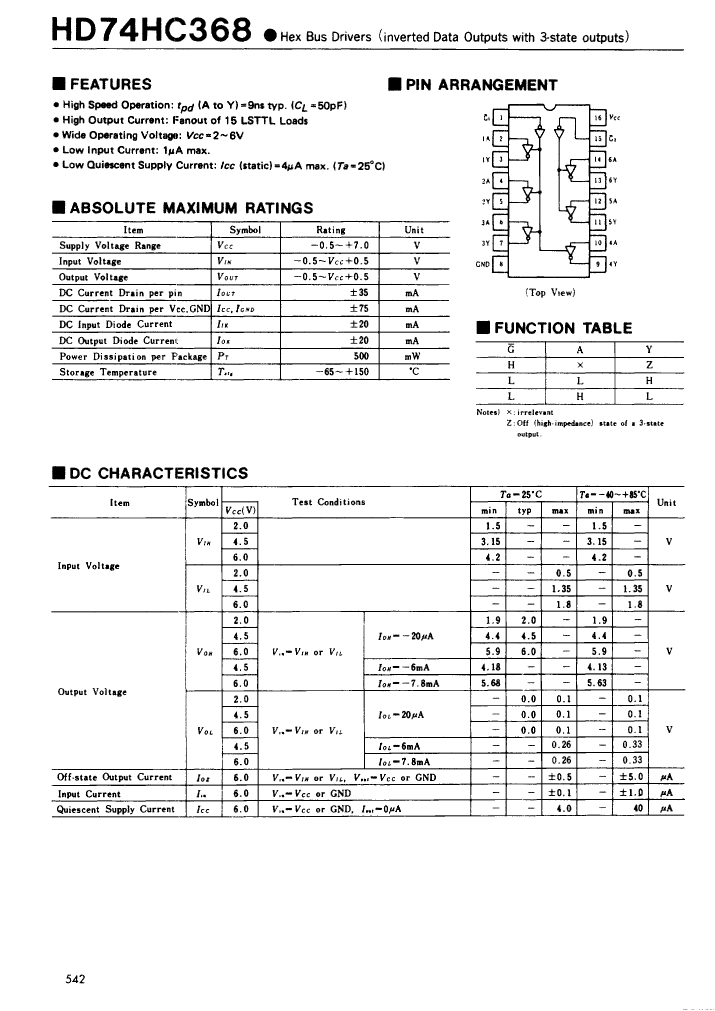

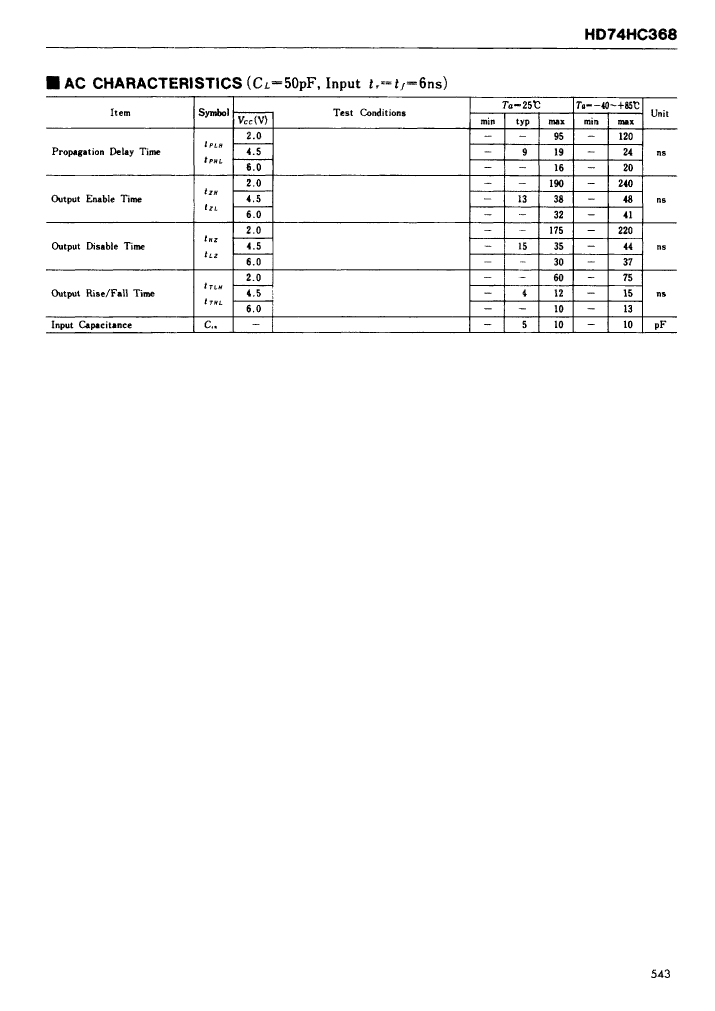

HD74HC368T Overview

HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, TSOP-16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	compli
Other features	ONE FUNCTION WITH TWO BITS
series	HC/UH
JESD-30 code	R-PDSO-G16
length	5 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	120 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

	HD74HC368T
Description	HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, TSOP-16
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	compli
Other features	ONE FUNCTION WITH TWO BITS
series	HC/UH
JESD-30 code	R-PDSO-G16
length	5 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	120 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
