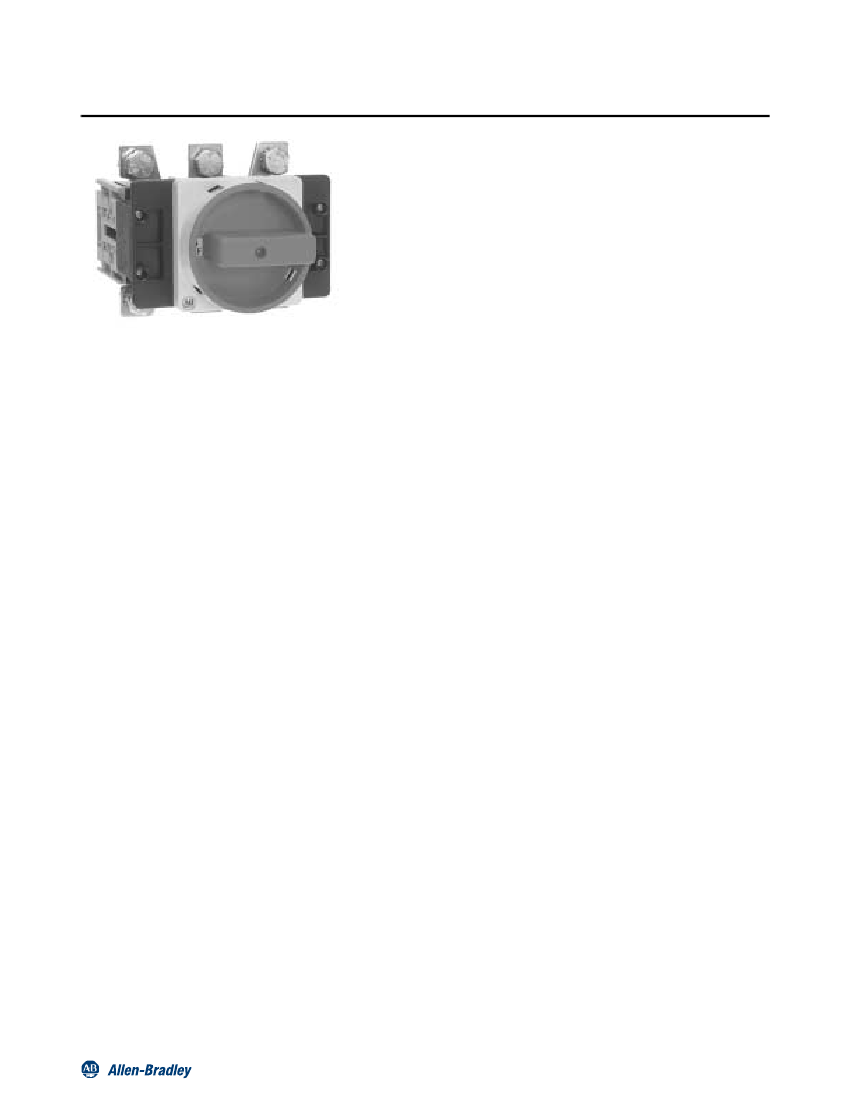

IEC Load Switches

Bulletin 194E

125 Amps to 315 Amps

Features

•

At-Motor Disconnect Switch

125, 160, 250, 315 A Versions of Inductive Load-Rated Switches

IP65/Type 1/3/3R/12 Operating Handles

IP2LX Finger-Safe Terminals

3- and 4-Pole Versions

Front/Door or DIN/Base Mounting Configurations

OFF-ON Configurations

Box Lug and Bolt-on Terminals Available

Switches Include Operating Shaft

Suitable as Motor Disconnect

Description

Bulletin 194E load switches are designed for use in North America

as local motor isolation and for IEC disconnect switch applications

outside of North America. Available in 3- and 4-pole versions with

add-on grounding and neutral terminals and auxiliary contacts,

Bulletin 194Es use similar operating handles as the Bulletin 194L

Control and Load Switches.

Bulletin 194E switches are offered in two mounting styles, Front/

Door and Base/DIN configurations, for a variety of installations.

Switch body styles for Bulletin 194E base-mounted switches include

standard interlock shaft; Bulletin 194E front-mounted switches

include standard shaft.

Two-position OFF-ON switch is used to connect or disconnect a

variety of inductive loads, including solenoids, actuators, valves,

magnetic starters, relays, and motors up to 100 HP.

Conformity to Standards

• IEC 207

• IEC 947-1

• IEC 947-3 low-voltage switchgear and control gear part 3:

switches, disconnecters, switch-disconnecters and fuse-

combination units. CE

• UL 508: Industrial Control Equipment. CUL

Approvals

• UL listed (Box Lug Version)

• UR recognized (Bolt-on Version)

• CUL listed (Box Lug Version)

• CUR recognized (Bolt-on Version)

• Meets IEC, VDE and BS standard requirements

• IEC/CE marked for all applicable directives (per EN 60947-3)

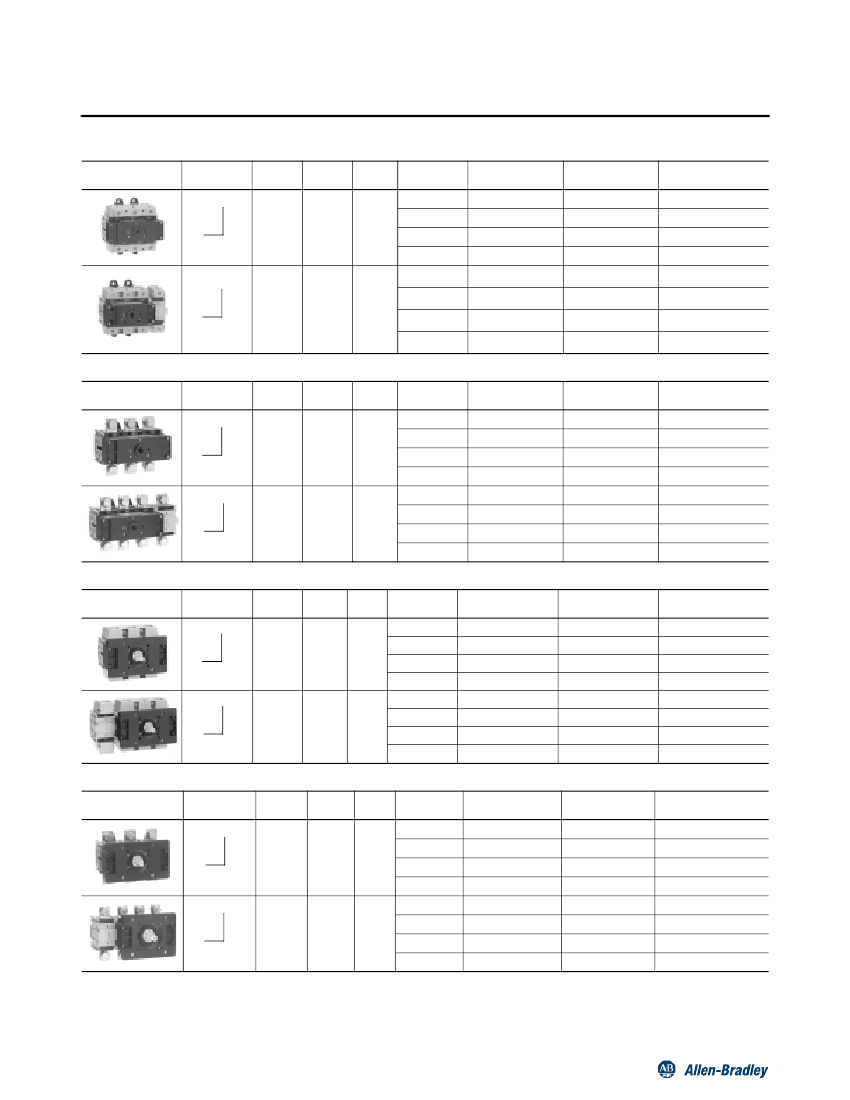

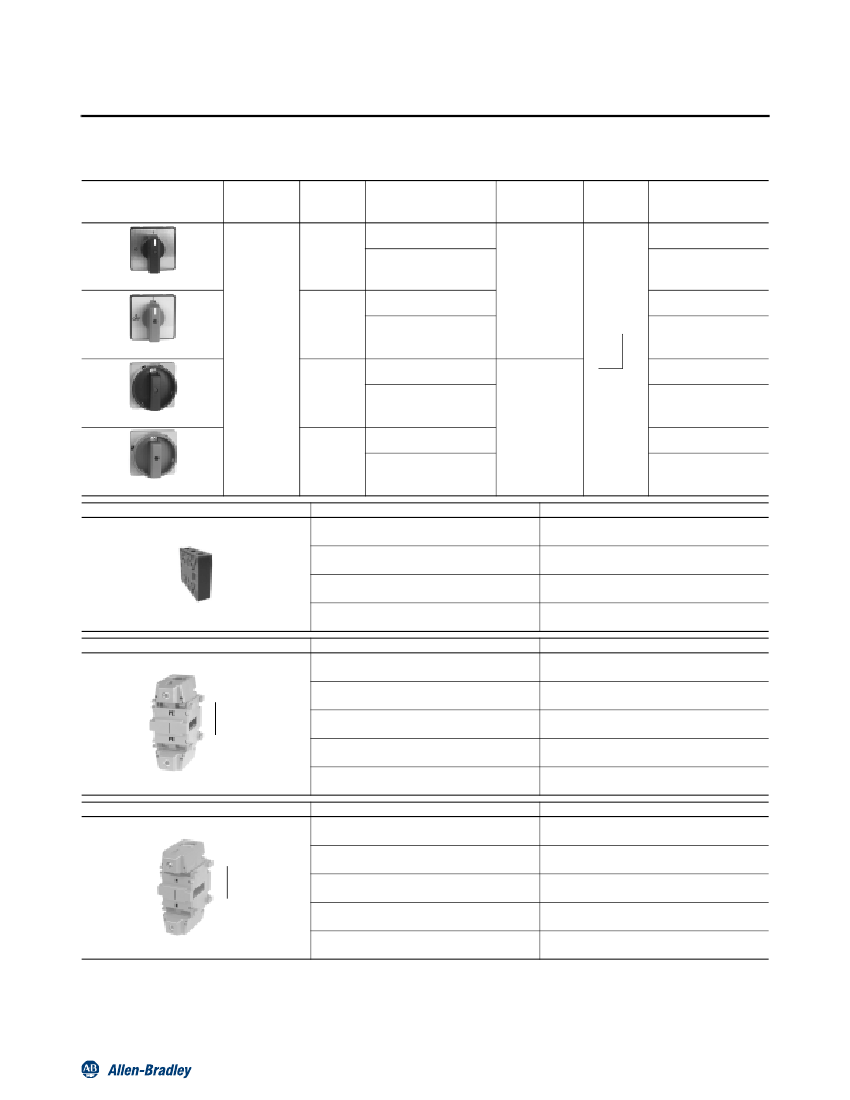

Your order must include:

• Catalogue Number of switch body.

• Catalogue Number of actuator.

• If required, Catalogue Number of accessories.
