AA02043R3KL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AA02043R3KL

AA02043R3KL: DescriptionGeneral Purpose Inductor, 3.3uH, 10%, Ferrite-Core; CategoryPassive components inductor; File Size584KB，7 Pages; ManufacturerABC [ABC Taiwan Electronics Corp]

Download Datasheet Parametric Compare View All

AA02043R3KL Overview

General Purpose Inductor, 3.3uH, 10%, Ferrite-Core

AA02043R3KL Parametric

Parameter Name	Attribute value
Maker	ABC [ABC Taiwan Electronics Corp]
Reach Compliance Code	unknow
ECCN code	EAR99

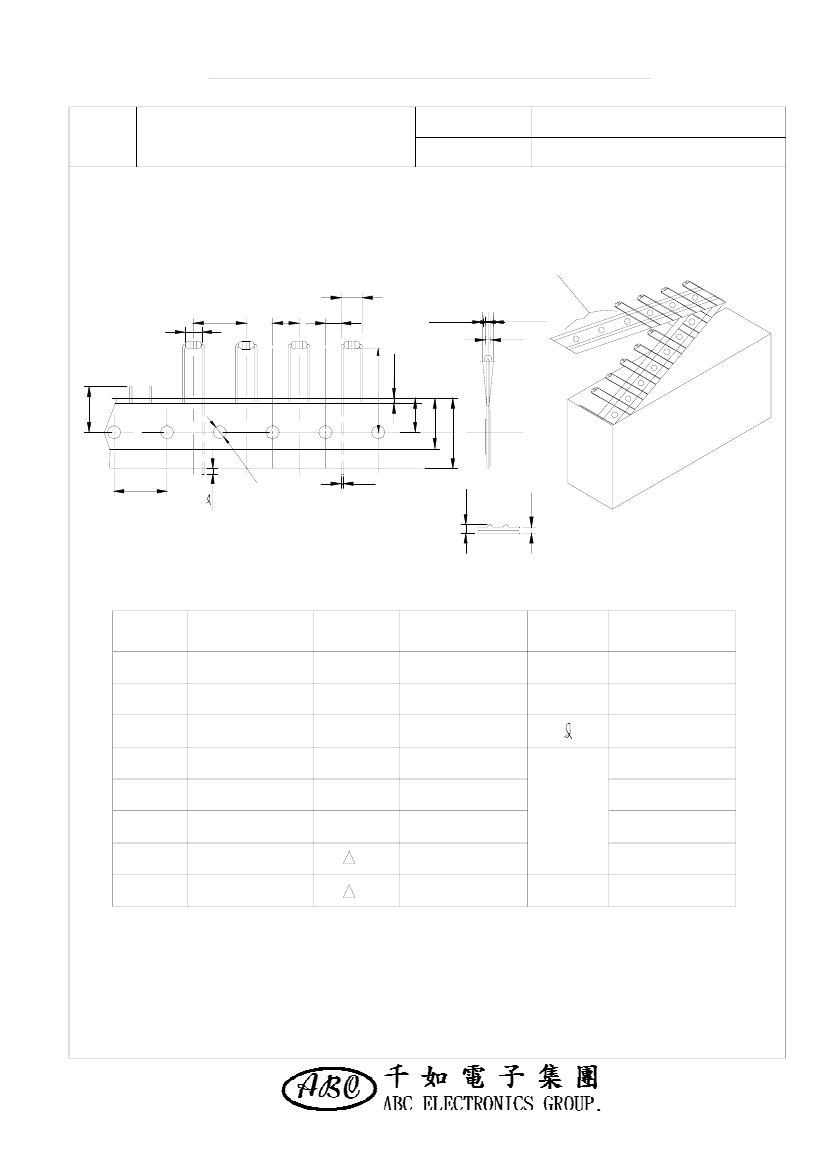

Preview

Download Datasheet

View All

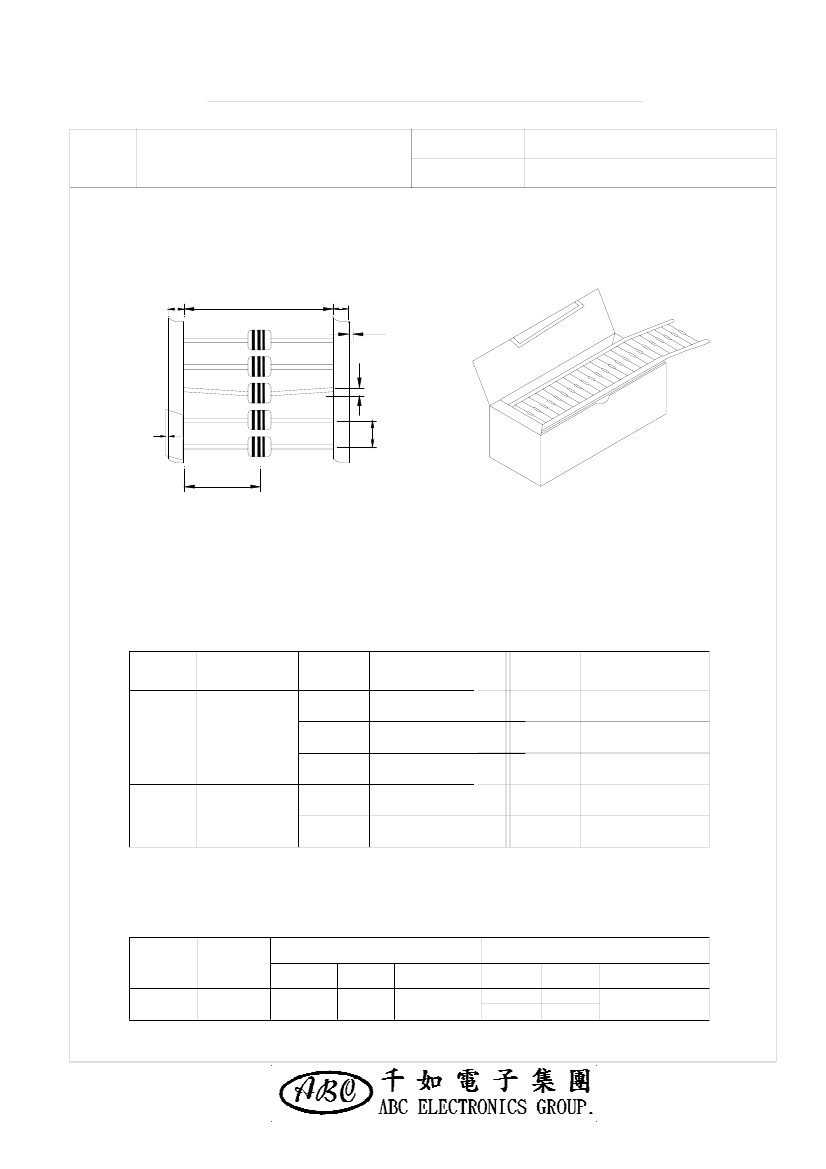

SPECIFICATION FOR APPROVAL

REF :

PROD.

NAME

PAGE: 1

AXIAL INDUCTOR

ABC'S DWG NO.

ABC'S ITEM NO.

AA0204□□□L□

Ⅰ﹒

CONFIGURATION & DIMENSIONS

：

: 2.4 max.

: 3.4 max.

: 62.0 ref.

: 0.48

m/m

W∮

Ⅱ﹒

SCHEMATIC DIAGRAM

：

※

Color code

：

1st Color

：

First Significant Figure

2nd Color

：

Second Significant Figure

3rd Color

：

Multiplier

Ⅲ﹒

MATERIALS

：

﹒

Core

：

Ferrite DR core

﹒

Wire

：

Enamelled copper wire (class B)

﹒

Terminal

：

Cu/Ni/Sn ( lead content 100 ppm max.)

﹒

Coating

：

Epoxy resin

﹒

Remark

：

Ferrite body is exempted with lead content under RoHS regulation

Ⅳ﹒

GENERAL SPECIFICATION

：

﹒

Temp. rise

：

℃

max.

﹒

Ambient temp

：

℃

max.

﹒

Operating temp

：

-20

℃

---- 80

℃

﹒

Terminal tensile strength

：

1.0 KG min.

﹒

Terminal bending strength

：

0.3KG min.

﹒

Dielectric withstanding voltage

：

250 Vrms

﹒

Rated currtnt

：

Base on temp. rise

AE-001A

AA02043R3KL Related Products

	AA02043R3KL	AA0204121KL	AA02045R6KL	AA02046R8KL	AA0204680KL	AA02048R2KL
Description	General Purpose Inductor, 3.3uH, 10%, Ferrite-Core	General Purpose Inductor, 120uH, 10%, Ferrite-Core	General Purpose Inductor, 5.6uH, 10%, Ferrite-Core	General Purpose Inductor, 6.8uH, 10%, Ferrite-Core	General Purpose Inductor, 68uH, 10%, Ferrite-Core	General Purpose Inductor, 8.2uH, 10%, Ferrite-Core
Maker	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	-	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	-	12.5 Ω	1.1 Ω	1.2 Ω	5.6 Ω	1.3 Ω
Nominal inductance(L)	-	120 µH	5.6 µH	6.8 µH	68 µH	8.2 µH
Inductor type	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	-	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm
Manufacturer's serial number	-	AA0204	AA0204	AA0204	AA0204	AA0204
Package diameter	-	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm
Package length	-	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm
Package form	-	Axial	Axial	Axial	Axial	Axial
Minimum quality factor (at nominal inductance)	-	40	50	50	40	50
Maximum rated current	-	0.085 A	0.3 A	0.285 A	0.13 A	0.275 A
self resonant frequency	-	6.5 MHz	34 MHz	30 MHz	10 MHz	26 MHz
series	-	AA0204	AA0204	AA0204	AA0204	AA0204
Tolerance	-	10%	10%	10%	10%	10%
