Adhesive backing on PCB simplifies mounting within the device
Omnidirectional coverage
Efficient design reduces power usage
No matching components required
Ground-plane independent design
Wide selection of micro-coaxial cable lengths from 50 to 200mm
2400-2500
< 3.0:1
65%
2.0dBi
-3.2dB
10 Watt cw
50 ohms unbalanced
Linear
33 mm x 8.0 mm x 1.0 mm
< 1.2 g
Adhesive Tape
MHF-type receptacle (TE PN 2337019-1),
MHF4-type receptacle (TE PN: 2334884-1)
-40 to +85°C
-40 to +85°C
A certificate of conformance is available from the
product page on TE website.
5150-5850
< 3.0:1
80%
7.0dBi
-0.6dB
SPECIFICATIONS
Frequency Range (MHz)
VSWR
Average Efficiency
Peak Gain
Average Gain
Power Handling
Feed Point Impedance
Polarization
Size
Weight
Mounting
Mating Connector
Operating Temperature
Storage Temperature
Hazardous Materials
DATA AND DEVICES
/// DUAL BAND WLAN / BLUETOOTH ANTENNA
DUAL BAND WLAN / BLUETOOTH ANTENNA
Standard Antenna Solutions

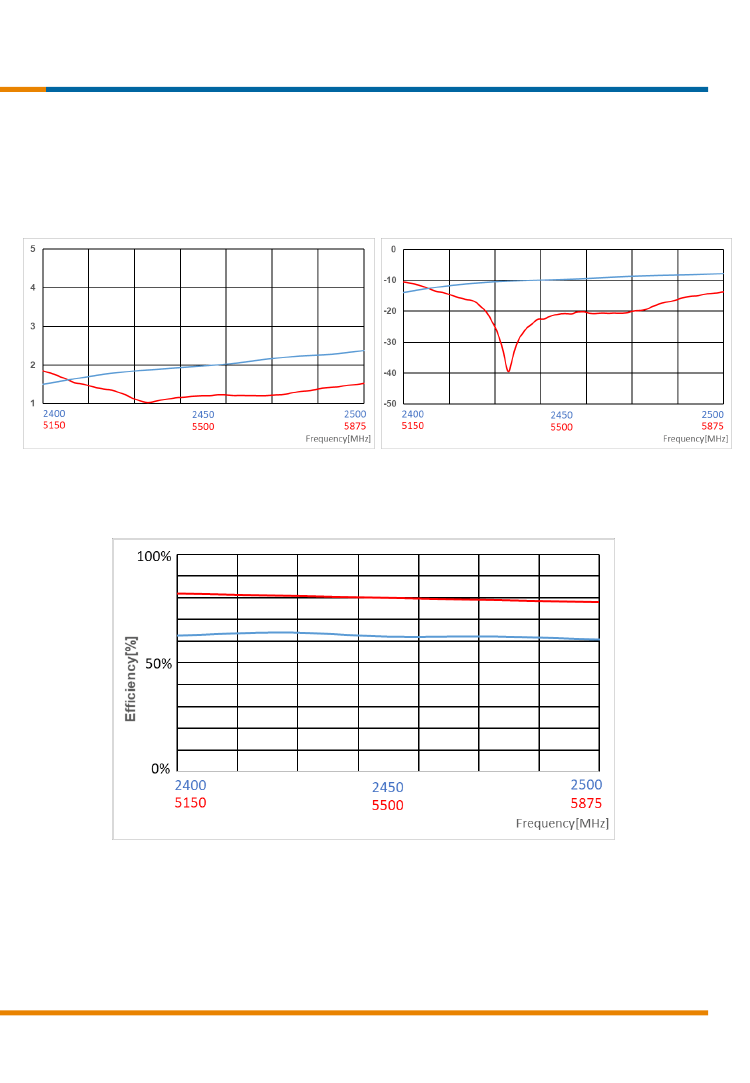

RF DATA
VSWR
Return Loss
Efficiency
Data measured in free space and on plastic board.
DATA AND DEVICES
/// DUAL BAND WLAN / BLUETOOTH ANTENNA
DUAL BAND WLAN / BLUETOOTH ANTENNA
Standard Antenna Solutions

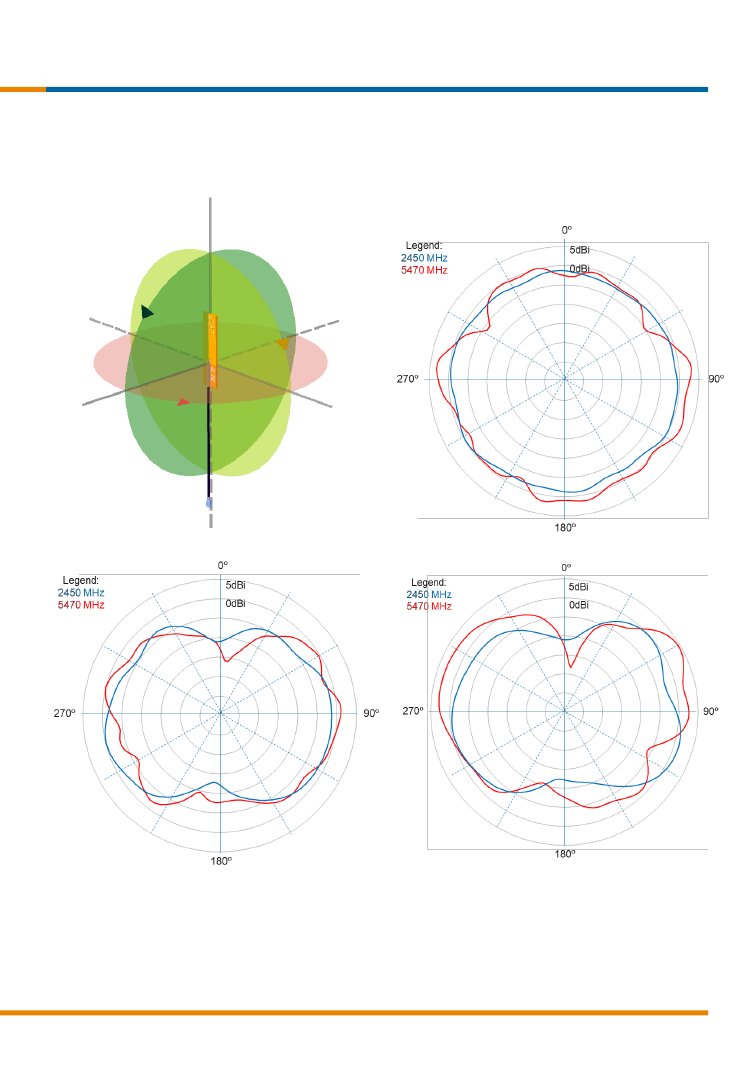

RADIATION PATTERN
Test setup
Z
Azimuth
0°
90°
X
0°
90°
Y
Azimuth Plane
Elevation 1 Plane
Elevation 2 Plane
Elevation 1
Elevation 2
Data measured in free space and on plastic board.
DATA AND DEVICES
/// DUAL BAND WLAN / BLUETOOTH ANTENNA
DUAL BAND WLAN / BLUETOOTH ANTENNA
Standard Antenna Solutions

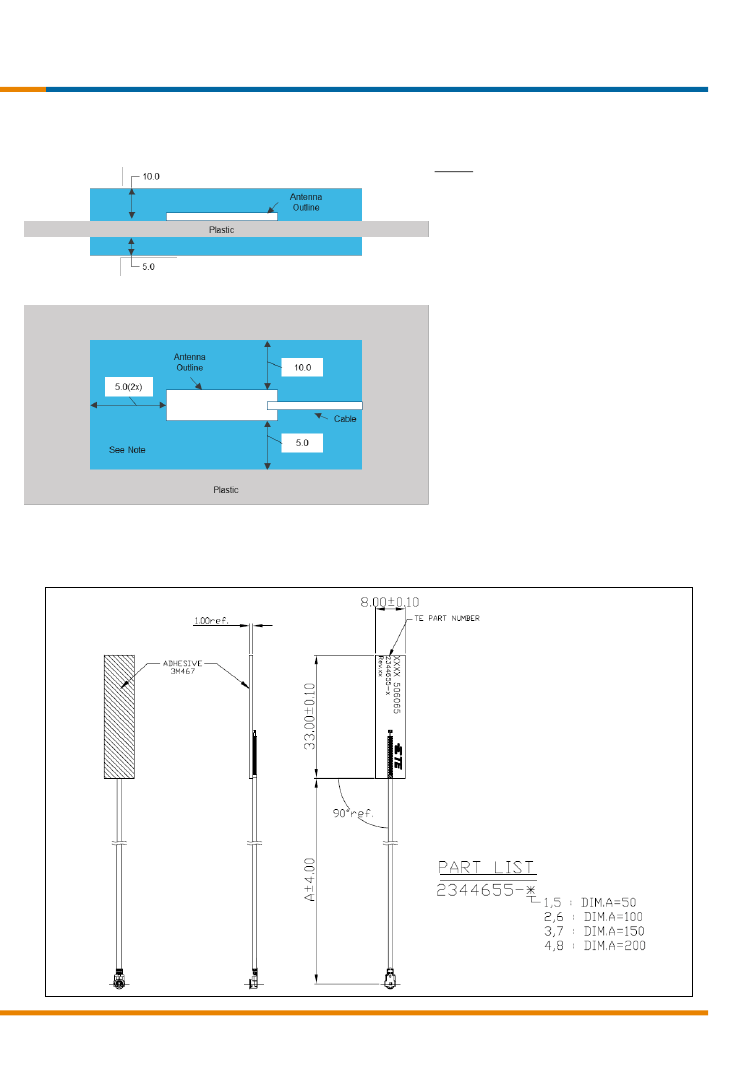

KEEP OUT AREA
NOTES
1. Antenna designed to be mounted on plastic cover.
2. Area in blue indicates Keep Out Area
3. Contact TE if keep out zone cannot be guaranteed.
Dimension: mm
Diagrams is not into scale
DIMENSIONS
DATA AND DEVICES
/// DUAL BAND WLAN / BLUETOOTH ANTENNA
DUAL BAND WLAN / BLUETOOTH ANTENNA
Standard Antenna Solutions

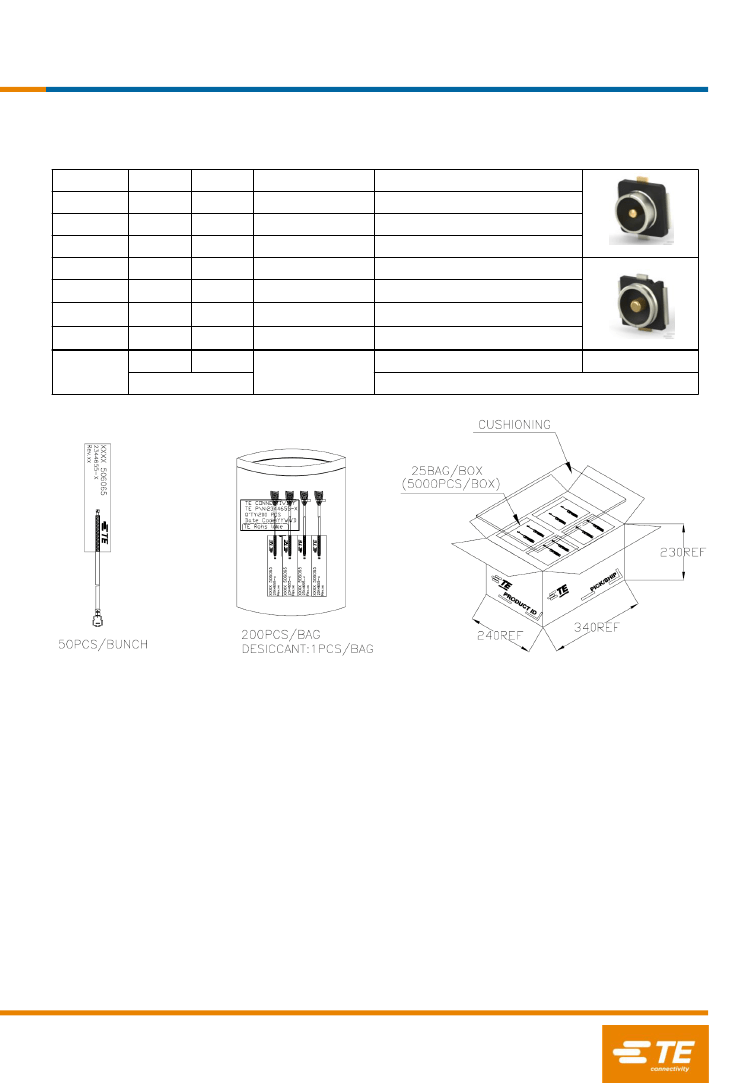

MATING COMPONENTS
2344655-1
2344655-2
2344655-3
2344655-4
2344655-5
2344655-6
2344655-7
2344655-8
PART
NUMBER
50
100
150
200
50
100
150
200
MM
1.97
3.94
5.91
7.87
1.97
3.94
5.91
7.87
INCH
MHF-TYPE PLUG
MHF-TYPE PLUG
MHF-TYPE PLUG
MHF-TYPE PLUG
MHF4-TYPE PLUG
MHF4-TYPE PLUG
MHF4-TYPE PLUG
MHF4-TYPE PLUG
CONNECTOR TYPE
(ON CABLE)
RECEPTACLE (TE PN: 2337019-1)
RECEPTACLE (TE PN: 2337019-1)
RECEPTACLE (TE PN: 2337019-1)
RECEPTACLE (TE PN: 2337019-1)
RECEPTACLE (TE PN: 2334884-1)
RECEPTACLE (TE PN: 2334884-1)
RECEPTACLE (TE PN: 2334884-1)
RECEPTACLE (TE PN: 2334884-1)
PART NUMBER
MATING COMPONENTS
CABLE LENGTH ("A")
PACKAGING
TE TECHNICAL SUPPORT CENTER
USA:
Canada:
Mexico:
Latin/S. America:
Germany:
UK:
France:
Netherlands:
China:
+1 (800) 522-6752
+1 (905) 475-6222
+52 (0) 55-1106-0800
+54 (0) 11-4733-2200
+49 (0) 6251-133-1999
+44 (0) 800-267666
+33 (0) 1-3420-8686
+31 (0) 73-6246-999
+86 (0) 400-820-6015
For phone numbers in other countries, go to te.com/support-center
te.com
TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be
trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes o nly, is believed to be reliable. However,
TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only
be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or
consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to
determine the suitability of each such product for the specific application.
