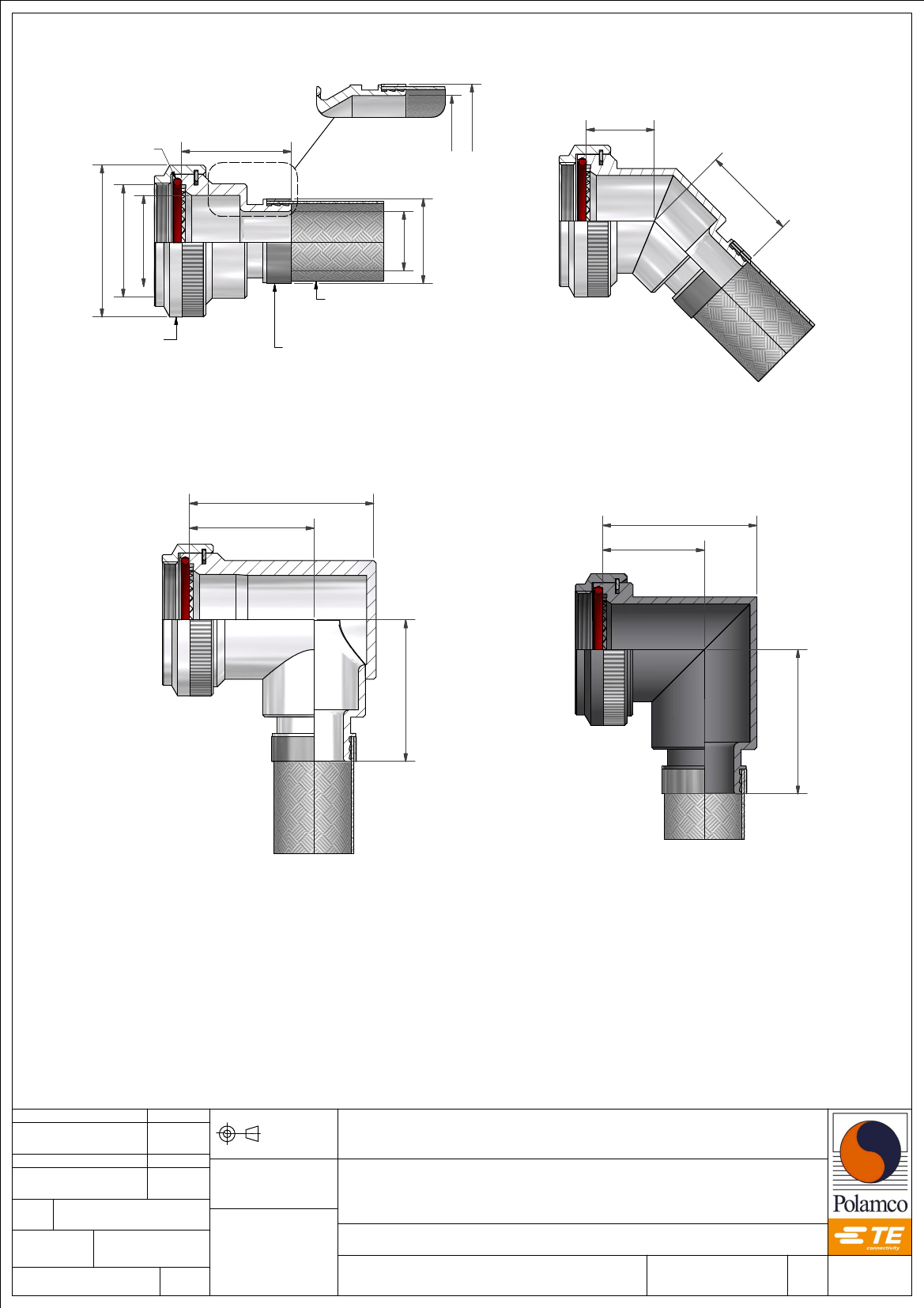

ALTERNATIVE PROFILE
INTERNAL PROFILE MAY VARY
C
G
O-RING
23,50
0,25
H
D
A THREAD
G
XXXX
6 INCH (150,00MM)
TINNED COPPER SCREENBRAID
SEE PART BREAKDOWN FOR MORE OPTIONS
ALUMINIUM / IRIDITE FINISH
MAGNA-FORM CRIMP RING
PART MARK AND
BATCH NUMBER HERE
H
B
T
ANGLE 1
ANGLE 2
E
K
KS
ES
F
90 BACKSHELL - ANGLE 3
ALUMINIUM ALLOY
90 BACKSHELL - ANGLE 3
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
DATE
25/04/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
70H SERIES
BRAID TAIL BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
18/09/2013
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
CA
6777
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-CTL-38999 SERIES III & IV
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
F
SHT DRAWING NO:
NCAGE CODE U5792
1 P29235
TABLE 1
SHELL
SIZE
09
11
13
15
17
19
21
23
25
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19*
20**
21**
22**
24*
A
THREAD
M12 x 1.0
M15 x 1.0
M18 x 1.0
M22 x 1.0
M25 x 1.0
M28 x 1.0
M31 x 1.0
M34 x 1.0
M37 x 1.0
B
MAX
18,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
T
MIN
6,7
10,2
13,5
16,2
19,4
21,8
25,1
28,2
31,4
TABLE 3
CODE
1-C
1-B
1-ZB
1-ZK
1-ZN
4-J
2-Z
C
MAX
13,1
13,9
14,5
15,5
16,1
16,8
17,1
17,7
18,4
D
0,5
17,1
18,2
18,6
19,5
20,3
20,8
21,7
22,0
22,9
E
MAX
25,7
26,7
31,2
37,2
40,2
44,7
49,2
51,7
53,2
F
MAX
24,0
25,7
27,2
28,7
30,4
32,0
33,6
35,1
36,6
K
0,5
17,5
17,5
20,0
24,5
26,7
27,0
30,5
31,5
28,5
ES
MAX
21,5
24,6
28,6
31,3
34,5
38,7
41,0
43,9
46,7
KS
0,5
16,3
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
G
MIN
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
30,20
31,80
33,34
35,00
38,10
H
MAX
13,60
13,60
13,60
18,40
18,40
18,40
18,40
24,70
24,70
24,70
24,70
31,10
31,10
31,10
33,70
33,70
36,90
42,50
42,50
42,50
42,50
MATERIAL / FINISH
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT BLACK OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC NICKEL BLACK PASSIVATE OVER ELECTROLESS NICKEL
STAINLESS STEEL / PASSIVATE
NICKEL ALUMINIUM BRONZE / SHOT BLAST
SEE SS0076 FOR FULL RANGE OF FINISH OPTIONS
TABLE 4
SUFFIX
-DB
-N
-12
MODIFICATION OPTIONS
DOUBLE BRAID
NICKEL PLATED BRAID
NON-STANDARD BRAID LENGTH (IN INCHES)
* - NOT AVAILABLE IN DB MODIFICATION
** - ADD 2,10 TO F MAX FOR DB MODIFICATION
ADD 0,80 TO H FOR DB MODIFICATION
70H1-17-08-1-C
SERIES
CONNECTOR INTERFACE
ANGLE
SHELL SIZE (TABLE 1)
ENTRY SIZE (TABLE 2)
MATERIAL AND FINISH (TABLE 3)
BRAID TAIL MODIFICATION (SEE TABLE 4)
OMIT FOR STANDARD (6 INCH SINGLE LAYER TINNED COPPER)
DRAWN
K.WINCZURA
DATE
25/04/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
70H SERIES
BRAID TAIL BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
18/09/2013
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
CA
6777
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-CTL-38999 SERIES III & IV
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
SHT DRAWING NO:
NCAGE CODE U5792
2 P29235
