232264073104 Overview

NTC Thermistors, Screw Threaded Sensors

232264073104 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	23226407
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature
Package shape	SPECIAL PACKAGE
Rated power dissipation(P)	0.5 W
resistance	100000 Ω
Resistor type	NTC THERMISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Thermal sensitivity index	4190 K
Thermistor Applications	TEMPERATURE SENSING
Tolerance	5%

Preview

Download Datasheet

View All

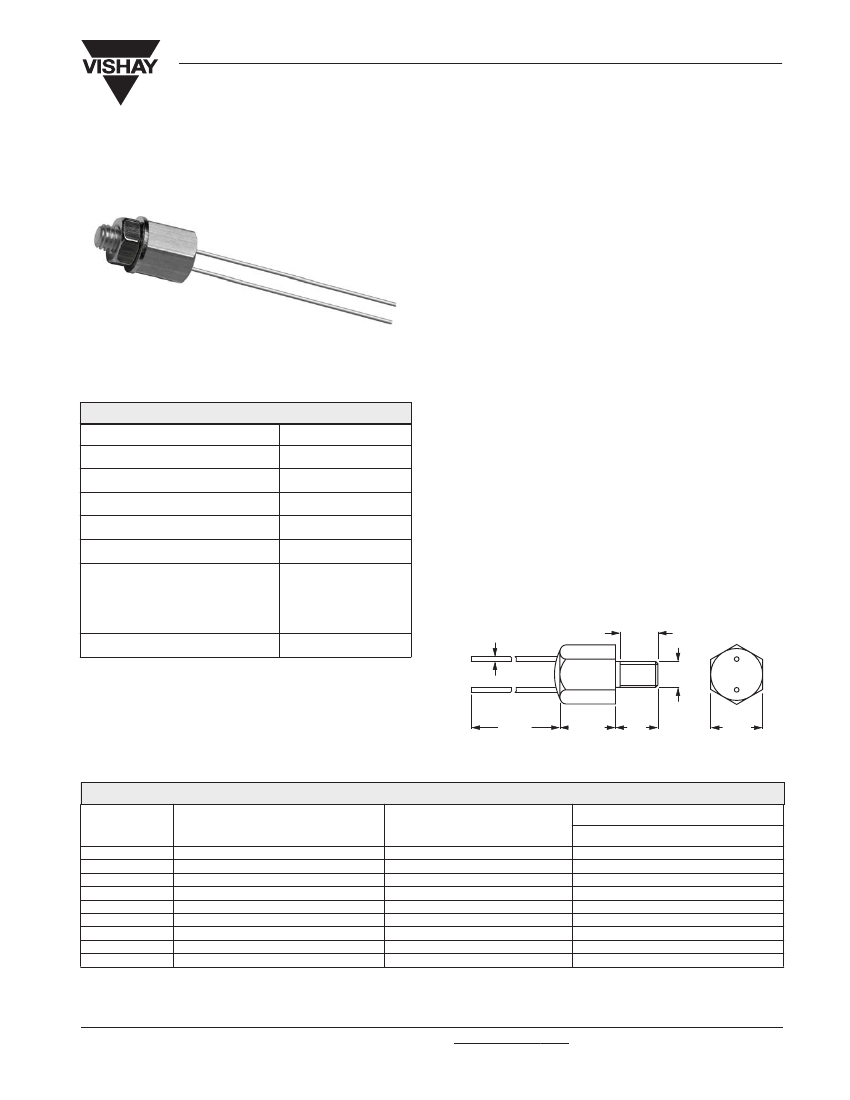

2322 640 7....

Vishay BCcomponents

NTC Thermistors, Screw Threaded Sensors

FEATURES

•

Easy mounting

•

Rugged construction

APPLICATIONS

Suitable for many applications, especially when a good

insulation and/or a good thermal contact with the chassis is

required.

Thermistor with negative temperature coefficient and two

solid tinned copper leads.

The device is mounted in the head of aluminium screws

size M4.

PACKAGING

QUICK REFERENCE DATA

PARAMETER

Resistance value at 25

Tolerance on R

-value

25/85

-value

Dissipation factor; note 1

Thermal time constant; note 1

Operating temperature range at:

zero dissipation

maximum dissipation

Mass

Note

1. Measured with screw mounted on an aluminium heatsink of

100 cm

, thickness 1.5 mm, in still air at T

amb

= +25

2. Other R

values based on 640 0 series are available upon

request.

3. Other tolerances on R

are available upon request.

±3

0.1

6.7

max.

The thermistors are packed in cardboard boxes; the smallest

packaging quantity is 100 units.

VALUE

2.2 k

Ω

to 470 k

Ω

3740 to 4570 K

≈

23 mW/K

≈

7.5 s

MARKING

The last 4 digits of the catalog number are printed on the stud

in accordance with the information in Electrical Data and

Ordering Information Table.

MOUNTING

By means of a washer and M4 nut supplied with the device.

Applied torque shall not exceed 1.2 Nm. Leads to be

soldered.

−

40 to +100

0 to +55

≈

1.5 g

DIMENSIONS

in millimeters

∅0.6

5.5

min.

Component outline.

ELECTRICAL DATA AND ORDERING INFORMATION

Ω

)

2.2

4.7

100

150

470

25/85

-VALUE

3977 K

0.75%

3977 K

0.75%

3977 K

0.75%

3740 K

1.5%

3740 K

1.5%

4090 K

1.5%

4190 K

1.5%

4370 K

2.5%

4570 K

(%/K)

−

4.37

−

4.37

−

4.37

−

4.10

−

4.10

−

4.46

−

4.57

−

4.75

−

4.95

CATALOG NUMBER 2322 640 7....

3222

3472

3103

3123

3153

3473

3104

3154

3474

Note

-values, temperature coefficients and catalog numbers.

The thermistors have a 12-digit catalog number starting with 2322 640 7. The subsequent 4 digits indicate the resistance value and tolerance.

Document Number: 29065

Revision: 10-Oct-03

For technical questions contact: nlr.europe@vishay.com

www.vishay.com

129
