TC59S6409BFT-80 datasheet, PDF

Datasheet> All Categories > storage> storage> TC59S6409BFT-80

TC59S6409BFT-80: DescriptionIC 8M X 8 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM; Categorystorage storage; File Size2MB，51 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC59S6409BFT-80 Overview

IC 8M X 8 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM

TC59S6409BFT-80 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	54
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G54
JESD-609 code	e0
length	22.22 mm
memory density	67108864 bi
Memory IC Type	SYNCHRONOUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	54
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm

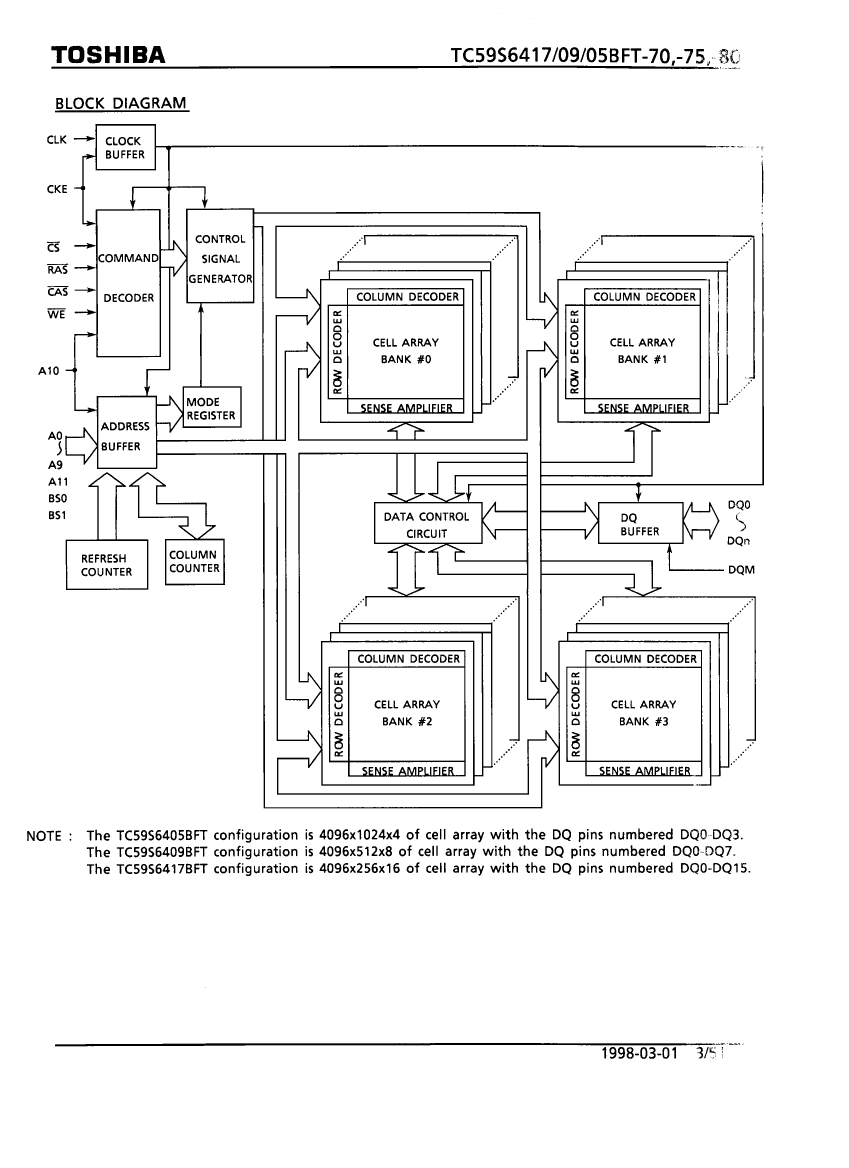

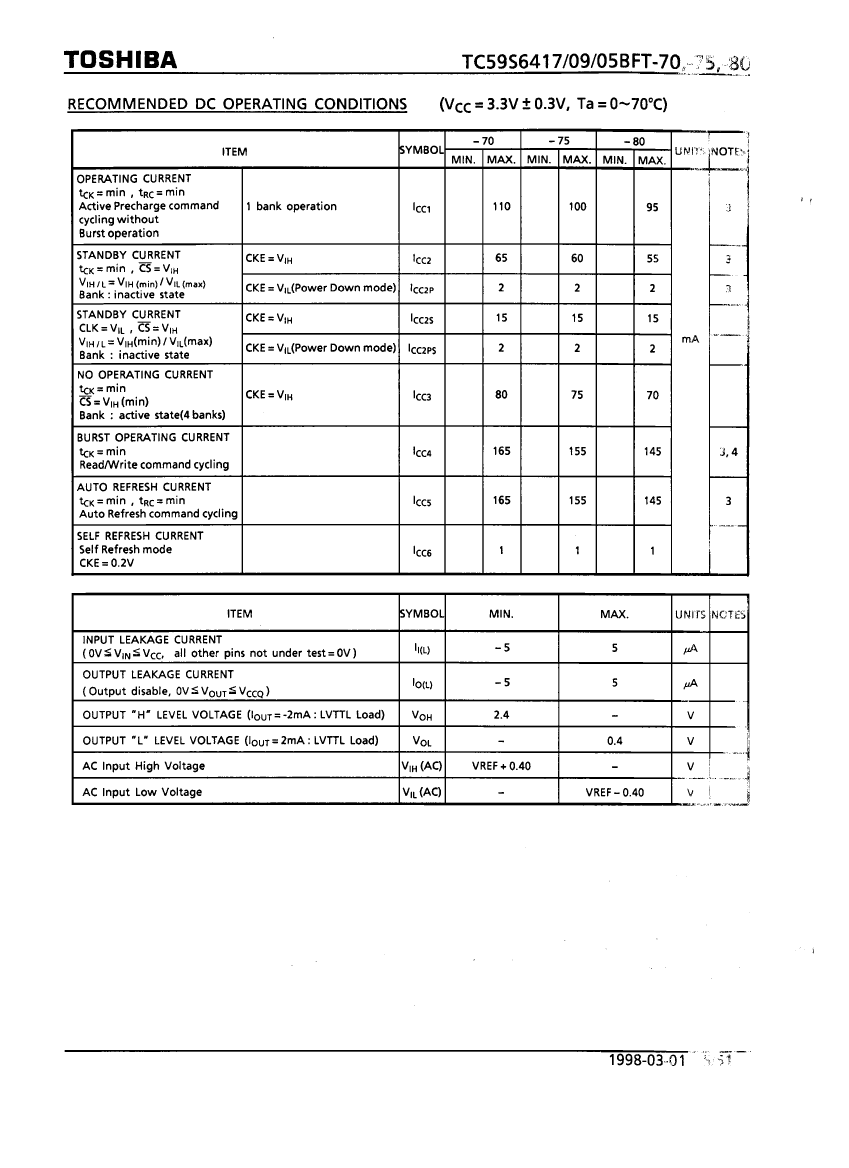

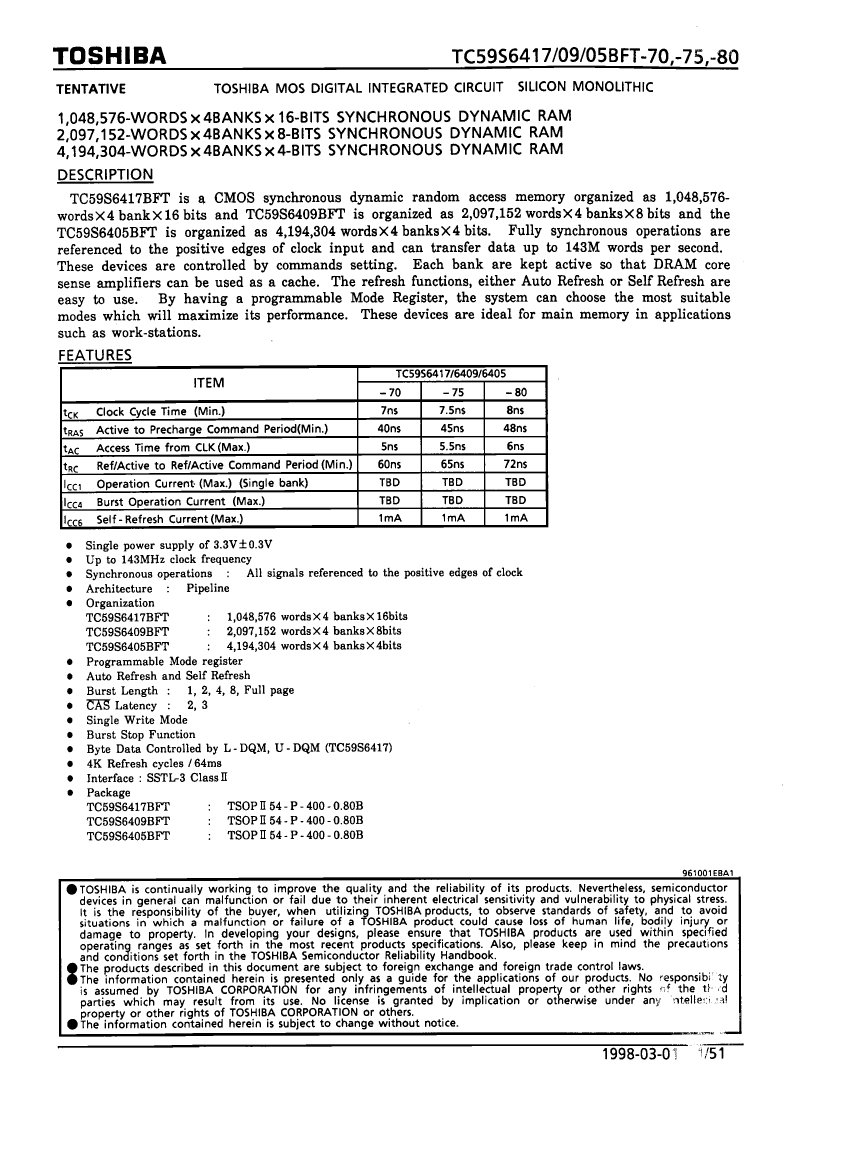

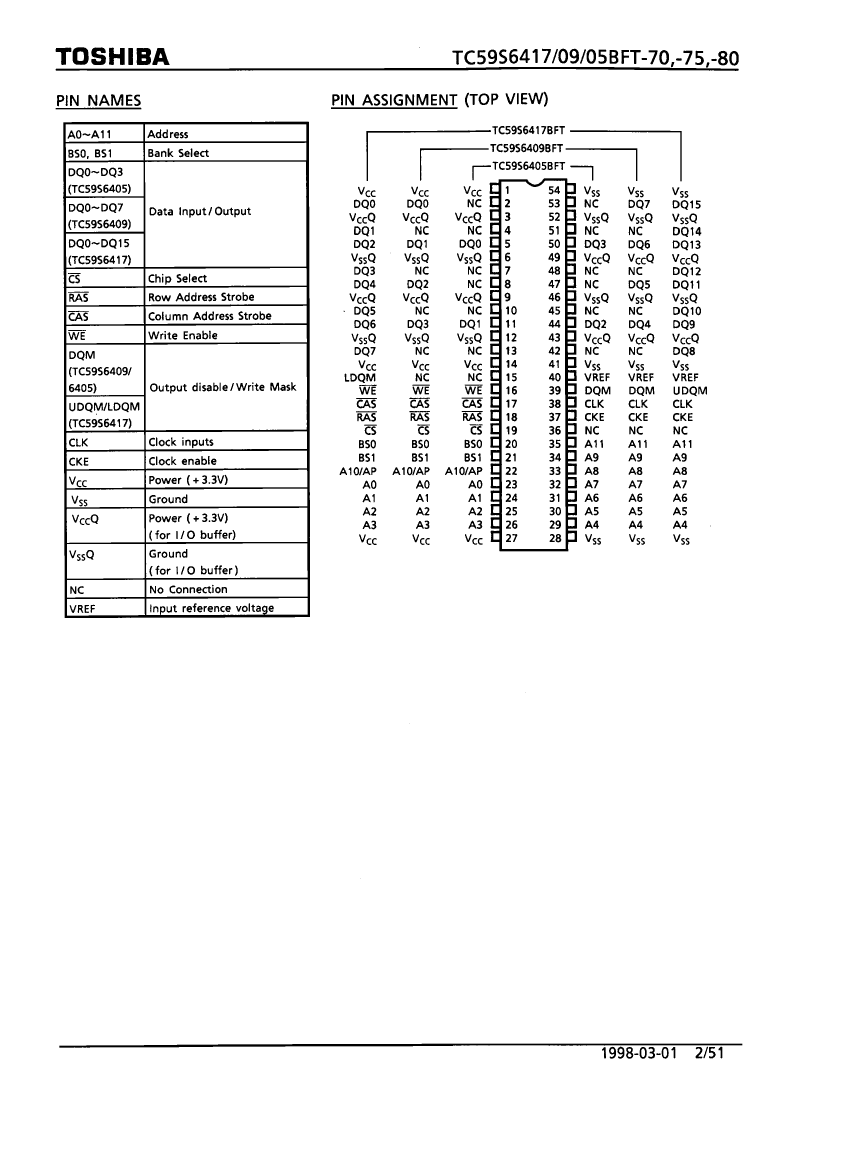

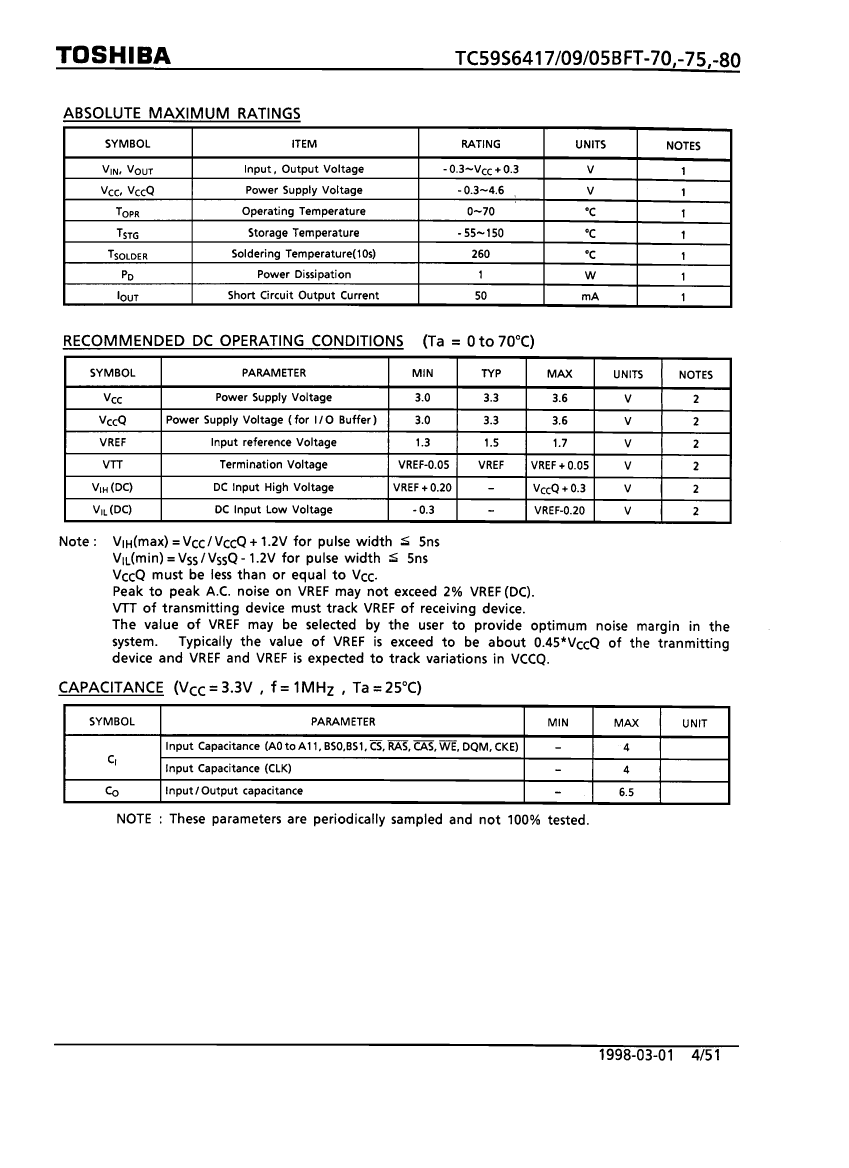

Preview

Download Datasheet

View All

TC59S6409BFT-80 Related Products

	TC59S6409BFT-80	QFN23401DKGGHWS	TC59S6409BFT-70	TC59S6409BFT-75	TC59S6405BFT-75	TC59S6417BFT-80	TC59S6417BFT-75	TC59S6405BFT-80	TC59S6417BFT-70
Description	IC 8M X 8 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	Fixed Resistor, Thin Film, 0.025W, 23400ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, 0202,	IC 8M X 8 SYNCHRONOUS DRAM, 5.5 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 8M X 8 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 16M X 4 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 4M X 16 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 4M X 16 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 16M X 4 SYNCHRONOUS DRAM, 6 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM	IC 4M X 16 SYNCHRONOUS DRAM, 5.5 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	54	2	54	54	54	54	54	54	54
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package form	SMALL OUTLINE, THIN PROFILE	SMT	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
technology	CMOS	THIN FILM	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	TSOP2	-	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	-	TSOP2,	TSOP2,	TSOP2,	TSOP2,	TSOP2,	TSOP2,	TSOP2,
Contacts	54	-	54	54	54	54	54	54	54
access mode	FOUR BANK PAGE BURST	-	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	-	5.5 ns	6 ns	6 ns	6 ns	6 ns	6 ns	5.5 ns
Other features	AUTO/SELF REFRESH	-	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G54	-	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0
length	22.22 mm	-	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm
memory density	67108864 bi	-	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	SYNCHRONOUS DRAM	-	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	8	-	8	8	4	16	16	4	16
Number of functions	1	-	1	1	1	1	1	1	1
Number of ports	1	-	1	1	1	1	1	1	1
word count	8388608 words	-	8388608 words	8388608 words	16777216 words	4194304 words	4194304 words	16777216 words	4194304 words
character code	8000000	-	8000000	8000000	16000000	4000000	4000000	16000000	4000000
Operating mode	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
organize	8MX8	-	8MX8	8MX8	16MX4	4MX16	4MX16	16MX4	4MX16
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	-	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	-	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	-	YES	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	-	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	-	YES	YES	YES	YES	YES	YES	YES
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	-	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	-	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
