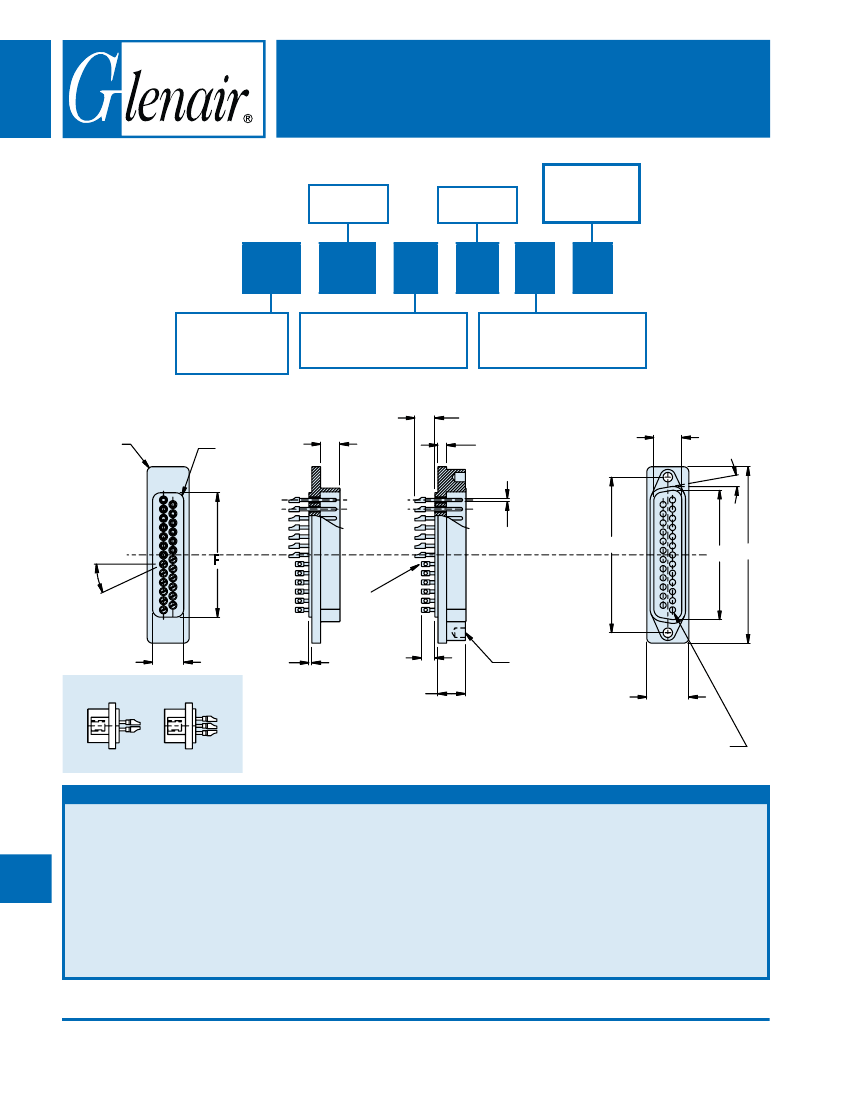

Glass-Sealed D-Subminiature Receptacle
280-006
MIL-DTL-24308/9 Hermetic
MIL-DTL
24308
MIL-DTL-24308/9
D-Subminiature
Hermetic
Connector
Style
Shell Size
Contact Style
P
= Solder Cup
X
= Eyelet
280
-
006
K
1
A
P
Class
H
= Standard Hermetic
K
= Space Grade Hermetic
Flange Type
A
= Solid
B
= Two #4-40 Lockposts
R.062
Typ
TERMINATION
vIEW
.238 Max
R.093
Typ
K
H
ENGAGEMENT
vIEW
D
10°
Typ
Ø.040±.001
F
25° Typ
Eyelets
G
.046
.032
See Note 2
C
B
A
.161 Max
.335
.316
SOLDER CUP ORIENTATION
#4-40 Unc-2b
X .125 Min
Full Thread
FLANGE
TYPE
B
SIZES 1-4
1.
2.
SIZE 5
FLANGE
TYPE
A
E
Insert Arrangement Shown
Are For Reference Only
APPLICATION NOTES
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or Solder Cup (See Part Number
Development).
Material/Finish:
Shell: Z1 = Stainless steel/passivated.
FT = Cold rolled steel/fused tin plate.
Z16 = Stainless steel/nickel plated, dull finish
Insulators: Glass bead/N.A.
Contacts: Pins, Alloy 52/gold plated
5.
6.
7.
4.
Performance:
DWV - 750 VAC Pin-to-Shell
I.R. - 5,000 MegOhms Min @ 500 VDC
Hermeticity <1 x 10
-7
cc He/sec @ 1
atmosphere differential
Glenair 280-006 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
All dimensions are typical for flange types “A” and “B”. “C” dim
is not applicable to flange type “A”.
Metric dimensions (mm) are indicated in parentheses.
H
3.
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-8
5B

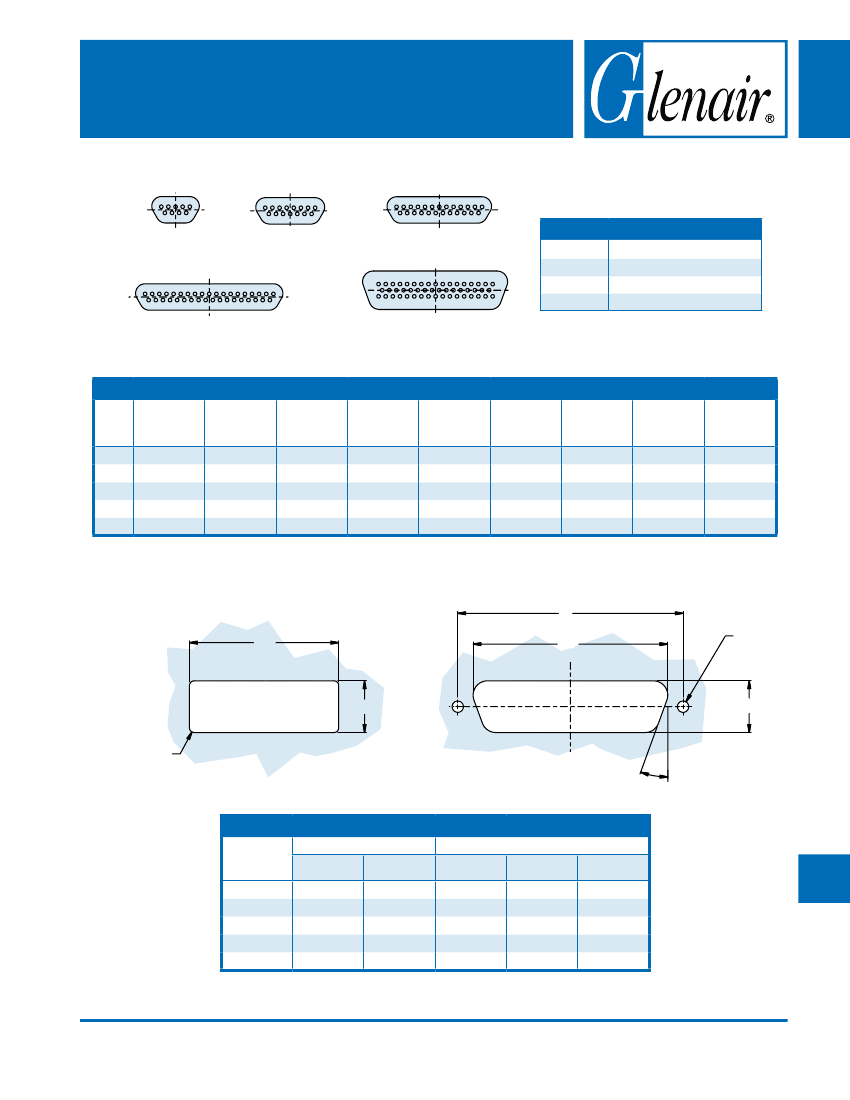

Glass-Sealed D-Subminiature Receptacle
MIL-DTL
24308
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
33
e
ticity Mod Code
280-006
MIL-DTL-24308/9 Hermetic
E MOD CODES
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
ed Leak Rate
9 CONTACTS
15 CONTACTS
25 CONTACTS
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
4
s Helium per second
s Helium per second
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
s Helium per second
37 CONTACTS
50 CONTACTS
TABLE I: CONNECTOR DIMENSIONS
TION CODES
Shell
Size
ng Plus Outgassing
1
cessing
2
Thermal vacuum
3
Outgassing
4
24 hrs. 125° C.
5
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
A
B
C
D
E
F
G
H
K
± .015 (± 0.4) ± .004 (± 0.1) ± .005 (± 0.1) ± .004 (± 0.1) ± .010 (± 0.3) ± .010 (± 0.3) ± .010 (± 0.3) ± .006 (± 0.2) ± .010 (± 0.3)
1.213 (30.8)
1.541 (39.2)
2.088 (53.2)
2.729 (69.4)
2.635 (67.1)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
.725 (18.4)
.932 (23.7)
1.497 (38.0)
2.125 (54.0)
2.000 (50.8)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.500 (12.7)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
Mod 429C
Mod 429A
Mod 186M
RECOMMENDED PANEL CUTOUT
SEE TABLE 2
C
Ø.120
XA
Xa
XB
Xb
Ya
YA
R.062 Max
Typ
Yb
YB
REAR MOUNT
FRONT MOUNT
(STYLE B ONLY)
10°
Typ
TABLE II: PANEL CUT-OUT
Shell
Sizes
1
2
3
4
5
Dim
XA
.745 (18.9)
Style A
Dim
YA
.385 (9.8)
.385 (9.8)
.385 (9.8)
.385 (9.8)
.520 (13.2)
Dim
XB
.799 (20.0)
1.125 (31.8)
1.690 (42.9)
2.335 (59.3)
2.231 (56.7)
Style B
Dim
YB
.462 (11.7)
.462 (11.7)
.482 (12.2)
.482 (12.2)
.588 (14.9)
Dim
C
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
.950 (24.1)
1.495 (38.0)
2.145 (54.5)
2.015 (51.2)
H
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-9
