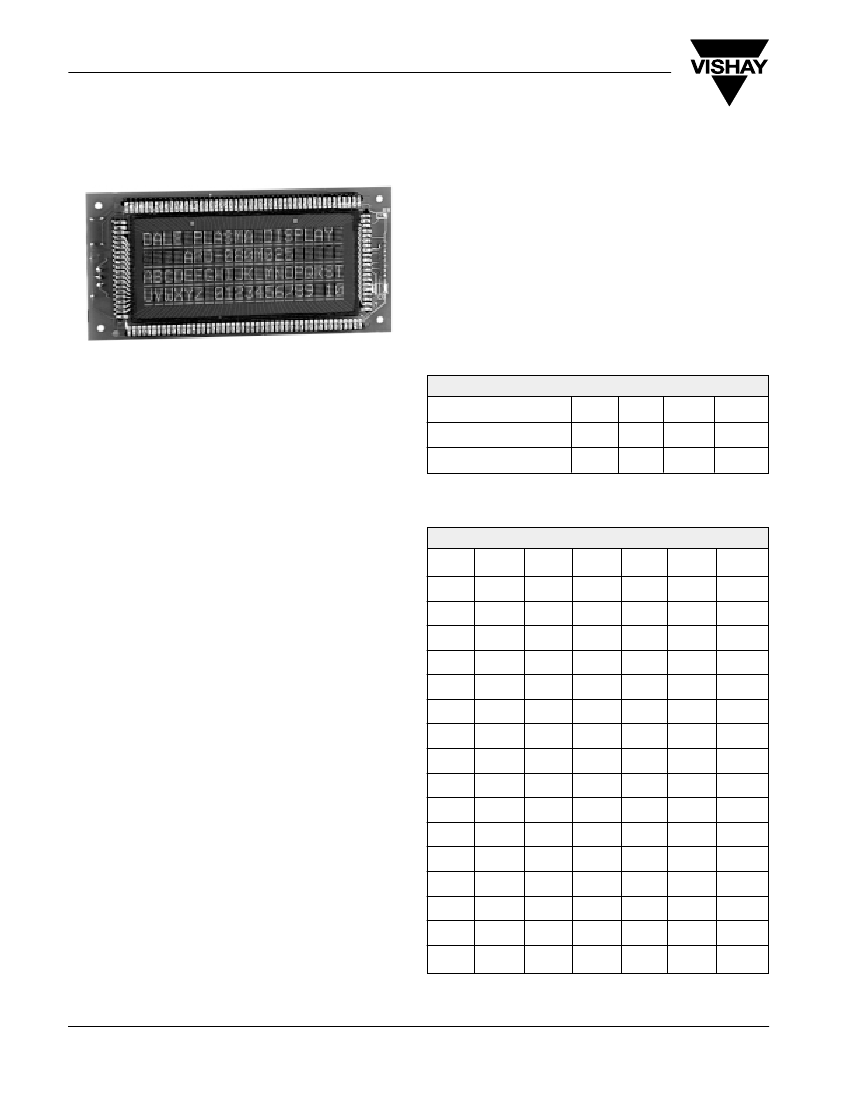

APD-080M025-1
Vishay Dale
Plasma Panel Display Modules
80 Character Display with Drive Electronics
Controller and Serial Interface
FEATURES
•
•
•
•
•
•
•
•
The APD-080M025-1 plasma display module consists of a
multiplexed DC plasma display, drive circuitry and switching
voltage converter mated with an intelligent, microprocessor-
based controller board. The resulting assembly interfaces
easily to microprocessor based systems and only requires
readily available low voltages for power. Vishay Dale's
patented open construction display technology assures a
stable flicker free screen even at highest communication
rates.
Interfacing is very simple (and requires no handshaking as a
20 byte FIFO buffer captures data when the display is busy)
through a single 3 pin connector that has + 5 VDC, SERIAL
(RS-232) DATA and GROUND connections.
An EPROM based character generator is factory pro-
grammed with 96 ASCII characters. Alternate character sets
can be user or factory programmed.
Serial data protocol is 1 start bit, 8 data bits and no stop bit.
Baud rate (300, 1200 or 9600) is selected with a control
board jumper. A simplified command set allows quick and
efficient code generation.
0
1
2
3
4
5
6
7
8
9
10
Panel Supply Voltage
Panel Supply Current
80 (4 x 20) alphanumeric characters (5 x 7 dot matrix)
plus underbar
Only + 5 VDC required
ASCII character set (optional character sets available)
Efficient serial interface (RS-232)
Wide viewing angle (150°)
High brightness
Rugged design/slim profile
Flicker free refresh, high speed data input
STANDARD ELECTRICAL SPECIFICATIONS
MIN.
+ 4.75
—
TYP.
+ 5.0
0.3
MAX.
+ 5.25
1.0
UNITS
V
A
ASCII CHARACTER SET
32
SP
!
"
#
$
%
&
‘
(
)
*
+
,
-
.
/
48
0
1
2
3
4
5
6
7
8
9
:
;
<
=
>
?
64
@
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
80
P
Q
R
S
T
U
V
W
X
Y
Z
[
\
]
^
_
96
‘
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
112
p
q
r
s
t
u
v
w
x
y
z
{
|
}
~
OPTICAL SPECIFICATIONS
Viewing Area:
4.03" [102.36mm] W x 1.46" [37.08mm] H.
Number of Characters:
80.
Character Size:
0.150" [3.81mm] W x 0.250" [6.35mm] H.
Luminance:
80 foot lamberts.
Viewing Angle:
150° cone.
11
12
13
14
15
www.vishay.com
2
Document Number: 37005
Revision 05-Dec-00
APD-080M025-1
Vishay Dale
DIMENSIONS
in inches [millimeters]
6.25
[158.75]
5.75
[146.05]
0.250
[6.35]
1.46
[37.08]
0.510
[12.95]
4.03
[102.36]
2.50
[63.50]
3.0
[76.20]
6-32
Threaded Standoffs
4 Places
0.860
[21.84]
0.250
[6.35]
1.75
[44.45]
ORDERING INFORMATION
DESCRIPTION
PART NUMBER
Display, Drive Electronics and Controller ................................................................................................................................. APD-080M025-1
Mating Connector Kit ......................................................................................................................................................................... 280108-01
Non-Glare Filter (amber circular polarized) - other filters available - contact factory ......................................................................... 280109-10
Document Number: 37005
Revision 05-Dec-00
www.vishay.com
3
