VISHAY
LL1.5 to LL2.4
Vishay Semiconductors
Voltage Stabilizers
Features
• Silicon Planar Stabilizer Diodes
• Monolithic integrated analog circuits in MiniMELF
case, designed for small power stabilizer and limi-
tation circuits, providing low dynamic resistance
and high-quality stabilization performance as well
as low noise. In the reverse direction, these
devices show the behavior of forward-biased sili-
con diodes.
• The end of the device marked with the cathode
ring is to be connected: LL1.5 and LL2 to the neg-
ative pole of the supply voltage; LL2.4 to the posi-
tive pole of the supply voltage
• These diodes are also available in DO-35 case
with the type designation ZTE1.5 - ZTE 2.4.
17205
Mechanical Data
Case:
MiniMELF Glass Case (SOD-80)
Weight:
approx. 50 mg
Packaging codes/options:
GS18 / 10k per 13 " reel (8 mm tape), 10k/box
GS08 / 2.5k per 7 " reel (8 mm tape), 12.5k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Operating Current (see Table "Electrical
Characteristics")
Inverse Current
Power dissipation
Junction temperature
Storage temperature range
1)
Test condition
Symbol
Value
Unit
I
F
P
tot
T
J
T
S
100
300
1)
150
- 55 to + 150
mA
mW
°C
°C
Valid provided that electrodes are kept at ambient temperature
Document Number 85814
Rev. 1.5, 21-Oct-03
www.vishay.com
1
LL1.5 to LL2.4
Vishay Semiconductors
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Temperature Coefficient of the
stabilized voltage
Test condition
I
Z
= 5 mA
Symbol
α
VZ
α
VZ
α
VZ
α
VZ
Thermal resistance junction to
ambient air
1)
VISHAY
Value
Unit
10
-4
/°C
10
-4
/°C
10
-4
/°C
10
-4
/°C
R
θJA
400
1)
°C/W
Valid provided that electrodes are kept at ambient temperature
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward Voltage
Test condition
I
F
= 10 mA
Symbol
V
F
Min
Typ.
Max
1.1
Unit
V
Electrical Characteristics
Partnumber
Operating Voltage
V
Z
@ I
Z
= 5 mA
(2)
V
min
LL1.5
LL2
LL2.4
(1)
(2)
Dynamic Resistance
r
zj
@ I
Z
= 5 mA
Ω
max
1.55
2.3
2.56
13(<20)
18(<30)
14(<20)
Permissable operating
current
I
Z
@ T
amb
= 25 °C
mA
max
120
120
120
1.35
2
2.2
Valid provided that electrodes are kept at ambient temperature at a distance of 8 mm from case
Tested with pulses t
p
= 5 ms
Typical Characteristics
(T
amb
= 25
°C
unless otherwise specified)
LL1.5
LL2 2.4
LL1.5
LL2
2.4
18200
18201

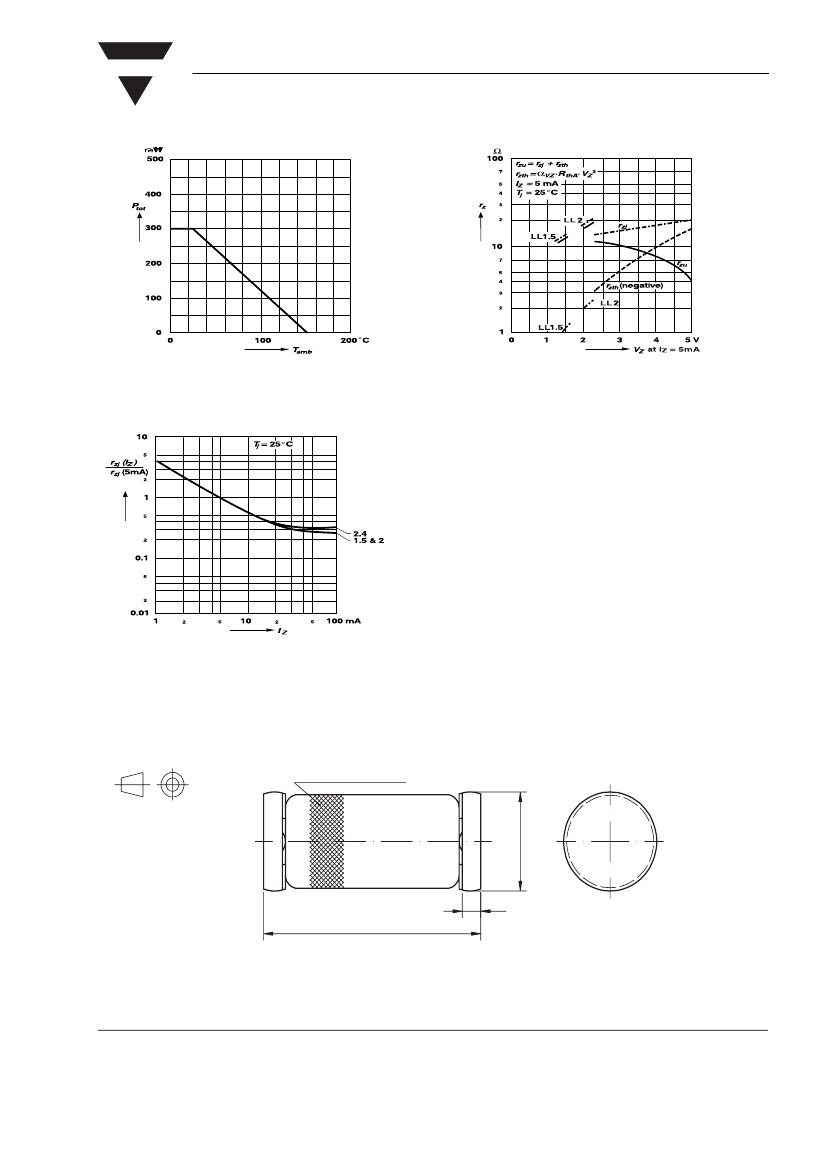

Figure 1. Breakdown Characteristics
Figure 2. Admissible Power Dissipation vs. Ambient Temperature
www.vishay.com
2
Document Number 85814
Rev. 1.5, 21-Oct-03
