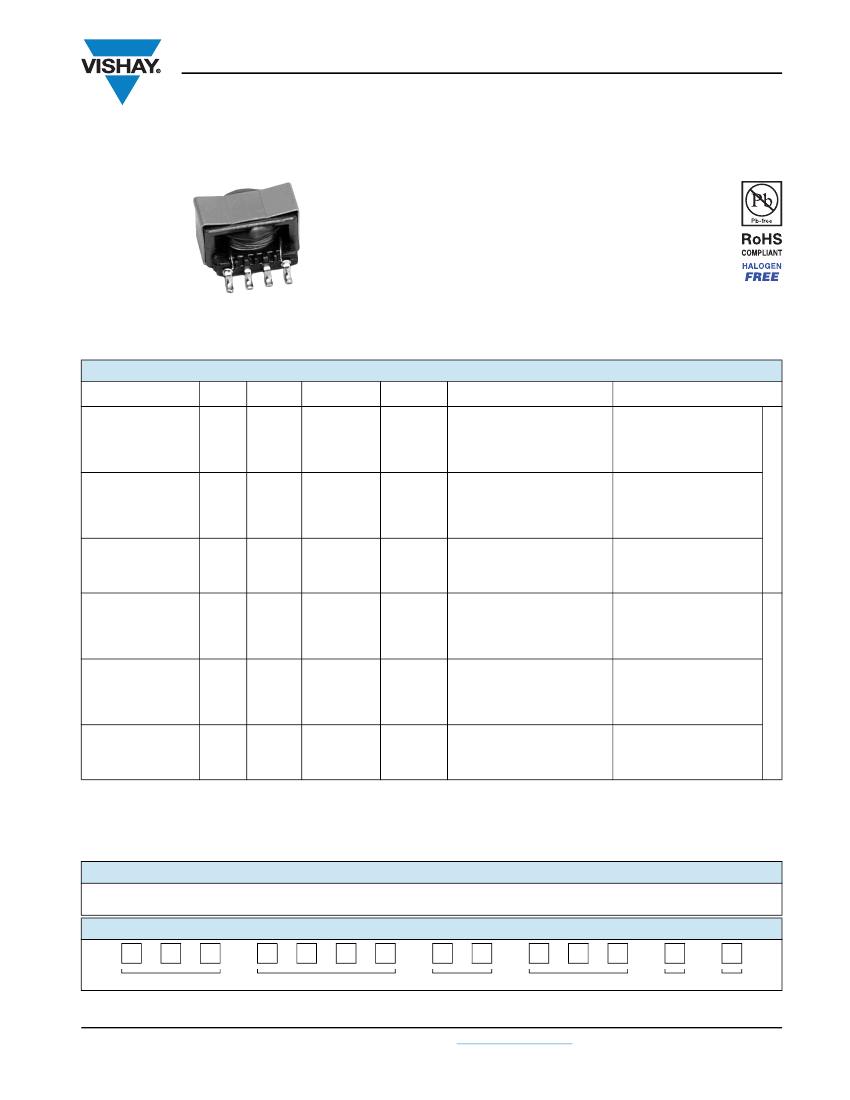

LPE-4841
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
FEATURES
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21
definition
ELECTRICAL SPECIFICATIONS
Inductance Range:
10 μH to 47 000 μH,
measured at 0.10 V
RMS
at 10 kHz without DC
current, using an HP 4263A or HP 4284A
impedance analyzer
DC Resistance Range:
0.03
to 19.1
,
measured at
+ 25 °C ± 5 °C
Rated Current Range:
2.00 A to 0.09 A
Dielectric Withstanding Voltage:
500 V
RMS
, 60 Hz, 5 s
STANDARD ELECTRICAL SPECIFICATIONS
SATURATING CURRENT
IND.
IND.
SCHEMATIC DCR MAX. MAX. RATED DC CURRENT
(A)
(2)
MODEL
(μH)
TOL.
LETTER
()
(A)
(1)
LPE4841ER101NU
100
± 30 %
A
0.17
0.88
N/A
LPE4841ER151NU
150
± 30 %
A
0.21
0.79
N/A
LPE4841ER221NU
220
± 30 %
A
0.25
0.721
N/A
LPE4841ER331NU
330
± 30 %
A
0.30
0.65
N/A
LPE4841ER471NU
470
± 30 %
A
0.36
0.60
N/A
LPE4841ER681NU
680
± 30 %
A
0.44
0.54
N/A
LPE4841ER102NU
1000
± 30 %
A
0.53
0.49
N/A
LPE4841ER152NU
1500
± 30 %
A
0.65
0.45
N/A
LPE4841ER222NU
2200
± 30 %
A
0.79
0.40
N/A
LPE4841ER332NU
3300
± 30 %
A
1.55
0.29
N/A
LPE4841ER472NU
4700
± 30 %
A
1.85
0.26
N/A
LPE4841ER682NU
6800
± 30 %
A
4.36
0.17
N/A
LPE4841ER103NU
10 000 ± 30 %
A
5.29
0.16
N/A
LPE4841ER153NU
15 000 ± 30 %
A
6.48
0.14
N/A
LPE4841ER223NU
22 000 ± 30 %
A
13.1
0.10
N/A
LPE4841ER333NU
33 000 ± 30 %
A
16.0
0.09
N/A
LPE4841ER473NU
47 000 ± 30 %
A
19.1
0.08
N/A
LPE4841ER100MG
10
± 20 %
B
0.03
2.03
2.320
LPE4841ER150MG
15
± 20 %
B
0.04
1.84
1.925
LPE4841ER220MG
22
± 20 %
C
0.07
1.32
1.610
LPE4841ER330MG
33
± 20 %
C
0.09
1.20
1.330
LPE4841ER470MG
47
± 20 %
D
0.13
0.98
1.125
LPE4841ER680MG
68
± 20 %
D
0.21
0.79
0.941
LPE4841ER101MG
100
± 20 %
E
0.35
0.58
0.781
LPE4841ER151MG
150
± 20 %
E
0.48
0.52
0.641
LPE4841ER221MG
220
± 20 %
E
0.73
0.42
0.532
LPE4841ER331MG
330
± 20 %
E
1.14
0.34
0.436
LPE4841ER471MG
470
± 20 %
E
1.36
0.31
0.366
LPE4841ER681MG
680
± 20 %
E
2.07
0.25
0.305
LPE4841ER102MG
1000
± 20 %
E
3.15
0.20
0.252
LPE4841ER152MG
1500
± 20 %
E
4.76
0.16
0.206
LPE4841ER222MG
2200
± 20 %
E
7.29
0.13
0.170
LPE4841ER332MG
3300
± 20 %
E
11.7
0.11
0.139
LPE4841ER472MG
4700
± 20 %
E
17.7
0.09
0.117
Notes
(1)
DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C ambient.
(2)
DC current that will typically reduce the initial inductance by 20 %.
•
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and
line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter inductance tolerance with better temperature stability than
ungapped models. Beneficial in DC/DC converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.
DESCRIPTION
LPE
4841
MODEL SIZE
1000 μH
INDUCTANCE VALUE
± 30 %
INDUCTANCE TOLERANCE
A
CORE
ER
PACKAGE CODE
e2
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
4
8
SIZE
4
1
E
R
1
0
2
N
TOL.
U
CORE
PRODUCT FAMILY
PACKAGE CODE
INDUCTANCE VALUE
Note
• Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).
Document Number: 34064
Revision: 24-Feb-11
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
GAPPED MODELS (B)
UNGAPPED MODELS (A)
LPE-4841
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
SCHEMATIC
(top view)
Schematic
A
5
6
7
8
4
3
2
1
5
6
7
8

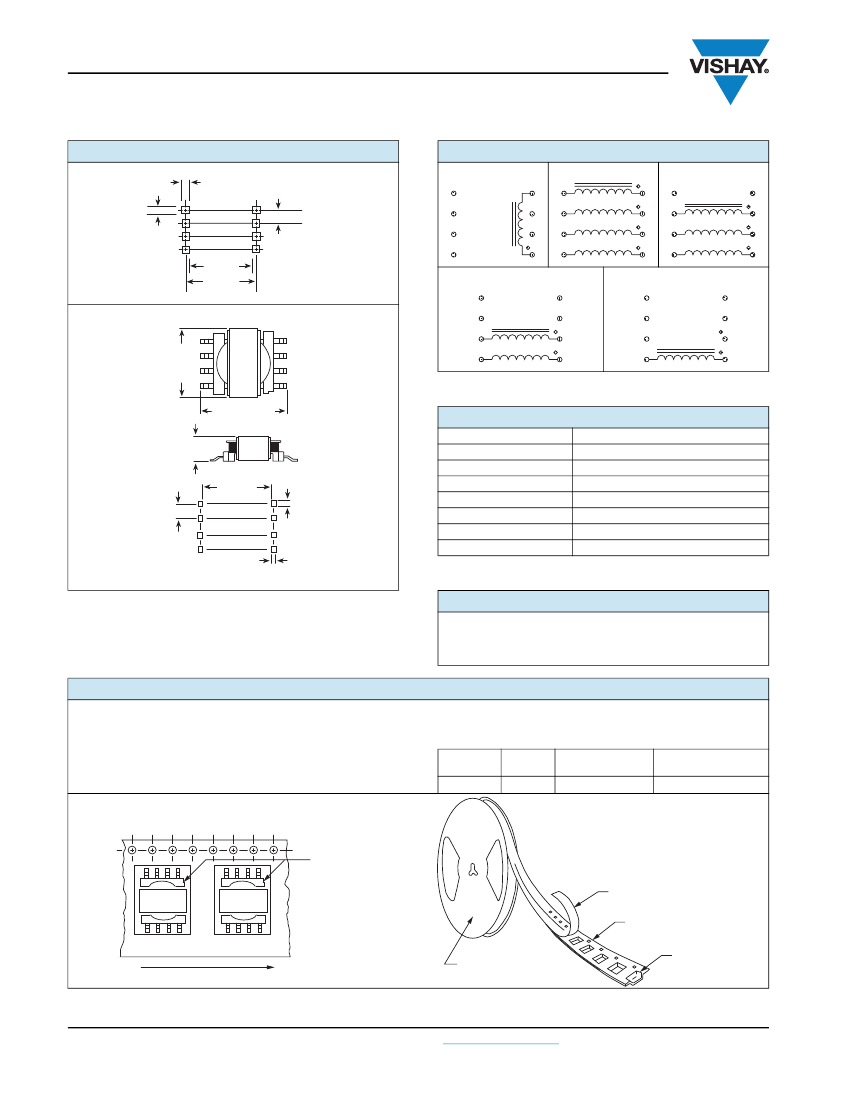

DIMENSIONS
in inches [millimeters]
Pad Layout
0.045 [1.14]
Pad Dimensions
Typical, 8 places
0.079 [2.01]
0.045
[1.14]
0.382
[9.70]
0.427
[10.85]
Reference Only
Typical
3
places
Schematic
B
4
3
2
1
5
6
7
8
Schematic
C
4
3
2
1
Schematic
D
5
6
4
3
2
1
5
6
7
8
Schematic
E
4
3
2
1
Dimensional Outline
5
0.421
[10.69]
Max.
8
0.492 [12.50]
Max.
0.248 [6.30]
Max.
0.400
[10.16]
0.079 [2.01]
Typ.
0.028 [0.71]
4
7
8
1
Note
• Schematic A is for ungapped LPE series
ENVIRONMENTAL PERFORMANCE
TEST
CONDITIONS
Thermal Cycling
Withstands - 55 °C to + 125 °C
Operating Temperature
- 55 °C to + 125 °C
(1)
High Humidity
85 %
Soldering Heat
Tested to + 230 °C
Mechanical Shock
Per MIL-STD-202, method 213 (100G)
Vibration
Per MIL-STD-202, method 204 (20G)
Solderability
Per industry standards
Note
(1)
Must be checked in end use application
0.028 [0.71]
Foot Print Diagram
Notes
• Pad layout guidelines per MIL-STD-275E (printed wiring for
electronic equipment).
• Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005" [± 0.12 mm].
• The underside of these components contains metal and thus
should not come in contact with active circuit traces.
PART MARKING
- Vishay Dale
- Date code
- Marking code (suffix of model #)
- Pin 1 indicator
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 g ± 30 g
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic
Placement”.
TAPE
COMPONENT
UNITS PER 13"
MODEL
WIDTH
PITCH
REEL
LPE-4841
24 mm
16 mm
600
Tape and Reel Orientation
Pin 1 Indicator
Cover Tape
Carrier Tape
Embossed Cavity
Label Area
USER DIRECTION OF FEED
Note
• Top view shown with cover tape removed
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34064
Revision: 24-Feb-11
