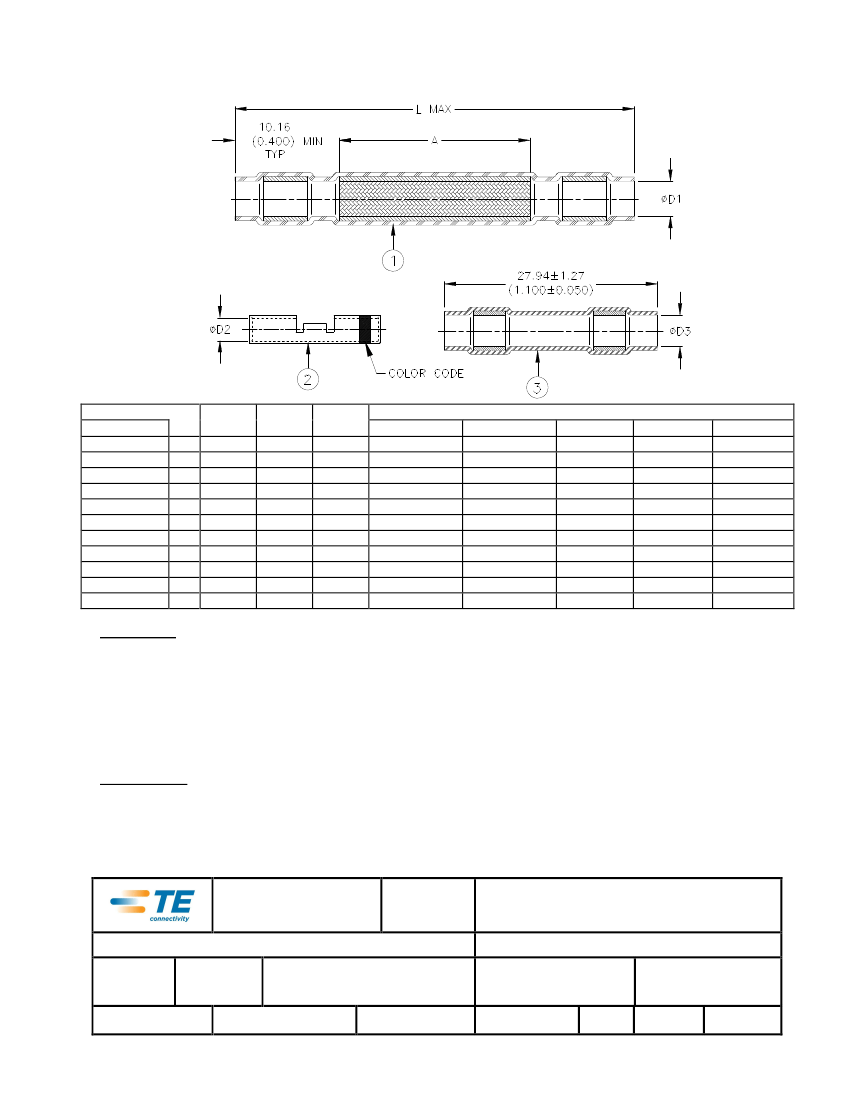

SPECIFICATION CONTROL DRAWING
Product Revisions
Part Names
D-150-0168
A
D-150-0169
B
D-150-0170
B
D-150-0174
A
D-150-0175
D
D-150-0176
B
D-150-0177
B
D-150-0178
A
D-150-0179
A
D-150-0180
A
D-150-0181
B
Primary
No.
1
1
1
2
2
2
2
3/4
3/4
3/4
3/4
AWG
Range
26-20
20-16
16-12
26-20
18-16
14
12
26-20
22-20
18-16
14-12
Color
Code
Red
Blue
Yellow
Red
Blue
Yellow
Yellow
Red
Red
Blue
Yellow
L Max
80.52 (3.170)
80.52 (3.170)
80.52 (3.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
105.92 (4.170)
Product Dimensions
øD1
A2.54 (0.100)
50.30 (1.970)
3.00 (0.118)
50.30 (1.970)
4.00 (0.157)
50.30 (1.970)
5.00 (0.197)
74.93 (2.950)
4.00 (0.157)
74.93 (2.950)
5.00 (0.197)
74.93 (2.950)
6.00 (0.236)
74.93 (2.950)
9.04 (0.356)
74.93 (2.950)
4.00 (0.157)
74.93 (2.950)
5.00 (0.197)
74.93 (2.950)
6.00 (0.236)
74.93 (2.950)
9.04 (0.356)
øD2
1.14 (0.045)
1.63 (0.064)
2.46 (0.097)
1.14 (0.045)
1.63 (0.064)
2.46 (0.097)
2.46 (0.097)
1.14 (0.045)
1.14 (0.045)
1.63 (0.064)
2.46 (0.097)
øD3
2.79 (0.110)
4.00 (0.157)
4.32 (0.170)
2.16 (0.085)
2.79 (0.110)
4.32 (0.170)
4.32 (0.170)
2.16 (0.085)
2.16 (0.085)
2.79 (0.110)
4.32 (0.170)
MATERIALS
1. SOLDERSHIELD SPLICE SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride sleeve,
containing two environment resistant sealing rings and a solder impregnated, flux-coated copper-wire braid.
Transparent blue.
SOLDER: TYPE Sn63 per ANSI J-STD-006.
FLUX:
TYPE ROM1 per ANSI J-STD-004.
2. CRIMP SPLICE (1, 2, OR 4 PER KIT): Tin-plated copper alloy with color code stripe.
3. SEALING SPLICE SLEEVE (1, 2, OR 4 PER KIT): Heat-shrinkable, radiation cross-linked modified polyvinylidene
fluoride sleeve, containing two environment resistant sealing rings. Transparent blue.
APPLICATION
1. These kits are designed to make an environment-resistant, 1 to 1 in-line splice in shielded single, twisted pair, trio and quad
cables having tin or silver-plated conductors and insulations rated for 135C minimum.
2. Temperature rating: -55C to +150C.
3. For installation procedures refer to the applicable sections of Raychem Process Standard RCPS 150-02.
TE Connectivity
300 Constitution Drive
Menlo Park, CA 94025 USA
RAYCHEM
TITLE :
(1 TO 1 SPLICES-CRIMP)
SOLDERSHIELD SPLICE KIT,
SHIELDED CABLE
Unless otherwise specified dimensions are in millimeters.
Inches dimensions are in between brackets.
TOLERANCES:
ANGLES: N/A
TE Connectivity reserves the right to amend this
0.00 N/A
drawing at any time. Users should evaluate the
0.0 N/A
ROUGHNESS IN
suitability of the product for their application.
0 N/A
MICRON
DOCUMENT NO.:
DATE:
D-150-0168-0170/0174-0181
DOC ISSUE:
15-Apr-11
SCALE:
None
SIZE:
A
10
SHEET:
1 of 1
DRAWN BY:
REPLACES:
DCR NUMBER:
PROD. REV.
M. FORONDA
D000670
D010319
SEE TABLE
Print Date: 9-May-11
If this document is printed it becomes uncontrolled. Check for the latest revision.
