301S43W105MV4E: DescriptionTIP&RING CHIP CAPACITORS; File Size67KB，3 Pages; ManufacturerETC2

Download Datasheet View All

301S43W105MV4E Overview

TIP&RING CHIP CAPACITORS

Preview

Download Datasheet

View All

& R

ING

HIP

APACITORS

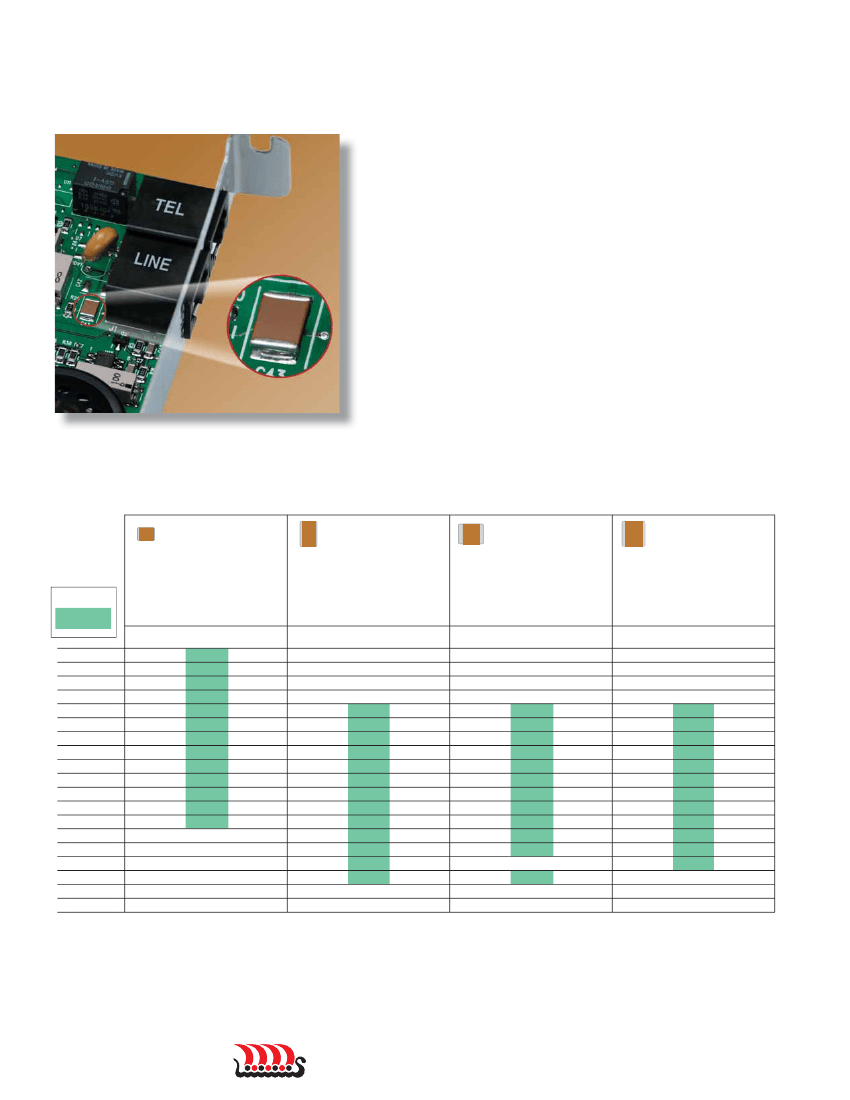

The Tip & Ring MLCC series are designed specifically for

telecom ringer circuit applications where it is necessary to

provide a block of the line voltage (typically -48 VDC) while

passing the AC ringing voltage. These compact ceramic SMD

chips replace bulky leaded film caps saving board space and

stream-lining the assembly process.

EATURES

•

Blocks Off-hook DC Voltage

Passes AC Ring Signal

250 VDC Ratings For Telecom Interface

Choice of SMD Chip Sizes

Low ESR versus Frequency

Stable Temperature Performance (X7R)

APACITANCE

ELECTION

-1812-2225 S

IZE

S43 / 1812

E/B

INCHES

.175 ±.010

.125 ±.010

.125 Max.

.025 ±.015

(mm)

(4.45 ±.25)

(3.17 ±.25)

(3.17)

(0.64±.38)

E/B

S49 / 1825

INCHES

.180 ±.010

.250 ±.010

.140 Max.

.025 ±.015

(mm)

(4.57 ±.25)

(6.35 ±.25)

(3.55)

(0.64±.38)

E/B

S47 / 2220

INCHES

.225 ±.010

.200 ±.010

.140 Max.

.025 ±.015

(mm)

(5.72 ±.25)

(5.08 ±.25)

(3.55)

(0.64±.38)

E/B

S48 / 2225

INCHES

.225 ±.010

.250 ±.010

.140 Max.

.025 ±.015

(mm)

(5.72 ±.25)

(6.35 ±.25)

(3.55)

(0.64±.38)

DIELECTRIC

X7R

.047 µF

.056 µF

.068 µF

.082 µF

0.10 µF

0.12 µF

0.15 µF

0.18 µF

0.22 µF

0.27 µF

0.33 µF

0.39 µF

0.47 µF

0.56 µF

0.68 µF

0.82 µF

1.00 µF

1.20 µF

1.50 µF

250 VDC

Please contact the factory for capacitance, voltage, case size combinations not shown.
