P4KE SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
Glass passivated junction
Low inductance
Excellent clamping capability
400W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 12V
High Temperature soldering guaranteed: 265℃/10 seconds/.375″,
(9.5mm) lead length, 5lbs (2.3kg) tension
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Mechanical Data
■
■
■
■
■
Case: JEDEC DO-41 Moulded plastic
Terminal: Axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Mounting Position: Any
Weight: 0.33g
Applications
■
I/O interface
■
AC/DC power supply
■
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 400
See Table
1.5
40
-55 to +150
60
100
Units
Watts
Amps
Watts
Amps
℃
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:TVS-P4KE SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com
P4KE SERIES
Dimensions (DO-204AL/DO-41)
Millimeters
Inches
Min.
1.000
0.160
0.080
0.028
Max.
-
0.205
0.107
0.034
Cathode Band
d
DIA.
Symbol
s
DIA.
Min.
L
T
25.40
4.10
2.00
0.71
Max.
-
5.20
2.70
0.86
L
T
L
d
s
Electrical Characteristics (T
A
=25℃)
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
Breakdown
Voltage
@I
T
V
BR
(V)
6.45~7.14
7.13~7.88
7.79~8.61
8.65~9.55
9.50~10.50
10.50~11.60
11.40~12.60
12.40~13.70
14.30~15.80
15.20~16.80
17.10~18.90
19.00~21.00
20.90~23.10
22.80~25.20
25.70~28.40
28.50~31.50
31.40~34.70
34.20~37.80
37.10~41.00
40.90~45.20
44.70~49.40
48.50~53.60
53.20~58.80
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
Peak
Pulse
Current
I
PP
(A)
39.0
36.3
33.9
30.6
28.3
26.3
24.6
22.5
19.3
18.2
16.1
14.8
13.4
12.3
10.9
9.9
9.0
8.2
7.6
6.9
6.3
5.8
5.3
Reverse
Leakage
@V
RWM
I
R
(μA)
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Part Number
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Unidirectional
P4KE6.8A
P4KE7.5A
P4KE8.2A
P4KE9.1A
P4KE10A
P4KE11A
P4KE12A
P4KE13A
P4KE15A
P4KE16A
P4KE18A
P4KE20A
P4KE22A
P4KE24A
P4KE27A
P4KE30A
P4KE33A
P4KE36A
P4KE39A
P4KE43A
P4KE47A
P4KE51A
P4KE56A
Bidirectional
P4KE6.8CA
P4KE7.5CA
P4KE8.2CA
P4KE9.1CA
P4KE10CA
P4KE11CA
P4KE12CA
P4KE13CA
P4KE15CA
P4KE16CA
P4KE18CA
P4KE20CA
P4KE22CA
P4KE24CA
P4KE27CA
P4KE30CA
P4KE33CA
P4KE36CA
P4KE39CA
P4KE43CA
P4KE47CA
P4KE51CA
P4KE56CA
Revision:TVS-P4KE SERIES-001(A1)
2/6
http://brightking.pulseelectronics.com
P4KE SERIES
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
Part Number
Reverse
Stand-Off
Voltage
V
RWM
(V)
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
450.00
459.00
467.00
Breakdown
Voltage
@I
T
V
BR
(V)
58.90~65.10
64.60~71.40
71.30~78.80
77.90~86.10
86.50~95.50
95.00~105.00
105.00~116.00
114.00~126.00
124.00~137.00
143.00~158.00
152.00~168.00
162.00~179.00
171.00~189.00
190.00~210.00
209.00~231.00
237.00~263.00
285.00~315.00
332.00~368.00
380.00~420.00
418.00~462.00
456.00~504.00
485.00~535.00
503.50~556.50
513.00~567.00
522.50~577.50
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Peak
Pulse
Current
I
PP
(A)
4.8
4.5
4.0
3.6
3.3
3.0
2.7
2.5
2.3
2.0
1.9
1.8
1.7
1.5
1.3
1.2
1.0
0.85
0.75
0.68
0.61
0.57
0.55
0.54
0.52
Reverse
Leakage
@V
RWM
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Unidirectional
P4KE62A
P4KE68A
P4KE75A
P4KE82A
P4KE91A
P4KE100A
P4KE110A
P4KE120A
P4KE130A
P4KE150A
P4KE160A
P4KE170A
P4KE180A
P4KE200A
P4KE220A
P4KE250A
P4KE300A
P4KE350A
P4KE400A
P4KE440A
P4KE480A
P4KE510A
P4KE530A
P4KE540A
P4KE550A
Bidirectional
P4KE62CA
P4KE68CA
P4KE75CA
P4KE82CA
P4KE91CA
P4KE100CA
P4KE110CA
P4KE120CA
P4KE130CA
P4KE150CA
P4KE160CA
P4KE170CA
P4KE180CA
P4KE200CA
P4KE220CA
P4KE250CA
P4KE300CA
P4KE350CA
P4KE400CA
P4KE440CA
P4KE480CA
P4KE510CA
P4KE530CA
P4KE540CA
P4KE550CA
Notes: For bidirectional type having V
RWM
of 10V and less, the I
R
limit is double.
Revision:TVS-P4KE SERIES-001(A1)
3/6
http://brightking.pulseelectronics.com
P4KE SERIES

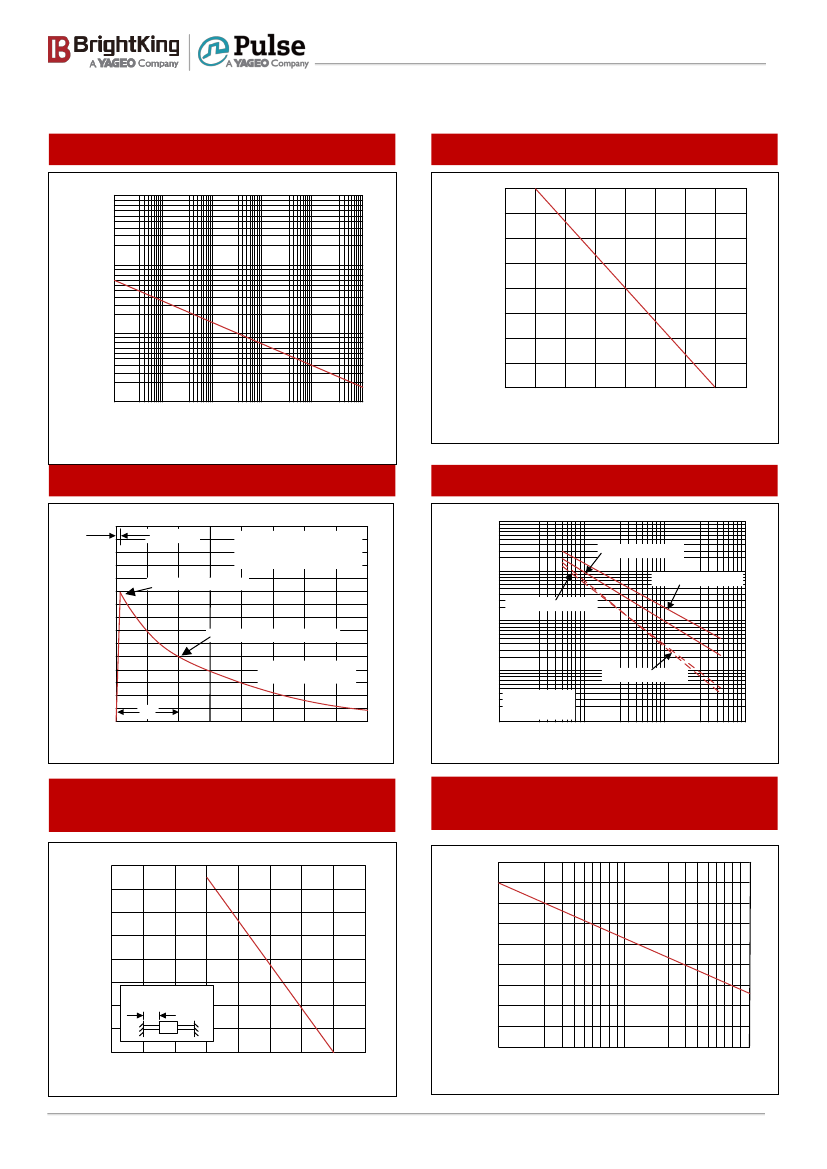

Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
100
Figure 2. Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
100
P
PPM
- Peak Pulse Power (kW)
75
10
50
1
25
0
0
25
50
75
100 125
150 175
200
T
A
-Ambient Temperature (℃)
0.1
0.1
1
10
100
1000
10000
t
d
-Pulse Width (µs)
Figure 3. Pulse Waveform
150
Figure 4. Typical Junction Capacitance
10000
I
PPM
- Peak Pulse Current, %I
RSM
t
r
=10µs
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
Bi-directional V=0V
1000
100
Peak Value I
PPM
Uni-directional V=0V
Uni-directional @V
R
Cj (pF)
100
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
10
T
J
=25℃
f=1.0MHz
Vsig=50mVp-p
Bi-directional @V
R
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
1
10
100
1000
V
BR
-Reverse Breakdown Voltage (V)
Figure 5. Steady State Power Dissipation Derating
Curve
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
45
40
35
30
25
20
15
10
5
0
1
10
Number of Cycles at 60Hz
100
1.6
Steady State Power Dissipation (W)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
175 200
T
L
-Lead Temperature (℃)
L= 0.375″(9.5mm)
Lead Lengths
Revision:TVS-P4KE SERIES-001(A1)
4/6
I
FSM
- Peak Forward Surve Current (A)
http://brightking.pulseelectronics.com
P4KE SERIES
Recommended Soldering Conditions
Wave Soldering
300
Preheating
Maximum Wave 265℃
Soldering
Cooling
250
Temperature (℃)
200
150
100
50
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Time (minutes)
Recommended Conditions
Item
Peak Temperature
Dipping Time
Soldering
Conditions
265℃
10 seconds
1 time
Marking Code
Cathode Band
Logo
YXXX
P4KE6.8A
Date Code
Marking Code
Logo
YXXX
P4KE6.8CA
Date Code
Marking Code
Revision:TVS-P4KE SERIES-001(A1)
5/6
http://brightking.pulseelectronics.com
