1F110963-P421 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1F110963-P421

1F110963-P421: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Plug; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

1F110963-P421 Overview

Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Plug

1F110963-P421 Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1F
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	96
UL Flammability Code	94V-0

1F110963-P421 Preview

Download Datasheet

View All

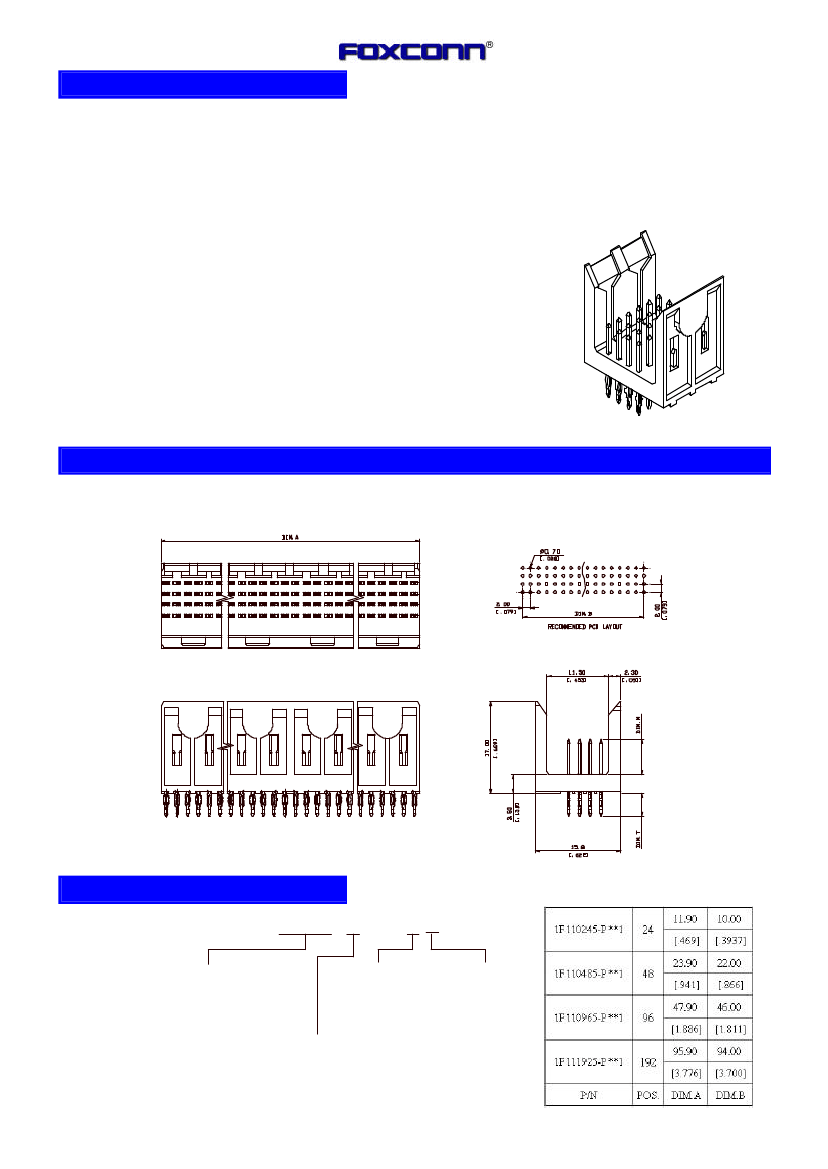

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Plug , Press Fit Type

2.0mm [.078”] Pitch

4 Rows

Mechanical

Contact Retention Force:

1.00Kg (2.2Lb) min.

Durability:

250 Cycles

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

45mΩ max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000MΩ min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I N F O R M A T I O N

PRODUCT NO: 1

* - P

POS. NO.

048 : 48 POS.

096 : 96 POS.

144 :144 POS.

192 :192 POS.

240 :240 POS.

TAIL LENGTH (T)

2:11.3 mm

3:13.6 mm

4:15.6 mm

5:17.0 mm

PLATING SPEC.

C: 5~15u" Au OVER 30~50u" Pd/Ni

K:30~50u" Au OVER 10~30u" Pd/Ni

3:32~50u" Au

5:45~60u" Au

MATING LENGTH (M)

1: 5.00 mm

2: 5.75 mm

3: 6.50 mm

4: 7.25 mm

5: 8.00 mm

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
