MN3291T/BCH-I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MN3291T/BCH-I

MN3291T/BCH-I: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24; CategoryAnalog mixed-signal IC converter; File Size349KB，6 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN3291T/BCH-I Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24

MN3291T/BCH-I Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
package instruction	DIP,
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum analog output voltage	5 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
Maximum linear error (EL)	0.003%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum stabilization time	3 µs
Nominal settling time (tstl)	1 µs
Maximum slew rate	30 mA
Nominal supply voltage	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

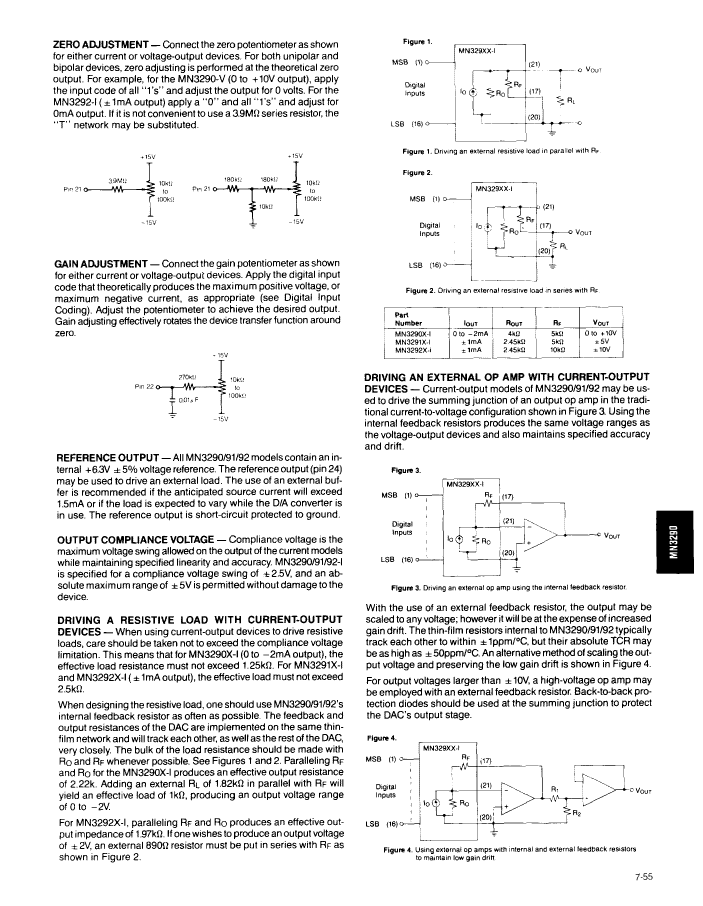

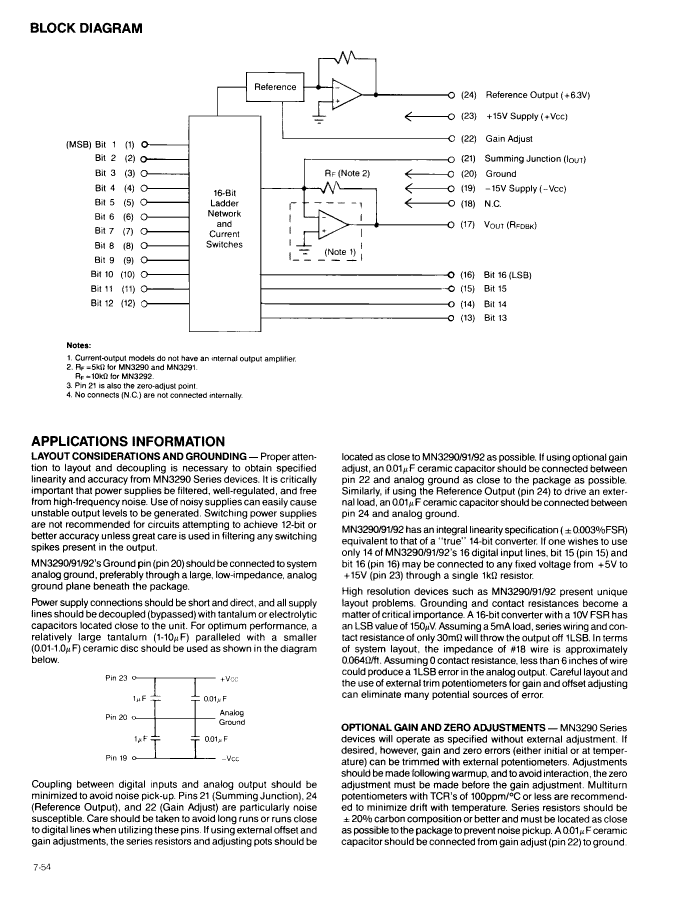

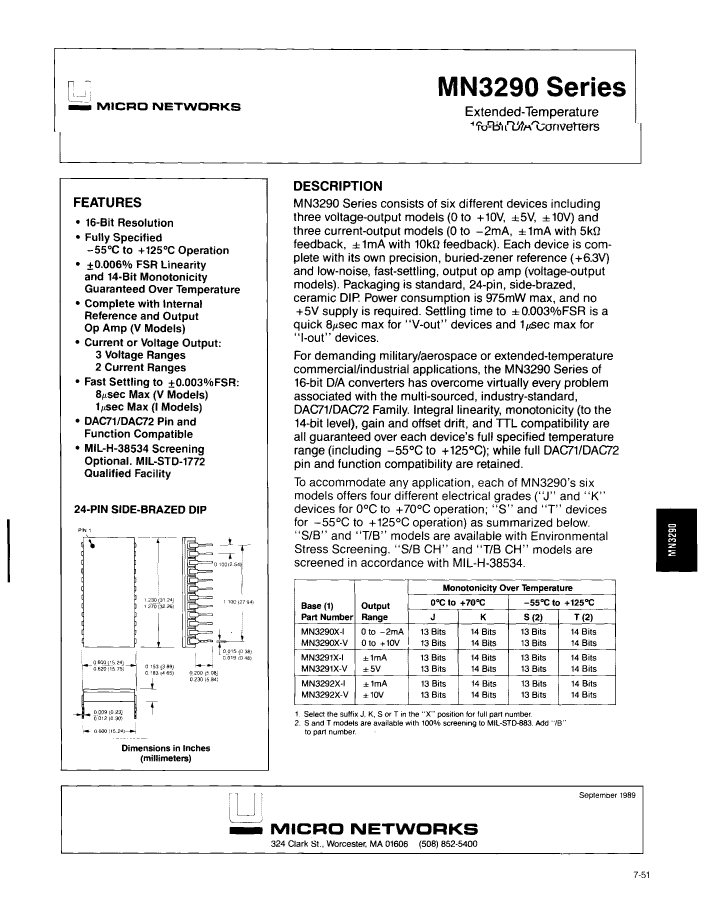

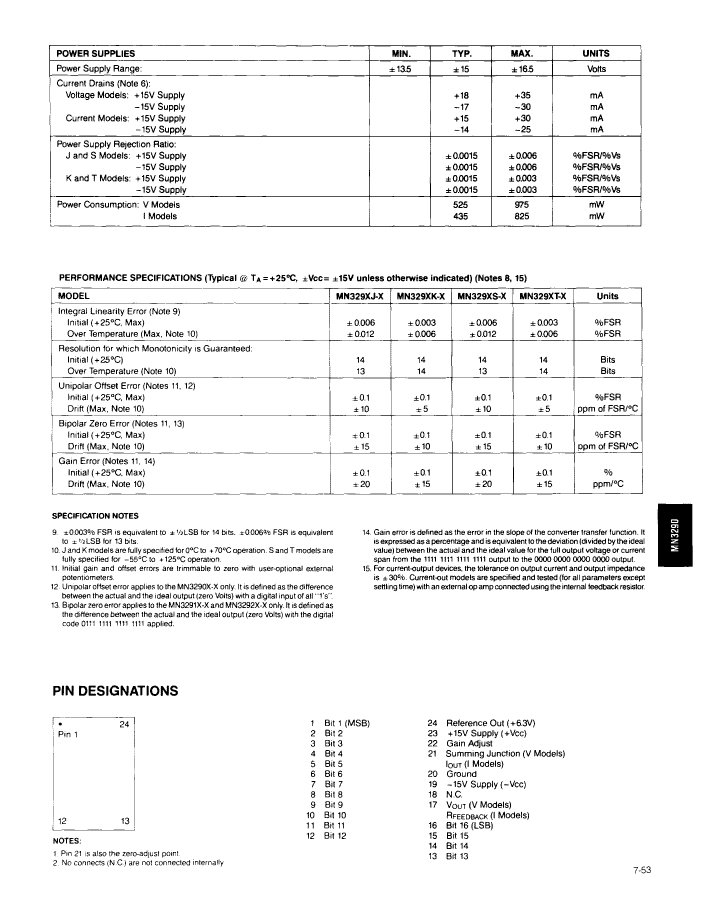

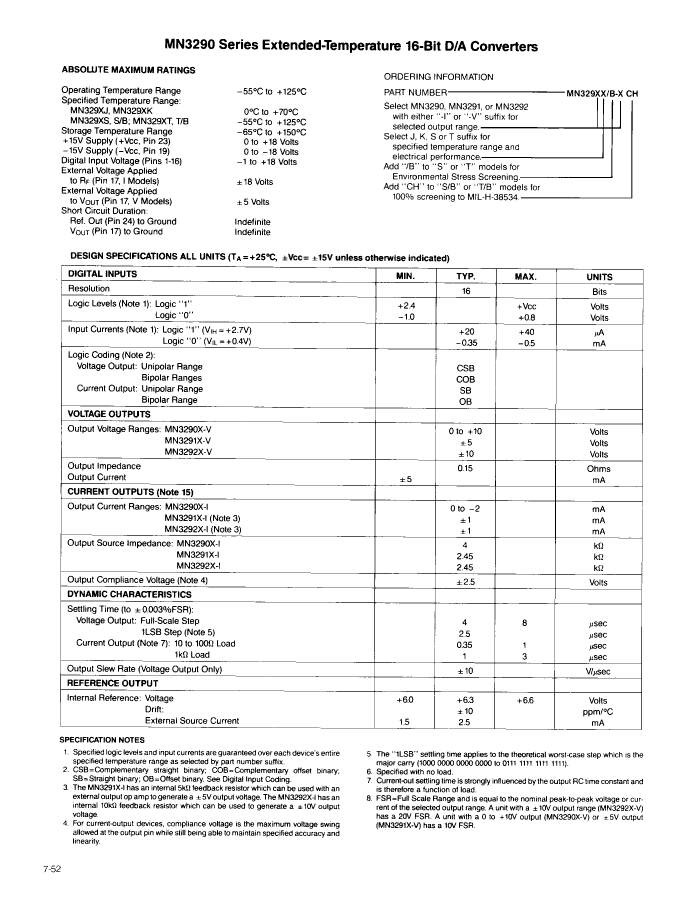

Preview

Download Datasheet

View All

MN3291T/BCH-I Related Products

	MN3291T/BCH-I	MN3292S/BCH-I	MN3290S/BCH-I	MN3291T/BCH-V	MN3290T/BCH-I	MN3290S/BCH-V	MN3292S/BCH-V	MN3292T/BCH-V	MN3292T/BCH-I
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time, CDIP24
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog output voltage	5 V	10 V	10 V	5 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-5 V	-10 V	-	-5 V	-	-	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
Maximum linear error (EL)	0.003%	0.006%	0.006%	0.003%	0.003%	0.006%	0.006%	0.003%	0.003%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	3 µs	3 µs	3 µs	8 µs	3 µs	8 µs	8 µs	8 µs	3 µs
Nominal settling time (tstl)	1 µs	1 µs	1 µs	4 µs	1 µs	4 µs	4 µs	4 µs	1 µs
Maximum slew rate	30 mA	30 mA	30 mA	35 mA	30 mA	35 mA	35 mA	35 mA	30 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
