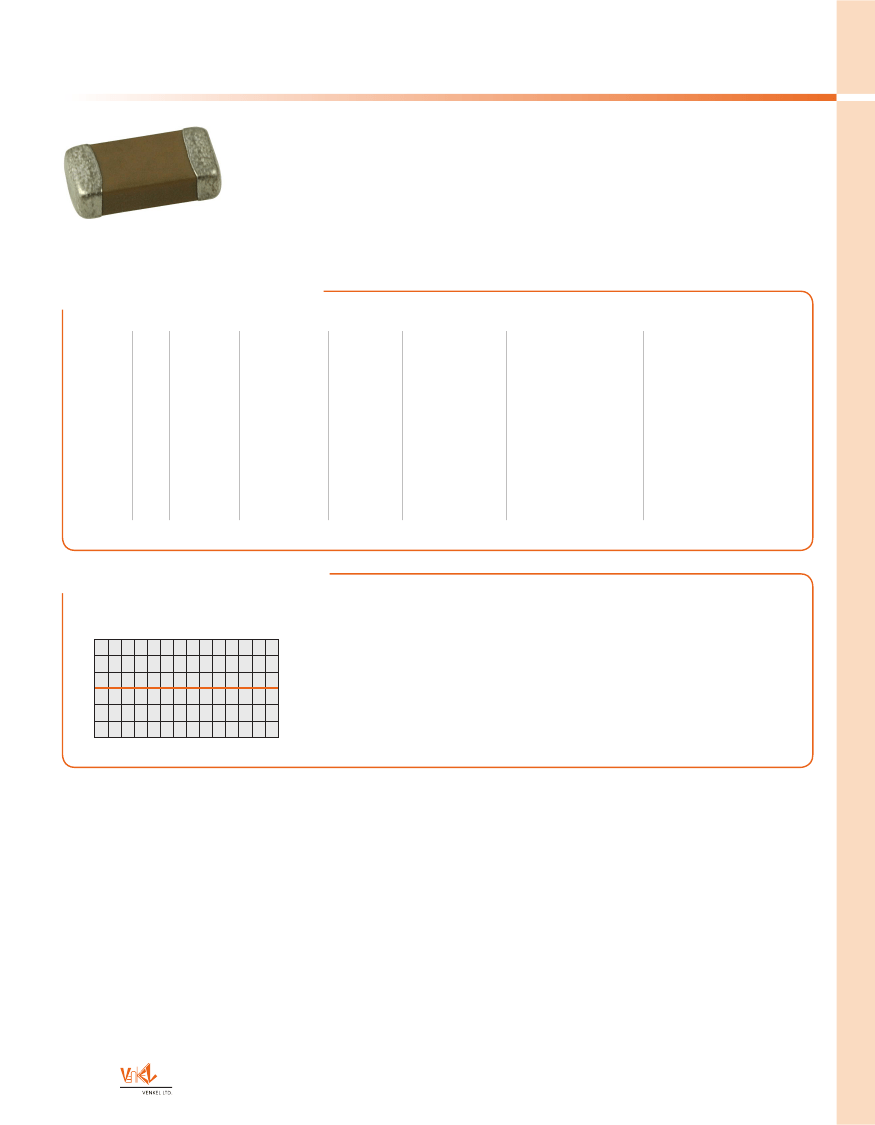

Standard termination finish is 100% matte Tin (Sn).
Electrical Specifications
C0G (NP0)
Typical Capacitance Change vs. Temperature
15%
10%
5%
0%
-5%
-10%
-15%
-55˚C
-25˚C
0˚C
25˚C
50˚C
75˚C
100˚C
125˚C
Operating Temperature Range:
-55°C to +125°C
Temperature Coefficient:
0 ±30PPM/°C
Temperature Voltage Coefficient:
0 ±30PPM/°C
Insulation Resistance:
>100 Ω-F or 10 GΩ, whichever is less at 25°C, WDCV.
(The IR at 125°C is 10% of the value at 25°C)
Withstanding Voltage:
See below
Capacitance Tolerance:
C, D, F, G, J, K
Dielectric Strength is equal to 1.5 times rated voltage (WVDC) for 500 volt capacitors and 1.2 times (WVDC) for 1,000 through 5,000 volt capacitors.
Circuit applications in excess of 1,000 volts may require a surface coating to prevent external arcing.
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev.09/2017-A
1
High Voltage Ceramic Capacitors
(HVC Series)
Electrical Specifications
X7R
Typical Capacitance Change vs. Temperature
15%
10%
5%
0%
-5%
-10%
-15%
-55˚C
-25˚C
0˚C
25˚C
50˚C
75˚C
100˚C
125˚C
Operating Temperature Range:
-55°C to +125°C
Temperature Coefficient:
0 ±15%∆°C MAX.
Temperature Voltage Coefficient:
X7R not applicable
Insulation Resistance:
>100 ohms F or 10 G ohms, whichever
is less at 25°C, WDCV.
(The IR at 125°C is 10% of the value at 25°C)
Withstanding Voltage:
See below
D.F. Specification:
≥50V, ≤2.5%
Capacitance Tolerance:
J,K,M,N
Test Parameters
Test parameters for Multilayer Ceramic Capacitors - X7R:
Test parameters for Multilayer Ceramic Capacitors - C0G (NP0):
1KHz ± 50Hz at 1.0 ± 0.2 Vrms, 25°C
1MHz ± 50KHz at 1.0 ± 0.2 Vrms ≤ 1000pF, 25°C
1KHz ± 50Hz at 1.0 ± 0.2 Vrms > 1000pF, 25°C
Note:
To ensure proper capacitance readings, the voltage level must be held constant. The HP4284 and Agilent E4980 has a "ALC" (Automatic Level Control) function
and should be switched to the "ON" position for accurate capacitance readings.
Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.
Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.
Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.
