TD62301P: Description7CH LOW SATURATION SINK DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size253KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TD62301P Overview

7CH LOW SATURATION SINK DRIVER

TD62301P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknow
Built-in protection	TRANSIENT
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.25 mm
Number of functions	7
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Nominal output peak current	0.18 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	154 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

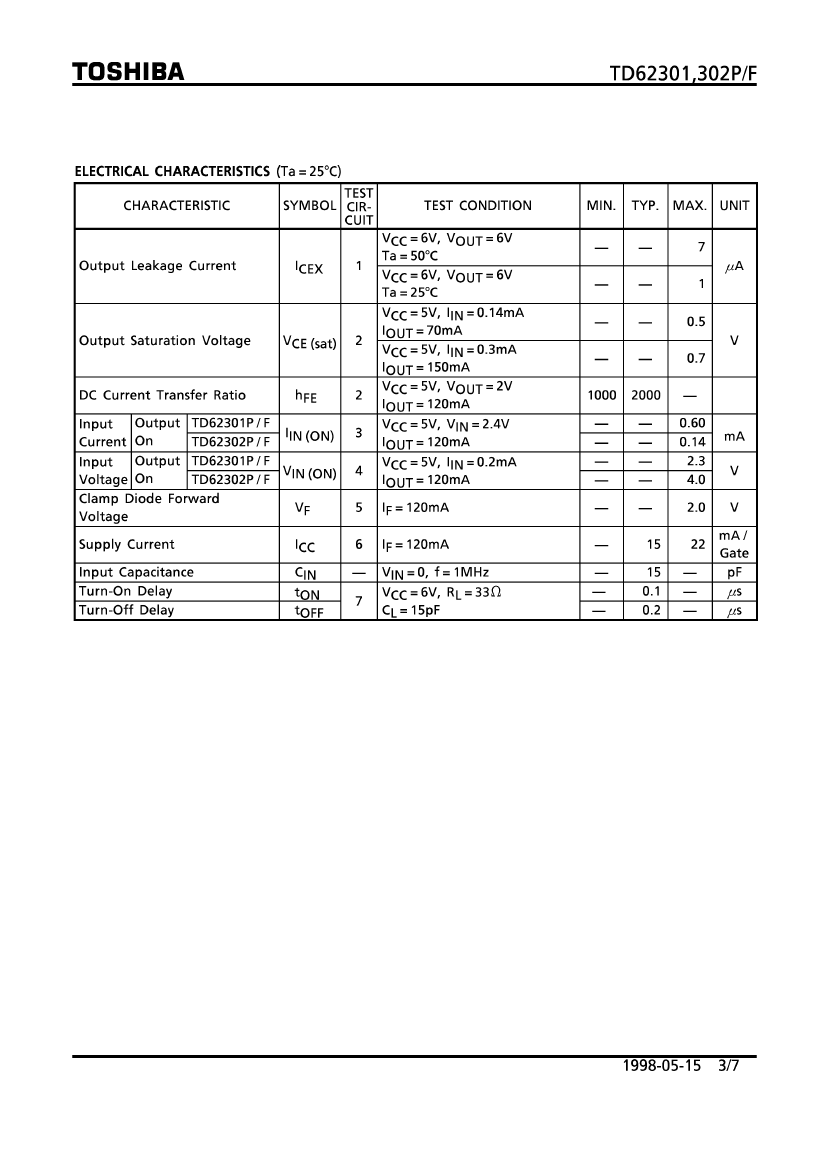

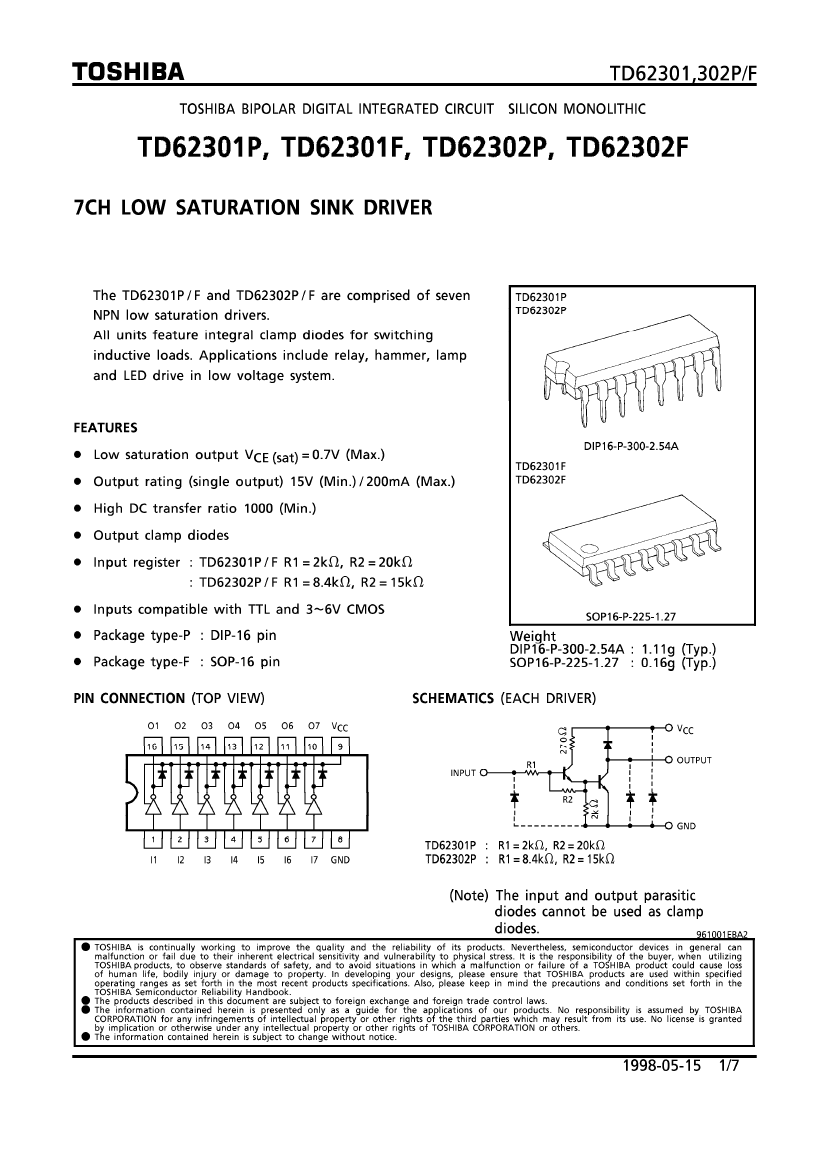

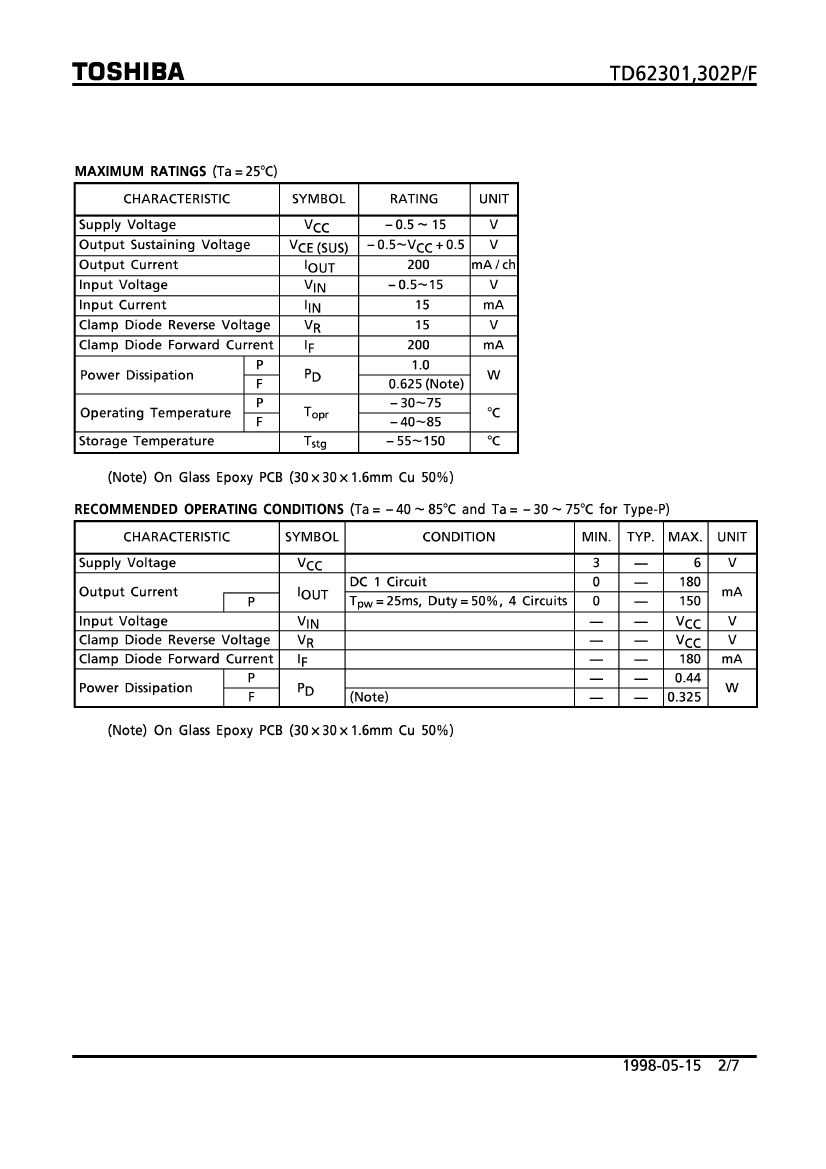

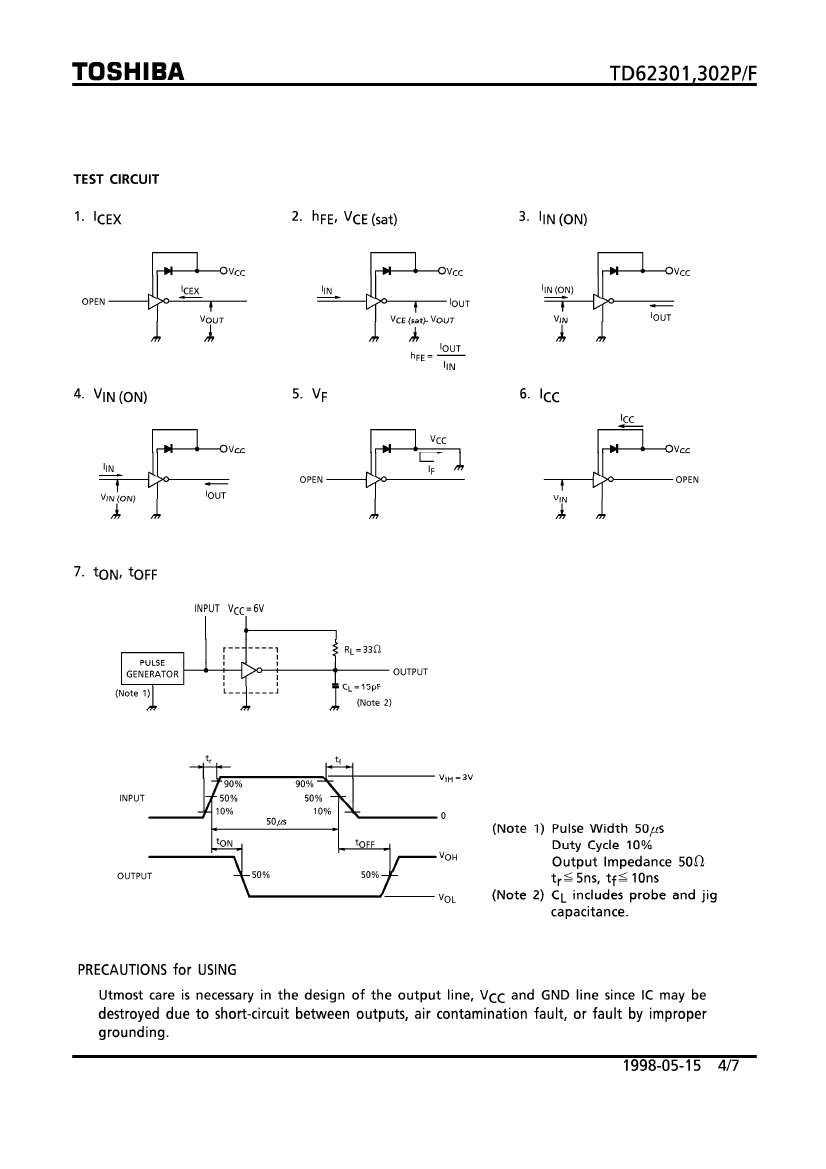

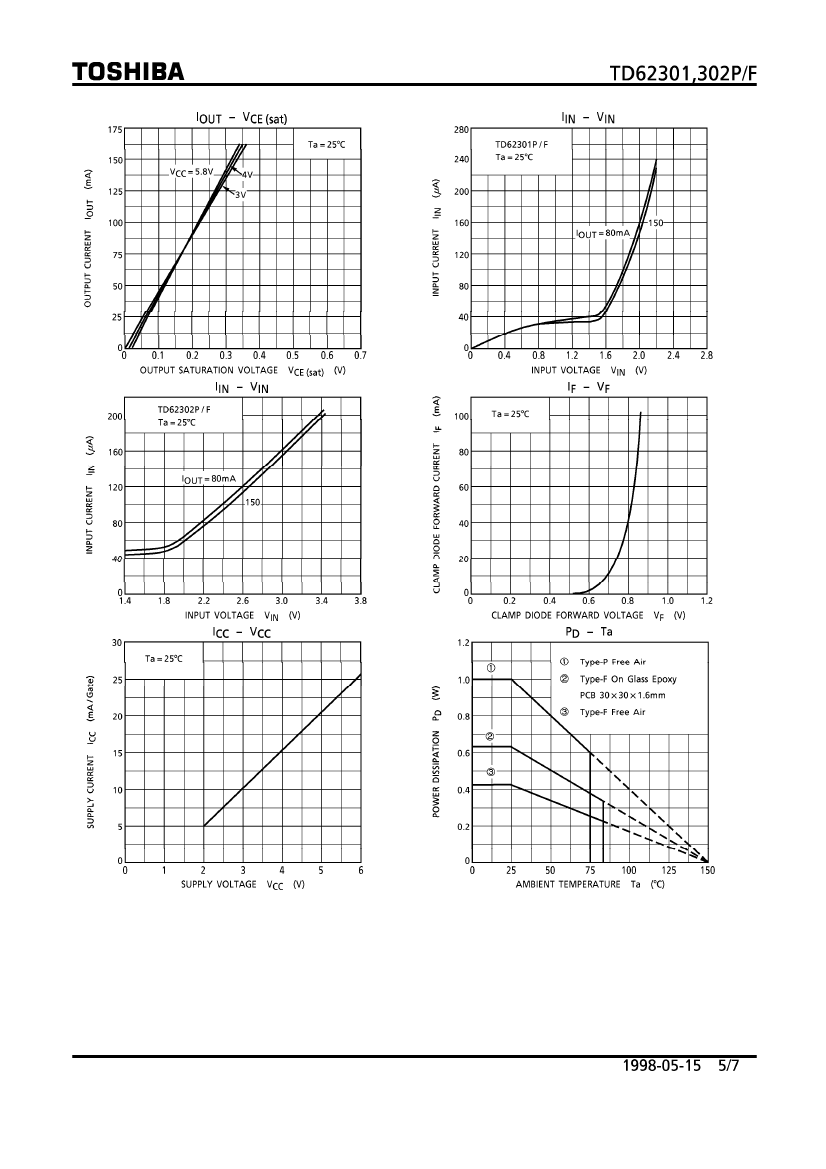

Preview

Download Datasheet

View All

TD62301P Related Products

	TD62301P	TD62301	TD62302P	7769-776-00002Z	TD62301F
Description	7CH LOW SATURATION SINK DRIVER	7CH LOW SATURATION SINK DRIVER	7CH LOW SATURATION SINK DRIVER	FIBER OPTIC JACK FIELD 32 POSITION	7CH LOW SATURATION SINK DRIVER
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible
Parts packaging code	DIP	-	DIP	-	SOIC
package instruction	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	-	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16	-	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-16
Contacts	16	-	16	-	16
Reach Compliance Code	unknow	-	unknow	-	unknow
Built-in protection	TRANSIENT	-	TRANSIENT	-	TRANSIENT
Input properties	STANDARD	-	STANDARD	-	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T16	-	R-PDIP-T16	-	R-PDSO-G16
JESD-609 code	e0	-	e0	-	e0
length	19.25 mm	-	19.25 mm	-	10 mm
Number of functions	7	-	7	-	7
Number of terminals	16	-	16	-	16
Maximum operating temperature	75 °C	-	75 °C	-	85 °C
Minimum operating temperature	-30 °C	-	-30 °C	-	-40 °C
Output characteristics	OPEN-COLLECTOR	-	OPEN-COLLECTOR	-	OPEN-COLLECTOR
Output current flow direction	SINK	-	SINK	-	SINK
Output polarity	INVERTED	-	INVERTED	-	INVERTED
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	-	SOP
Package shape	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	-	240
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified
Maximum seat height	4.45 mm	-	4.45 mm	-	1.9 mm
Maximum slew rate	154 mA	-	154 mA	-	154 mA
Maximum supply voltage	6 V	-	6 V	-	6 V
Minimum supply voltage	3 V	-	3 V	-	3 V
Nominal supply voltage	5 V	-	5 V	-	5 V
surface mount	NO	-	NO	-	YES
technology	BIPOLAR	-	BIPOLAR	-	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED	-	INDUSTRIAL
Terminal surface	TIN LEAD	-	TIN LEAD	-	TIN LEAD
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	-	GULL WING
Terminal pitch	2.54 mm	-	2.54 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED
width	7.62 mm	-	7.62 mm	-	4.4 mm
