TD62300P datasheet, PDF - EEWORLD Datasheet

TD62300P: Description2CH LOW VCC SINK DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size201KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

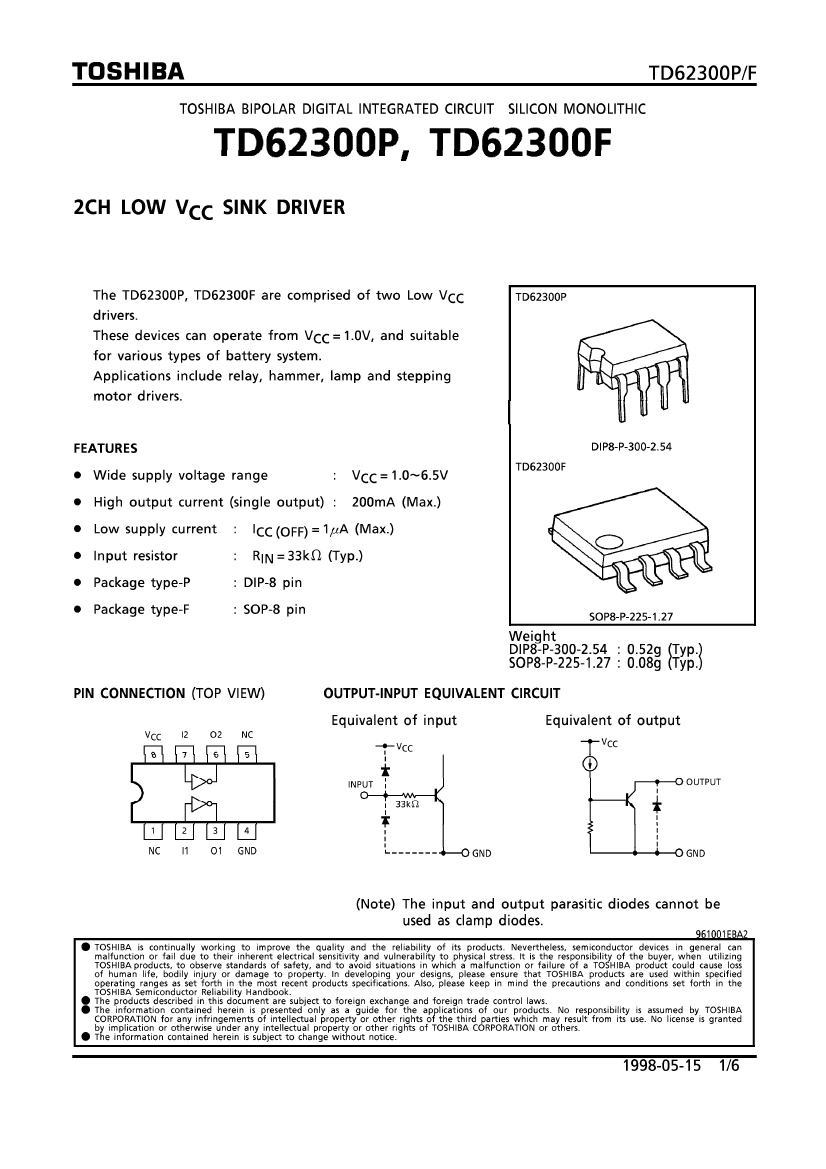

TD62300P Overview

2CH LOW VCC SINK DRIVER

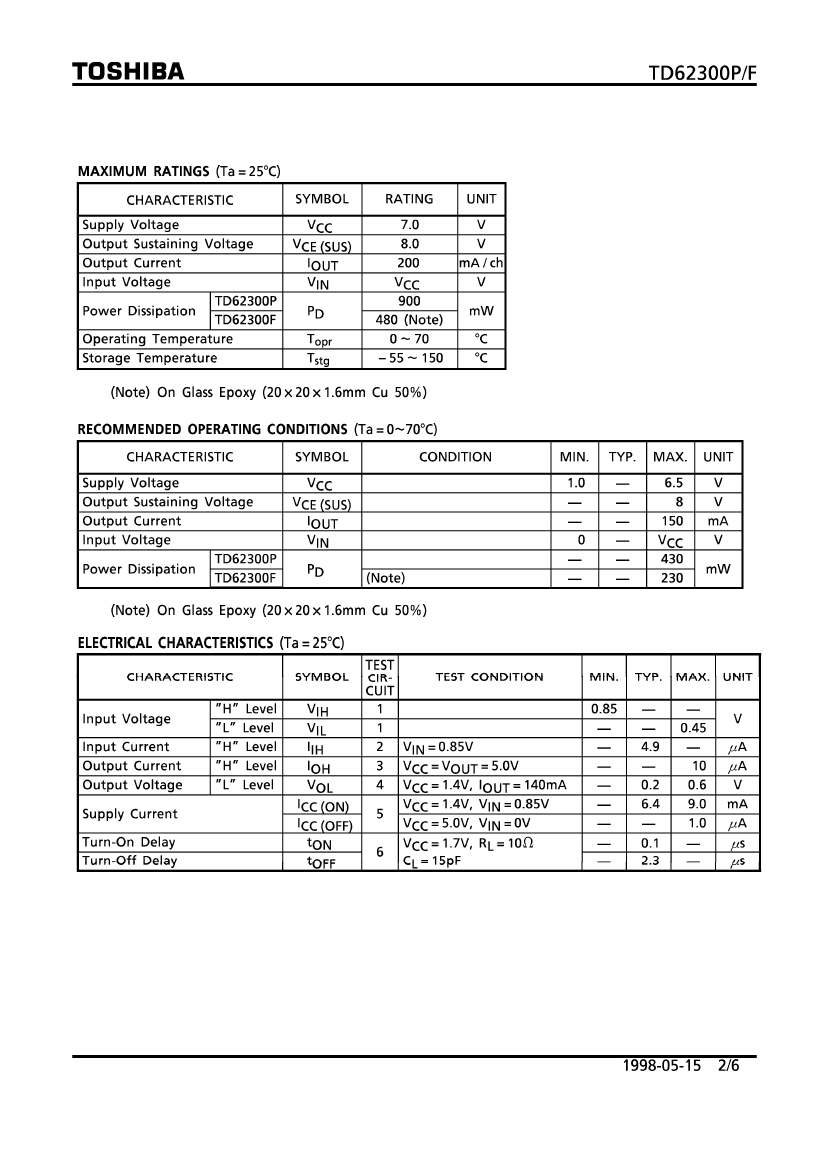

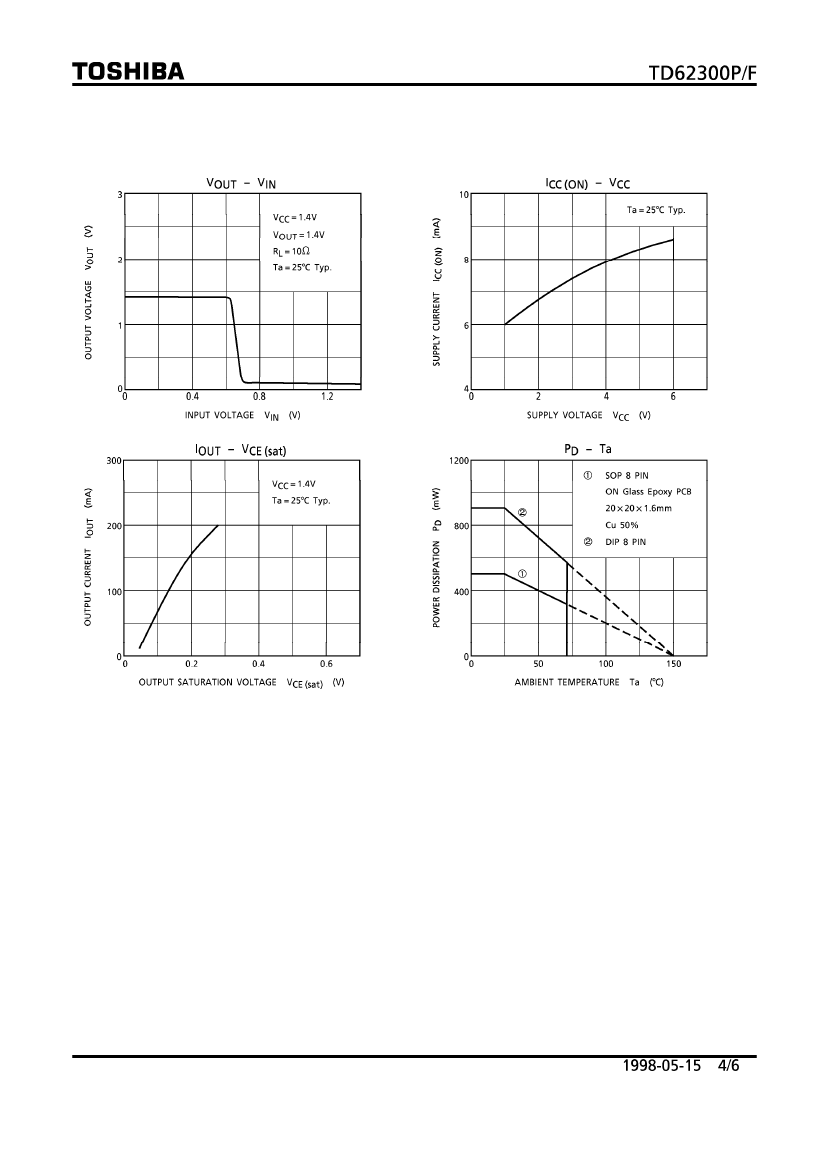

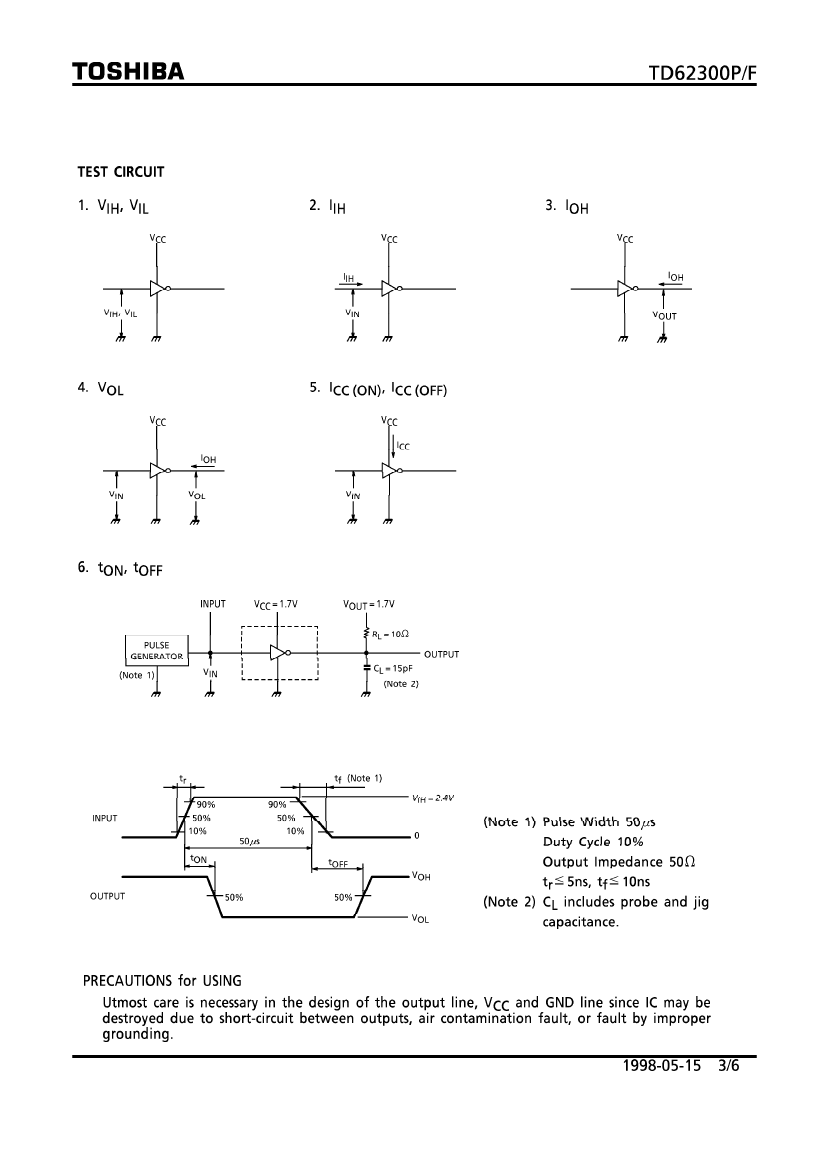

Parameter Name	Attribute value
Is it Rohs certified?	incompatible

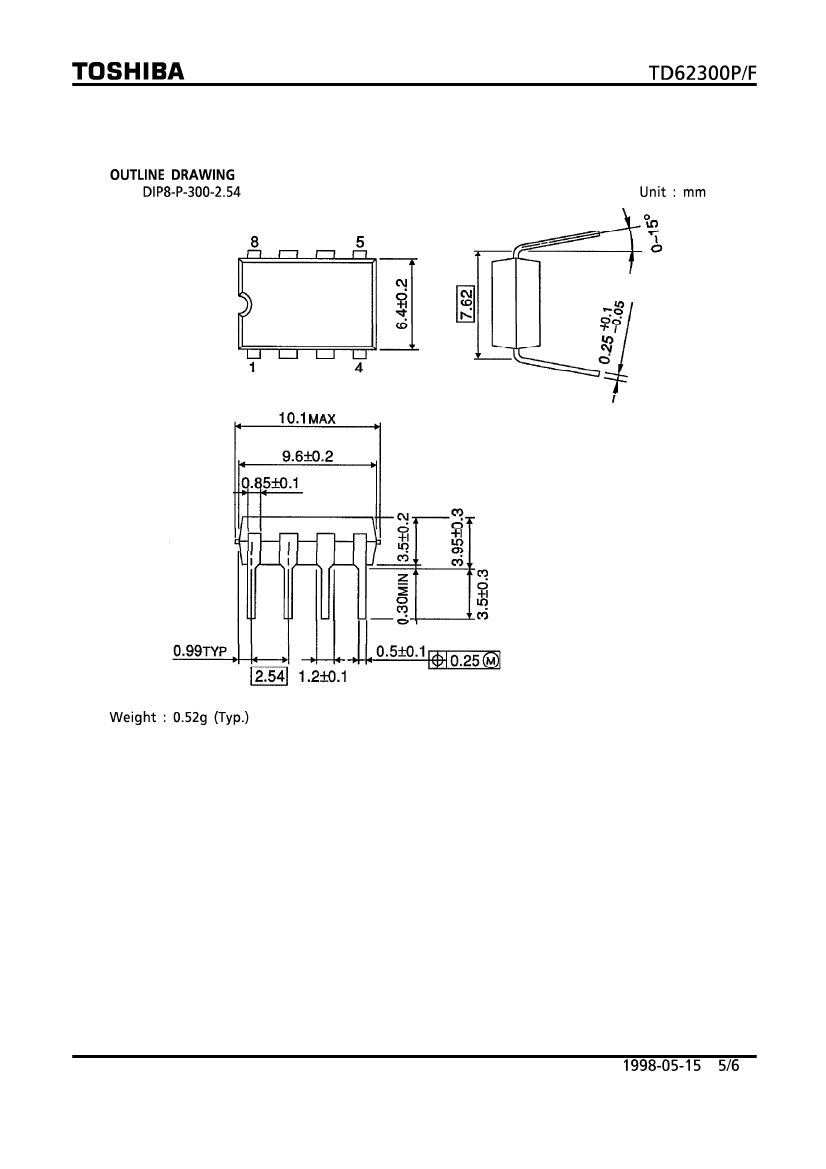

Parts packaging code	DIP
package instruction	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	unknow
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.6 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Nominal output peak current	0.15 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.25 mm
Maximum slew rate	9 mA
Maximum supply voltage	6.5 V
Minimum supply voltage	1 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	TD62300P	TD62300F
Description	2CH LOW VCC SINK DRIVER	2CH LOW VCC SINK DRIVER
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	SOIC
package instruction	0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-8	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-8
Contacts	8	8
Reach Compliance Code	unknow	unknow
Input properties	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0
length	9.6 mm	5 mm
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK
Nominal output peak current	0.15 A	0.15 A
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.25 mm	1.9 mm
Maximum slew rate	9 mA	9 mA
Maximum supply voltage	6.5 V	6.5 V
Minimum supply voltage	1 V	1 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	4.4 mm
Base Number Matches	1	1
