5016463600 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5016463600

Preview

5016463600: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size106KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5016463600 Overview

TWO PART BOARD CONNECTOR

5016463600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.323 inch
subject depth	0.435 inch
body length	1.496 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Minimum insulation diameter	0.033 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	501646
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	36
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5016463600

Active

igrid

2.00mm (.079") Pitch iGrid™ Wire-to-Board Housing, Dual Row, Positive Lock, 36

Circuits

Documents:

3D Model

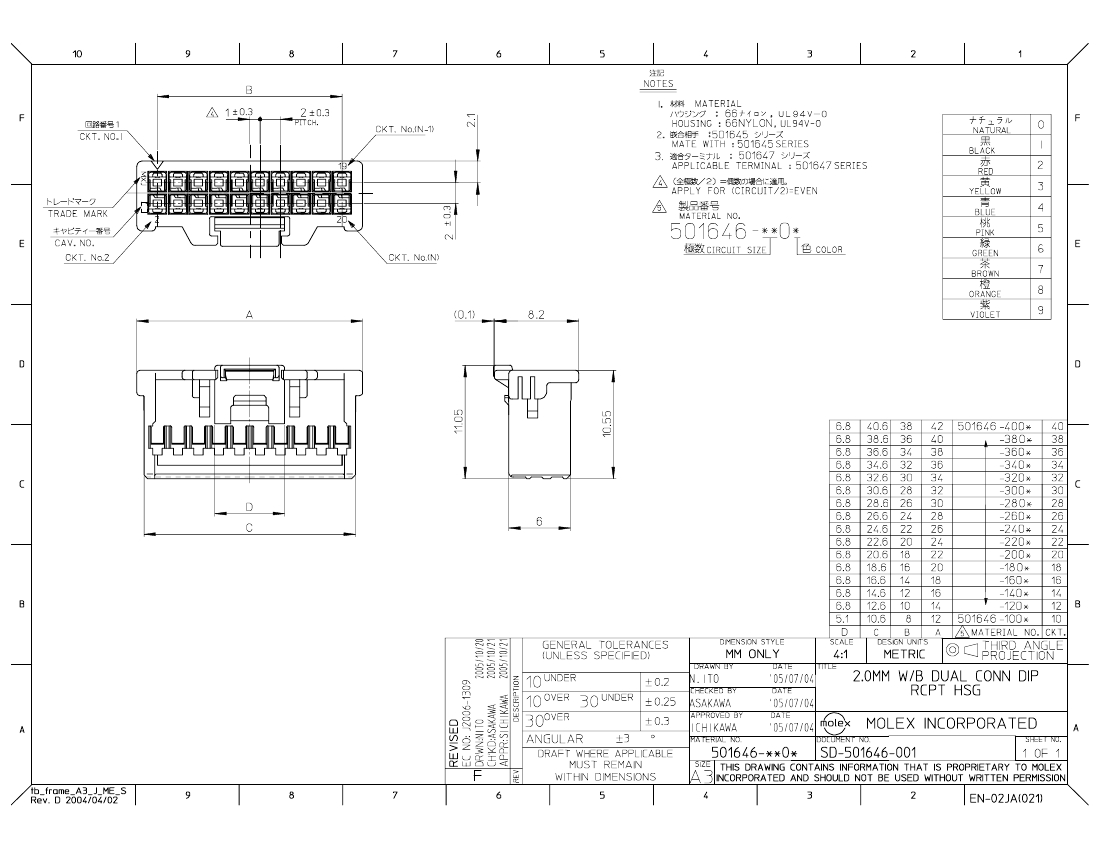

Drawing (PDF)

Product Specification PS-501646-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Crimp Housings

501646

igrid

iGrid™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Overview

Product Name

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

36

Natural

Female

No

Yes

Nylon

2

Bag

No

0.079 In

2.00 mm

Yes

No

-25°C to +85°C

Material Info

Reference - Drawing Numbers

Product Specification

PS-501646-001, RPS-501646-001, RPS-501646-002,

RPS-501646-003, RPS-501646-004, RPS-501646-005,

RPS-501646-006, RPS-501646-007, RPS-503091-001

SD-501646-001

Search Parts in this Series

501646Series

Mates With

501645 Vertical Header . 501876 Right

Angle Header

Use With

501647 22-26 AWG Terminal . 501648

26-28 AWG Terminal

Sales Drawing

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
