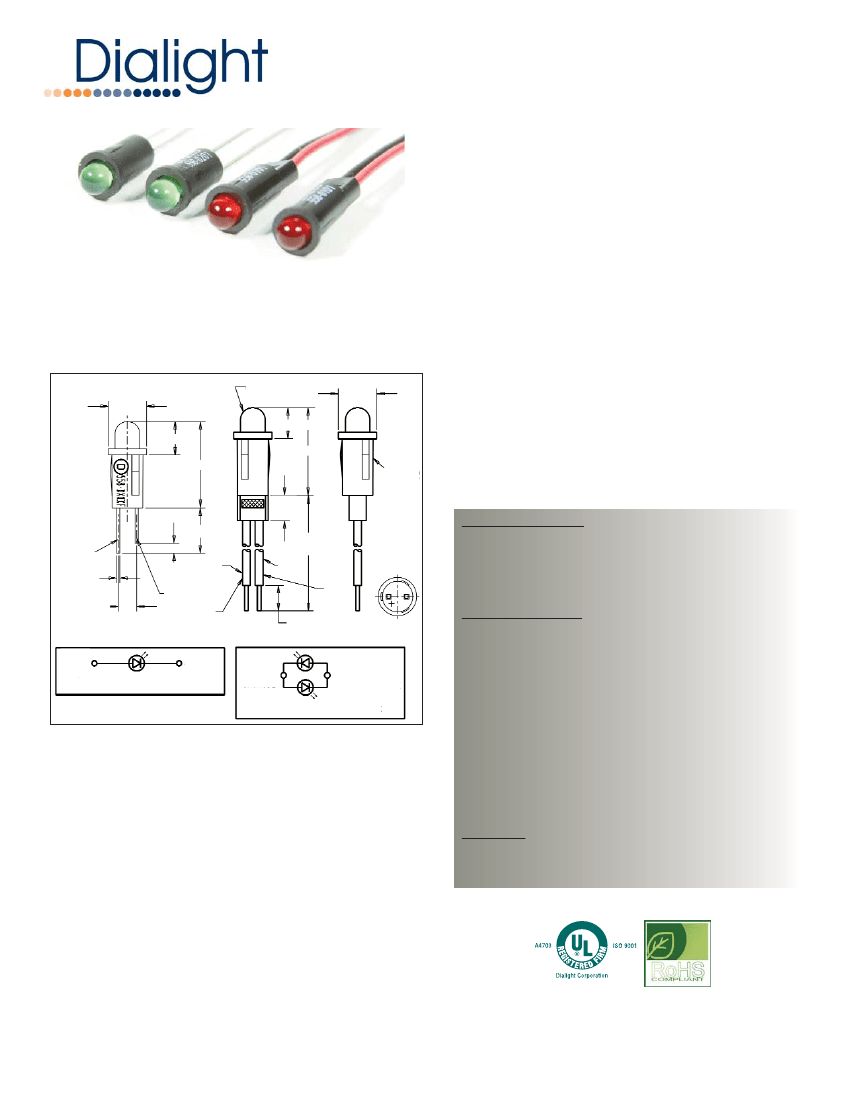

558 Series
Snap-in LED - .156” Mounting Hole
Panel Mount Indicators
ø .3mm LED
ø .190
(4.83)
“A”±.015
“A”±.015
“B”±.020
“B”±.020
HOUSING
(VALOX)
.125
(3,17)
REF.
Application
Dialight's 558 series LED panel mount indicator is available with a variety
of LEDs including AlInGaP and InGaN technology for high brightness
applications, bicolor and integral resistors. These indicators are
designed for a variety of applications such as:
•
•
•
•
•
•
•
•
•
•
•
Fan tray assemblies
Datacenter Infrastructure (Servers and Storage)
Networking Equipment (Switches and routers)
Storage Networking Hardware (Fibre channel host bus adapter cards)
Next-Gen Wireless Infrastructure
Electronic Test & Measurement Instruments
Communications Testing Equipment
Process controls
Automation
Medical Equipment
Handheld devices
ø .190
(4,83)
Min. .755
ANODE
LEAD
.20
(.51)
SQ. TYP
NOM
.100±.015
(2.54±0.38)
RED
.040
(1.01) WIRE
MIN
CATHODE
LEAD
PIN 2
Mechanical Information
Mounting Hole Size:
Panel Thickness:
0.155 - 0.158" (3.94 - 4.01 mm)
0.031 - 0.062" (.787 - 1.57 mm)
See
Termination
BLACK
WIRE
PIN 1
.500±.032
(12.7±0.81)
PIN 1
RED CATHODE
FOR R/G LED
YELLOW CATHODE
FOR Y/G LED
Electrical Specifications
Operating Voltage:
1.8 - 2.1 VDC typical (current limiting resistor
required)
5 VDC typical (resistor not required)
See table
(-67°F to +212°F) -55°C to +100°C
PIN 2
PIN 1
ANODE
CATHODE
(-)
(+)
SINGLE COLOR LED SCHEMATIC
PIN 2
GREEN
CATHODE
BI-COLOR LED SCHEMATIC
Operating Temp:
Storage Temp:
Features & Benefits
•
RoHS compliant
•
Long life - typically 100K hours
Leads:
Electrical connection:
Straight terminals for wire wrapping or either
6 or 14 inch 24 AWG lead wire
Straight leads
2 leads
•
Low power consumption - uses up to 90% less energy
than an incandescent indicator
Construction
Housing:
•
Front panel snap-in mounting requires no additional hardware
•
No heat generated
•
Resistant to shock and vibration
•
Termination - straight terminals for wire wrapping or
lead wire for soldering or optional terminals
Black housing material meets:
UL94V-0 and enhances LED contrast
•
T
hree leaded bicolor version allows for additional color variations
•
Available with PVC-free lead wires
www.dialight.com
558 Series Snap-in LED - .156” Mounting Hole Panel Mount Indicators
Ordering Information
5 5 8 -
X X X X -
0
X X F
LED Code
Wire Code
RoHS Compliant
Termination
Code
Wire
Wire Type
Code
0
2
Standard
PVC Free
Termination
Code
1
3
7
Termination
Type
Straight Terminals
24 AWG 6" wire leads
24 AWG 14" wire leads
LED
Code
0102
0202
0302
3001
3101
3201
0101
0201
0301
0401
1801
0803
1101
1201
1301
0501
0601
0701
6003
6403
1501
1601
1701
6203
Color
Red
Green
Yellow
Red/Green
Red/Green
Yellow/Green
Red
Green
Yellow
Orange
Red
Blue
Red
Yellow
Green
Green
Yellow
Red
Blue
White
Green
Yellow
Red
Green
Peak
Intensity If
Wavelength
Typ.
Typ.
(nm)
(mcd) (mA)
635
565
585
630/565
660 / 565
585 / 565
650
563
585
600
660
468
635
585
565
565
592
660
468
X=.31
Y=.32
565
585
660
518
29
19
12.6
5.6/8.7
@10mA
Vf Typ.
(V)
5
5
5
1.9/2.0
@20mA
Viewing
Angle
60
60
60
200
200
80
40
40
40
60
60
100
60
60
60
45
45
45
45
45
45
45
45
100
Max DC
Forward
Current (mA)
7.5
7.5
7.5
30 / 30
40 / 30
20 / 30
20
25
20
25
40
100
7
7
7
30
50
40
30
30
30
20
40
100
High
High
High
High
High
Type
5V Integral Resistor
5V Integral Resistor
5V Integral Resistor
Bi-Color
Bi-Color
Bi-Color
Efficiency
Efficiency
Efficiency
Efficiency
Efficiency
Diffused
Diffused
Diffused
Diffused
Diffused
Operating Temp
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
-55°C to +100°C
-55°C to +100°C
-55°C to +100°C
-25°C to +85°C
-25°C to +85°C
-25°C to +85°C
-55°C to +100°C
-40°C to +100°C
-40°C to +85°C
-55°C to +100°C
-40°C to +100°C
-55°C to +100°C
DIM "A"
0.101
0.101
0.101
0.101
0.101
0.101
0.111
0.111
0.111
0.101
0.101
0.107
0.101
0.101
0.101
0.101
0.101
0.101
0.101
0.101
0.101
0.101
0.101
0.101
DIM "B"
0.381
0.381
0.381
0.381
0.381
0.381
0.391
0.391
0.391
0.381
0.381
0.387
0.381
0.381
0.381
0.381
0.381
0.381
0.381
0.381
0.381
0.381
0.381
0.381
12
12
12
10/2
0
10
10
10
10
10
20
10
2
2
2
20
20
20
20
20
10
20
20
10
12.6 / 3.7 20
5.8/12.3
10
16
16
7
60
57
2.3
1.4
1.6
70
200
170
520
3000
40
70
170
270
1.8 / 2.1
2.1 / 2.1
2
2.1
2.1
1.9
1.8
3.2
1.7
1.8
1.9
2.1
1.9
1.8
3.3
3.3
2.1
2.1
1.8
3
High Efficiency Diffused
Low Current Diffused
Low Current Diffused
Low Current Diffused
Non-Tinted/Non-Diffused -55°C to +100°C
Non-Tinted/Non-Diffused -40°C to +100°C
Non-Tinted/Non-Diffused -40°C to +100°C
Non-Tinted/Non-Diffused -40°C to +85°C
Non-Tinted/Non-Diffused
Tinted/Non-Diffused
Tinted/Non-Diffused
Tinted/Non-Diffused
White Diffused
-40°C to +85°C
-55°C to +100°C
-55°C to +100°C
-40°C to +100°C
-45°C to +85°C
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEL558CX001.pdf
MDEL558CX001_A
www.dialight.com
