20114-82 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 20114-82

20114-82: DescriptionElectromechanical Relay, DPDT, 1200mW (Coil), 10A (Contact), 28VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size31KB，2 Pages; ManufacturerDeltrol Controls

Download Datasheet Parametric View All

20114-82 Overview

Electromechanical Relay, DPDT, 1200mW (Coil), 10A (Contact), 28VDC (Contact), Random, AC/DC Output

20114-82 Parametric

Parameter Name	Attribute value
Maker	Deltrol Controls
Reach Compliance Code	unknow
body width	35.05 mm
body height	50.8 mm
Body length or diameter	35.05 mm
Coil operating voltage (DC)	18 V
Coil power	1200 mW
Coil resistance	480 Ω
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power M load	0.5HP@277VAC
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	800 Vrms
Electrical life	10000000 Cycle(s)
End contact material	Silver Cadmium Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	8
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-45 °C
PCB hole count	8
physical size	35.05mm x 35.05mm x 50.8mm
Guideline	CSA; UL
Relay style	2 FORM C
Relay function	DPDT
release time	15 ms
Terminal length	0.001 inch
Termination type	SOLDER
weight	85 g

Preview

Download Datasheet

View All

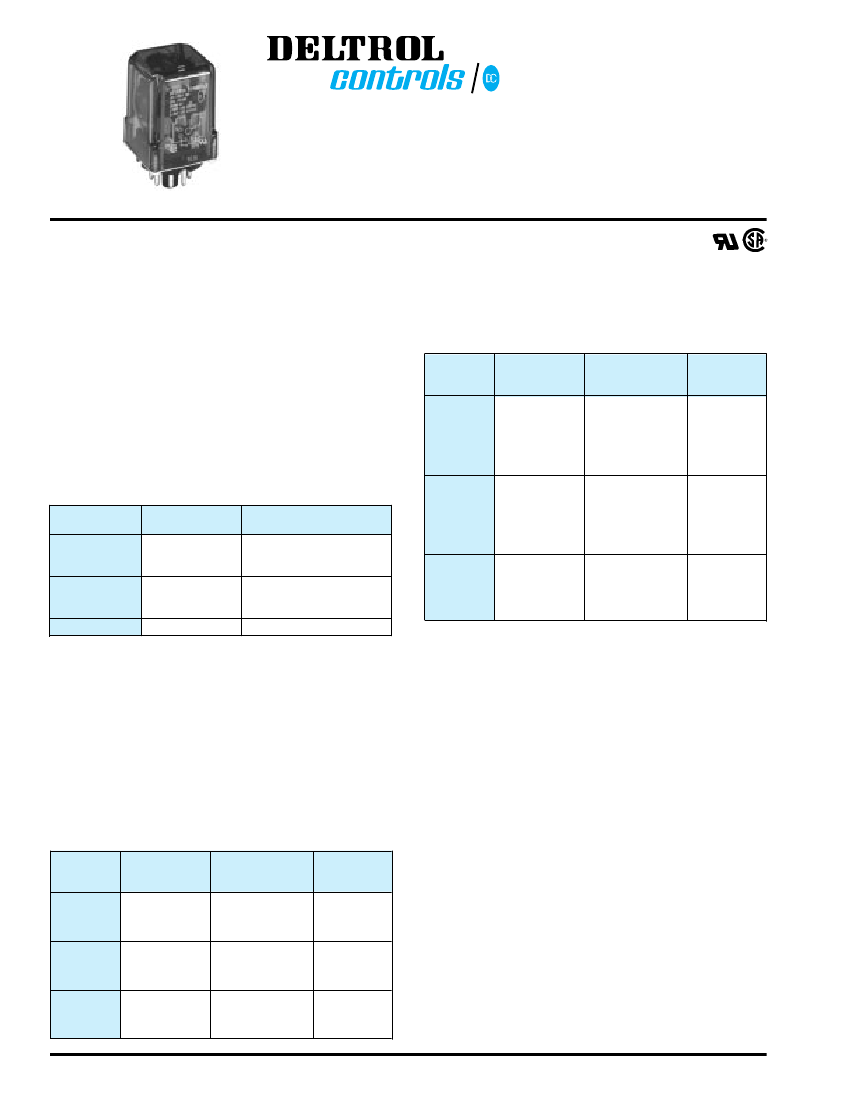

DIVISION OF DELTROL CORP.

105

105:

105A:

105G:

105T:

SERIES RELAY

5 AND 10 AMP

GENERAL PURPOSE

PLUG-IN – OCTAL BASE

Standard 8 or 11 Pin Socket Termination

Addition of Indicator Lamp – Indicates Voltage to the Coil

(48V Not Available)

Uses Std. Cover With Neoprene Gasket

Sensitive Coil Version of 105 Uses 125MW Per Pole

FEATURES

Class F Coil Insulation System for 155°C Total Temperature

Coil Molded in DuPont Rynite

for Environmental Protection

Unique Armature Stop Maintains Adjustment

MODELS

CONTACT DATA

CONFIGURATION:

Thru 3PDT

MATERIALS:

5 AMP:

1/8" Diameter Moveable Fine Silver

3/16" Diameter Stationary Fine Silver

10 AMP:

3/16" Diameter Moveable Silver Cadmium Oxide

3/16" Diameter Stationary Fine Silver

Gold Flash is Standard on All Contacts

Gold Diffused Available on Special Order – Min. Qty. Req’d.

COIL DATA –

ALL VERSIONS EXCEPT SENSITIVE COIL 105T

NOMINAL

VOLTAGE

6VAC

12VAC

24VAC

48VAC

120VAC

240VAC

6VAC

12VAC

24VAC

48VAC

120VAC

240VAC

6VDC

12VDC

24VDC

48VDC

110VDC

RESISTANCE

IN OHMS

10%

5.0

315

2025

8000

4.5

285

1850

7200

120

480

1850

10,000

NOMINAL

COIL

POWER

AC Coils

Single

Pole Units

2.0VA

CONTACT RATINGS

MOVEABLE

POLE

CONTACT SIZE CONFIGURATION

1/8" Diameter

thru 3PDT

RATINGS

5 amp or 1/8 HP at 120VAC

5 amp or 1/4 HP at 277VAC

5 amp at 28VDC

10 amp or 1/3 HP at 120VAC

10 amp or 1/2 HP at 277VAC

10 amp at 28VDC

6.6 amp at 120VAC

AC Coils

2&3

Pole Units

2.2VA

3/16" Diameter

thru DPDT

3PDT

DC Coils

1-3

Pole Units

Coil Voltages:

1.2W

UL RECOGNIZED FILE NO.:

E37066

CSA CERTIFIED FILE NO.:

LR20690

Not Applicable to 105T

EXPECTED LIFE

Electrical At Rated Load (Minimum)

100,000 Operations

Mechanical Life

10,000,000 Operations

AC: Up to 277 Volts/60 Hz

DC: Up to 125 Volts

Coil Treatment:

Molded Rynite

Std. Class F

Insulation Resistance:

100 Megohms Minimum

UL Insulation System File No.:

E74443

S155D 155°C Total Temperature Std.

(Covers S105 Class A and S130D Class B Requirements)

OPERATE DATA

Pick Up (at 25°C):

AC Volts 85% or Less of Nominal

DC Volts 75% or Less of Nominal

Operate Time:

Approx. 15 Milliseconds

Release Time:

Approx. 15 Milliseconds

DIELECTRIC STRENGTH

800 VRMS, 60 Hz Between Contacts

1500 VRMS, 60 Hz Between Other Elements

ENVIRONMENTAL DATA

Operating Ambient:

NOMINAL

COIL

POWER

125MW

AC: -45° to 55°C

DC: -45° to 70°C

Coil Temperature Rise:

(25°C Ambient – Continuous Duty)

AC: 45°C Approx. @ 60 Hz – Use at 50 Hz

will Cause Slight Increase in Coil Rise

DC: 25°C Approx.

105T SENSITIVE RELAY 5 AMP RATING ONLY

CONTACT

CONFIG.

SPDT

PULL-IN

CURRENT

11.2MA

7.2MA

5MA

3.6MA

16MA

10MA

7.2MA

5MA

19.5MA

12.3MA

8.7MA

6.1MA

RESISTANCE

IN OHMS

10%

2.5K

10K

2.5K

10K

2.5K

10K

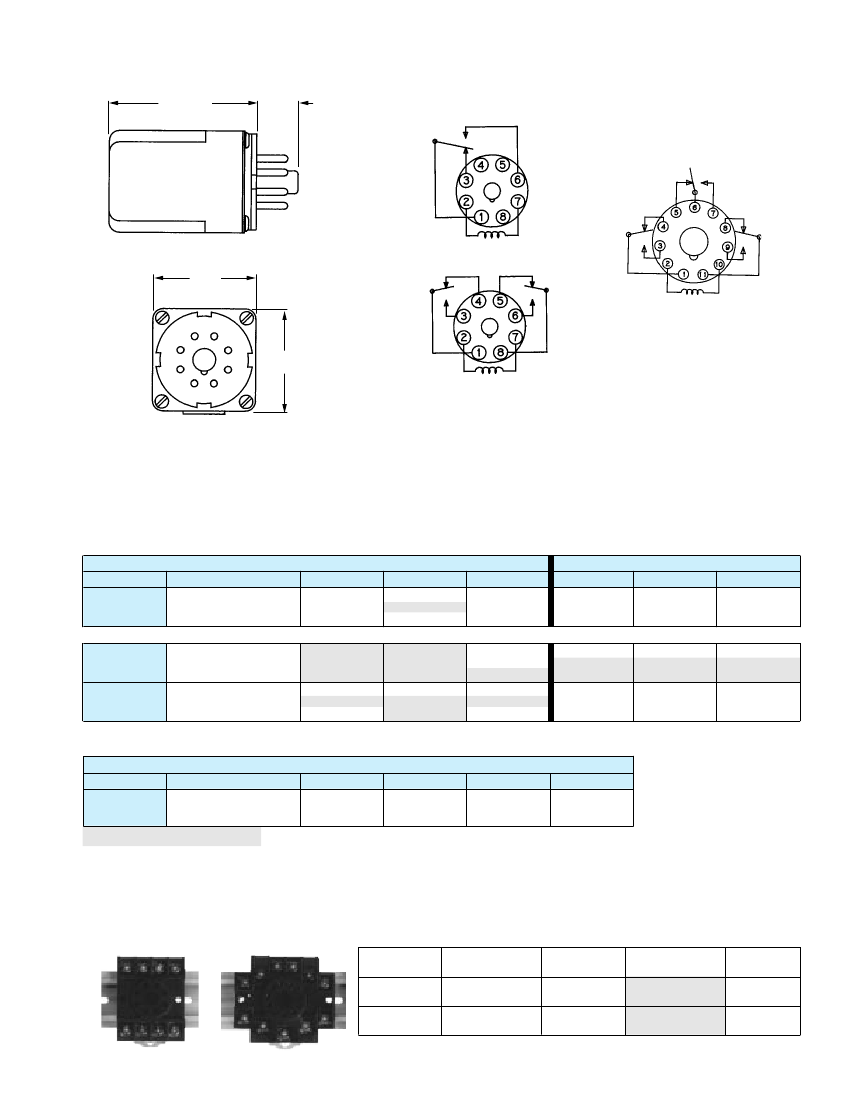

MECHANICAL DATA

250MW

Terminals:

8 or 11 Pin-Plug

Cover:

Polycarbonate – Flammability Rating 94V2

Weight:

All Versions Approx. 3.0 oz. (85 g)

DPDT

3PDT

375MW
