Data Sheet
April 2008

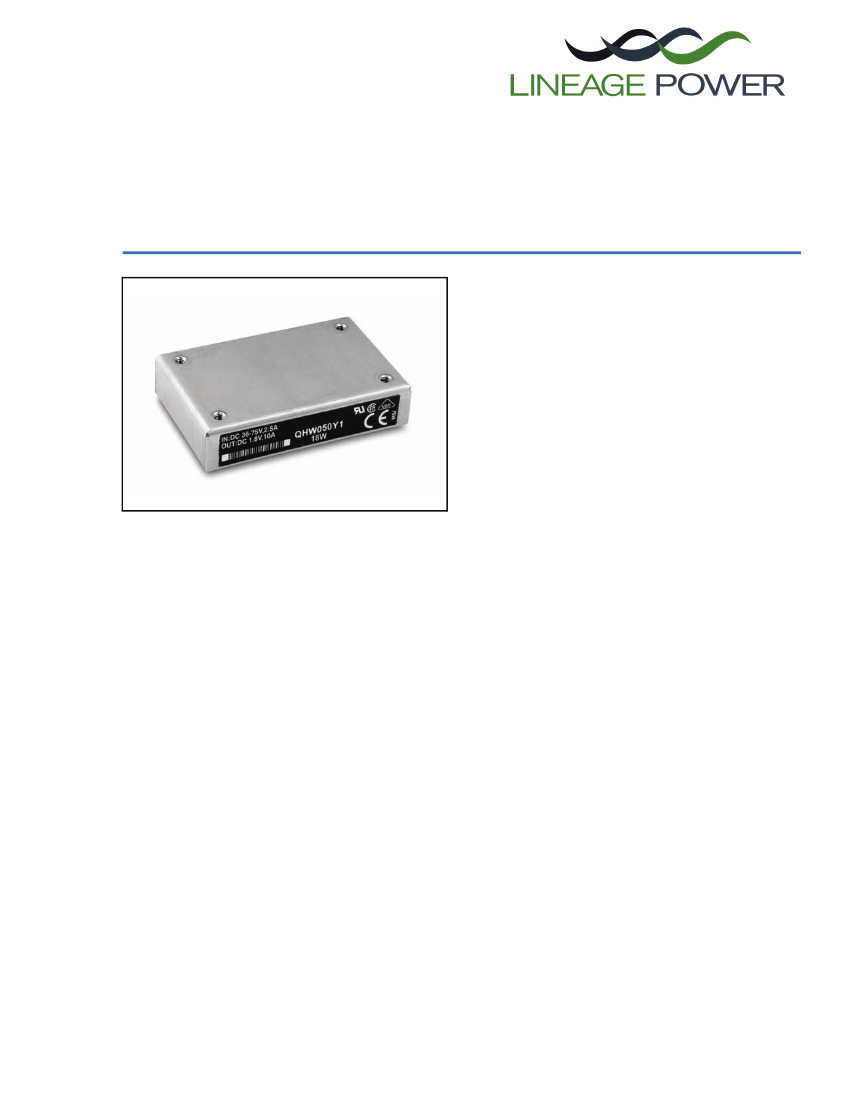

QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules;
dc-dc Converters: 36 to 75 Vdc Input, 1.8 Vdc Output; 18 W to 36 W
Features
n
Small size: 36.8 mm x 57.9 mm x 12.7 mm
(1.45 in. x 2.28 in. x 0.50 in.)
High power density
Extra high efficiency: 82% typical
Low output noise
Constant frequency
Industry-standard pinout
Metal baseplate
2:1 input voltage range
Overvoltage and overcurrent protection
Negative remote on/off
Remote sense
Adjustable output voltage
Overtemperature protection
ISO*
9001 and
ISO
14001 Certified manufacturing
facilities
UL
†
1950 Recognized,
CSA
‡
C22.2 No. 950-95
Certified, and
VDE
§
0805 (EN60950, IEC950)
Licensed
CE mark meets 73/23/EEC and 93/68/EEC direc-
tives**
n
n
n
n
n
n
n
The QHW Series Power Modules use advanced, surface-
mount technology and deliver high-quality, efficient, and
compact dc-dc conversion.
n
n
n
n
Applications
n
n
n
n
n
Distributed power architectures
Communications equipment
Computer equipment
n
Options
n
n
n
Heat sinks available for extended operation
Auto-restart after overtemperature, overvoltage, or
overcurrent shutdown
Case ground pin
Short pins
n
n
Description
*
ISO
is a registered trademark of the International Organization
for Standardization.
†
UL
is a registered trademark of Underwriters Laboratories, Inc.
‡
CSA
is a registered trademark of Canadian Standards Associa-
tion.
§
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
** This product is intended for integration into end-use equipment.
All the required procedures for CE marking of end-use equip-
ment should be followed. (The CE mark is placed on selected
products.)
The QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules are dc-dc converters that operate over an input
voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated
from the inputs, allowing versatile polarity configurations and grounding connections. The modules have maxi-
mum power ratings from 18 W to 36 W at a typical full-load efficiency of 82%.
The sealed modules offer a metal baseplate for excellent thermal performance. Threaded-through holes are pro-
vided to allow easy mounting or addition of a heat sink for high-temperature applications. The standard feature set
includes remote sensing, output trim, and remote on/off for convenient flexibility in distributed power applications.
QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules;
dc-dc Converters: 36 to 75 Vdc Input, 1.8 Vdc Output; 18 W to 36 W
Data Sheet
April 2008
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-
lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.
Parameter
Input Voltage:
Continuous
Transient (100 ms)
Operating Case Temperature
(See Thermal Considerations section.)
Storage Temperature
I/O Isolation Voltage (for 1 minute)
Symbol
V
I
V
I, trans
T
C
T
stg
—
Min
—
—
–40
–55
—
Max
80
100
100
125
1500
Unit
Vdc
V
°C
°C
Vdc
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions.
Table 1. Input Specifications
Parameter
Operating Input Voltage
Maximum Input Current:
V
I
= 0 V to 75 V; I
O
= I
O, max
; see Figures 1—3:
QHW050Y1
QHW075Y1
QHW100Y1
V
I
= 36 V to 75 V; I
O
= I
O, max
:
QHW050Y1
QHW075Y1
QHW100Y1
Inrush Transient
Input Reflected-ripple Current, Peak-to-peak
(5 Hz to 20 MHz, 12 µH source impedance;
see Figure 17.)
Input Ripple Rejection (100—120 Hz)
Fusing Considerations
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This encapsulated power module can be used in a wide variety of applications, ranging from simple stand-alone
operation to an integrated part of a sophisticated power architecture. To preserve maximum flexibility, internal fus-
ing is not included; however, to achieve maximum safety and system protection, always use an input line fuse. The
safety agencies require a normal-blow fuse with a maximum rating of 20 A (see Safety Considerations section).
Based on the information provided in this data sheet on inrush energy and maximum dc input current, the same
type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s data for further information.
Symbol
V
I
Min
36
Typ
48
Max
75
Unit
Vdc
I
I, max
I
I, max
I
I, max
I
I, max
I
I, max
I
I, max
i
2
t
I
I
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10
2.5
3.5
4.5
2.0
2.5
3.0
1.0
—
A
A
A
A
A
A
A
2
s
mAp-p
—
—
60
—
dB
2
Lineage Power
Data Sheet
April 2008
QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules;
dc-dc Converters: 36 to 75 Vdc Input, 1.8 Vdc Output; 18 W to 36 W
Electrical Specifications
(continued)
Table 2. Output Specifications
Parameter
Output Voltage Set Point
(V
I
= 48 V; I
O
= I
O, max
; T
C
= 25 °C)
Output Voltage
(Over all operating input voltage, resistive
load, and temperature conditions until end of
life. See Figure 19.)
Output Regulation:
Line (V
I
= 36 V to 75 V)
Load (I
O
= I
O, min
to I
O, max
)
Temperature (T
C
= –40 °C to +100 °C)
Output Ripple and Noise Voltage
(See Figure 18.):
RMS
Peak-to-peak (5 Hz to 20 MHz)
External Load Capacitance
Output Current
Device
All
All
Symbol
V
O, set
V
O
Min
1.77
1.74
Typ
1.8
—
Max
1.83
1.86
Unit
Vdc
Vdc
All
All
All
—
—
—
—
—
—
0.01
0.05
8
0.1
0.2
25
%V
O
%V
O
mV
All
All
All
QHW050Y1
QHW075Y1
QHW100Y1
QHW050Y1
QHW075Y1
QHW100Y1
QHW050Y1
QHW075Y1
QHW100Y1
All
—
—
—
I
O
I
O
I
O
I
O, cli
I
O, cli
I
O, cli
η
η
η
—
—
—
0
0
0
0
—
—
—
—
—
—
—
—
—
—
—
—
—
12
18
24
81
82
82
380
40
150
*
mVrms
mVp-p
µF
A
A
A
A
A
A
%
%
%
kHz
Output Current-limit Inception
(V
O
= 90% of V
O, nom
)
Efficiency (V
I
= 48 V; I
O
= I
O, max
; T
C
= 70 °C;
see Figure 19.)
Switching Frequency
Dynamic Response
(ΔI
O
/Δt = 1 A/10 µs, V
I
= 48 V, T
C
= 25 °C;
tested with a 1000 µF aluminum and a 1.0 µF
ceramic capacitor across the load):
Load Change from I
O
= 50% to 75% of I
O, max
:
Peak Deviation
Settling Time (V
O
< 10% of peak deviation)
Load Change from I
O
= 50% to 25% of I
O, max
:
Peak Deviation
Settling Time (V
O
< 10% of peak deviation)
10
15
20
20
†
25
†
30
†
—
—
—
—
All
All
All
All
—
—
—
—
—
—
—
—
80
300
80
300
—
—
—
—
mV
µs
mV
µs
* Consult your sales representative or the factory.
† These are manufacturing test limits. In some situations, results may differ.
Table 3. Isolation Specifications
Parameter
Isolation Capacitance
Isolation Resistance
Min
—
10
Typ
2500
—
Max
—
—
Unit
pF
MΩ
Lineage Power
3
QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules;
dc-dc Converters: 36 to 75 Vdc Input, 1.8 Vdc Output; 18 W to 36 W
Data Sheet
April 2008
General Specifications
Parameter
Calculated MTBF (I
O
= 80% of I
O, max
; T
C
= 40 °C)
Weight
—
Min
Typ
2,245,000
—
75 (2.7)
Max
Unit
hours
g (oz.)
Feature Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions. See the Feature Descriptions section for additional information.
Parameter
Remote On/Off Signal Interface
(V
I
= 0 V to 75 V; open collector or equivalent compatible;
signal referenced to V
I
(–) terminal):
Logic Low—Module On
Logic High—Module Off
Logic Low:
At I
on/off
= 1.0 mA
At V
on/off
= 0.0 V
Logic High:
At I
on/off
= 0.0 µA
Leakage Current
Turn-on Time (See Figure 16.)
(I
O
= 80% of I
O, max
; V
O
within ±1% of steady state)
Output Voltage Adjustment:
Output Voltage Remote-sense Range
Output Voltage Set-point Adjustment Range (trim)
Output Overvoltage Protection
(measured at the V
O
(+) and V
O
(–) output terminals)
Overtemperature Protection
Note:
If auto-restart option is chosen, the unit will continually
attempt restart in “hiccup” mode.
* These are manufacturing test limits. In some situations, results may differ.
Symbol
Min
Typ
Max
Unit
V
on/off
I
on/off
V
on/off
I
on/off
—
0
—
—
—
—
—
—
—
—
20
1.2
1.0
15
50
35
V
mA
V
µA
ms
—
—
V
O, sd
T
C
—
90
2.2*
—
—
—
—
105
0.5
110
2.8*
—
V
%V
O, nom
V
°C
Solder, Cleaning, and Drying Considerations
Post solder cleaning is usually the final circuit-board assembly process prior to electrical testing. The result of inad-
equate circuit-board cleaning and drying can affect both the reliability of a power module and the testability of the
finished circuit-board assembly. For guidance on appropriate soldering, cleaning, and drying procedures, refer to
Lineage Power
Board-Mounted Power Modules Soldering and Cleaning
Application Note (AP97-021EPS).
4
Lineage Power
Data Sheet
April 2008
QHW050Y1, QHW075Y1, and QHW100Y1 Power Modules;
dc-dc Converters: 36 to 75 Vdc Input, 1.8 Vdc Output; 18 W to 36 W
Characteristic Curves
The following figures provide typical characteristics for the power modules.
INPUT CURRENT, I
I
(A)
0.7
0.6
INPUT CURRENT, I
I
(A)
1.6
I
O
= 10 A
0.5
0.4
0.3
0.2
I
O
= 1 A
0.1
0
25
30
35
40
45
50
55
60
65
70
75
I
O
= 5 A
1.4
1.2
1
0.8
0.6
0.4
0.2
I
O
= 20 A
I
O
= 10 A
I
O
= 2 A
INPUT VOLTAGE, V
I
(V)
1-0021
0
0
10
20
30
40
50
60
70
80
INPUT VOLTAGE, V
I
(V)
8-3461(F)
Figure 1. Typical QHW050Y1 Input Characteristics
at Room Temperature
Figure 3. Typical QHW100Y1 Input Characteristics
at Room Temperature
INPUT CURRENT, I
I
(A)
1.2
1.0
EFFICIENCY,
η
(%)
I
O
= 15 A
0.8
0.6
I
O
= 7.5 A
0.4
0.2
0
25
I
O
= 1.5 A
90
V
I
= 36 V
80
V
I
= 48 V
70
V
I
= 75 V
60
50
40
30
35
40
45
50
55
60
65
70
75
30
1-0022
INPUT VOLTAGE, V
I
(V)
0
1
2
3
4
5
6
7
8
9
OUTPUT CURRENT, I
O
(A)
10
1-0023
Figure 2. Typical QHW075Y1 Input Characteristics
at Room Temperature
Figure 4. Typical QHW050Y1 Converter Efficiency
vs. Output Current at Room Temperature
Lineage Power
5
