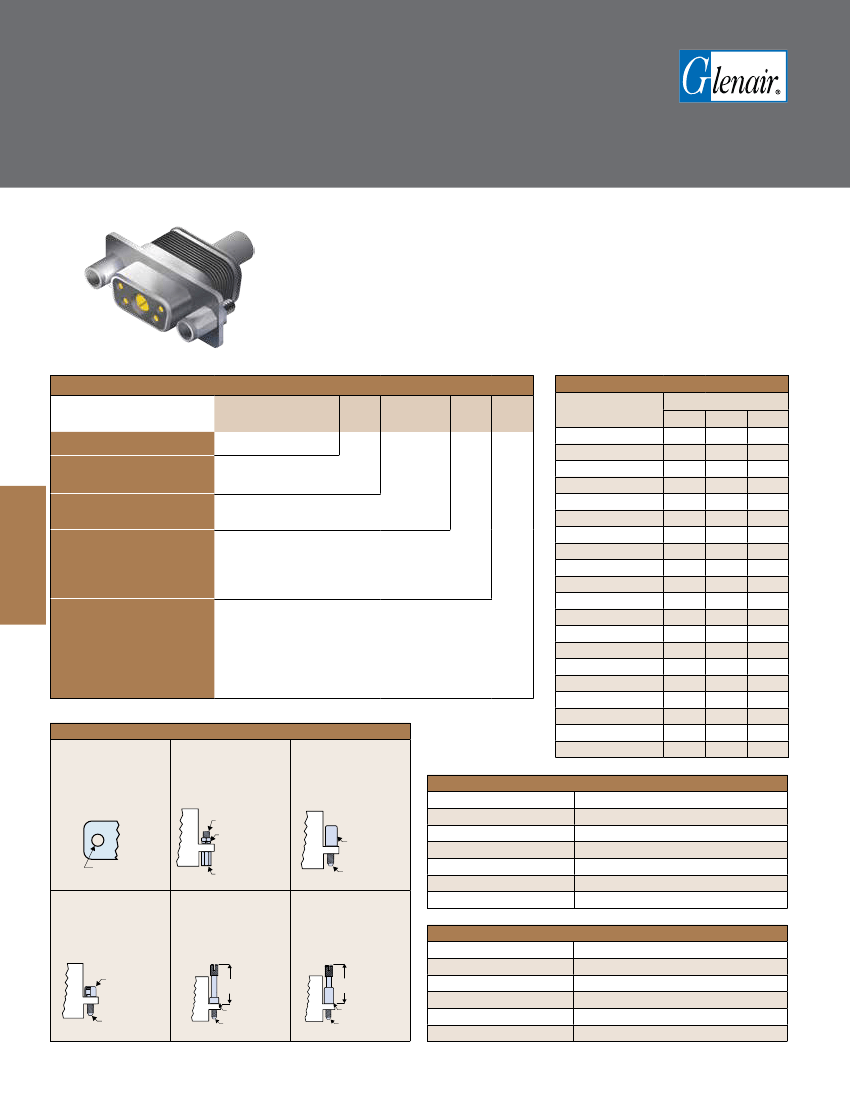

SERIES 28
HiPer-D
®
Combo Connectors
280-089P combo cable socket connectors with standard
mounting flange, integral banding platform and crimp termination
Combo HiPer-D
®
Combo-D connectors, with integral banding platform, feature
size #20 signal contacts and size #8 power or coax contacts.
Size #8 contacts are
ordered separately.
The HiPer-D
®
features a rugged machined aluminum shell and
wire grommet for environmental protection. Size #20 contacts are packaged with
connector. Terminate contacts with crimp tools purchased separately. Glass-reinforced
thermoset epoxy insulators, copper alloy retention clips. Fluorosilicone rear grommet
meets IP67 immersion requirement. 1000 VAC, 7.5 Amps (#20), up to 40 Amps with
size #8 power contacts.
Ordering Information
Sample Part Number
Basic Part Number
Contact
Shell Size-
Contact Arrangement
Contact Arrangements
Contact Size and Qty
#22
#20
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
#8
2
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
280-089
280-089
S
= Socket
A
= Less contact
S
1-5W1
ME
P
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
ZM
= Nickel Over Stainless
N
= No Hardware
P
= Female Jackpost
L
= Low Profile Hex Head Captive Jackscrew
K
= Slot Head Extended Jackscrew
S
= Hex Head Captive Screwlock
T
= Slot Head Extended Captive Screwlock
C
Shell Finish
Mating Hardware
Mating Hardware
Thru-Hole
No Hardware
N
Female Jackpost
P
Captive Screwlock,
Hex Head
Current Rating
Test Voltage
Insulation Resistance
Operating Temperature
Ingress Protection
Shock
Vibration, Random
S
Shell Size-
Contact Arr.
1-2W2
1-5W1
2-3W3
2-7W2
2-11W1
3-5W5
3-9W4
3-13W3
3-17W2
3-21W1
4-8W8
4-13W6
4-17W5
4-21WA4
4-25W3
4-27W2
5-24W7
5-36W4
5-43W2
5-47W1
Specifications
#4-40 UNC-2A
NUT AND
LOCKWASHER
.115/.125
(2.92/3.18)
#4-40 UNC-2B
RETAINER
#4-40 UNC-2A
#20 7.5 AMPS, #8 40 AMPS
1000 VAC RMS
5000 megohms minimum
-65° C. to +200° C.
IP 67
300 g.
43.92 g.
Materials and Finishes
Captive Jackscrew, Slot-Head Extended Slot-Head Extended
Hex Head
Jackscrew
Captive Screwlock
L
K
T
Shell
Contacts
Insulators
Retention Clips
Grommet, O-ring
Hardware
Aluminum alloy
Copper alloy, 50 microinches gold
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
300 series stainless steel
RETAINER
1.1 (28)
MAX
RETAINER
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
#4-40 UNC-2A
#4-40 UNC-2A
C-36
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
SERIES 28
HiPer-D
®
Combo Connectors
280-089P combo cable socket connectors with standard
mounting flange, integral banding platform and crimp termination

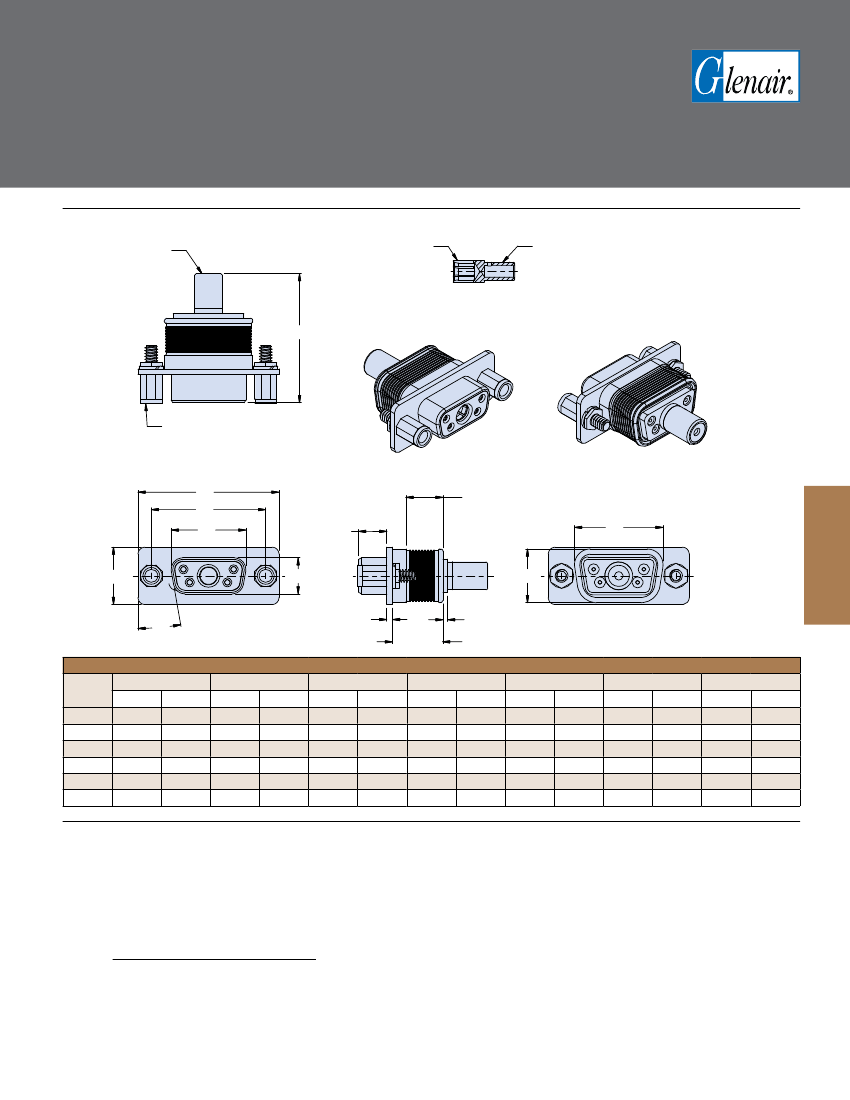

280-089P DIMENSIONS
Grommet Follower
For 8 Gauge Contacts
(Supplied Loose)
8 Gauge Socket
See Note 4
12 Gauge
Crimp Barrel
1.11 (28.19)
"P" Hardware Displayed
Female Jackpost
"A"
"C"
"D"
.243±.005
(6.17±.13)
"E"
.049 (1.24)
.320 (8.13) To Accommodate
Micro Or Nano Bandit
"H"
"B"
"J"
.038 (.97)
.435 (11.05)
Dimensions
“D” ±.005
In.
0.643
0.971
1.511
2.159
2.064
2.189
mm.
16.33
24.66
38.38
54.84
52.43
55.60
C
10°
Typ
Shell
Size
1
2
3
4
5
6
“A” ±.015
In.
1.213
1.541
2.088
2.729
2.635
2.729
mm.
30.81
39.14
53.04
69.32
66.93
69.32
“B” ±.015
In.
0.494
0.494
0.494
0.494
0.605
0.668
mm.
12.55
12.55
12.55
12.55
15.37
16.97
“C” ±.005
In.
0.984
1.312
1.852
2.5
2.406
2.5
mm.
24.99
33.32
47.04
63.50
61.11
63.50
“E” ±005
In.
0.311
0.311
0.311
0.311
0.423
0.486
mm.
7.90
7.90
7.90
7.90
10.74
12.34
In.
0.760
1.089
1.629
2.277
2.182
2.307
“H”
mm.
19.30
27.66
41.38
57.84
55.42
58.60
In.
0.462
0.462
0.462
0.462
0.474
0.626
“J”
mm.
11.73
11.73
11.73
11.73
12.04
15.90
NOTES
1.
2.
3.
4.
5.
See
About Series 28 HiPer-D
®
Shell Plating Options
for additional shell material and finish options. Glenair offers the industry’s
widest selection of plating options with no minimum order quantities or setup charges.
For panel cutouts, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Connectors are supplied with size #20 crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D
®
Contacts and Tools
section for contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
Size 8 contacts are ordered separately.
Refer to
HiPer-D
®
Contacts and Tools
section for contact ordering information,
specifications, crimp tool information, and insertion/extraction tools.
Combo HiPer-D
®
connectors meet the applicable requirements of MIL-DTL-24308 and are intermateable with standard non-
environmental D Subminiature connectors with corresponding contact arrangements and type.
Size 8 contacts from other
manufacturers cannot be installed in HiPer-D
®
connectors.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D
®
Product Specification.
6.
C-37
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
