63CP-02-2-0250-A-B-NA0 datasheet, PDF

Datasheet> All Categories > The sensor> 63CP-02-2-0250-A-B-NA0

63CP-02-2-0250-A-B-NA0: DescriptionCapacitive Sensor, Absolute, 0Psi Min, 250Psi Max, 0.5-4.5V,; CategoryThe sensor; File Size171KB，4 Pages; ManufacturerAIRPAX; Environmental Compliance

Download Datasheet Parametric View All

63CP-02-2-0250-A-B-NA0 Overview

Capacitive Sensor, Absolute, 0Psi Min, 250Psi Max, 0.5-4.5V,

63CP-02-2-0250-A-B-NA0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AIRPAX
Reach Compliance Code	compli
Other features	IP 65, OVER VOLTAGE PROTECTION, REVERSE POLARITY PROTECTION
shell	PLATE STEEL
Maximum working current	7 mA
Maximum operating temperature	135 °C
Minimum operating temperature	-40 °C
Output range	0.5-4.5V
Output type	VOLTAGE OUTPUT
port type	1/8NPTF
Maximum pressure range	250 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Response time	10000 µs
Sensor/temperature sensor type	PRESSURE SENSOR,CAPACITIVE
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V

Preview

Download Datasheet

View All

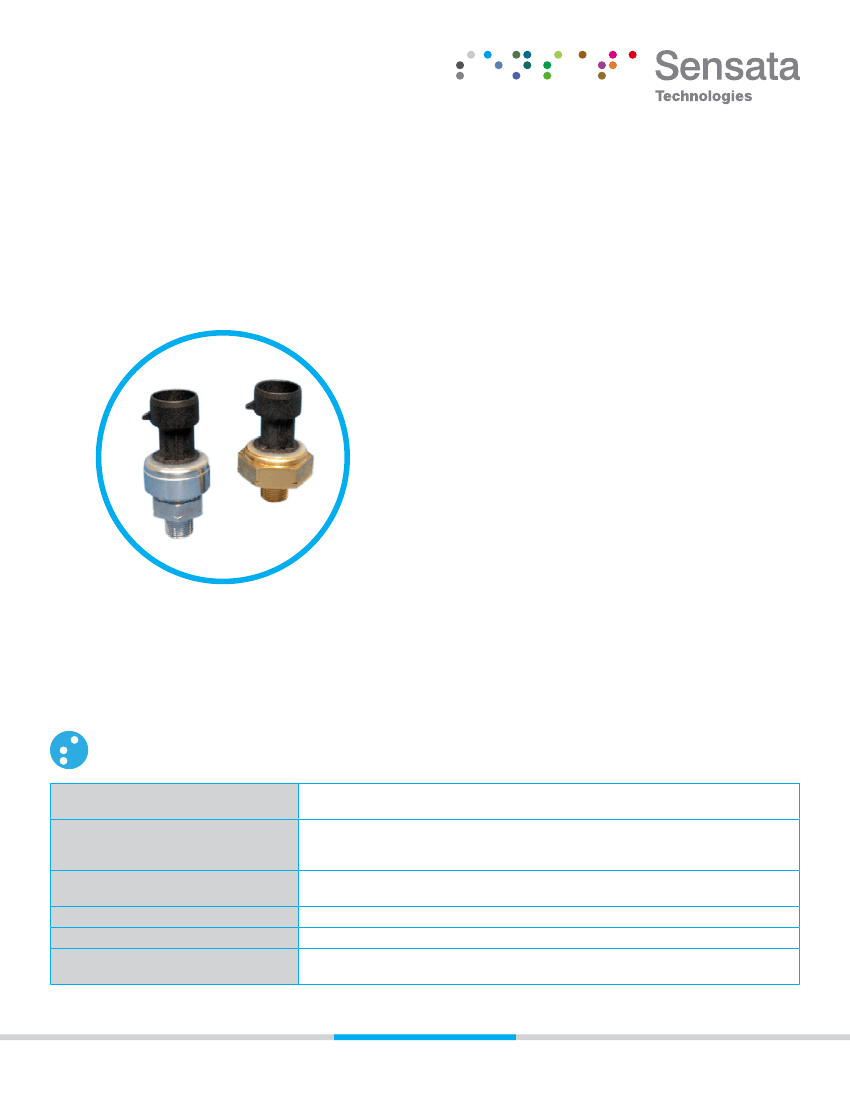

60CP SERIES |

CERAMIC CAPACITIVE PRESSURE SENSOR

5VDC Supply, Ratiometric Output

Description

The 60CP series pressure sensors are ideally suited for environmentally demanding industrial applications. Using a 5.0 V excitation input, the 60 series

sensors provides a .5-4.5 V signal ratiometric output proportional to pressure. This design requires no end user amplification. Several housing options

are available.

Sensata Technologies has been a leading global supplier of pressure sensors and switches for over 50 years.

Features

• Enhanced accuracy over wide operating range

• Housing options are compatible with most media

• EMC protection to 100 V/m

• Broad operating temperature range (-40°C to 135°C)

• Exceptional shake and vibration tolerance

• Overvoltage and reverse polarity protection

• Small size and simple installation

Applications

• Compressors & pumps

• Hydraulics & pneumatics

• Agriculture & construction equipment

• Transportation & off-road vehicles

• Engine controls & monitors

• Alternative energy management

• Load management

• Process control & automation

• Medical

• Military

PERFORMANCE CHARACTERISTICS

Pressure Ranges

Accuracy

Total Error Band

Operating Temperature

Storage Temperature

Proof Pressure

0 to 15, 50, 100, 150, 250, 500 psi

0 to 750 psi

±0.8% F.S. (linearity, hysteresis,

repeatability and calibration)

Static error band @ 25°C, 5.0VDC

±1.0% (-20°C to +85°C)

±1.5% (-40°C to +125°C)

-40°C to +135°C

-40°C to +150°C

5X 15 to 75 psi, 3X 100 to 300 psi, 2X 500 psi,

1.5X 750psi

Page 1

www.sensata.com
