09195266014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09195266014

09195266014: DescriptionBoard Euro Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

09195266014 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09195266014	-	-	View	Buy Now

09195266014 Overview

Board Euro Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking

09195266014 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compli
Samacsys Descripti	Connectors, Male connector, Reflow soldering termination (THR), Rated current: ?1 A, Contacts: 26, Straight, Kinked
Board mount options	HOLE .099-.111
body width	0.335 inch
subject depth	0.681 inch
body length	2.071 inch
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Durability	250 Cycles
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

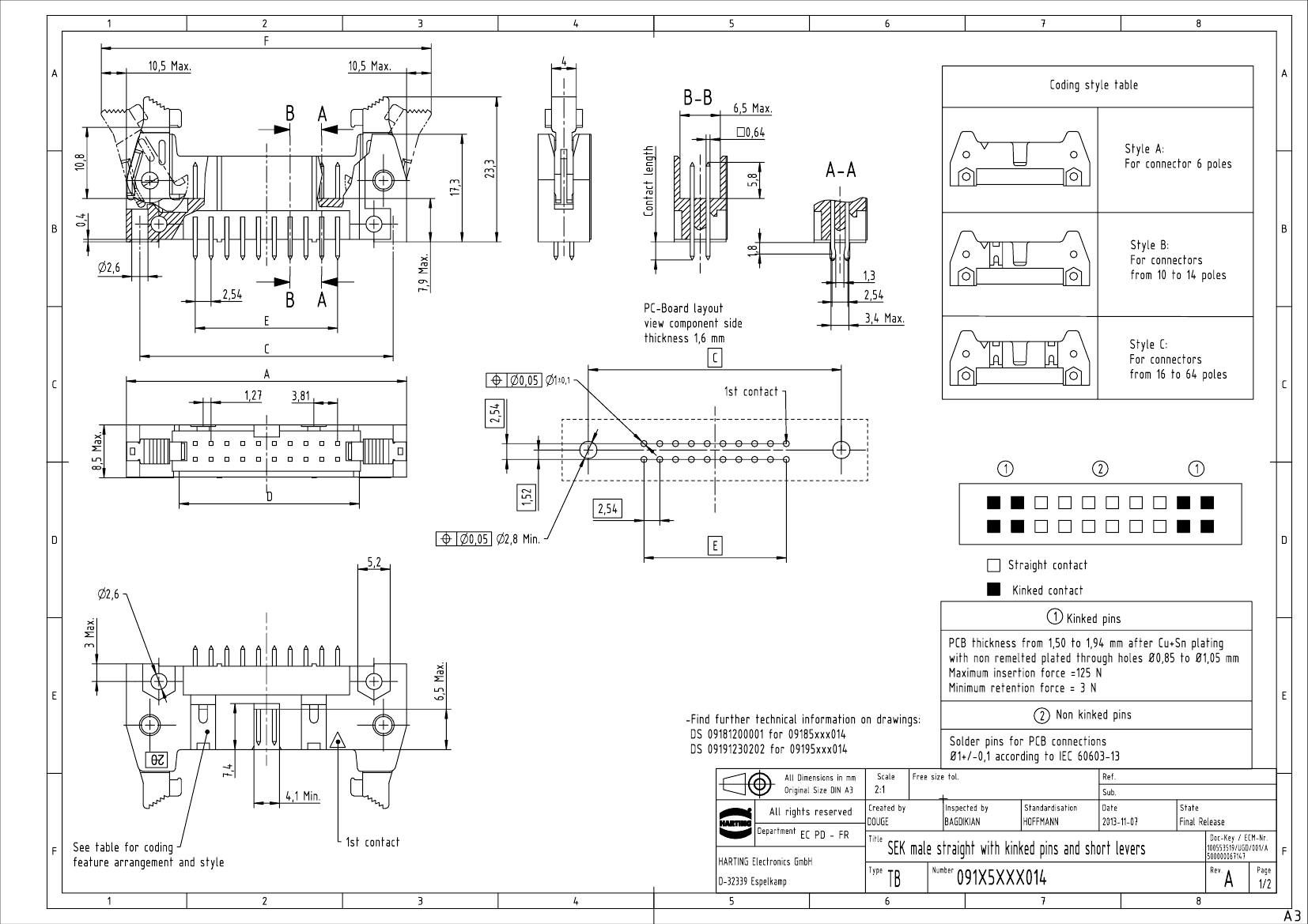

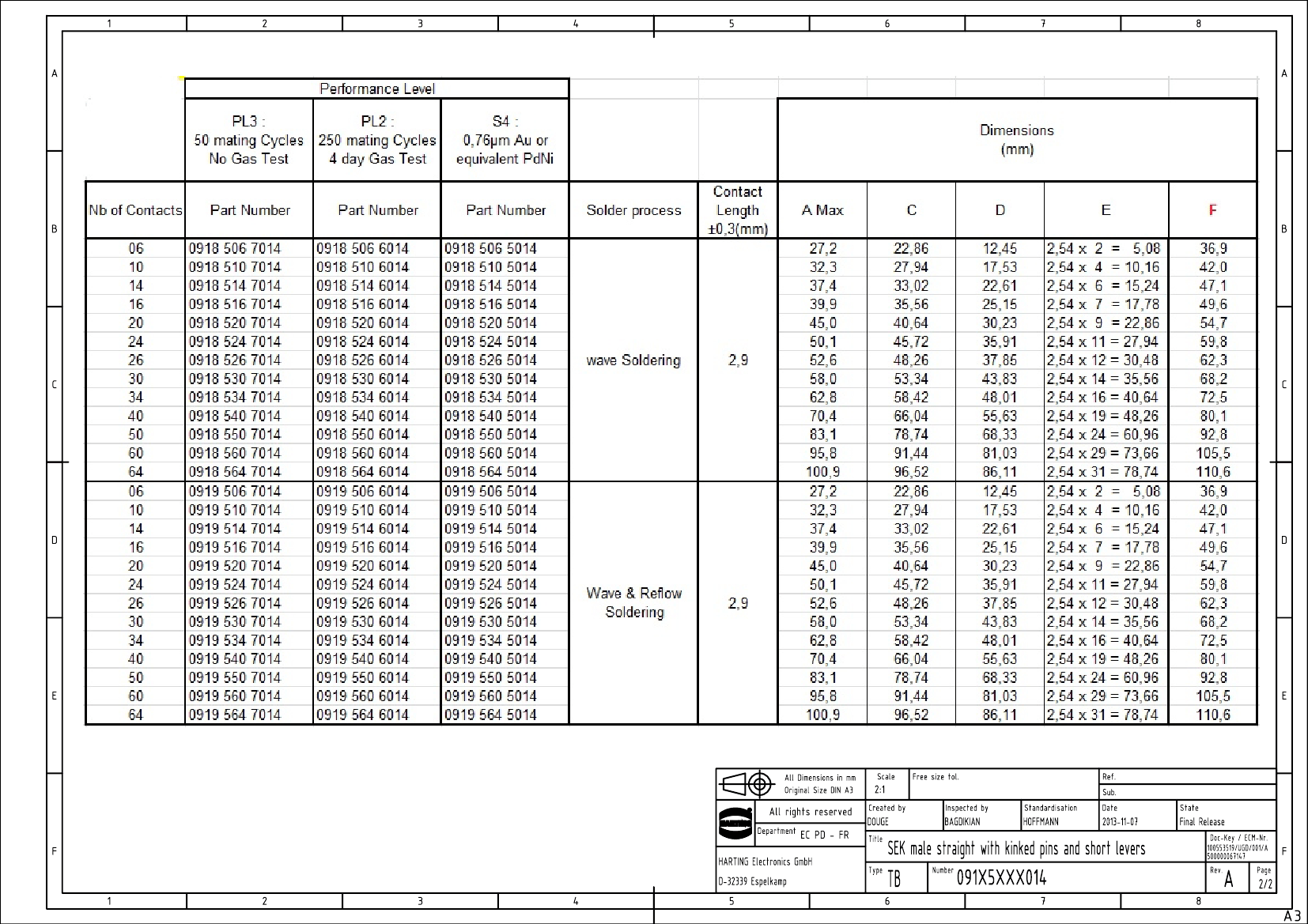

Preview

Download Datasheet

View All

09195266014 Related Products

	09195266014	09195207014	09195605014	09195346014	09185307014	AM8208TMX8R	09185246014	09185306014	09195407014
Description	Board Euro Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	N-CHANNEL ENHANCEMENT MODE POWER MOSFET	Board Euro Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking	Board Euro Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking
Maker	HARTING	HARTING	HARTING	-	HARTING	-	-	-	HARTING
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant
Board mount options	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	-	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
body width	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	-	0.335 inch	0.335 inch	0.335 inch
subject depth	0.681 inch	0.681 inch	0.681 inch	0.681 inch	0.681 inch	-	0.681 inch	0.681 inch	0.681 inch
body length	2.071 inch	1.772 inch	3.772 inch	2.472 inch	2.283 inch	-	1.972 inch	2.283 inch	2.772 inch
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	250 Cycles	50 Cycles	-	250 Cycles	50 Cycles	-	250 Cycles	250 Cycles	50 Cycles
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation option 2	LATCH	LATCH	LATCH	LATCH	LATCH	-	LATCH	LATCH	LATCH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	2	2	2	-	2	2	2
Number of rows loaded	2	2	2	2	2	-	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	-	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	-	0.114 inch	0.114 inch	0.114 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	26	20	60	34	30	-	24	30	40
Manufacturer's serial number	-	091	091	091	091	-	091	091	091
Base Number Matches	-	1	1	1	1	-	1	1	-
