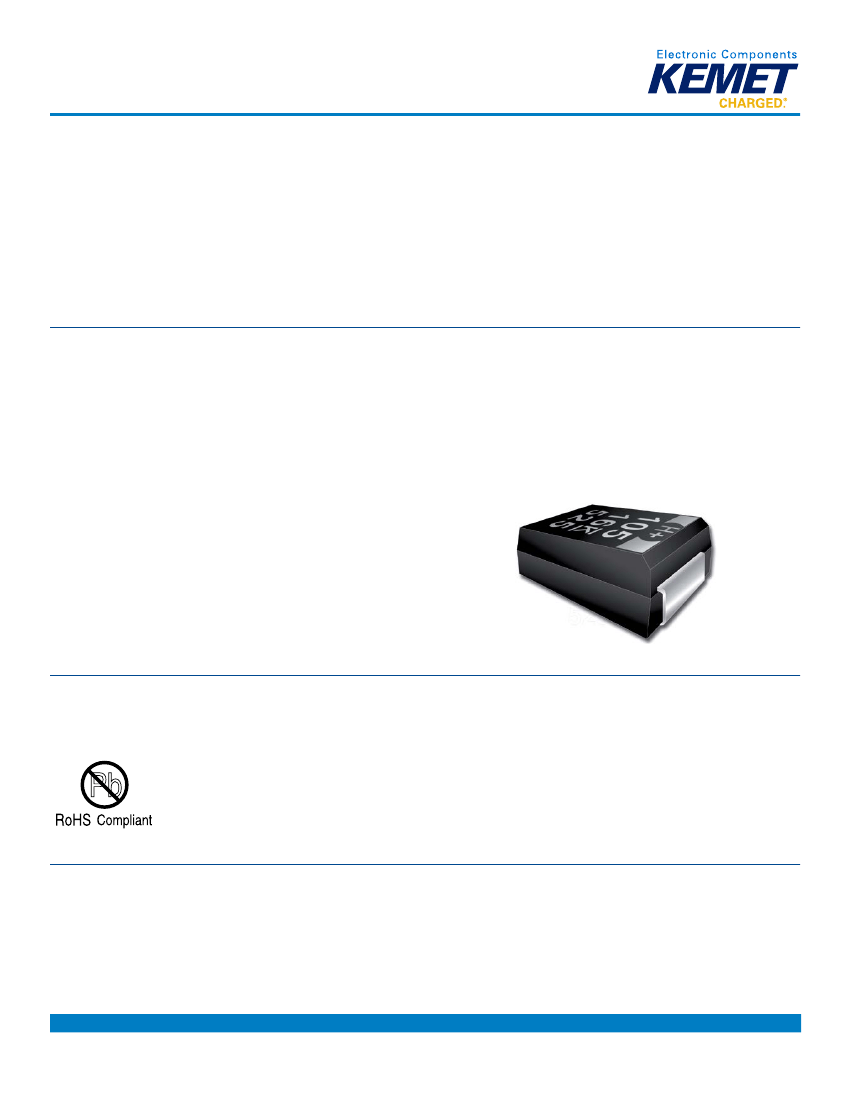

Tantalum Surface Mount Capacitors – Automotive
T499 175°C Rated MnO
2
Series
Overview
The KEMET T499 Series is a high-temperature product that
offers optimum performance characteristics in applications
with operating temperatures up to 175°C. Advanced materials
and testing allow this series to perform with a reliability level of
0.5%/1,000 hours at rated voltage and temperature. This series
is available in five standard EIA case sizes with RoHS Compliant
terminations as standard.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Meets or exceeds EIA Standard 535BAAC
Taped and reeled per EIA 481–1
Symmetrical, compliant terminations
Optional gold-plated terminations
Laser-marked case
100% surge current testing
Complies with AEC–Q200
Capacitance values of 0.15 μF to 220 μF
Tolerances of ±10% and ±20%
Voltage rating of 6 to 50 VDC
100% steady-state accelerated aging
Voltage derating is 1/2 at 175°C
RoHS Compliant and lead-free terminations standard
Operating temperature range of -55˚C to +175˚C
Applications
Typical applications include decoupling and filtering in industrial
and automotive end applications, such as DC/DC converters,
portable electronics, telecommunications, and control units
operating at temperatures up to 175°C.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2054_T499_AUTO • 7/18/2013
1
Tantalum Surface Mount Capacitors – Automotive
T499 175°C Rated MnO
2
Series
Ordering Information
T
Capacitor
Class
T=
Tantalum
499
Series
High
Temperature
175ºC
X
Case Size
A, B, C,
D, X
227
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
M
Capacitance
Tolerance
K = ±10%
M = ±20%
010
Voltage
006 = 6.3 V
010 = 10 V
015 = 15 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
A
T
E500
ESR
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
Failure Rate/
Lead Material
Design
A = N/A
T = 100% Matte E = ESR Last
Tin (Sn) Plated three digits
G = Gold Plated specify ESR in
mΩ (500 = 500
mΩ)
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF(120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 175°C
0.15 – 220 μF @ 120 Hz/25°C
Performance Characteristics
K Tolerance (10%), M Tolerance (20%)
6 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2054_T499_AUTO • 7/18/2013
2
Tantalum Surface Mount Capacitors – Automotive
T499 175°C Rated MnO
2
Series
Qualification
Test
Endurance
Condition
Δ C/C
175°C @ 1/2 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted, -55°C to
150°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
-55ºC, +25ºC, +85ºC, +150ºC, +25ºC
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+175°C
±30%
1.5 x IL
12 x IL
Storage Life
175°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(150°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
*IL = Initial Limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Certification
KEMET’s Internal Qualification Plan for this Tantalum series of capacitors follows AEC–Q200 guidelines.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2054_T499_AUTO • 7/18/2013
3
Tantalum Surface Mount Capacitors – Automotive
T499 175°C Rated MnO
2
Series
Electrical Characteristics

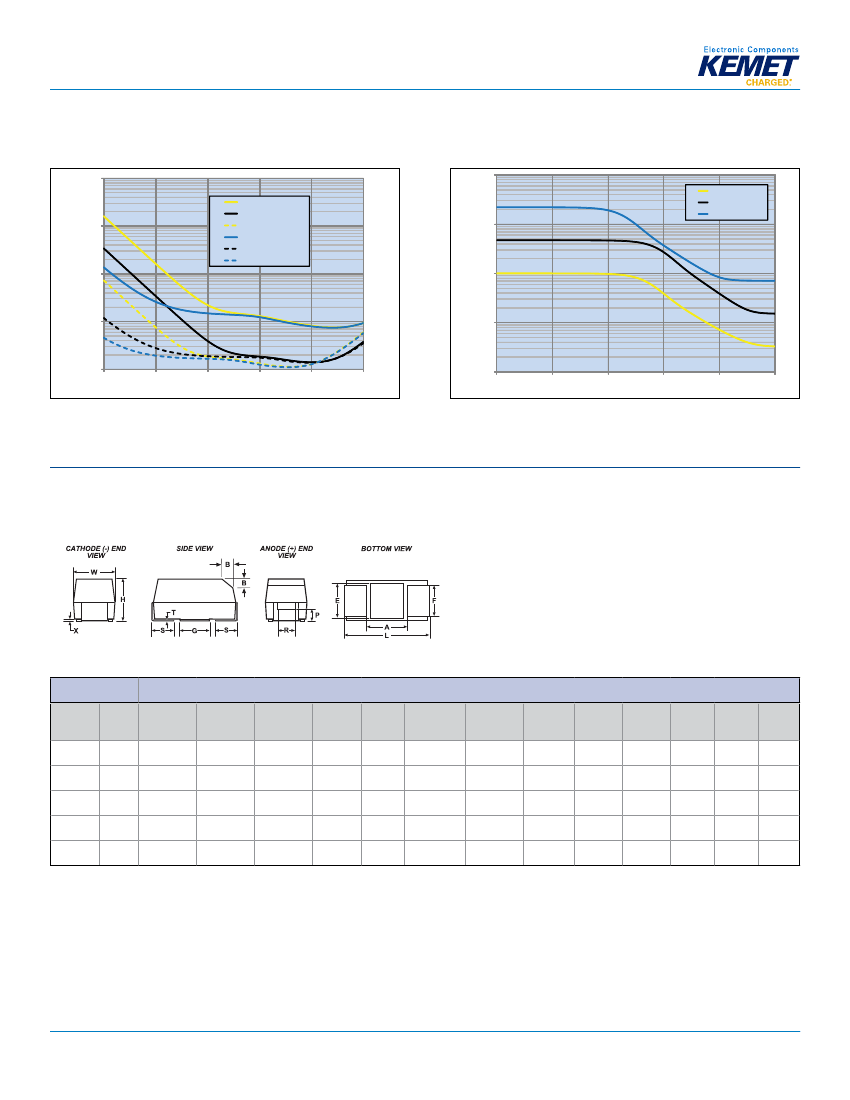

ESR vs. Frequency
1000
T499B106M010ATE3K5_IMP
T499D476M010ATE600_IMP
Capacitance vs. Frequency
1000
T499B106M010ATE1K8
T499D476M010ATE600
Impedance, ESR (Ohms)
100
T499B106M010ATE3K5_ESR
T499X227M010ATE500_IMP
T499D476M010ATE600_ESR
T499X227M010ATE500_ESR
100
T499X227M010ATE500
Capacitance (µF)
1,000,000
10,000,000
10
10
1
1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
Termination
cutout at
KEMET’s
option,
either end
Case Size
KEMET
A
B
C
D
X
EIA
3216–18
3528–21
6032–28
7343–31
7343–43
Component
L*
3.2 ±0.2
(0.126 ± .008)
3.5 ±02
(0.138 ±0.008)
6.0 ±0.3
(0.236 ±0.03)
7.3 ±0.3
(0.287 ±0.012)
7.3 ±0.3
(0.287 ±0.012)
W*
1.6 ± 0.2
(.063 ± .008)
2.8 ± 0.2
(.110 ± .008)
3.2 ± 0.3
(.126 ± .012)
4.3 ± 0.3
(.169 ± .012)
4.3 ± 0.3
(.169 ± .012)
H*
1.6 ± 0.2
(.063 ± .008)
1.9 ± 0.2
(.075 ± .008)
2.5 ± 0.3
(.098 ± .012)
2.8 ± 0.3
(.110 ± .012)
4.0 ± 0.3
(.157 ± .012)
F* ±0.1
S* ±0.3 B* ±0.15
±(.004) ±(.012) (Ref) ±.006
1.2 (.047)
2.2 (.087)
2.2 (.087)
2.4 (.094)
2.4 (.094)
0.8 (.031)
0.8 (.031)
1.3 (.051)
1.3 (.051)
1.3 (.051)
0.4 (.016)
0.4 (.016)
0.5 (.020)
0.5 (.020)
0.5 (.020)
X (Ref)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
P (Ref)
0.4 (.016)
0.5 (.020)
0.9 (.035)
0.9 (.035)
1.7 (.067)
R (Ref)
0.4 (.016)
1.0 (.039)
1.0 (.039)
1.0 (.039)
1.0 (.039)
T (Ref)
0.13 (.005)
A (Min) G (Ref) E (Ref)
0.8 (.31)
1.1 (.043) 1.3 (.051)
0.13 (.005) 1.1 (0.043) 1.8 (.071) 2.2 (.087)
0.13 (.005)
0.13 (.005)
0.13 (.005)
2.5(.098)
3.8 (.150)
3.8 (.150)
2.8 (.110) 2.4 (.094)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
Notes: (Ref) – Dimensions provided for reference only. No dimensions provided for B, P or R because low profile cases do not have a bevel or a notch.
* MIL-PRF-55365/8 specified dimensions
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2054_T499_AUTO • 7/18/2013
4
Tantalum Surface Mount Capacitors – Automotive
T499 175°C Rated MnO
2
Series
Table 1 – Ratings & Part Number Reference
Rated
Voltage
VDC
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
20
20
20
20
20
20
20
20
20
20
20
20
VDC
Rated
Cap
µF
10
15
22
33
47
100
1.5
2.2
3.3
4.7
4.7
6.8
6.8
10
10
15
15
22
22
33
33
47
100
220
1
1.5
2.2
3.3
3.3
4.7
6.8
6.8
6.8
10
10
15
22
22
33
47
100
0.68
1
1.5
2.2
3.3
4.7
4.7
6.8
10
15
15
22
µF
Case Code/
Case Size
KEMET/EIA
B/3528-21
B/3528-21
C/6032-28
B/3528-21
C/6032-28
D/7343-31
A/3216-18
A/3216-18
A/3216-18
A/3216-18
B/3528-21
A/3216-18
B/3528-21
B/3528-21
C/6032-28
B/3528-21
C/6032-28
B/3528-21
C/6032-28
C/6032-28
D/7343-31
D/7343-31
D/7343-31
X/7343-43
A/3216-18
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
A/3216-18
B/3528-21
C/6032-28
B/3528-21
C/6032-28
C/6032-28
C/6032-28
D/7343-31
D/7343-31
D/7343-31
X/7343-43
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
C/6032-28
C/6032-28
C/6032-28
D/7343-31
D/7343-31
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T499B106(1)006A(2)E3K5
T499B156(1)006A(2)E3K5
T499C226(1)006A(2)E1K8
T499B336(1)006A(2)E3K0
T499C476(1)006A(2)E1K8
T499D107(1)006A(2)E800
T499A155(1)010A(2)E8K0
T499A225(1)010A(2)E8K0
T499A335(1)010A(2)E6K0
T499A475(1)010A(2)E6K0
T499B475(1)010A(2)E3K5
T499A685(1)010A(2)E6K0
T499B685(1)010A(2)E3K5
T499B106(1)010A(2)E3K5
T499C106(1)010A(2)E1K8
T499B156(1)010A(2)E3K5
T499C156(1)010A(2)E1K8
T499B226(1)010A(2)E3K0
T499C226(1)010A(2)E1K8
T499C336(1)010A(2)E1K8
T499D336(1)010A(2)E1K6
T499D476(1)010A(2)E800
T499D107(1)010A(2)E700
T499X227(1)010A(2)E500
T499A105(1)016A(2)E10K
T499A155(1)016A(2)E8K0
T499A225(1)016A(2)E6K0
T499A335(1)016A(2)E500
T499B335(1)016A(2)E3K5
T499B475(1)016A(2)E6K0
T499A685(1)016A(2)E7K0
T499B685(1)016A(2)E3K5
T499C685(1)016A(2)E1K8
T499B106(1)016A(2)E3K5
T499C106(1)016A(2)E1K8
T499C156(1)016A(2)E1K8
T499C226(1)016A(2)E1K6
T499D226(1)016A(2)E800
T499D336(1)016A(2)E800
T499D476(1)016A(2)E800
T499X107(1)016A(2)E300
T499A684(1)020A(2)E12K
T499A105(1)020A(2)E10K
T499A155(1)020A(2)E8K0
T499B225(1)020A(2)E3K5
T499B335(1)020A(2)E3K5
T499B475(1)020A(2)E3K5
T499C475(1)020A(2)E2K4
T499C685(1)020A(2)E1K9
T499C106(1)020A(2)E1K8
T499C156(1)020A(2)E1K7
T499D156(1)020A(2)E1K0
T499D226(1)020A(2)E800
(See below for
part options)
DC
Leakage
µAmps +20ºC
Max/5 Min
0.6
0.9
1.4
2.1
3.0
6.3
0.5
0.5
0.5
0.5
0.5
0.7
0.7
1.0
1.0
1.5
1.5
2.2
2.2
3.3
3.3
4.7
10.0
22.0
0.5
0.5
0.5
0.5
0.5
0.8
1.1
1.1
1.1
1.6
1.6
2.4
3.5
3.5
5.3
7.5
16.0
0.5
0.5
0.5
0.5
0.7
0.9
0.9
1.4
2.0
3.0
3.0
4.4
µAmps +20ºC
Max/5 Min
DF
ESR
Maximum Allowable
Ripple Current
(mA) 100 kHz
+85ºC
140
140
222
151
222
390
87
87
101
101
140
101
140
140
222
140
222
151
222
222
275
390
417
517
78
87
101
348
140
107
94
140
222
140
222
222
236
390
390
390
668
71
78
87
140
140
140
193
217
222
229
348
390
(mA) 100 kHz
+85ºC
(mA) 100 kHz
+125ºC
62
62
99
67
99
173
39
39
45
45
62
45
62
62
99
62
99
67
99
99
122
173
185
230
35
39
45
155
62
48
42
62
99
62
99
99
105
173
173
173
297
32
35
39
62
62
62
86
96
99
102
155
173
(mA) 100 kHz
+125ºC
Moisture
Sensitivity
Reflow Temp
≤ 260ºC
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow Temp
≤ 260ºC
% @ +20ºC mΩ @ 20ºC (mA) 100 kHz
120 Hz Max 100 kHz Max
25ºC
6
3500
156
6
3500
156
6
1800
247
6
3000
168
6
1800
247
8
800
433
6
8000
97
6
8000
97
6
6000
112
6
6000
112
6
3500
156
6
6000
112
6
3500
156
6
3500
156
6
1800
247
6
3500
156
6
1800
247
6
3000
168
6
1800
247
6
1800
247
6
1600
306
6
800
433
8
700
463
8
500
574
4
10000
87
6
8000
97
6
6000
112
6
500
387
6
3500
156
6
6000
119
6
7000
104
6
3500
156
6
1800
247
6
3500
156
6
1800
247
6
1800
247
6
1600
262
6
800
433
6
800
433
6
800
433
6
300
742
4
12000
79
4
10000
87
6
8000
97
6
3500
156
6
3500
156
6
3500
156
6
2400
214
6
1900
241
6
1800
247
6
1700
254
6
1000
387
6
800
433
% @ +20ºC mΩ @ 20ºC (mA) 100 kHz
120 Hz Max 100 kHz Max
25ºC
Rated
Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
ESR
Maximum Allowable
Ripple Current
Moisture
Sensitivity
(1) To complete KEMET part number, insert M for ± 20% or K for ± 10%. Designates Capacitance tolerance.
(2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-
Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish.
Refer to Ordering Information for additional detail.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked
with the higher voltage rating. Subsitutions can include better than series.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2054_T499_AUTO • 7/18/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
