SC/APC Connectors & Adapters
Features & Benefits
•
•
•
Connector design: NTT-SC* standard
Applications
•
•
Telecommunication networks
•
•
One-piece body design:
CATV networks
- Minimizes termination time
- Field installable
Precision APC ferrule provides
superior performance:
- Insertion loss < .25 dB typical
- Return loss > 60 dB typical
Standard SC adapters:
- NTT-SC standard
- Zirconia ceramic and phosphor bronze
sleeves
Shuttered adapters:
- Shield against exposure to laser radiation
- Dust cover for unused fiber channels

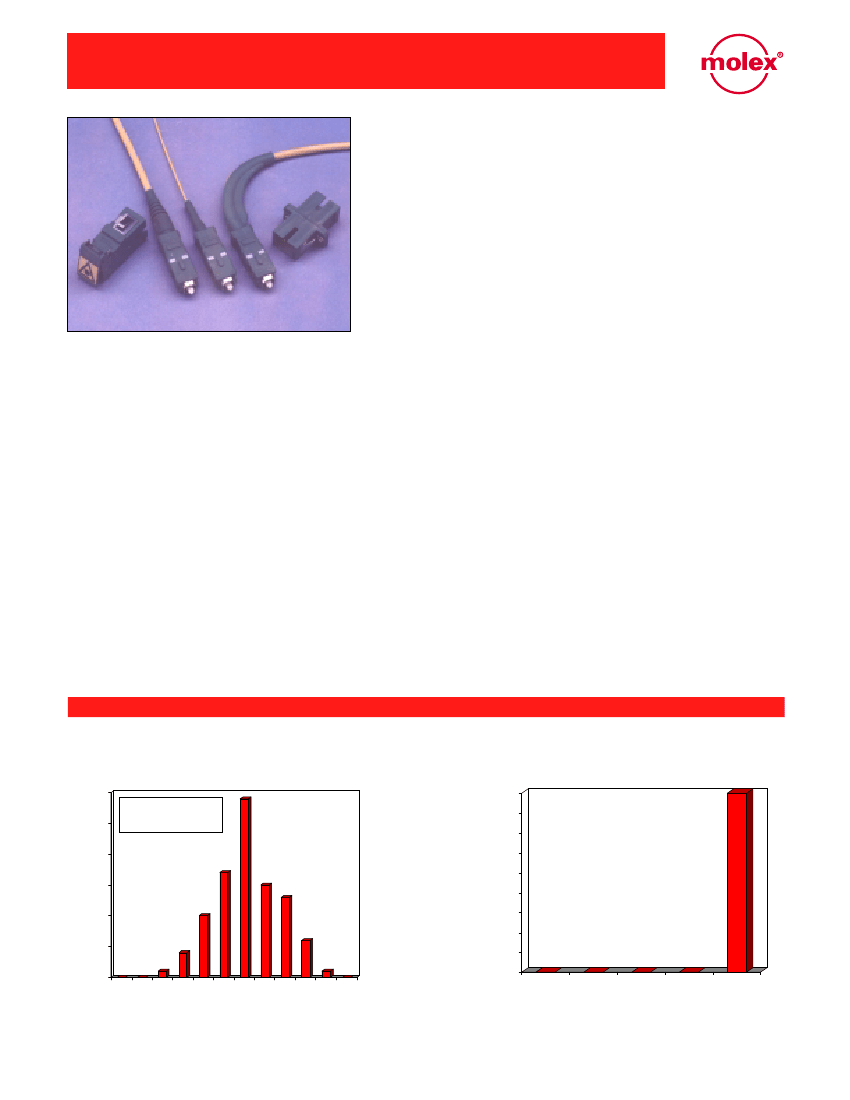

The Molex SC/APC connector combines a Telcordia and IEC tested connector design with a uniquely precise, pre-angled,
pre-radiused, and pre-polished Angled Physical Contact (APC) ferrule. The result is an APC connector with superior insertion
and return loss performance.
Ferrule endface geometry is especially critical in angled fiber optic connectors.
unique polishing process which in addition to putting an 8 degree angle on the
this endface geometry, physical contact of the fibers is maintained, ensuring a
loss. Combining this pre-polished ferrule with the preassembled 1-piece body
APC connector that is easy to terminate both in the factory and in the field.
For this reason, Molex has developed a
ferrules, also provides a 10mm radius. With
minimum insertion loss and a maximum return
design has produced a superior performance

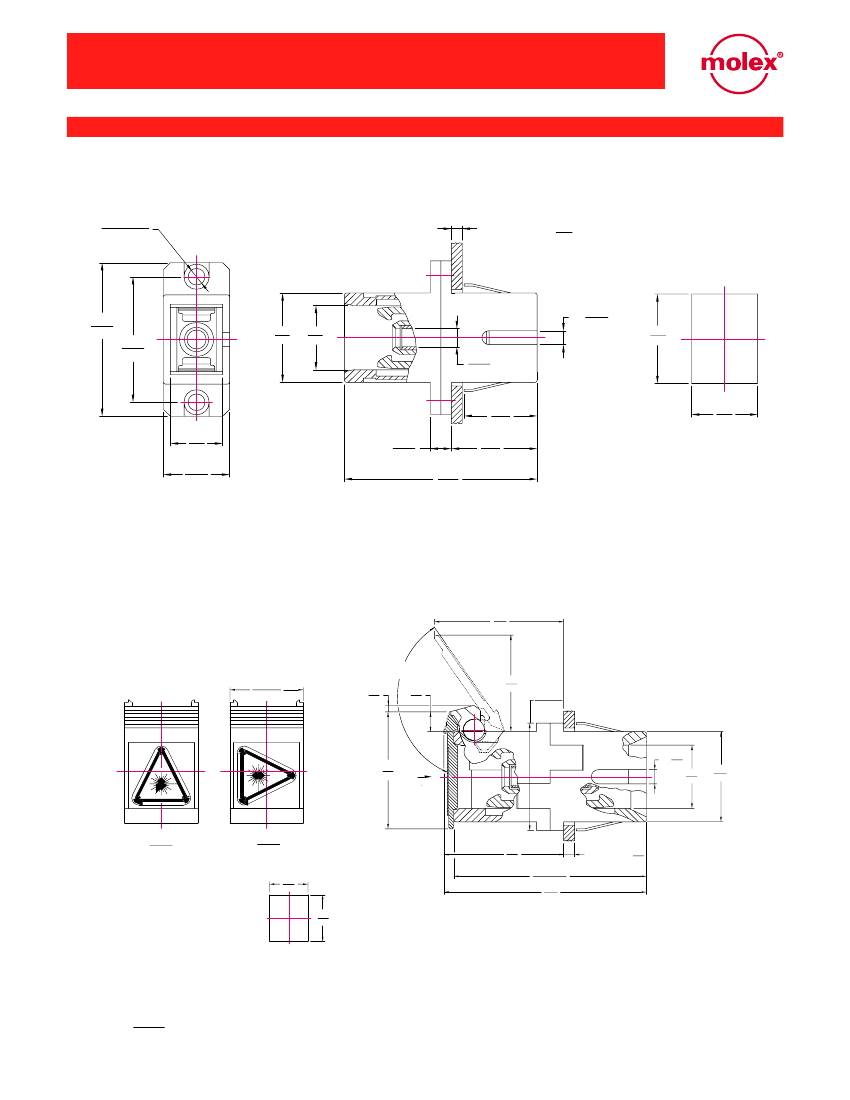

A shield against exposure to laser radiation and a barrier to dust contamination are 2 features of a series of shuttered SC
adapters. These adapters are equipped with a spring loaded shutter which automatically closes when a connector is
removed from the adapter. Both the shuttered and the standard SC adapter styles are available with either zirconia ceramic or
phosphor bronze alignment sleeves.
*NTT-SC is a trademark of NTT Advanced Technology Corporation
Optical Performance Distribution
Insertion Loss Performance
(SM, APC ferrule, 9/125µm fiber)
30
90
Return Loss Performance
(9/125µm fiber measured at 1550mm)
25
Avg.: 0.25 dB
Std. Dev.: 0.06 dB
80
70
20
60
Frequency
Frequency
50
40
30
20
15
10
5
10
0
0
0
0.04
0.08
0.12
0.16
0.2
0.24
0.28
0.32
0.36
0.4
0.44
30
40
50
60
>70
Insertion Loss (dB)
MOLEX FIBER OPTICS DIVISION
5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber

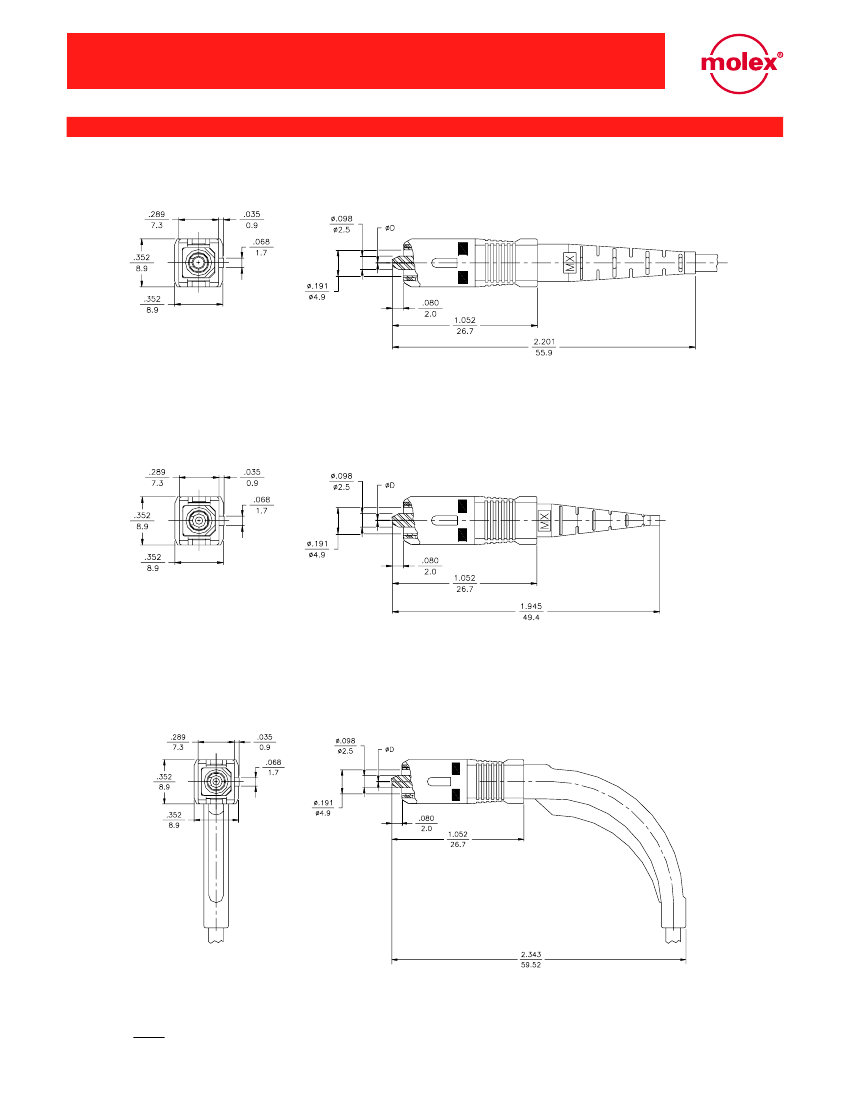

SC/APC Connectors & Adapters
Standard Part Numbers
Order Number
86065-5000
86065-5300
86065-5500
86065-5400
86065-5600
86161-0000
86160-0000
86161-3000
86160-3000
86170-0550
86170-0520
86171-0550
86171-0520
Description
SC
SC
SC
SC
SC
connector, APC, zirconia ferrule
connector, APC, zirconia ferrule
connector, APC, zirconia ferrule, buffered fiber
connector, APC, zirconia ferrule, 90º boot
connector, APC, zirconia ferrule, 90º boot
Hole size
126µm
126µm
126µm
126µm
126µm
Cable size
3.0mm
2.4mm
900µm buffered fiber
3.0mm
2.4mm
SC adapter, zirconia alignment sleeve, blue housing
SC adapter, phosphor bronze alignment sleeve, blue housing
SC adapter, zirconia alignment sleeve, green housing
SC adapter, phosphor bronze alignment sleeve, green housing
SC adapter, zirconia alignment sleeve, blue housing, shutter
SC adapter, zirconia alignment sleeve, green housing, shutter
SC adapter, phosphor bronze alignment sleeve, blue housing, shutter
SC adapter, phosphor bronze alignment sleeve, green housing, shutter
86001-0098 Rev. 1
USA/30MFO/2000.09
©2000, Molex
Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
