ZFL-500B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFL-500B

ZFL-500B: DescriptionWide Band Low Power Amplifier, 0.05MHz Min, 500MHz Max, CASE Y460; CategoryWireless rf/communication Radio frequency and microwave; File Size169KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFL-500B Overview

Wide Band Low Power Amplifier, 0.05MHz Min, 500MHz Max, CASE Y460

ZFL-500B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	SMA, LOW NOISE
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	20 dB
Maximum input power (CW)	5 dBm
JESD-609 code	e0
Maximum operating frequency	500 MHz
Minimum operating frequency	0.05 MHz
Maximum operating temperature	71 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.9

Preview

Download Datasheet

View All

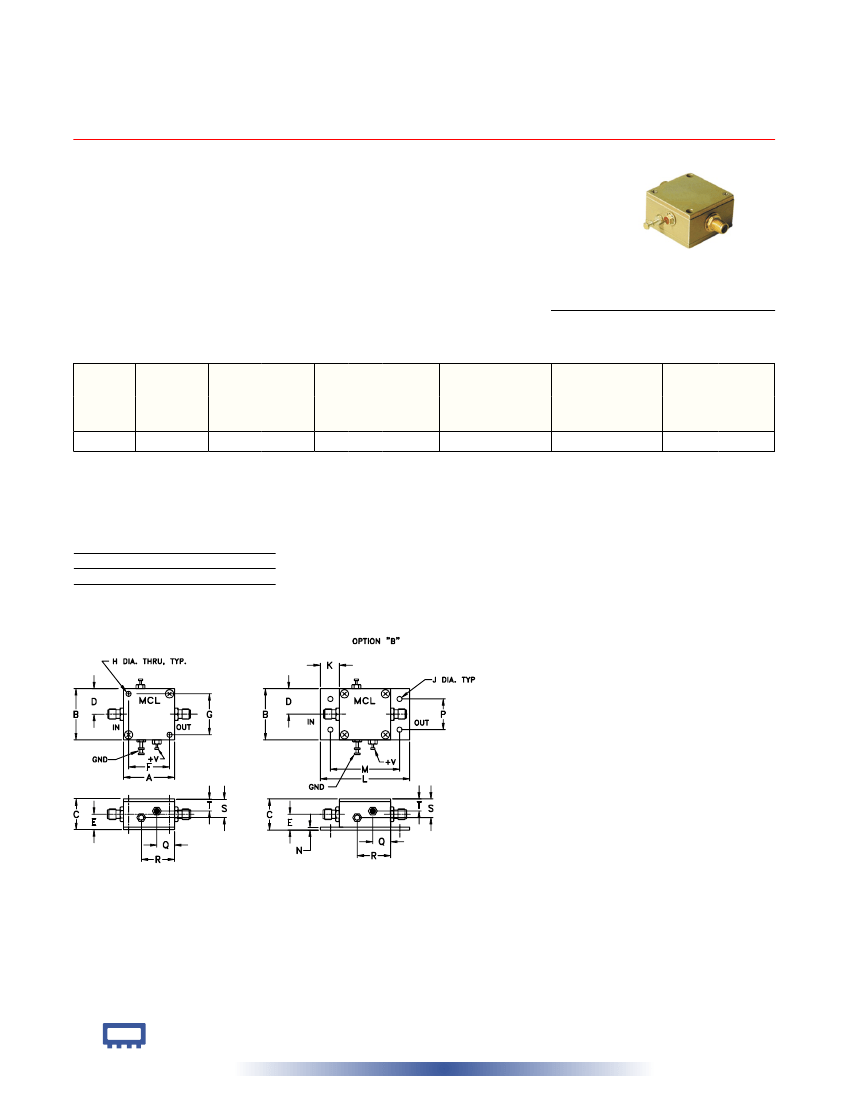

Ampliﬁer

50Ω

Low Power

0.05 to 500 MHz

Features

• wideband, 0.05 to 500 MHz

• rugged, shielded case

• low noise, 5.3 dB typ.

• protected by US Patent, 6,943,629

Coaxial

ZFL-500

SMA version shown

CASE STYLE: Y460

Connectors

Model

SMA

ZFL-500

BNC

ZFL-500-BNC

BRACKET (OPTION “B”)

VSWR

(:1)

Typ.

Price

$69.95

$74.95

$2.50

POWER

Volt

(V)

Nom.

Current

(mA)

Max.

Applications

• instrumentation

• lab use

• VHF/UHF

Ampliﬁer Electrical Speciﬁcations

MODEL

NO.

FREQUENCY

(MHz)

GAIN

(dB)

MAXIMUM

POWER

(dBm)

Output

(1 dB Compr.)

—

Input

(no damage)

Qty.

(1-9)

(1+)

DYNAMIC

RANGE

(dB)

Typ.

5.3

IP3

(dBm)

Typ.

+18

ZFL-500

0.05

500

Min.

Flatness

Max.

±1.0

1.9

Out

1.9

Open load is not recommended, potentially can cause damage.

With no load derate max input power by 20 dB

L= low range (f

to f

/2)

U= upper range (f

/2 to f

)

Maximum Ratings

Operating Temperature

Storage Temperature

DC Voltage

-20°C to 71°C

-55°C to 100°C

+17V Max.

Outline Drawing

Outline Dimensions (

inch

)

1.25

.75

.63

31.75 31.75 19.05 16.00

2.18 1.688

55.37 42.88

.36 1.000

9.14 25.40

1.000

25.40

.45

11.43

.125

3.18

.29

7.37

.125

.46

3.18 11.68

wt.

grams

INTERNET

http://www.minicircuits.com

.06

.750

.50

.80

1.52 19.05 12.70 20.32

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M98087

ZFL-500

051228

Page 1 of 2

ZFL-500B Related Products

	ZFL-500B	ZFL-500B-BNC
Description	Wide Band Low Power Amplifier, 0.05MHz Min, 500MHz Max, CASE Y460	Wide Band Low Power Amplifier, 0.05MHz Min, 500MHz Max, CASE Y460
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	unknown
Other features	SMA, LOW NOISE	BNC
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Gain	20 dB	20 dB
Maximum input power (CW)	5 dBm	5 dBm
JESD-609 code	e0	e0
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	0.05 MHz	0.05 MHz
Maximum operating temperature	71 °C	71 °C
Minimum operating temperature	-20 °C	-20 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.9	1.9
