NSWC105J100TRH4 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NSWC105J100TRH4

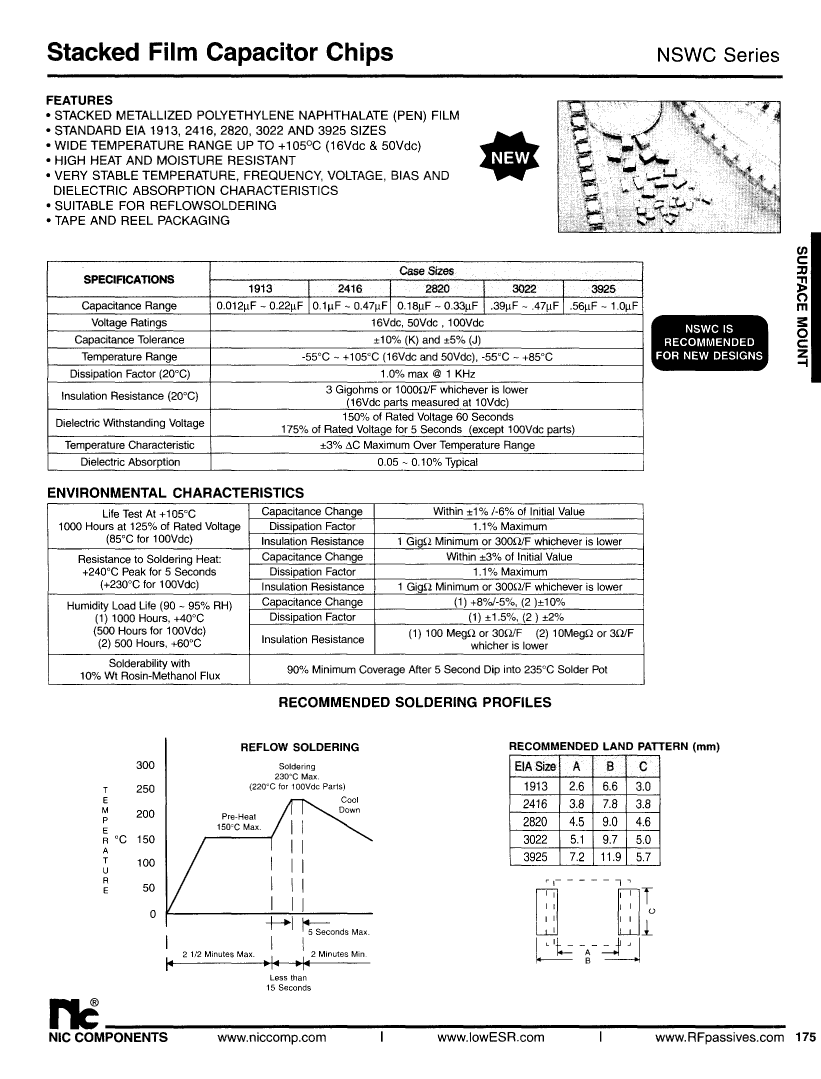

Preview

NSWC105J100TRH4: DescriptionCAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP; CategoryPassive components capacitor; File Size141KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NSWC105J100TRH4 Overview

CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP

NSWC105J100TRH4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 3925
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYETHYLENE NAPHTHALATE
JESD-609 code	e0
Manufacturer's serial number	NSWC
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
size code	3925
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

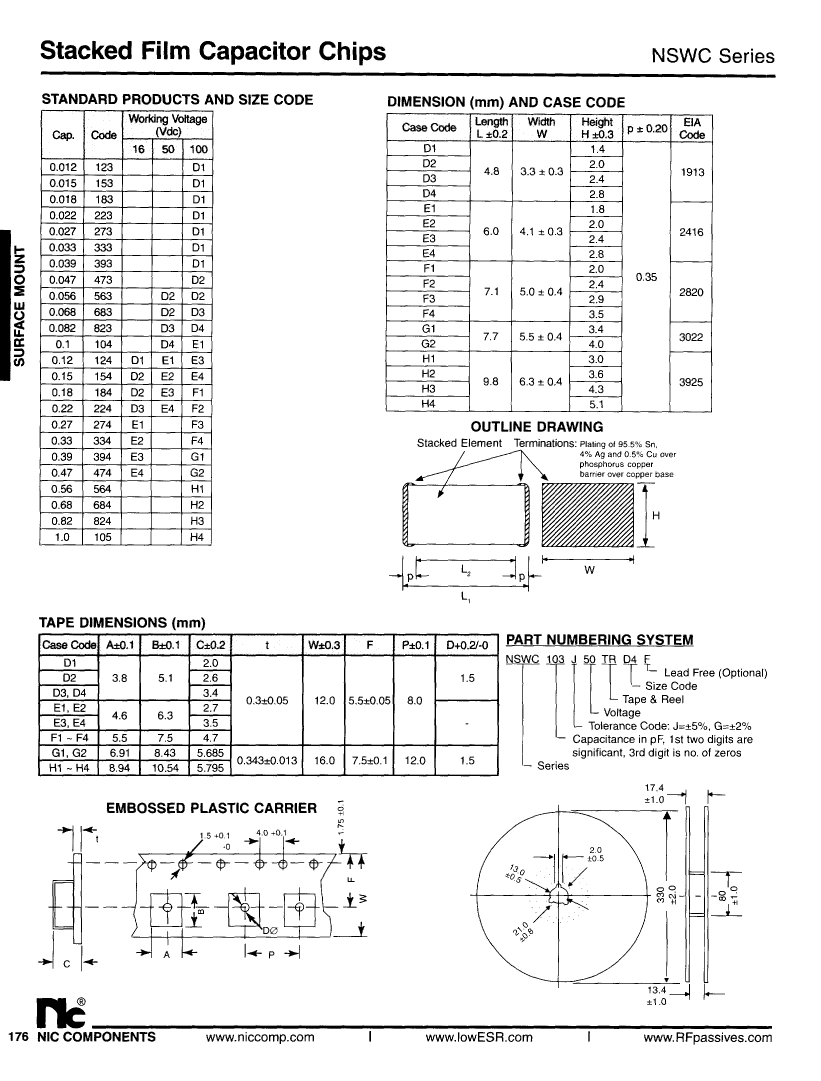

Preview

Download Datasheet

View All

NSWC105J100TRH4 Related Products

	NSWC105J100TRH4	NSWC105G100TRH4F	NSWC105J100TRH4F	NSWC105G100TRH4
Description	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP	CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 100V, 1uF, SURFACE MOUNT, 3925, CHIP
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	Nichicon	Nichicon	Nichicon	Nichicon
package instruction	, 3925	, 3925	, 3925	, 3925
Reach Compliance Code	compli	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	1 µF	1 µF	1 µF	1 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE	POLYETHYLENE NAPHTHALATE
JESD-609 code	e0	e1	e1	e0
Manufacturer's serial number	NSWC	NSWC	NSWC	NSWC
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	5%	2%	5%	2%
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR	TR	TR	TR
positive tolerance	5%	2%	5%	2%
Rated (DC) voltage (URdc)	100 V	100 V	100 V	100 V
size code	3925	3925	3925	3925
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
