82S105/B3C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 82S105/B3C

82S105/B3C: DescriptionOT PLD, 45ns, PLS-Type, TTL, CQCC28; CategoryProgrammable logic devices Programmable logic; File Size1019KB，15 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

82S105/B3C Overview

OT PLD, 45ns, PLS-Type, TTL, CQCC28

82S105/B3C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknow
Architecture	PLS-TYPE
maximum clock frequency	10.5 MHz
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Number of entries	16
Output times	8
Number of product terms	48
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Programmable logic type	OT PLD
propagation delay	45 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

82S105/B3C Preview

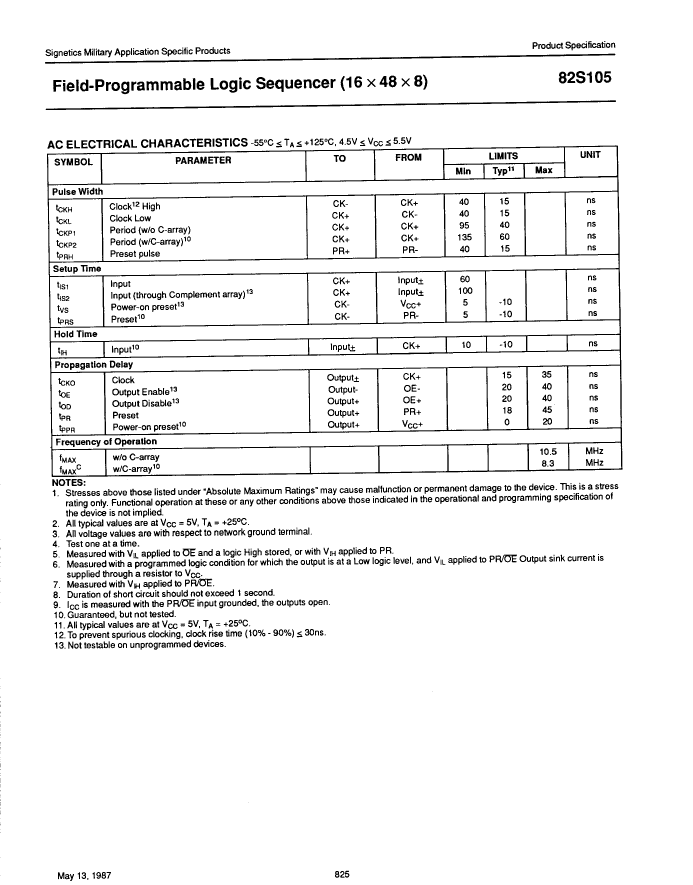

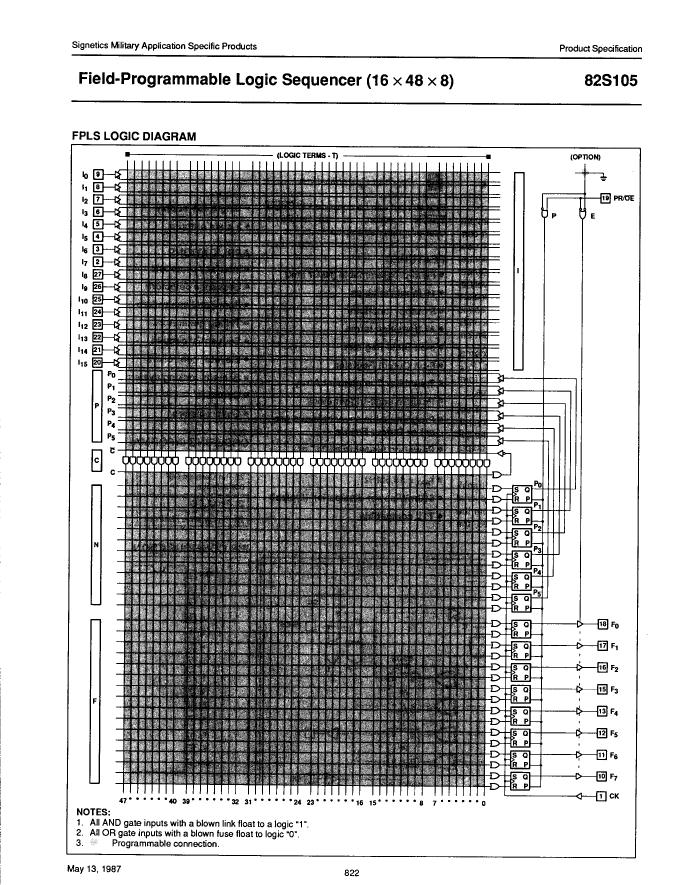

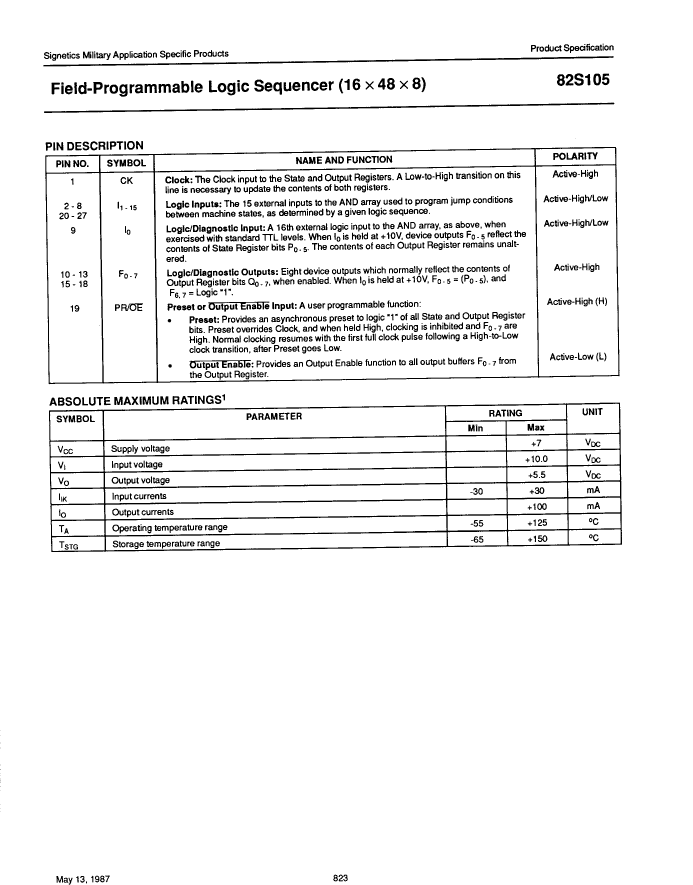

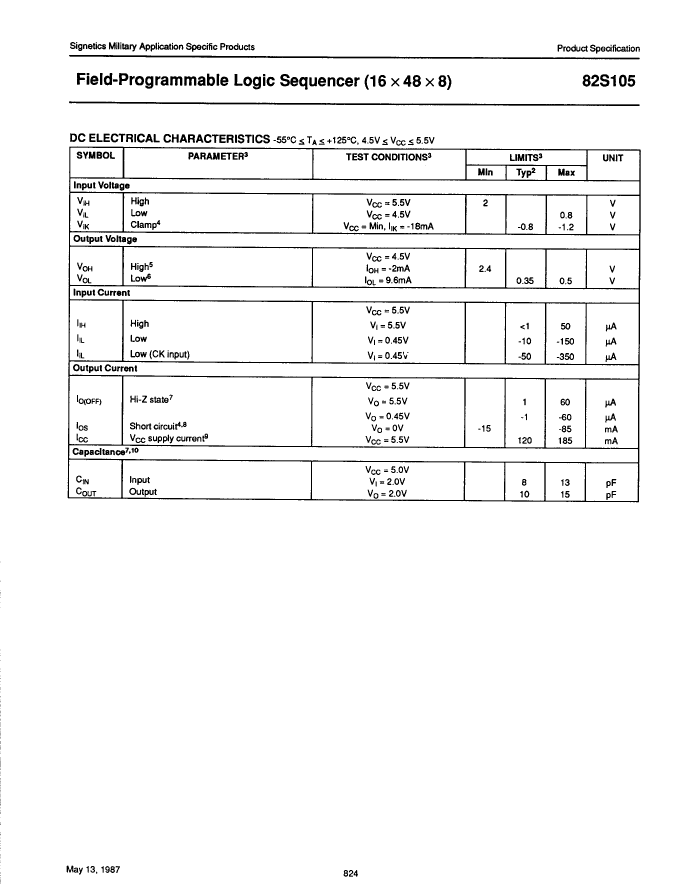

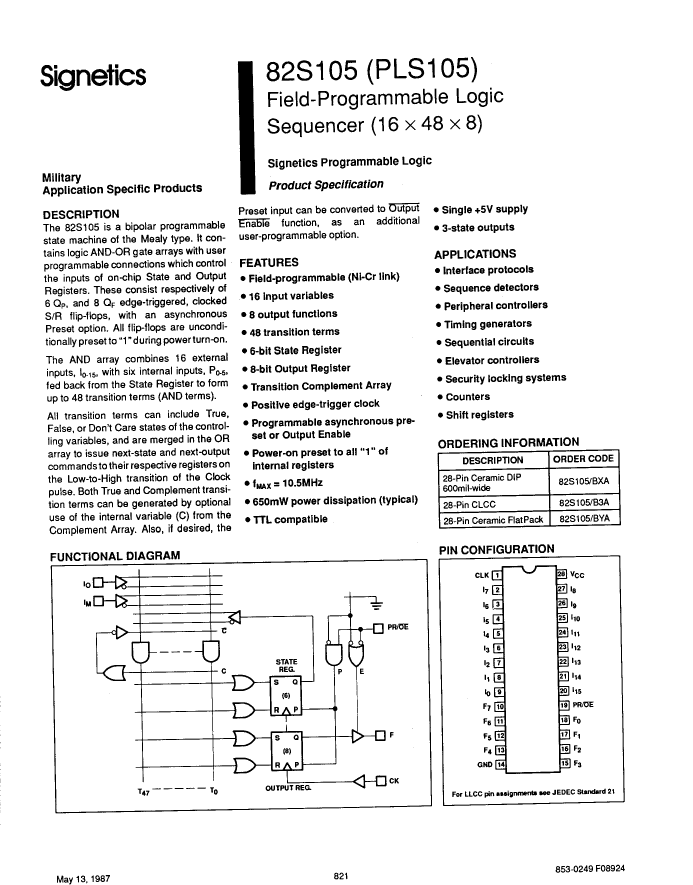

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

82S105/B3C Related Products

	82S105/B3C	PLS105N-B	PLS105A	PLS105AA	PLS105AF	PLS105AN-B	PLUS105-55A	PLUS105-55N	PLUS105-55N3	N82S105FA
Description	OT PLD, 45ns, PLS-Type, TTL, CQCC28	OT PLD, PLS-Type, TTL, PDIP28	OT PLD, 30ns, PLS-Type, TTL, PQCC28,	OT PLD, 30ns, PLS-Type, TTL, PQCC28,	OT PLD, PLS-Type, TTL, CDIP28	OT PLD, PLS-Type, TTL, PDIP28	OT PLD, 8ns, PLS-Type, TTL, PQCC28,	OT PLD, 8ns, PLS-Type, TTL, PDIP28,	OT PLD, 8ns, PLS-Type, TTL, PDIP28,	OT PLD, PLS-Type, TTL, CDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Architecture	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE	PLS-TYPE
maximum clock frequency	10.5 MHz	9.8 MHz	13.9 MHz	20 MHz	12.5 MHz	12.5 MHz	35.7 MHz	35.7 MHz	35.7 MHz	9.8 MHz
JESD-30 code	S-XQCC-N28	R-PDIP-T28	S-PQCC-J28	S-PQCC-J28	R-XDIP-T28	R-PDIP-T28	S-PQCC-J28	R-PDIP-T28	R-PDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of entries	16	16	16	16	16	16	16	16	16	16
Output times	8	8	8	8	8	8	8	8	8	8
Number of product terms	48	48	48	48	48	48	48	48	48	48
Number of terminals	28	28	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	QCCN	DIP	QCCJ	QCCJ	DIP	DIP	QCCJ	DIP	DIP	DIP
Encapsulate equivalent code	LCC28,.45SQ	DIP28,.6	LDCC28,.5SQ	LDCC28,.5SQ	DIP28,.6	DIP28,.6	LDCC28,.5SQ	DIP28,.6	DIP28,.3	DIP28,.6
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-
propagation delay	45 ns	-	30 ns	30 ns	-	-	8 ns	8 ns	8 ns	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
