2086-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2086-4

2086-4: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT, FM; CategoryWireless rf/communication Radio frequency and microwave; File Size46KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

2086-4 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT, FM

2086-4 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	SMA-F, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	4 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

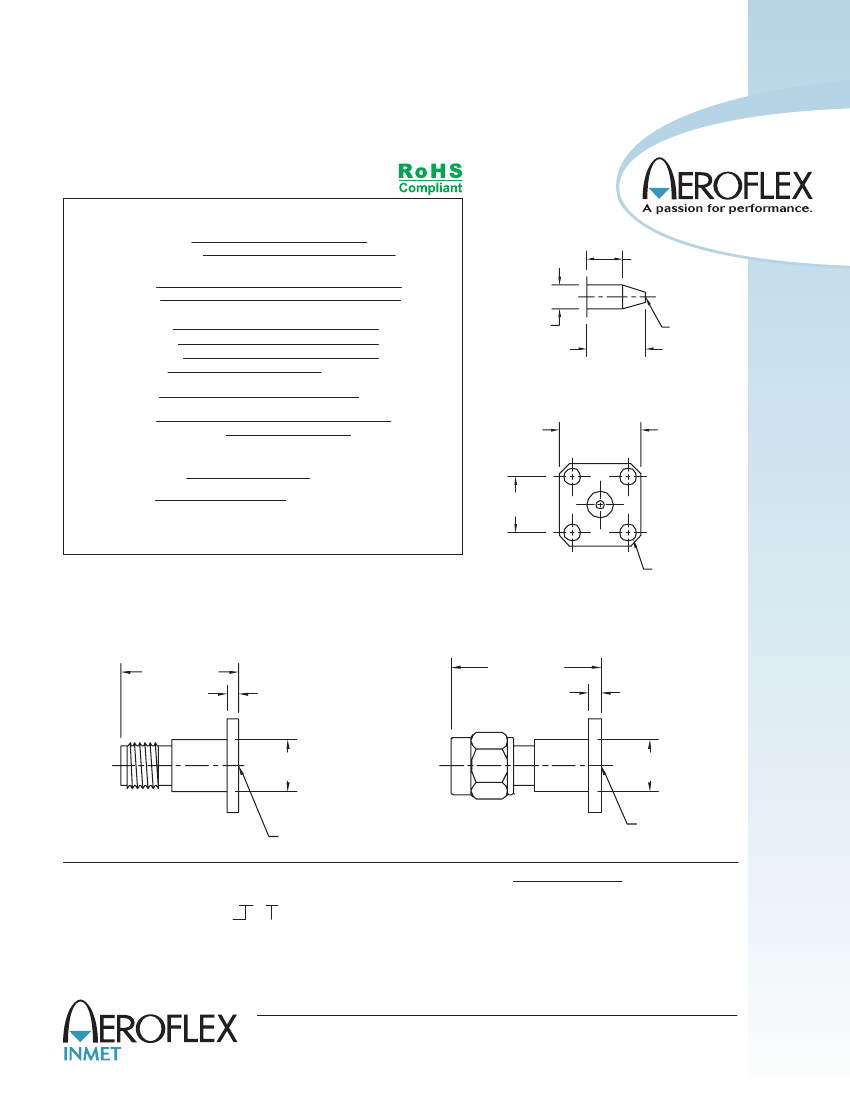

ATTENUATORS

SMA, DC - 18 GHz, Flange Mount to Pin, 2 Watts

SPECIFICATIONS:

Models: 2086-XX, 2087-XX

Electrical:

Frequency Range

Available dB Values

Attenuation Accuracy

0 - 6 dB

7 - 12 dB

VSWR

DC - 4 GHz

4 - 12.4 GHz

12.4 - 18 GHz

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 18 GHz

0 - 12 dB

In 1 dB Increments

.055 [1.40]

±0.3 dB

±0.5 dB

1.15:1 Max.

1.25:1 Max.

1.50:1 Max.

2 Watts Avg. @ +25°C

Derated Linearly to 0.5 Watts @ +125

Ø.0360 ±.0005

[0.914 ±0.013]

.09 [2.3]

Ø.015 [0.38]

Flat Max.

250 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

RECOMMENDED INTERFACE

PIN FOR MATING [SMA]

50 Ohms

-65°C to +125°C

.50 [12.7]

SQ.

Mechanical:

SMA Connectors

Mates with MIL-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

.340 [8.64]

TYP.

Conductors

Model Number:

2086

SMA Female Connector

Model Number:

2087

SMA Male Connector

4-HOLE FLANGE

DETAIL - TYP.

4X Ø.102 [2.59]

THRU

.63 ±.02

[16.0 ±0.5]

.80 ±.02

[20.3 ±0.5]

.065 [1.65]

Ø.28 [7.1]

Mates with

SMA Male Pin

Mates with

SMA Male Pin

Ordering Examples:

Model Number:

2086-12

12 dB; SMA Female

HOW TO ORDER:

Model Number:

20XX-YY

Base Number

86 = SMA Female

87 = SMA Male

dB Value

Model Number:

2087-6

6 dB; SMA Male

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

2087: REV D

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • sales@aeroflex-inmet.com
