KBPC3514W datasheet, PDF - EEWORLD Datasheet

KBPC3514W: DescriptionBridge Rectifier Diode, 1 Phase, 35A, 1400V V(RRM), Silicon, 28.60 X 28.60 MM, 7.30 MM HEIGHT, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size267KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

KBPC3514W Overview

Bridge Rectifier Diode, 1 Phase, 35A, 1400V V(RRM), Silicon, 28.60 X 28.60 MM, 7.30 MM HEIGHT, PLASTIC PACKAGE-4

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	S-PUFM-W4
Contacts	4
Reach Compliance Code	compli
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-W4
JESD-609 code	e2
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1400 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

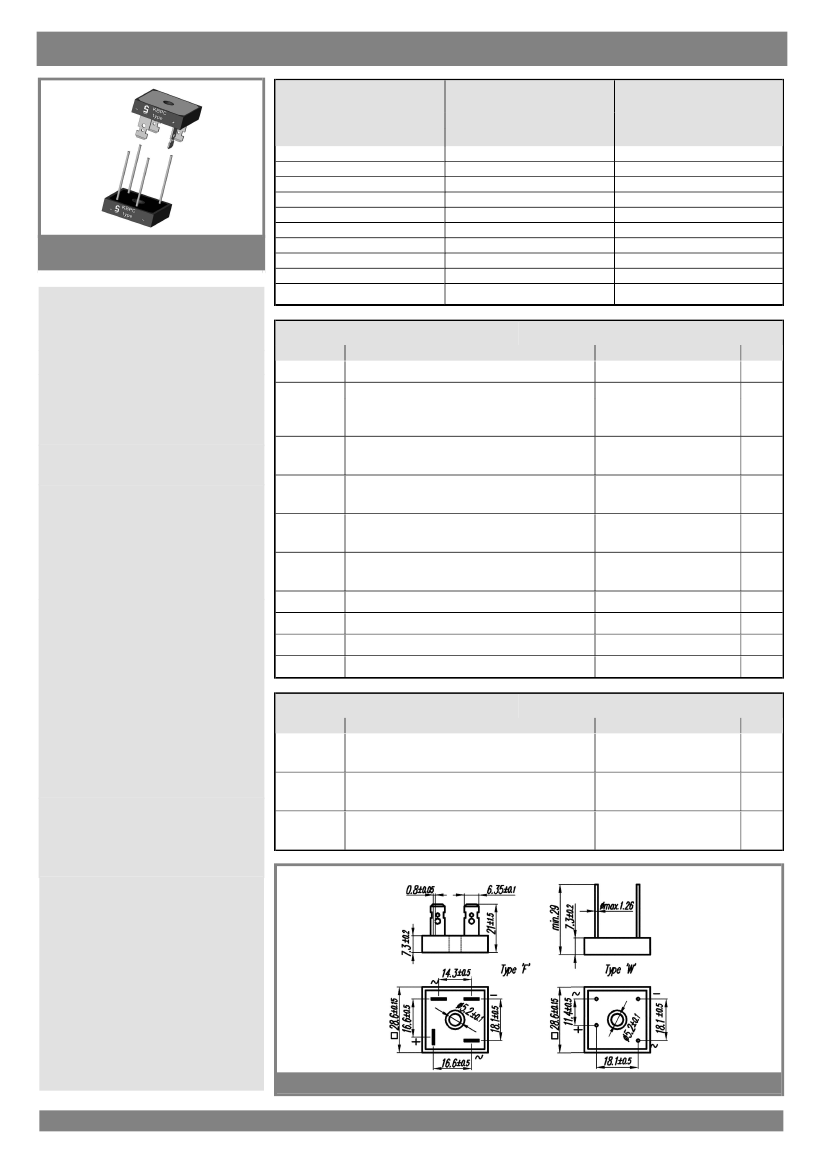

KBPC 3500FW ... KBPC 3516FW

Square bridge

Silicon-Bridge Rectifiers

KBPC 3500F/W...KBPC 3516F/W

Forward Current: 35 A

Reverse Voltage: 50 to 1600 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

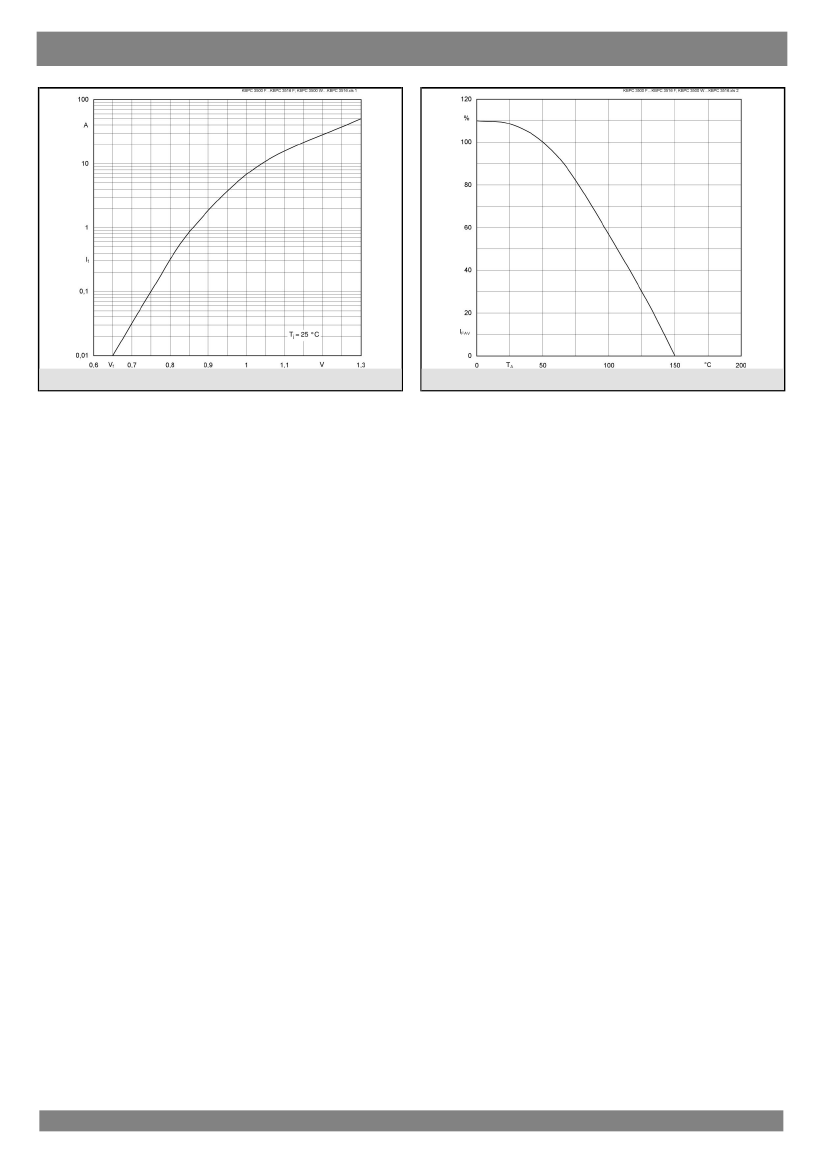

1

10-04-2006 SCT
