B43514C9108M000 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B43514C9108M000

B43514C9108M000: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size872KB，14 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B43514C9108M000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B43514C9108M000	-	-	View	Buy Now

B43514C9108M000 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED

B43514C9108M000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	,
Reach Compliance Code	compli
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	130 mΩ
JESD-609 code	e3
leakage current	2.50759 mA
Manufacturer's serial number	B43514
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	3800 mA
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

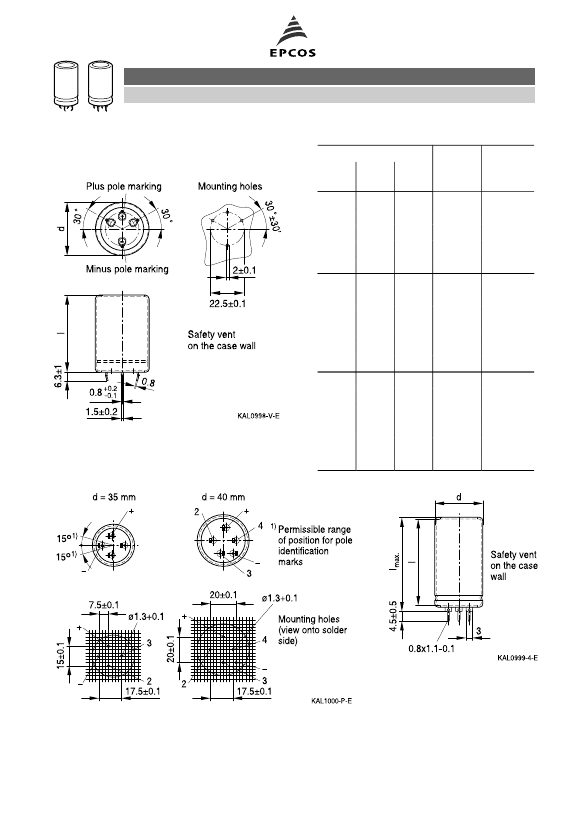

Aluminum electrolytic capacitors

Capacitors with 4-pin snap-in terminals and solder

pins

Series/Type:

Date:

B43514, B43524

December 2006

EPCOS AG 2007. Reproduction, publication and dissemination of this publication, enclosures hereto and the

information contained therein without EPCOS' prior express consent is prohibited.

B43514C9108M000 Related Products

	B43514C9108M000	B43514-A9477-M	B43514-C9108-M	B43514-C9687-M	B43514A9477M000	B43514C9687M000	B43514A0827M007
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 420V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, RADIAL LEADED
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compliant
capacitance	1000 µF	470 µF	1000 µF	680 µF	470 µF	680 µF	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	130 mΩ	280 mΩ	130 mΩ	190 mΩ	280 mΩ	190 mΩ	250 mΩ
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
leakage current	2.50759 mA	1.47981 mA	2.50759 mA	1.91526 mA	1.47981 mA	1.91526 mA	2.25858 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	400 V	400 V	400 V	400 V	400 V	400 V	420 V
ripple current	3800 mA	2400 mA	3800 mA	2800 mA	2400 mA	2800 mA	3200 mA
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
Maker	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	-
Manufacturer's serial number	B43514	B43514	B43514	B43514	B43514	B43514	-
