591D687X06R3R8W16H

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 680uF, Surface Mount, 2924, CHIP
CategoryPassive components    capacitor
File Size118KB，10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

591D687X06R3R8W16H Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 680uF, Surface Mount, 2924, CHIP

591D687X06R3R8W16H Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2824
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance680 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR60 mΩ
high1.6 mm
JESD-609 codee0
leakage current0.0428 mA
length7.2 mm
Installation featuresSURFACE MOUNT
multi-layerN
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
ripple current640 mA
size code2824
surface mountYES
Delta tangent0.1
Terminal surfaceTin/Lead (Sn60Pb40)
Terminal shapeWRAPAROUND
width6 mm

591D687X06R3R8W16H Preview

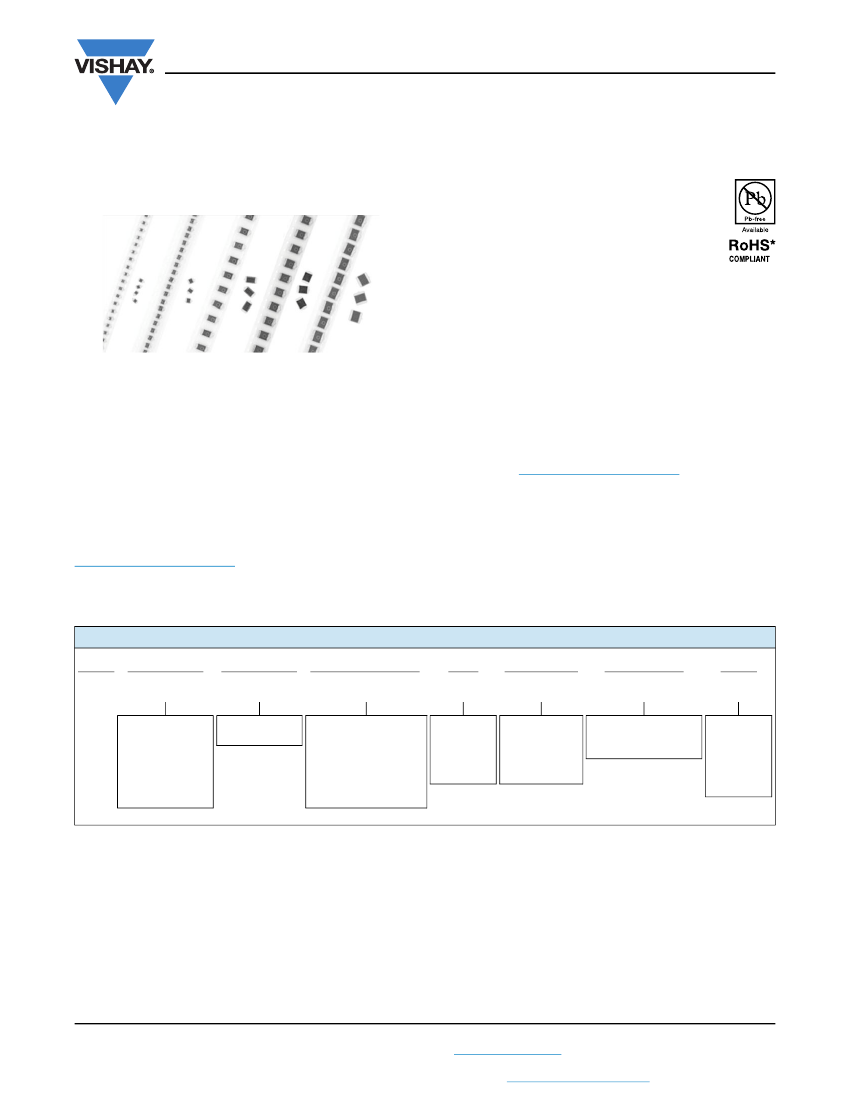

591D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
,
Low Profile, Low ESR, Conformal Coated, Maximum CV
FEATURES
• New robust ratings for pulsed applications
• New case size offerings
• 1.2 mm to 2 mm height
• Terminations: 100 % matte tin (2) standard,
tin/lead available
• Mounting: Surface mount
• Very low ESR
• 8 mm, 12 mm tape and reel packaging available per
EIA-481 and reeling per IEC 60286-3
7" [178 mm] standard
13" [330 mm] available
• Footprint compatible with EIA 535BAAC and CECC 30801
• See also 592W for additional ratings designs for pulsed
applications
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Capacitance Range:
1 μF to 1000 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
591D
TYPE
106
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
010
DC VOLTAGE RATING
AT + 85 °C
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V).
B
CASE
CODE
See
Ratings
and Case
Codes
table
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = Tape and reel
7" [178 mm] reel
W = 13" [330 mm] reel
15H
SUFFIX
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
2 = 100 % tin
4 = Gold plated
8 = Solder
plated 60/40
Special order
Maximum
height (mm)
see
Standard
Ratings
table
Note
• Preferred tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Revision: 30-Jul-12
