Data Sheet

1.5A ULTRA LOW DROPOUT LINEAR REGULATOR

General Description

The AZ39150 is low dropout three-terminal regulator

with a typical dropout of 375mV at 1.5A output cur-

rent.

The AZ39150 provides current limit and thermal shut-

down. On-chip thermal shutdown provides protection

against any combination of high current and ambient

temperature that would create excessive junction tem-

peratures.

The AZ39150 is available for 3.3V, 5.0V and 12V ver-

sions now. It is available in the industry standard TO-

220-3, TO-263-3, TO-252-2(1), TO-252-2(2), TO-

252-2(3) and TO-252-2(4) power packages.

AZ39150

Features

Minimum Guaranteed Output Current: 1.5A

Dropout Voltage: 375mV at I

OUT

=1.5A

Output Accuracy: 1%

Low Ground Current

Internal Current Limit and Thermal Protection

Reversed-battery and Reversed-lead Insertion

Protection

Fast Transient Response

Applications

LCD TV

Set Top Box

LCD Monitor

SMPS Post Regulator

Laptop, Palmtop and Notebook

Portable Instrumentation

USB Power Supply

TO-220-3

TO-263-3

TO-252-2(1)

TO-252-2(2)

TO-252-2(3)

TO-252-2(4)

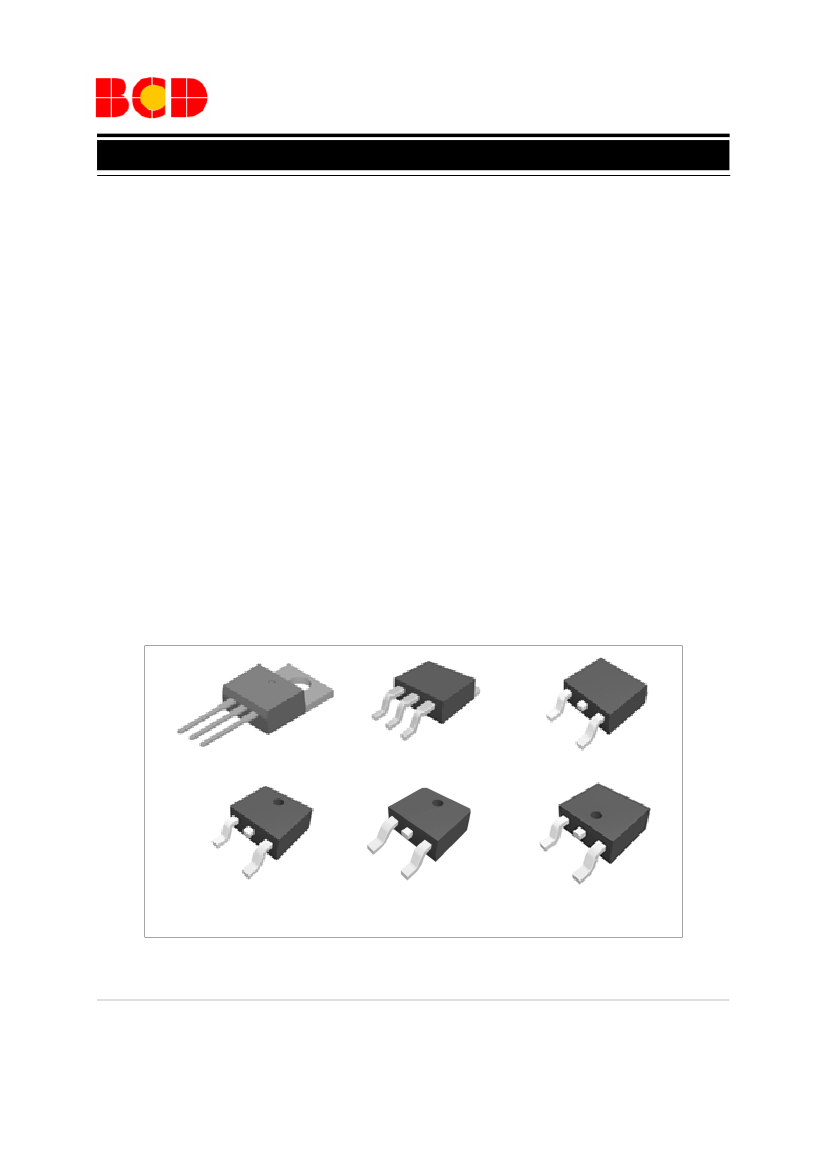

Figure 1. Package Types of AZ39150
