Z86C9320ASC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C9320ASC

Z86C9320ASC: DescriptionMicrocontroller, 8-Bit, Z8 CPU, 20MHz, CMOS, PQFP48, VQFP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，47 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C9320ASC Overview

Microcontroller, 8-Bit, Z8 CPU, 20MHz, CMOS, PQFP48, VQFP-48

Z86C9320ASC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP, QFP48,.35SQ,20
Contacts	48
Reach Compliance Code	unknow
Has ADC	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G48
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	24
Number of serial I/Os	1
Number of terminals	48
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP48,.35SQ,20
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	256
RAM (number of words)	256
rom(word)	0
speed	20 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

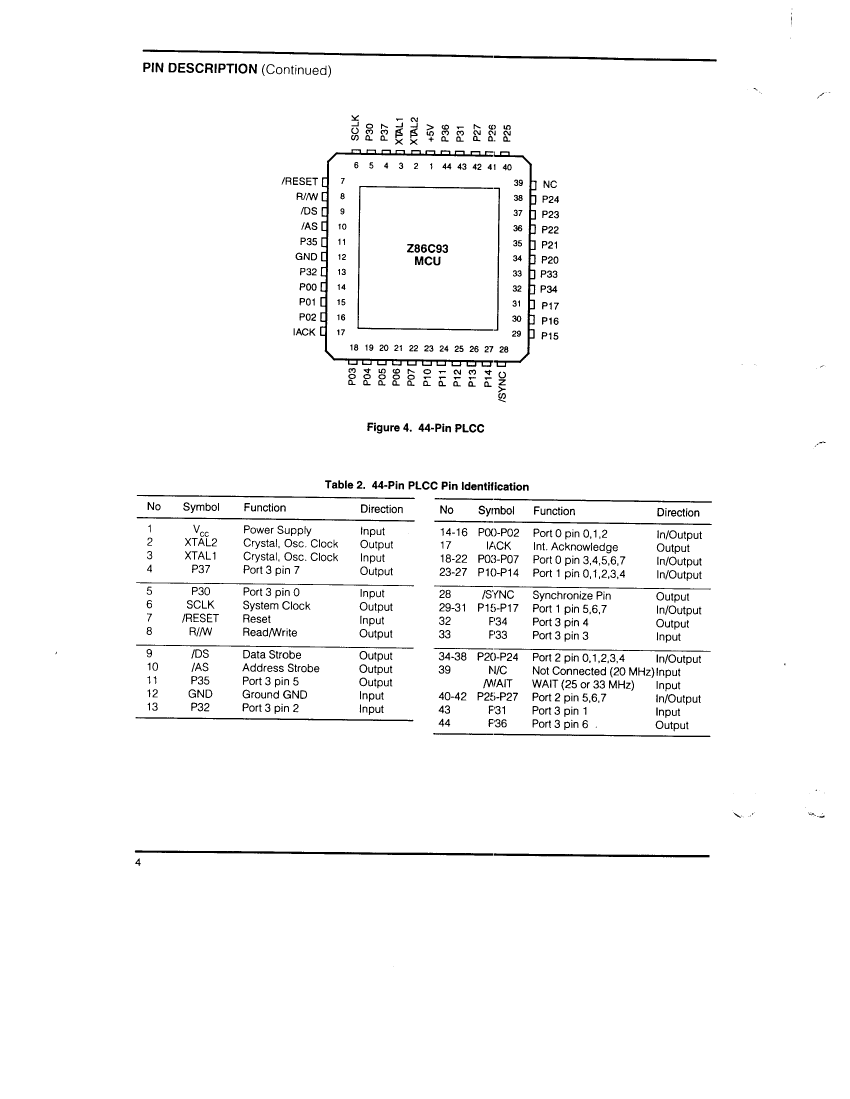

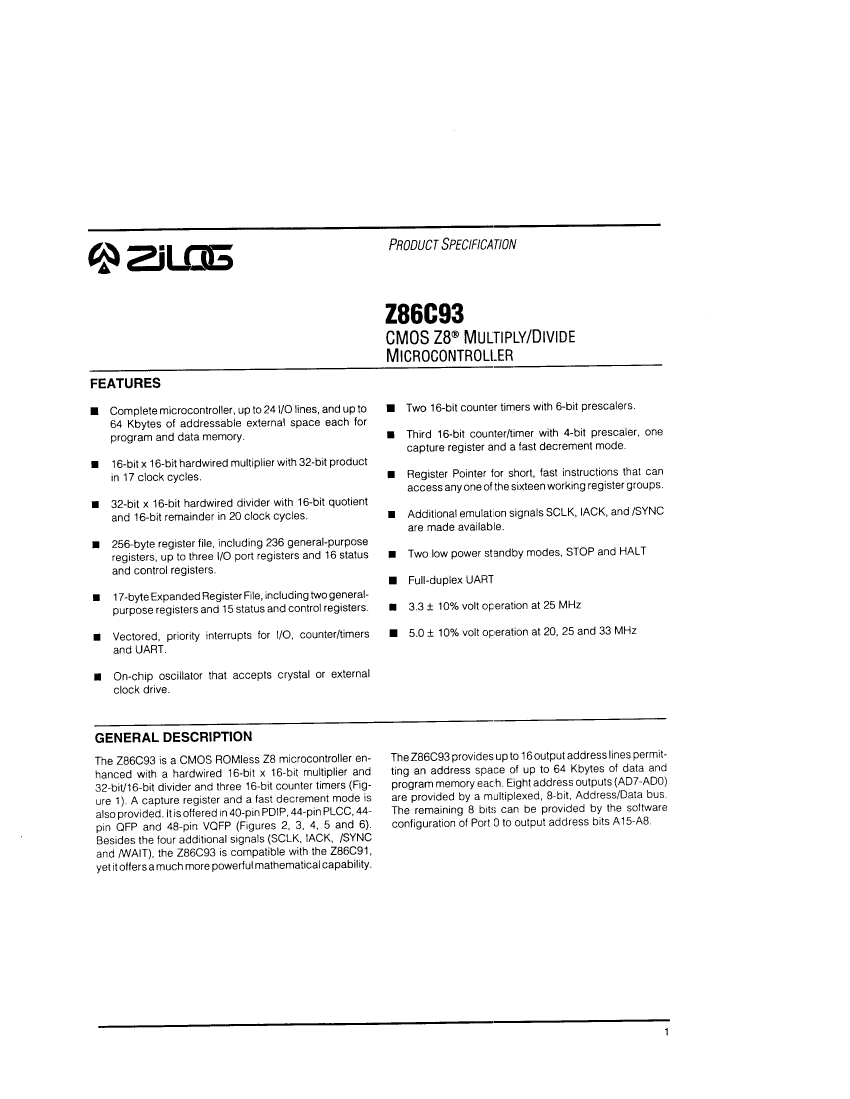

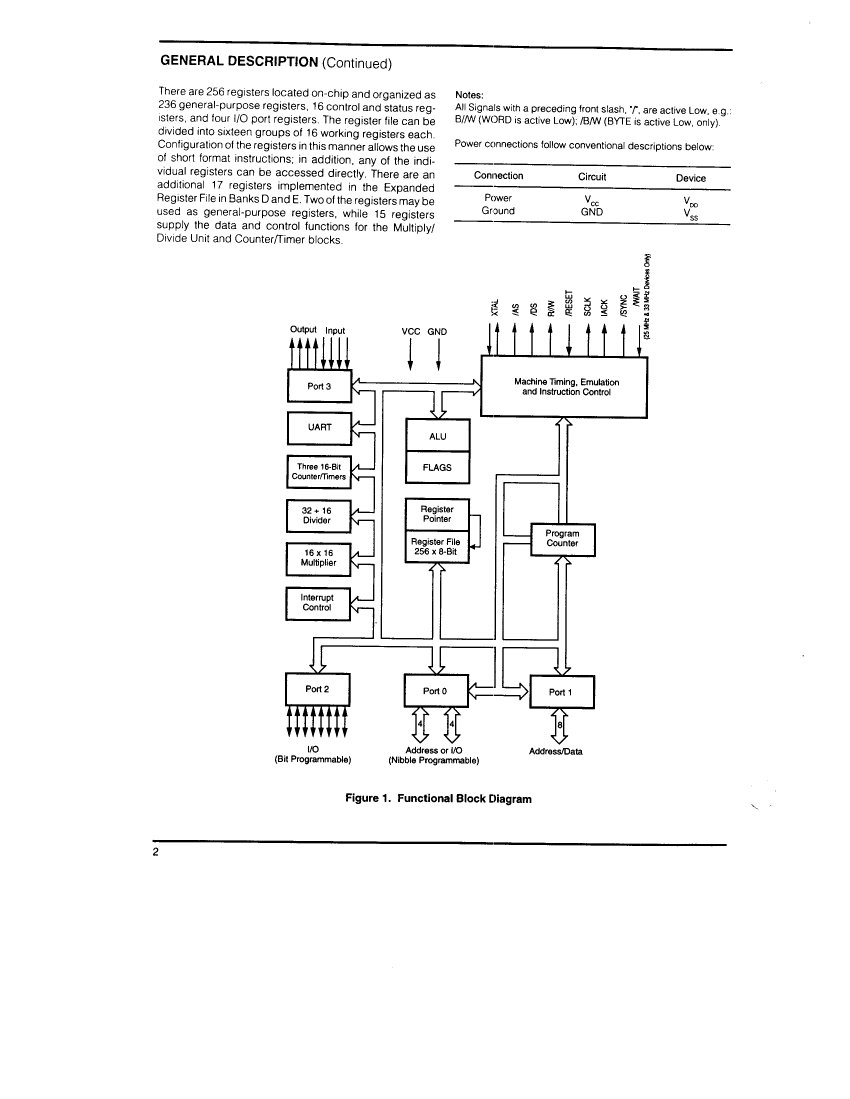

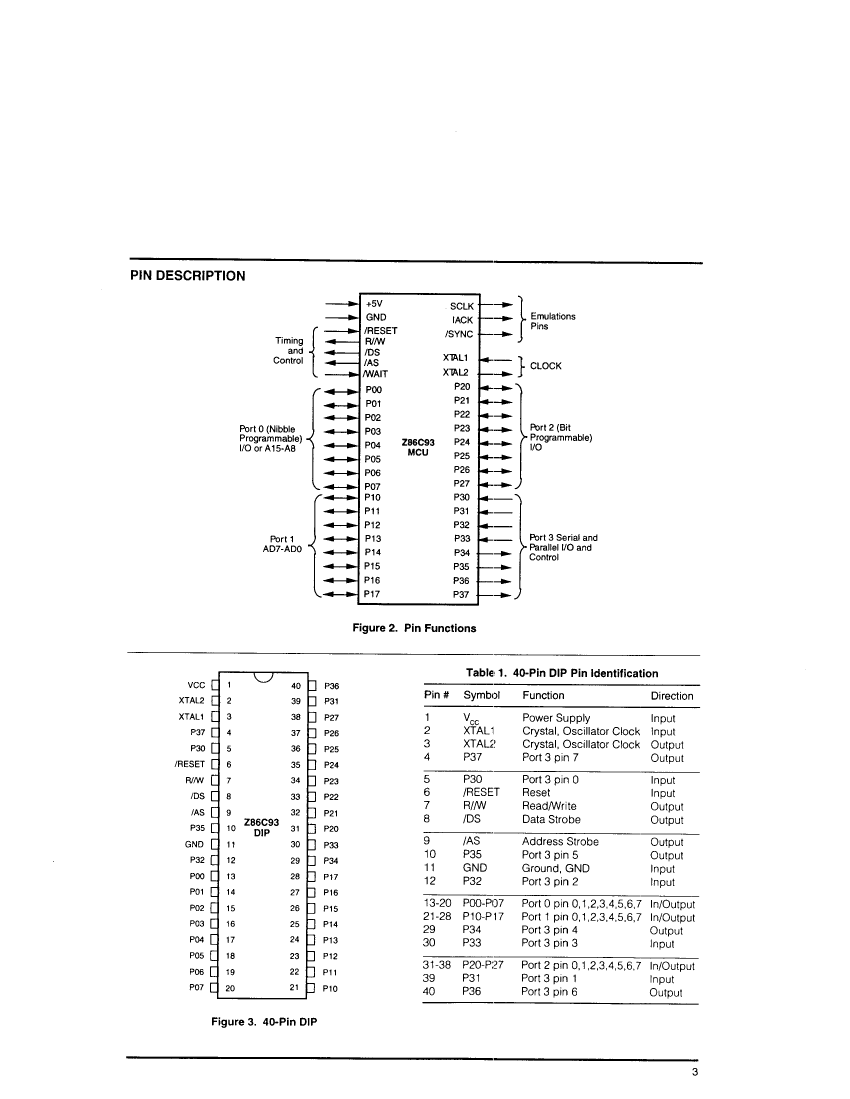

Preview

Download Datasheet

View All

Z86C9320ASC Related Products

	Z86C9320ASC	Z86C9333PSC
Description	Microcontroller, 8-Bit, Z8 CPU, 20MHz, CMOS, PQFP48, VQFP-48	Microcontroller, 8-Bit, Z8 CPU, 33MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	DIP
package instruction	QFP, QFP48,.35SQ,20	DIP, DIP40,.6
Contacts	48	40
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
Other features	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES	16 X 16 MULTIPLIER; 32 X 16 DIVIDER; TWO STANDBY MODES
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
CPU series	Z8	Z8
maximum clock frequency	20 MHz	33 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G48	R-PDIP-T40
JESD-609 code	e0	e0
low power mode	YES	YES
Number of external interrupt devices	4	4
Number of I/O lines	24	24
Number of serial I/Os	1	1
Number of terminals	48	40
Number of timers	3	3
On-chip data RAM width	8	8
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP
Encapsulate equivalent code	QFP48,.35SQ,20	DIP40,.6
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	240	240
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	256	256
RAM (number of words)	256	256
speed	20 MHz	33 MHz
Maximum slew rate	30 mA	55 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	0.5 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
