BA5932FP: Description3-channel BTL driver for CDs, CDROMs, DVDs and DVD-ROMs; CategoryOther integrated circuit (IC) Consumption circuit; File Size130KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA5932FP Overview

3-channel BTL driver for CDs, CDROMs, DVDs and DVD-ROMs

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	28
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G30
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum slew rate	15.5 mA
Maximum supply voltage (Vsup)	13.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	7.5 mm

Optical disc ICs

3-channel BTL driver for CDs, CD-

ROMs, DVDs and DVD-ROMs

BA5932FP

The BA5932FP is a 3-channel BTL driver designed for CD and DVD player actuators and loading drives. The actuator

drive can be set to the desired gain and f characteristic with attached components, making this IC adaptable for a wide

array of applications.

FApplications

CD and DVD players, CD-ROM drives, DVD-ROM

drives, and other optical disc devices

FFeatures

1) 28-pin HSOP package for application miniaturiza-

tion.

2) Gain is adjustable with an attached resistor.

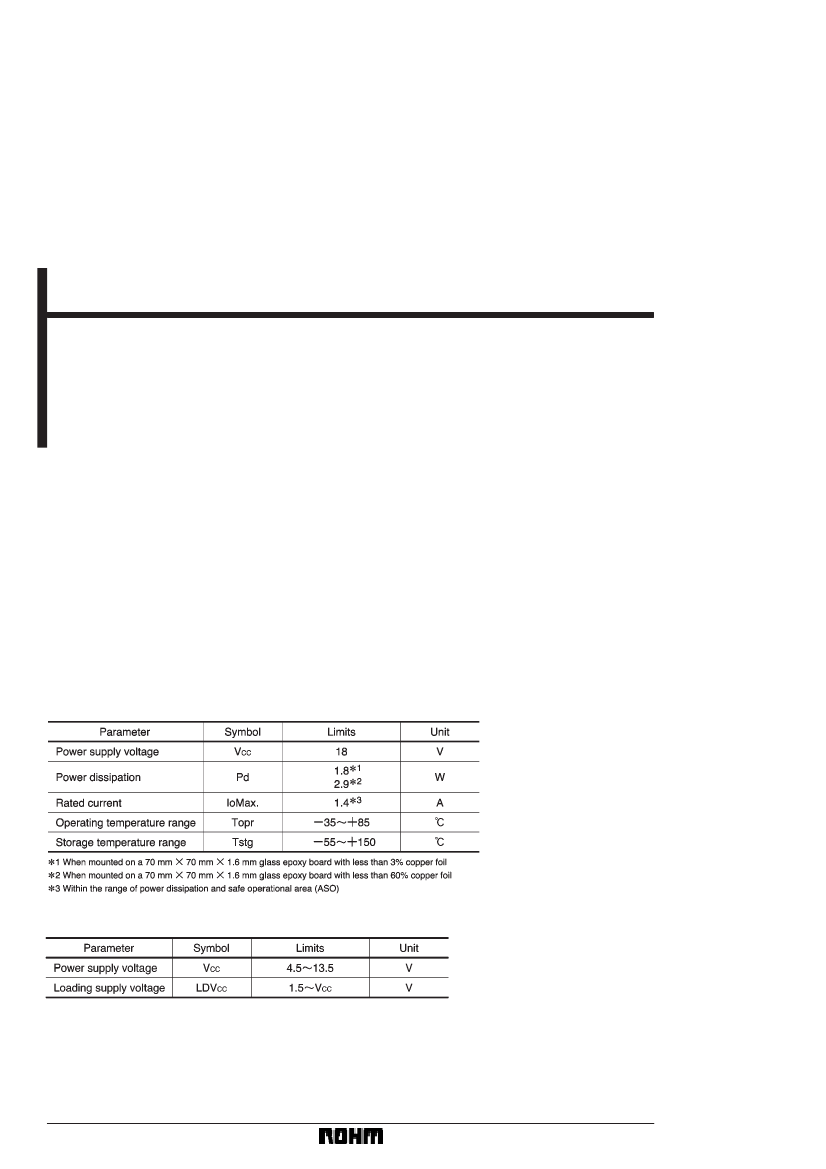

FAbsolute

maximum ratings (Ta = 25_C)

3) Positive and negative input pins, for a wide range of

input types, including reverse phase input.

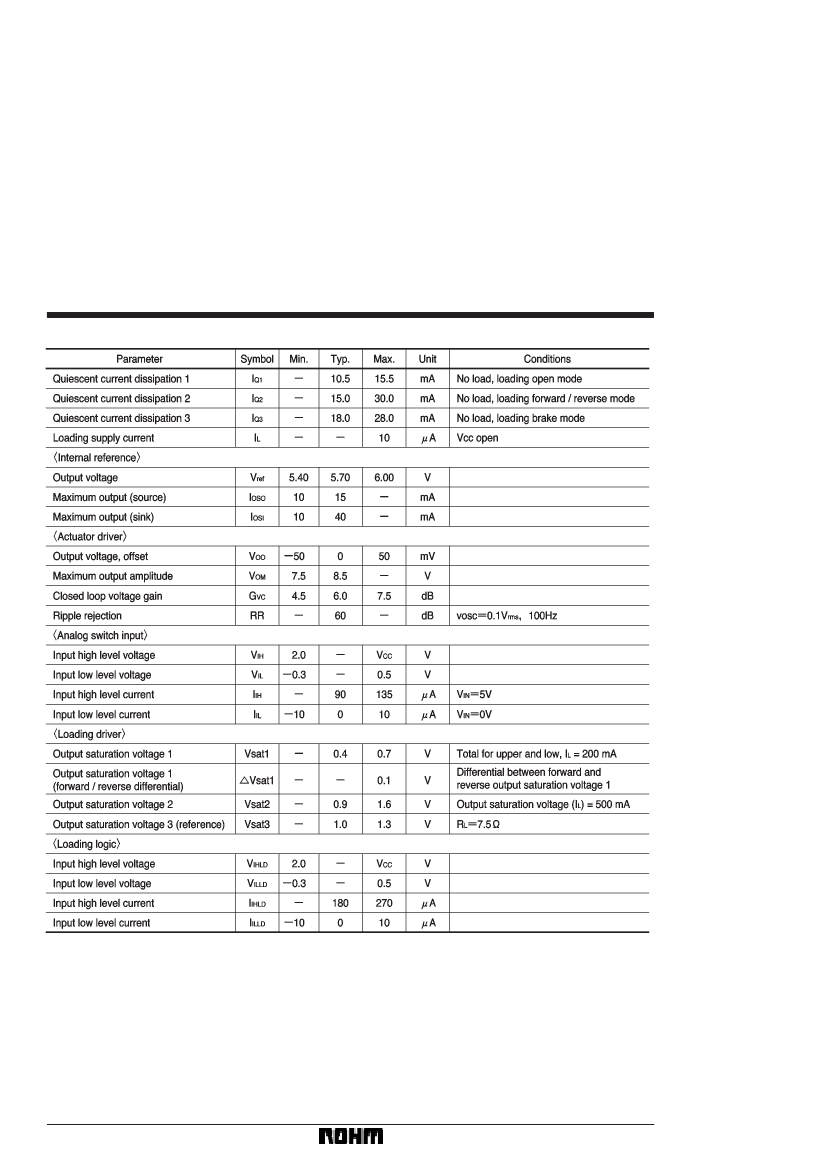

FRecommended

operating conditions (Ta = 25_C)

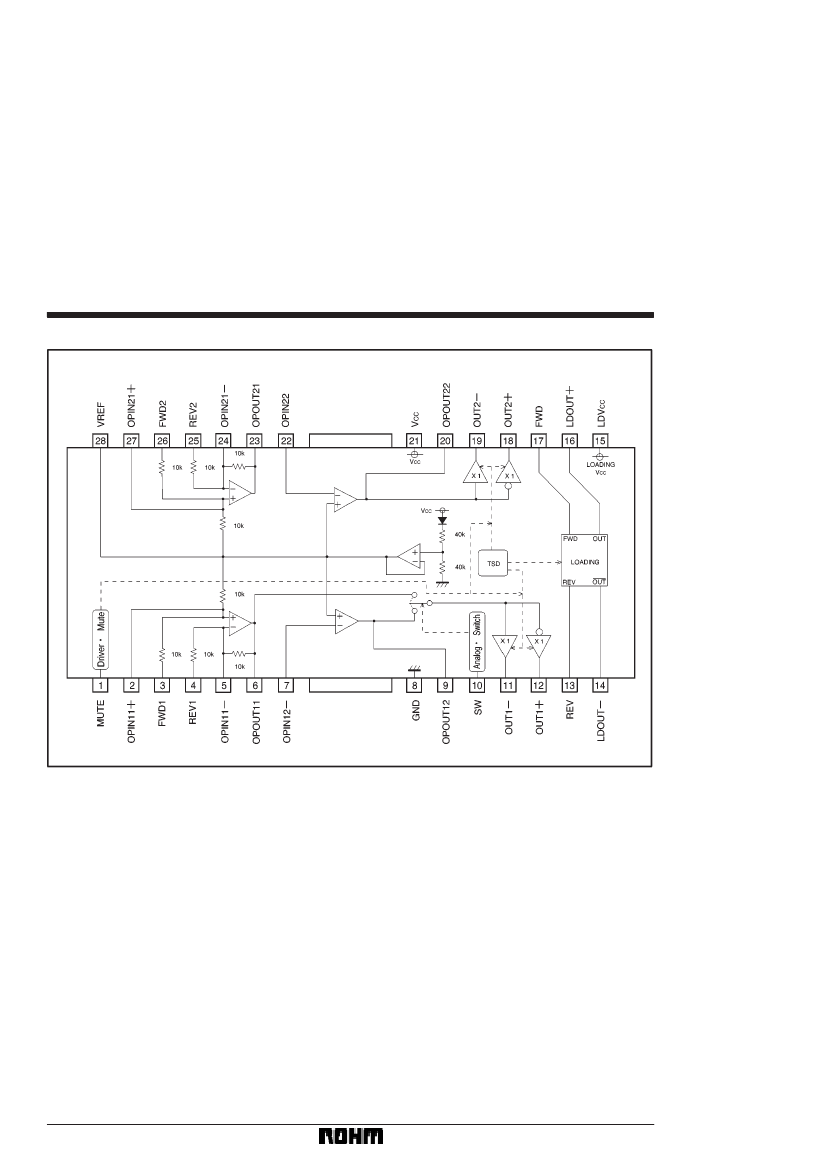

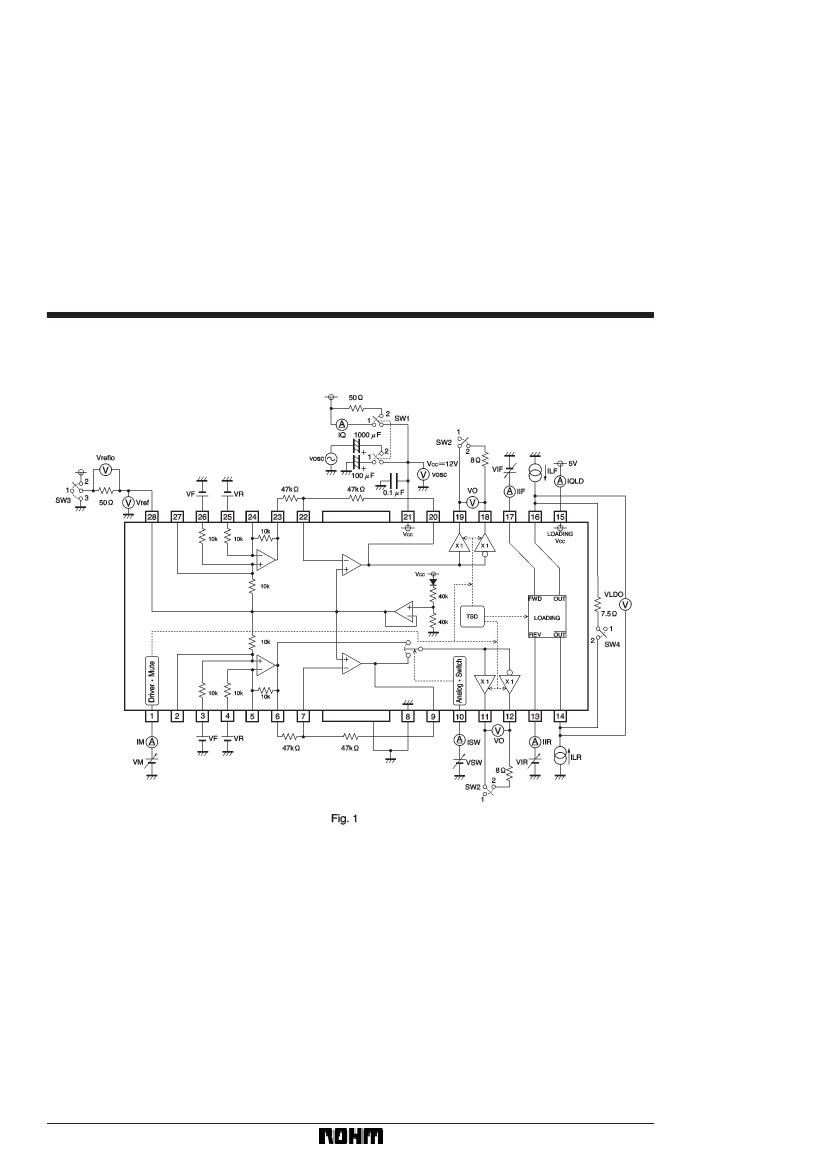

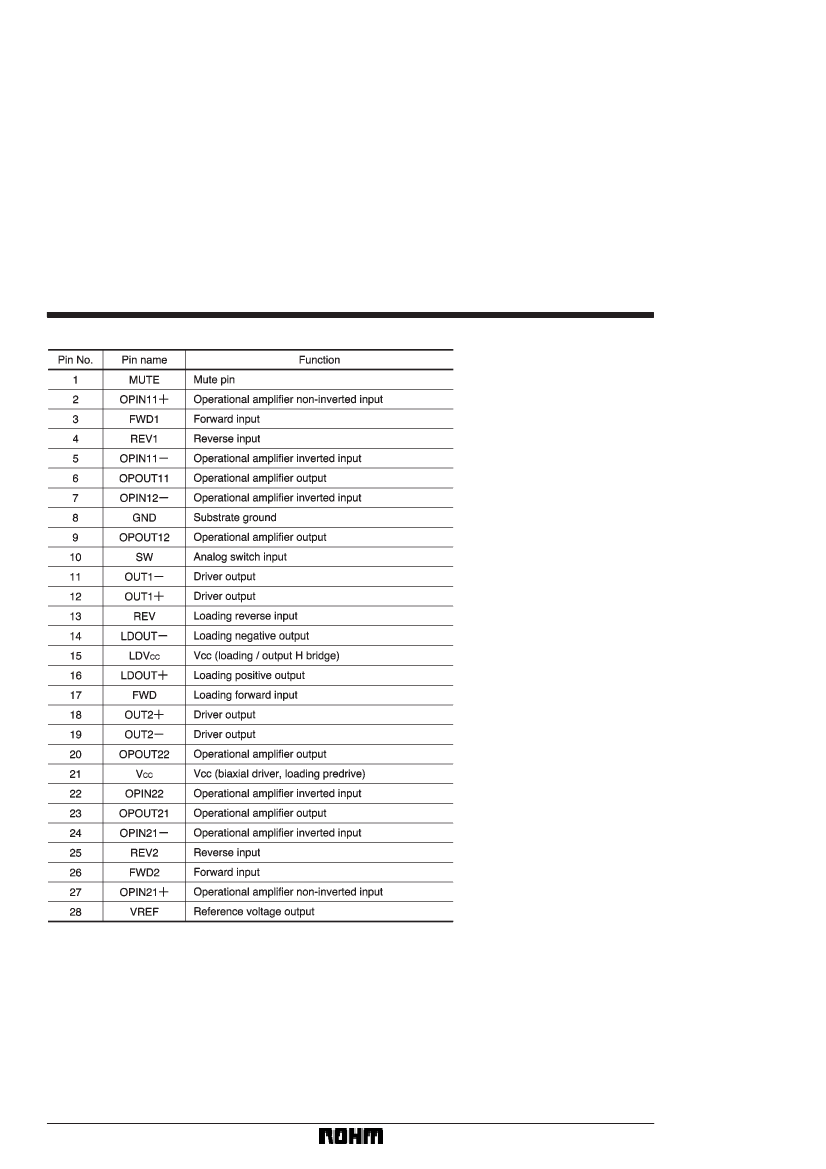

219

	BA5932FP	BA5932
Description	3-channel BTL driver for CDs, CDROMs, DVDs and DVD-ROMs	3-channel BTL driver for CDs, CDROMs, DVDs and DVD-ROMs
