BA5936S: Description6-channel BTL driver for CD players; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size152KB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA5936S Overview

6-channel BTL driver for CD players

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	SDIP-32
Contacts	32
Reach Compliance Code	compli
Drive type	OPTICAL
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDIP-T32
JESD-609 code	e3/e2
length	28 mm
Number of channels	6
Number of functions	1
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	5 mm
Maximum supply voltage	13.2 V
Minimum supply voltage	6 V
Nominal supply voltage	8 V
surface mount	NO
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	10.16 mm

Optical disc ICs

6-channel BTL driver for CD players

BA5936S

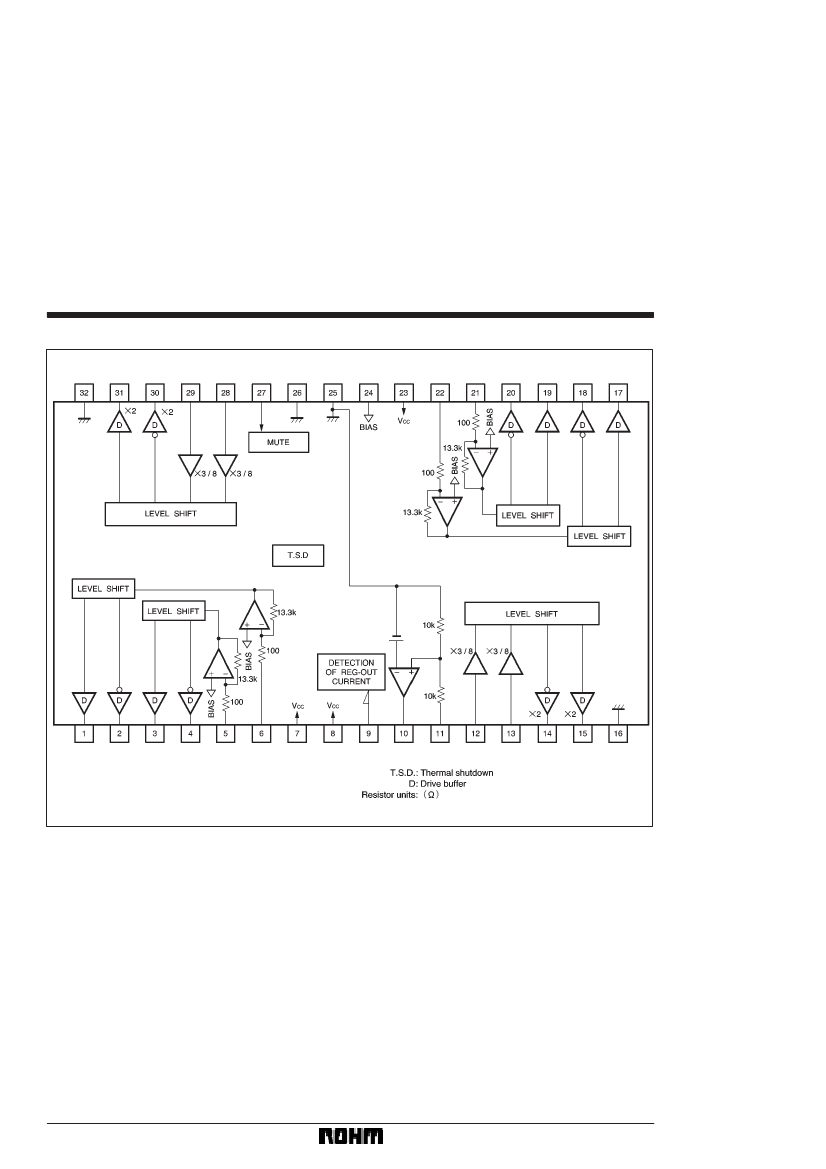

The BA5936S is a 6-channel BTL driver developed for use as the sled motor, spindle motor, actuator, and loading motor

driver for CD players. It contains a current limiting function and 5V regulator for compatibility in a wide range of applica-

tions.

FApplications

CD players

FFeatures

1) 6-channel BTL driver for CD players.

Contains 4 channels for the focus coil, tracking coil,

sled motor, and spindle motor drives; and 2 channels

for the loading motor driver.

2) Internal 5V regulator with a earth protection circuit

(requires an external PNP transistor).

FAbsolute

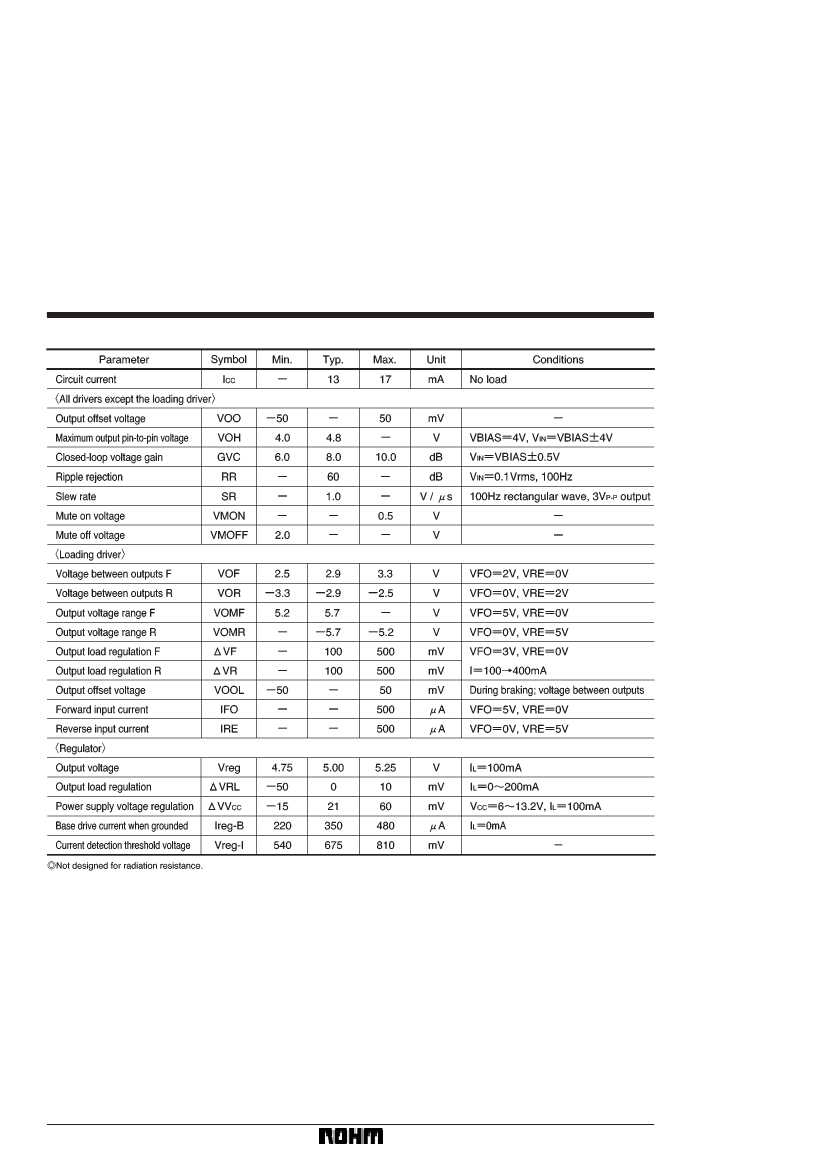

maximum ratings (Ta = 25_C)

3) Internal mute circuit (enables the muting of the driver

outputs from all but the loading driver, and muting of

the regulator output).

4) Internal thermal shutdown circuit.

FRecommended

operating conditions (Ta = 25_C)

708
