TC7W02 datasheet, PDF - EEWORLD Datasheet

TC7W02: DescriptionHC/UH SERIES, DUAL 2-INPUT NOR GATE, PDSO8; Categorysemiconductor logic; File Size195KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

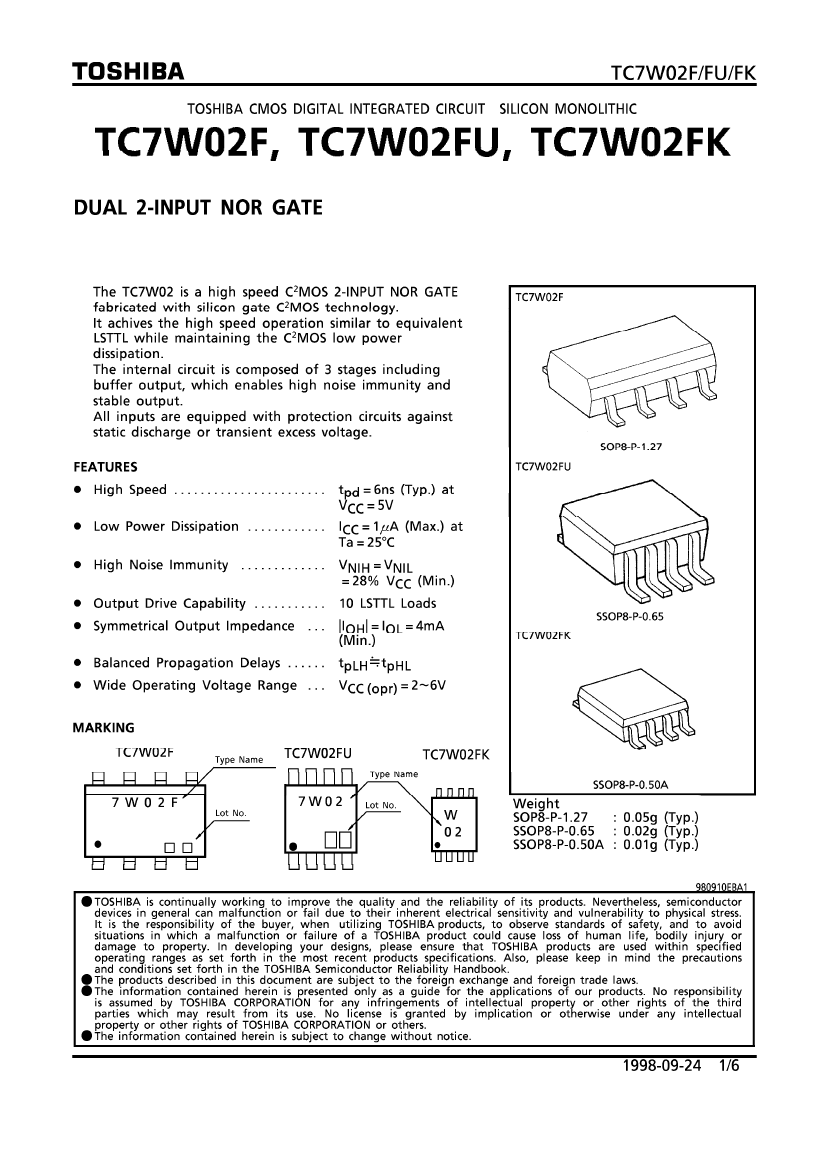

TC7W02 Overview

HC/UH SERIES, DUAL 2-INPUT NOR GATE, PDSO8

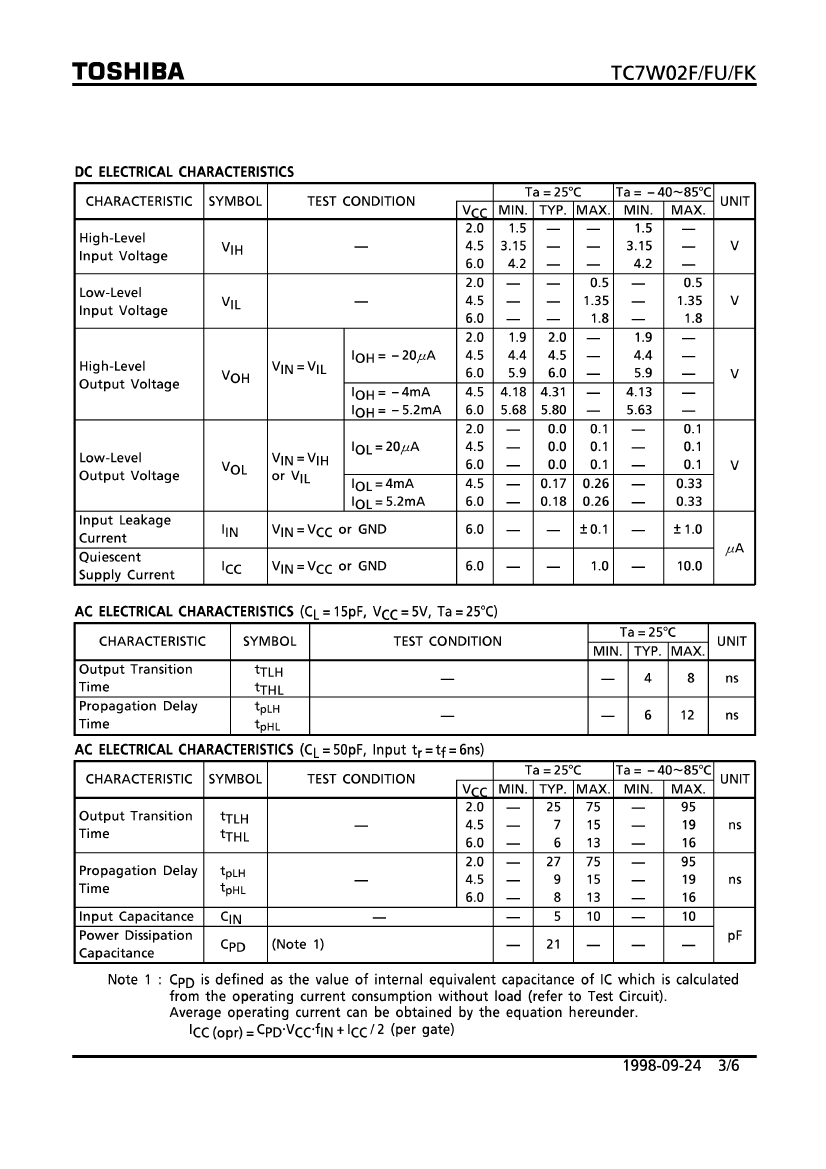

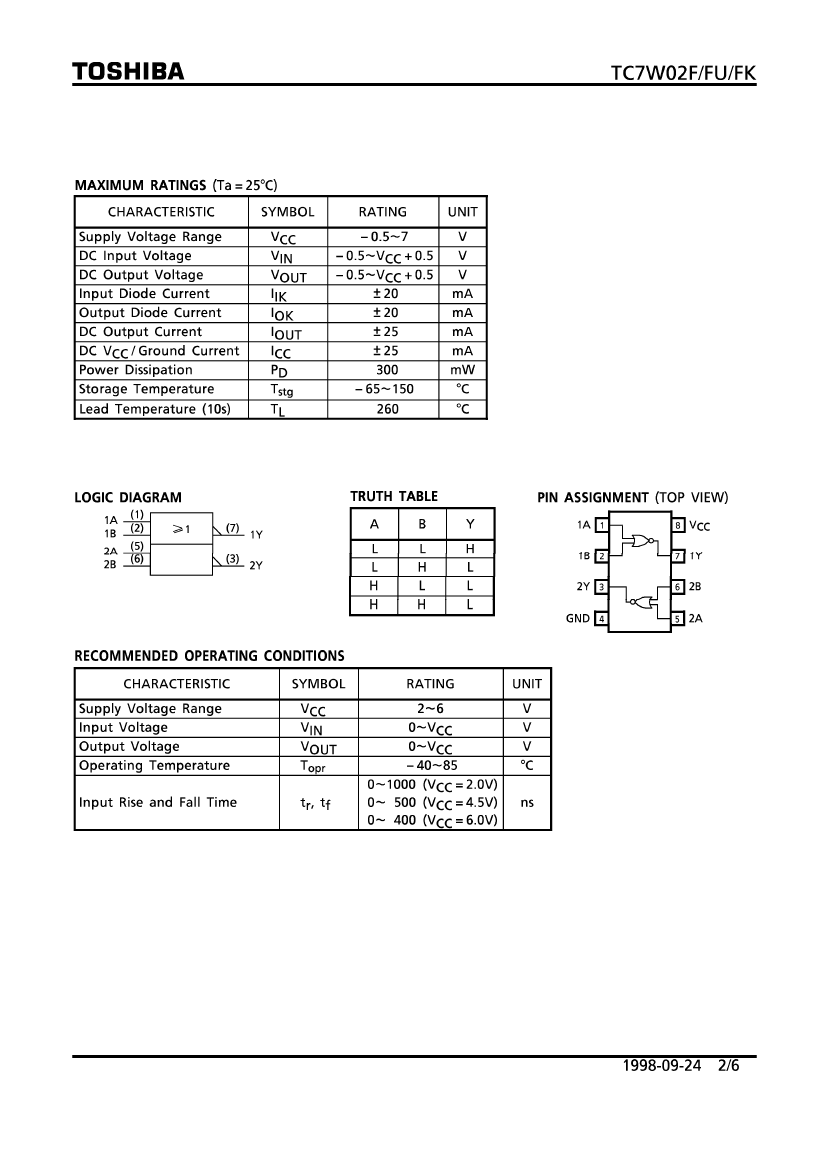

Parameter Name	Attribute value
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	6 V
Minimum supply/operating voltage	2 V

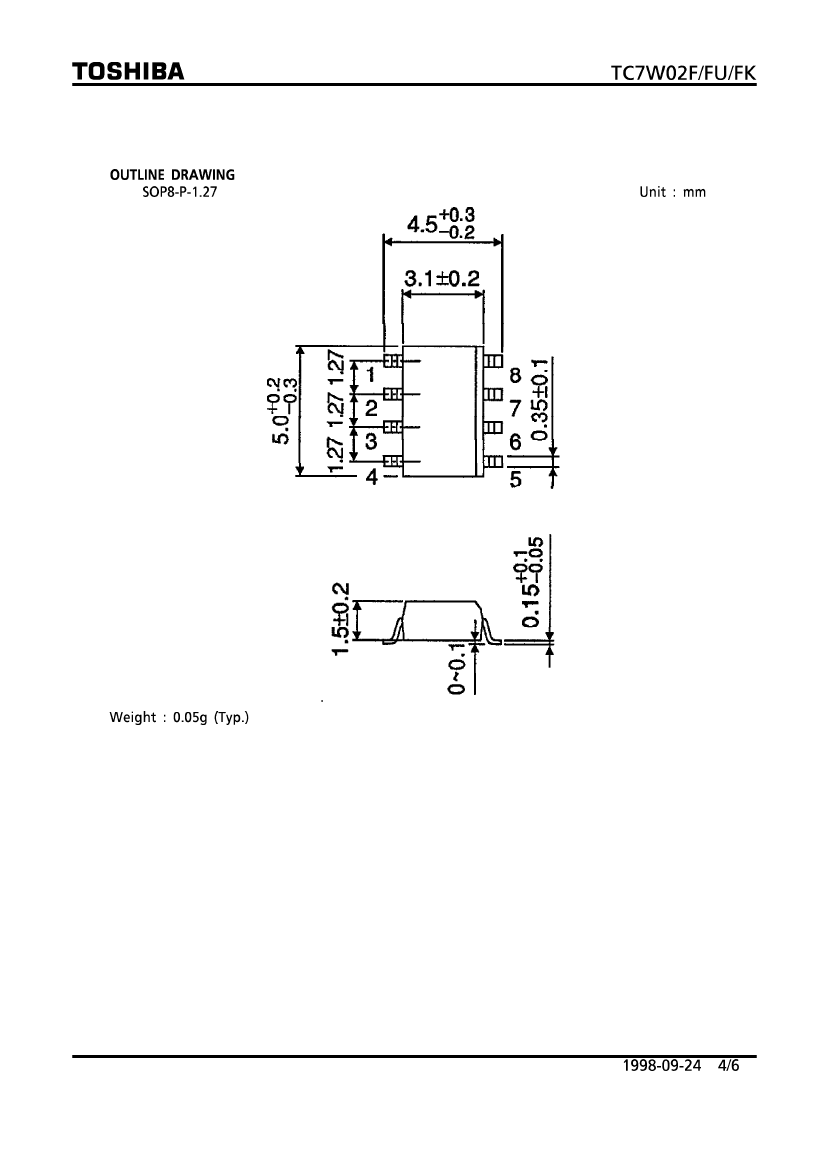

Processing package description	0.65 MM PITCH, PLASTIC, SSOP-8
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.6500 mm
terminal coating	NOT SPECIFIED
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
series	HC/UH
Logic IC type	NOR
Number of inputs	2
propagation delay TPD	95 ns
