Female Header 2.0mm Side Entry SMT & DIP / Elevated SMT / Straight & Press Fit Type
Specifications
Current Rate:2 AMP
Insulation Resistance:1000MΩ Min.
Contact Resistance:20mΩ Max.
Dielectric Voltage:500V AC for one minute
Operation Temperature:-40°C to +105°C
Material
Insulator:P.B.T or Hi-Temp. Thermoplastic, UL 94V-0
Terminal:Copper Alloy
Plating:Gold Plated
ORDER INFORMATION
P S 2 X X 9 4 - X
MS:Side Entry SMT Type
RS:Side Entry Dip Type
X X
◎G:Gold Flash
GA:Gold 5u"
GB:Gold 10u"
GC:Gold 20u"
GD:Gold 30u"
X
S:Selective
B
A/B/C
Fill in Dimensions
For Special Design
(Only for PS2EM)
X
◎O:W/O Peg
P:With Peg
X
X
◎T:Tube
R:Tape & Reel
A:Tray
Code A only for
PS2S/PS2FS
X
Dim.A
XXX
-
X
Plastic Height
94:9.35mm
(Only for PS2S/PS2FS)
1:Single Row
2:Dual Row
4:Quadruple Row
L:RoHS + P.B.T
U:RoHS + Hi-Temp.
(L only for PS2S/PS2FS)
SA:Selective 5u"
SB:Selective 10u"
SC:Selective 20u"
SD:Selective 30u"
300:3.00mm
1215:12.15mm
EM:Elevated SMT Type
(Only for PS2MS Dual Row )
S:Straight Type
FS:Press Fit Type
(Quadruple only
for PS2S/PS2FS)
P.C.B Layout
◎A:A Type
B:B Type
(Only for PS2MS Dual Row )
8.00±0.25
6.00
4.00
2.00
9.35±0.20
SQ 0.50
2.00 x No. of Posi ons±0.30
2.95±0.15
Addi onal
Plas c
8.00±0.15
11.35±0.15

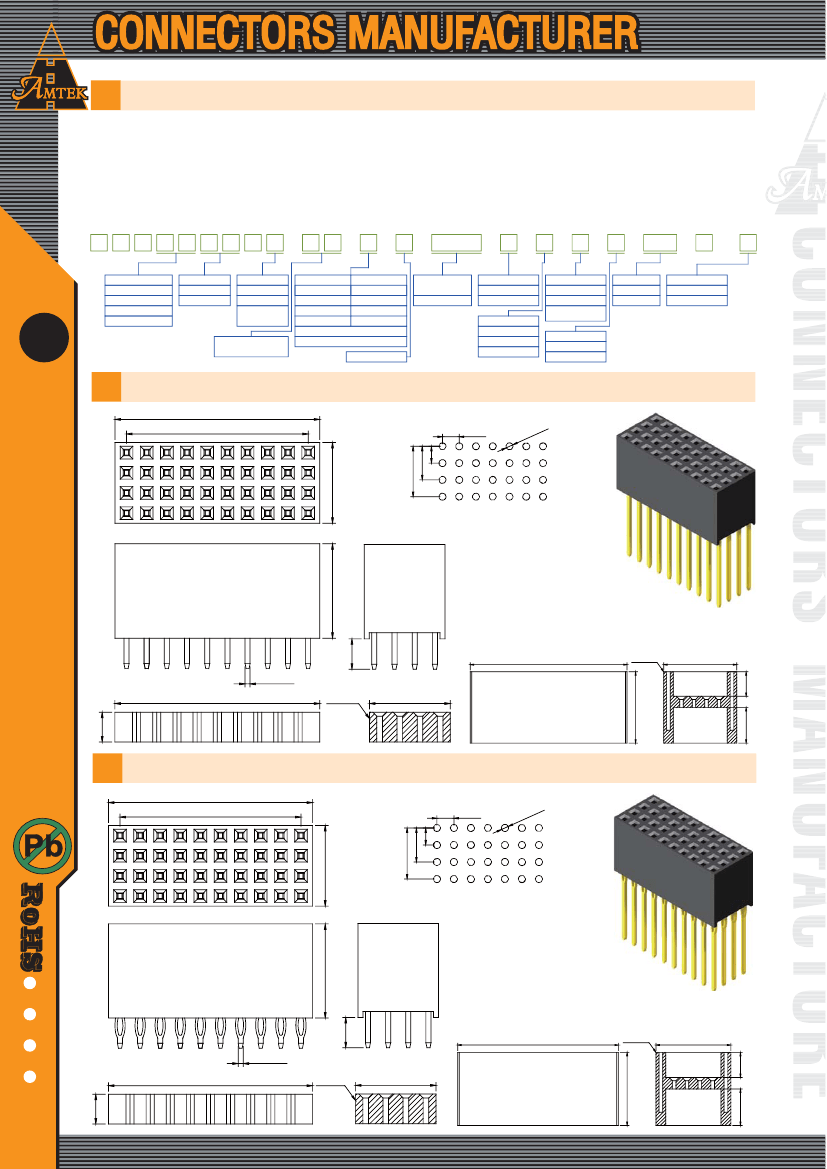

Female Header 2.0mm 4 Row H=9.35mm Press Fit Type
2.00 x No. of Posi ons+0.30±0.30
2.00 x (No. of Contacts4/-1)±0.20
6.00
4.00
2.00
2.00
0.85
9
+0.000
-0.
8.00±0.25
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
9.35±0.20
Part No.:PS2FS94-4XX-L/U
2.00 x No. of Posi ons+5.0±0.30
Tail Shroud
11.65±0.25
3.90±0.10
5.65±0.10
SQ 0.50
2.00 x No. of Posi ons±0.30
2.95±0.15
Addi onal
Plas c
8.00±0.15
2-37
www.amtek-co.com.tw
11.35±0.15
5.65±0.10
3.90±0.10
F
emale Header 2.0mm
T:Tin Plated
◎:Standard Recommend
No. of Contact Per Row
(02~40)
TE:Tin 200u"
◎B:Black insulator
1:With Additional Plastic
2:W/O Additional Plastic
(For 1215 only)
Pin Header 2.0mm 4 Row H=9.35mm Straight Type
2.00 x No. of Posi ons+0.30±0.30
2.00 x (No. of Contacts4/-1)±0.20
2.00
-0.0
0.85
9
+0.0 0
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
Part No.:PS2S94-4XX-L/U
2.00 x No. of Posi ons+5.0±0.30
Tail Shroud
Dim.A
Dim.A
11.65±0.25
F
2.00±0.15
emale Header 2.0mm
2.16±0.25

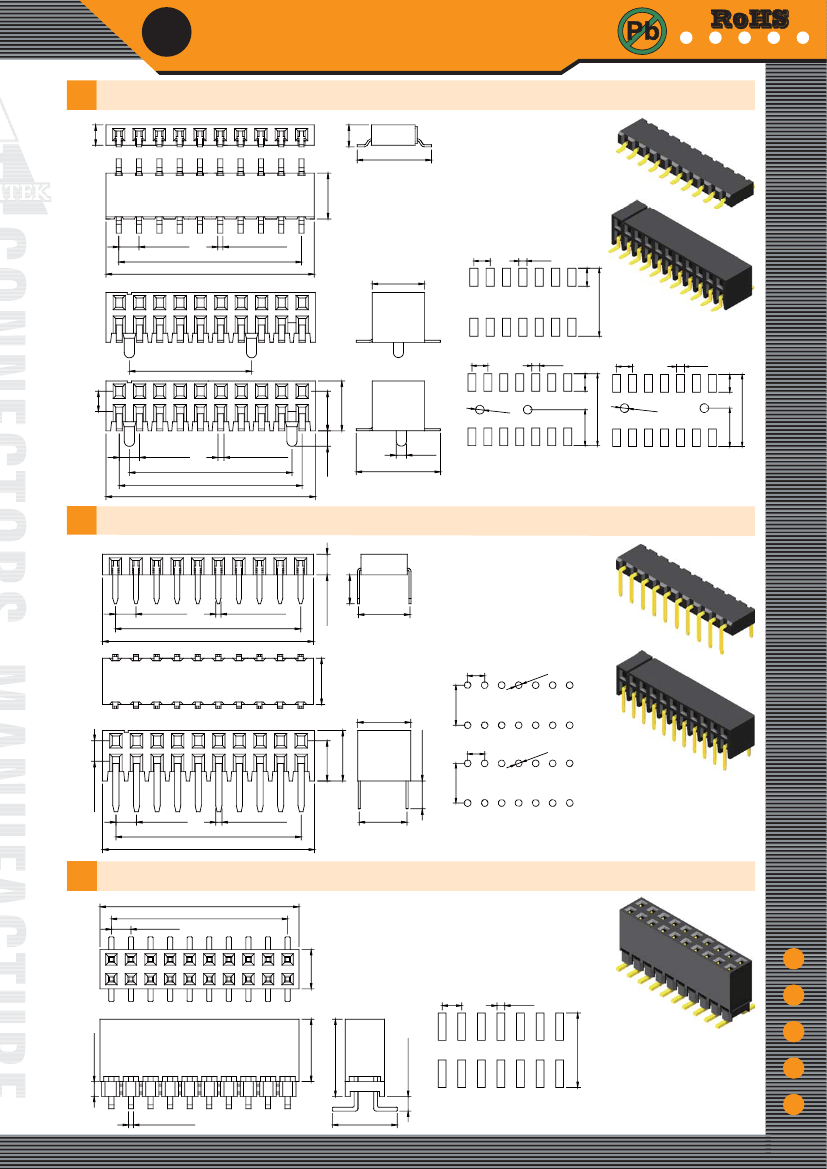

Female Header 2.0mm 1 & 2 Row Side Entry SMT Type
7.30±0.25
2.00±0.10
PIN 0.50x0.20
2.00
1.00
2.20
Single Row
2.00 x (No. of Contacts-1)±0.20
2.00 x No. of Posi ons0.50±0.30
5.15±0.15
4.50±0.15
2.00 x (No. of Contacts/2-4)±0.20
4.90±0.15
A Type
2.00
1.00
2.20
8.30
2.00
1.00
2.20
2.00
3.90
9.00
1.10
2.00±0.10
PIN 0.60x0.20
1.50
1.02
8.30±0.25
B Type
4.50
A Type
2.00 x (No. of Contacts/2-2)±0.20
2.00 x (No. of Contacts/2-1)±0.20
2.00 x No. of Posi ons±0.30
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
B Type
Part No.:PS2MS-1/2XX-U
Female Header 2.0mm 1 & 2 Row Side Entry DIP Type
2.80±0.25
2.00±0.10
PIN 0.50x0.20
2.00 x (No. of Contacts-1)±0.20
2.00 x No. of Posi ons+0.50±0.30
2.00±0.15
4.70±0.25
2.00
0.80
5.15±0.15
4.90±0.15
2.70±0.25
Single Row
4.70
2.00±0.05
3.90
2.00
0.80
4.65
2.00±0.10
PIN 0.60x0.20
2.00 x (No. of Contacts2/-1)±0.20
2.00 x No. of Posi ons+1.0±0.30
4.65±0.20
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
Part No.:PS2RS-1/2XX-U
Female Header 2.0mm 2 Row Elevated SMT Type
2.00 x No. of Posi ons+0.50±0.30
2.00 x (No. of Contacts2/-1)±0.20
2.00±0.10
4.00±0.20
2.00
0.80
1.50±0.10
6.35±0.15
A(7.87)±0.25
C(1.50)±0.25
Recommended PCB Layout
(PCB TOLERANCE ±0.05)
PIN 0.52x0.40
B(6.60)±0.25
B+1.00
Part No.PS2EM-2XX-U
www.amtek-co.com.tw
2-38
4.80
9.00
1.10
4.50
