BA6138F datasheet, PDF - EEWORLD Datasheet

BA6138F: DescriptionSquare-law compression amplifiers; CategoryOther integrated circuit (IC) Consumption circuit; File Size77KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

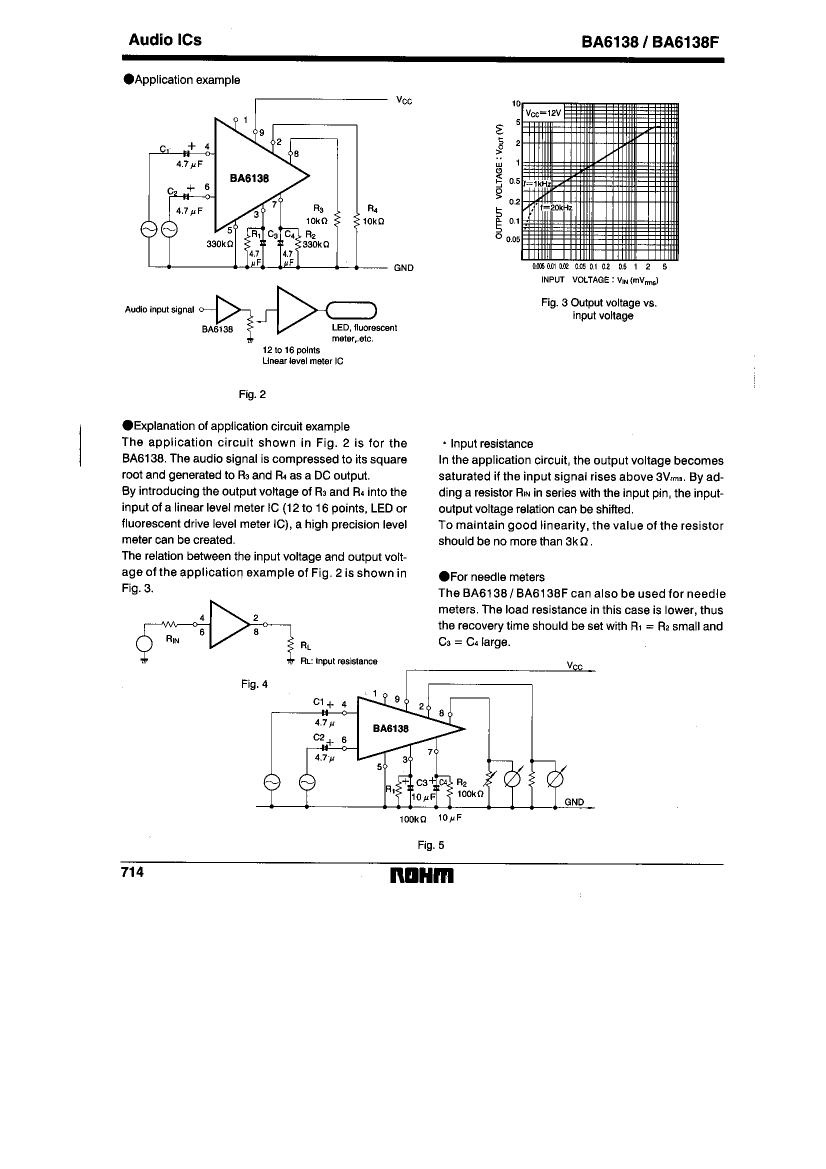

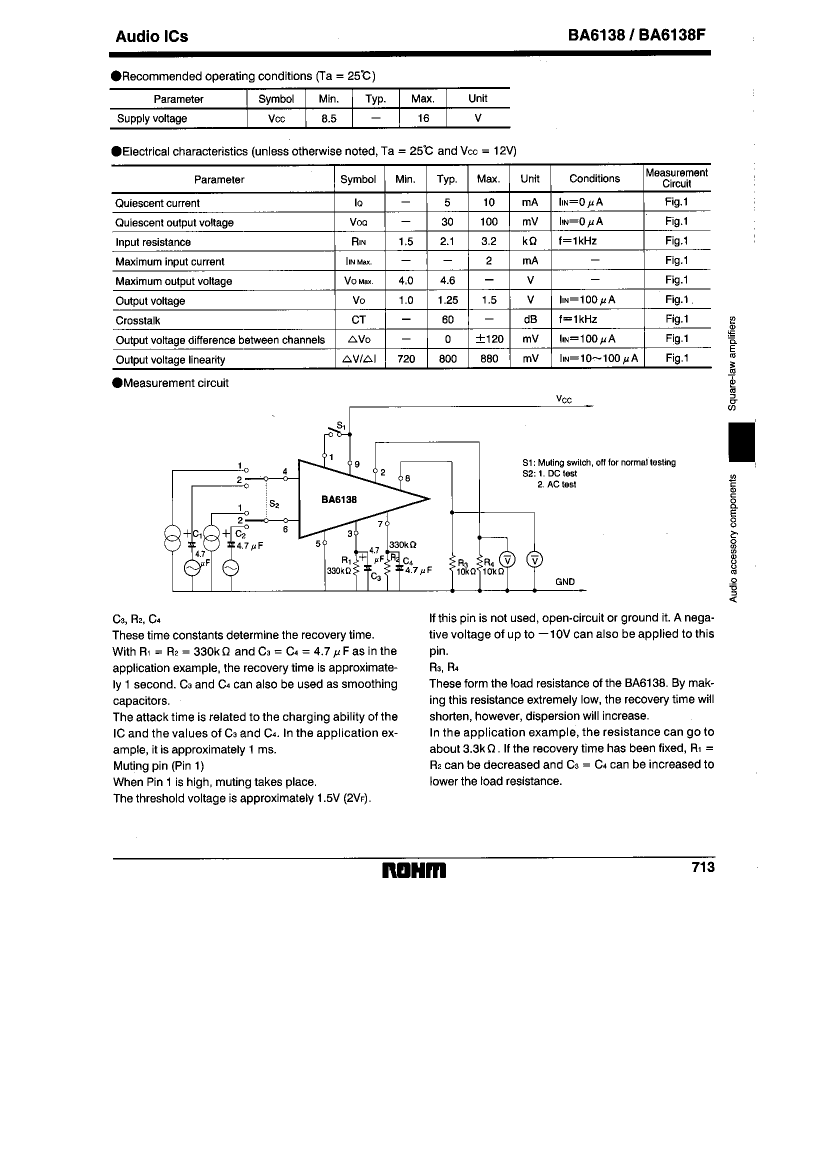

BA6138F Overview

Square-law compression amplifiers

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	14
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G14
length	8.7 mm
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	10 mA
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	8.5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

	BA6138F	BA6138
Description	Square-law compression amplifiers	Square-law compression amplifiers
Is it Rohs certified?	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SIP
package instruction	LSOP,	SIP,
Contacts	14	9
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G14	R-PSIP-T9
length	8.7 mm	21.8 mm
Number of terminals	14	9
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	SIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	7.2 mm
Maximum slew rate	10 mA	10 mA
Maximum supply voltage (Vsup)	16 V	16 V
Minimum supply voltage (Vsup)	8.5 V	8.5 V
surface mount	YES	NO
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	SINGLE
width	4.4 mm	2.8 mm
