MBR10250CT: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 250V V(RRM), Silicon, TO-220AB,; CategoryDiscrete semiconductor diode; File Size304KB，3 Pages; ManufacturerViking Tech Corp

Download Datasheet Parametric Compare View All

MBR10250CT Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 250V V(RRM), Silicon, TO-220AB,

MBR10250CT Parametric

Parameter Name	Attribute value
Maker	Viking Tech Corp
package instruction	R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	250 V
Maximum reverse current	100 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

Data Sheet

Customer：

Product :

Part No.:

High Power

Schottky Diode

MBR1040CT/MBR1060CT/MBR10100CT/MBR10150CT

MBR10200CT/MBR10250CT

11-Jan-11

REV.A

Issued Date:

Edition :

VIKING TECH CORPORATION

光頡科技股½有限公司

No.70, Kuanfu N. Rad.,

Hsin Chu Industrial Park,

Hukou Hsiang, Hsin Chu Hsien,

303, Taiwan

TEL:886-3-5972931

FAX:886-3-5972935•886-3-5973494

E-mail:sales@viking.com.tw

VIKING TECH CORPORATION KAOHSIUNG BRANCH

光頡科技股½有限公司高雄分公司

No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung,

806, Taiwan

WUXI TMTEC CO., LTD.

無錫泰銘電子有限公司

No.1A,(Xixia Road),Machinery & Industry Park,

National Hi-Tech Industrial Development Zone of

Wuxi, Wuxi, Jiangsu Province, China

Zip Code:214028

TEL:86-510-85203339

FAX:86-510-85203667•86-510-85203977

E-mail:wuxisales@tmtec.com.tw

TEL:886-7-8217999

FAX:886-7-8228229

E-mail:sales@viking.com.tw

Produced by

(QC)

11-Jan-11

Checked

(QC)

11-Jan-11

Approved by

(QC)

11-Jan-11

Prepared by

(Sales)

11-Jan-11

Accepted by

(Customer)

Kris

Ann

J.C Liu

Tel: +886-3-597-2931／Fax: +886-3-597-2935

70, Kuanfu N Road, HsinChu Industrial Park, 303 Taiwan, ROC

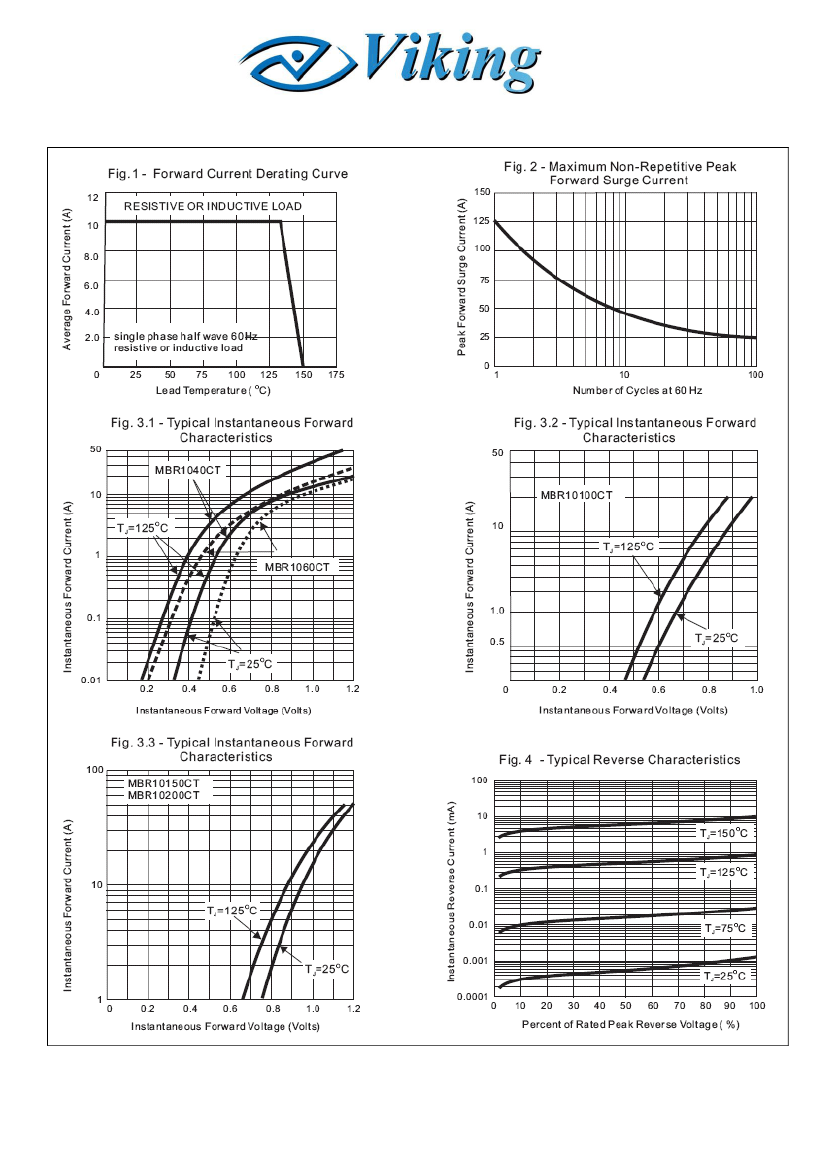

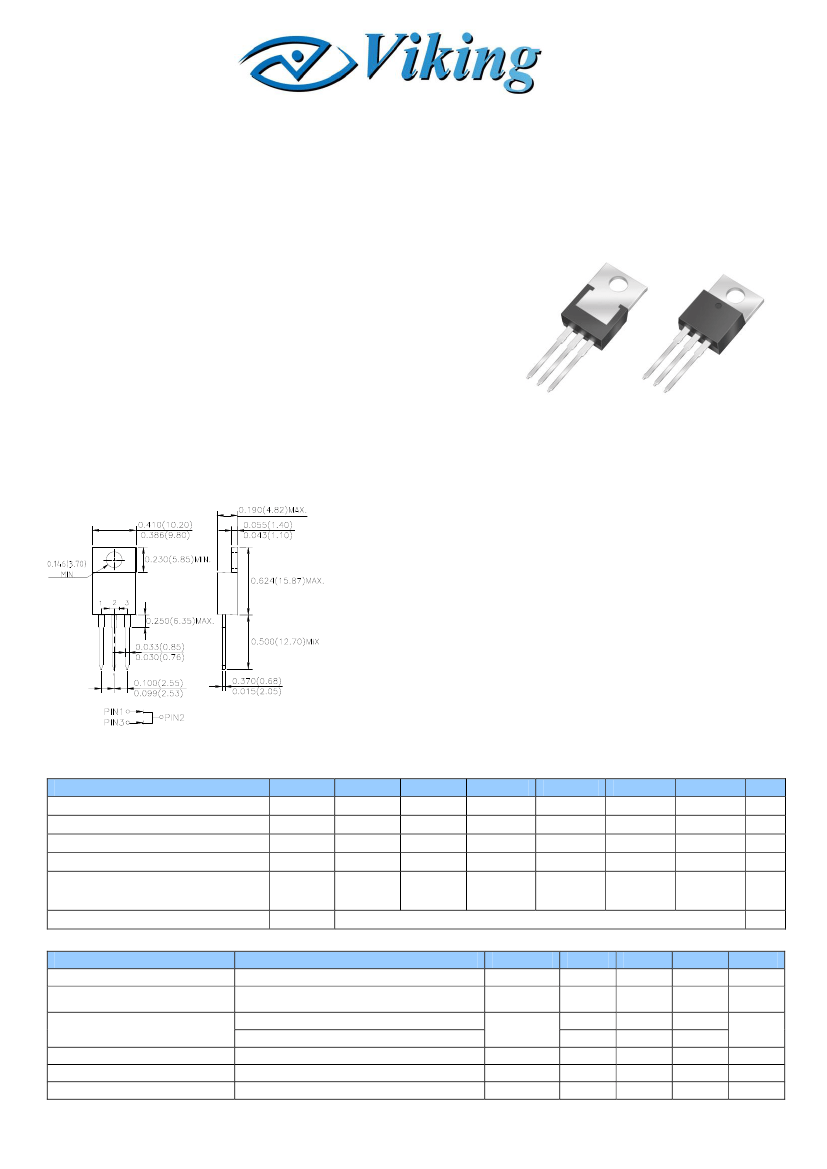

MBR10250CT Related Products

	MBR10250CT	MBR1040CT	MBR10150CT	MBR1060CT
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 250V V(RRM), Silicon, TO-220AB,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 40V V(RRM), Silicon, TO-220AB,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 150V V(RRM), Silicon, TO-220AB,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 60V V(RRM), Silicon, TO-220AB,
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.84 V	1 V	0.95 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	250 V	40 V	150 V	60 V
Maximum reverse current	100 µA	100 µA	100 µA	100 µA
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Viking Tech Corp	-	Viking Tech Corp	Viking Tech Corp
