Zero Delay, Differential-to-LVCMOS/

LVTTL Clock Generator

Not Recommend for New Designs

8705I

DATA SHEET

ENERAL

ESCRIPTION

The 8705I is a highly versatile 1:8 Differential-to-LVCMOS/

LVTTL Clock Generator. The 8705I has two selectable clock

inputs. The CLK1, nCLK1 pair can accept most standard

differential input levels. The single ended CLK0 input accepts

LVCMOS or LVTTL input levels.The 8705I has a fully integrated

PLL and can be conﬁgured as zero delay buffer, multiplier

or divider and has an input and output frequency range of

15.625MHz to 250MHz. The reference divider, feedback divider

and output divider are each programmable, thereby allowing for

the following output-to-input frequency ratios: 8:1, 4:1, 2:1, 1:1,

1:2, 1:4, 1:8. The external feedback allows the device to achieve

“zero delay” between the input clock and the output clocks. The

PLL_SEL pin can be used to bypass the PLL for system test and

debug purposes. In bypass mode, the reference clock is routed

around the PLL and into the internal output dividers.

EATURES

• Eight LVCMOS/LVTTL outputs, 7Ω typical output impedance

• Selectable CLK1, nCLK1 or LVCMOS/LVTTL clock inputs

• CLK1, nCLK1 pair can accept the following differential

input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL

• CLK0 input accepts LVCMOS or LVTTL input levels

• Output frequency range: 15.625MHz to 250MHz

• Input frequency range: 15.625MHz to 250MHz

• VCO range: 250MHz to 500MHz

• External feedback for “zero delay” clock regeneration

with conﬁgurable frequencies

• Programmable dividers allow for the following output-to-input

frequency ratios: 8:1, 4:1, 2:1, 1:1, 1:2, 1:4, 1:8

• Fully integrated PLL

• Cycle-to-cycle jitter: 45ps (maximum)

• Output skew: CLK0, 65ps (maximum)

CLK1, nCLK1, 55ps (maximum)

• Static Phase Offset: 25 ±125ps (maximum), CLK0

• Full 3.3V or 2.5V operating supply

• Lead-Free package available

• -40°C to 85°C ambient operating temperature

• Not Recommended for New Designs

For new designs, contact IDT.

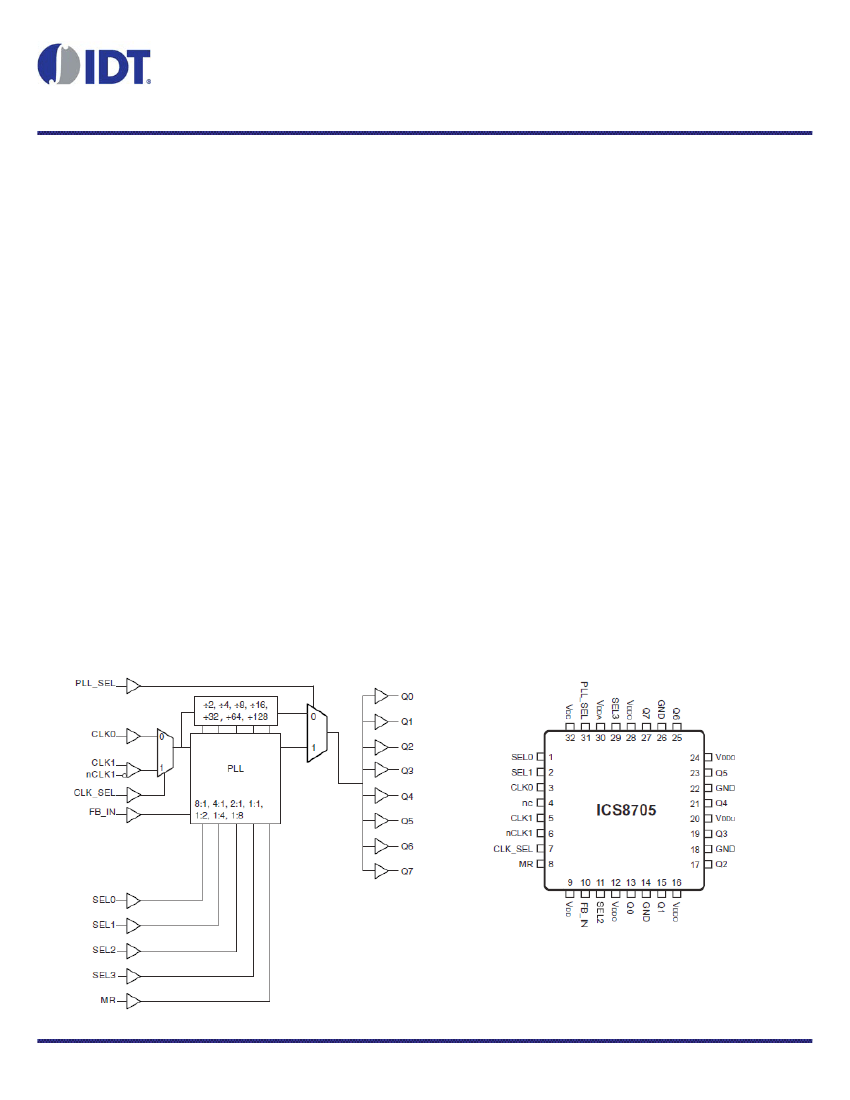

LOCK

IAGRAM

SSIGNMENT

32-Lead LQFP

7mm x 7mm x 1.4 mm

Y Package

Top View

8705I REVISION E 7/13/15
